Leva 80mm Sequential Basin Mixer - No Spout - 1/2 Turn Ceramic Disc
Leva 80mm Sequential Basin Mixer - No Spout - 1/2 Turn Ceramic Disc
Order Code: LEV80306XWSQ
Couldn't load pickup availability
Product description
The LEVA 80 Sequential range combines exceptional quality, ergonomic functionality, and sleek design. Developed for healthcare, aged care, and commercial environments, it provides intuitive operation, enhanced control, and improved accessibility. The ergonomic 80mm lever is designed for comfortable palm or wrist operation, making it particularly suitable for users with reduced strength or dexterity, including arthritis sufferers.
The sequential ceramic cartridge progresses smoothly from Off, to Cold, to Mixed water without a lift action, providing simple, intuitive control while helping to reduce unnecessary hot water consumption.
Options & Configurations
- Compatible with a range of Enware spouts, showers and grab rails, including SPC201, SPC202, SPC203, SPC250, SPC120 and SPC121
- LEV80306WSQ-250 supplied with SPC250 spout
- Optional 150mm lever handle available for AS1428/ADA applications and hands-free elbow operation
Key Selling Points
- Sequential ceramic disc cartridge provides smooth, intuitive operation with cold-start activation and positive shut-off
- Distinct tactile "click" positions at Off, Cold and Mixed settings enhance user control and confidence
- Colour indicators clearly identify Off, Cold, Warm and Hot operating positions
- Adjustable wall flange with O-ring seal simplifies installation and provides a neat, professional finish
- Compact in-wall design with 50mm installation depth suits space-constrained applications
- Supplied with outlet point for installation flexibility
- Compatible with a range of spout configurations to suit application requirements (spout sold separately)
- Durable lead-free brass construction
- Designed for healthcare, aged care and commercial environments where hygiene and ease of use are critical
- Certifications
- WMKA1583 - LF,Health Approved - AU
- Maximum Working Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2" BSP (15mm) FI
- Outlet Connection
- 1/2" BSP (15mm) MI
- Finish
- Chrome
- Valve Type
- Ceramic Disc
- Materials
- Brass
BIM Files
Brochures

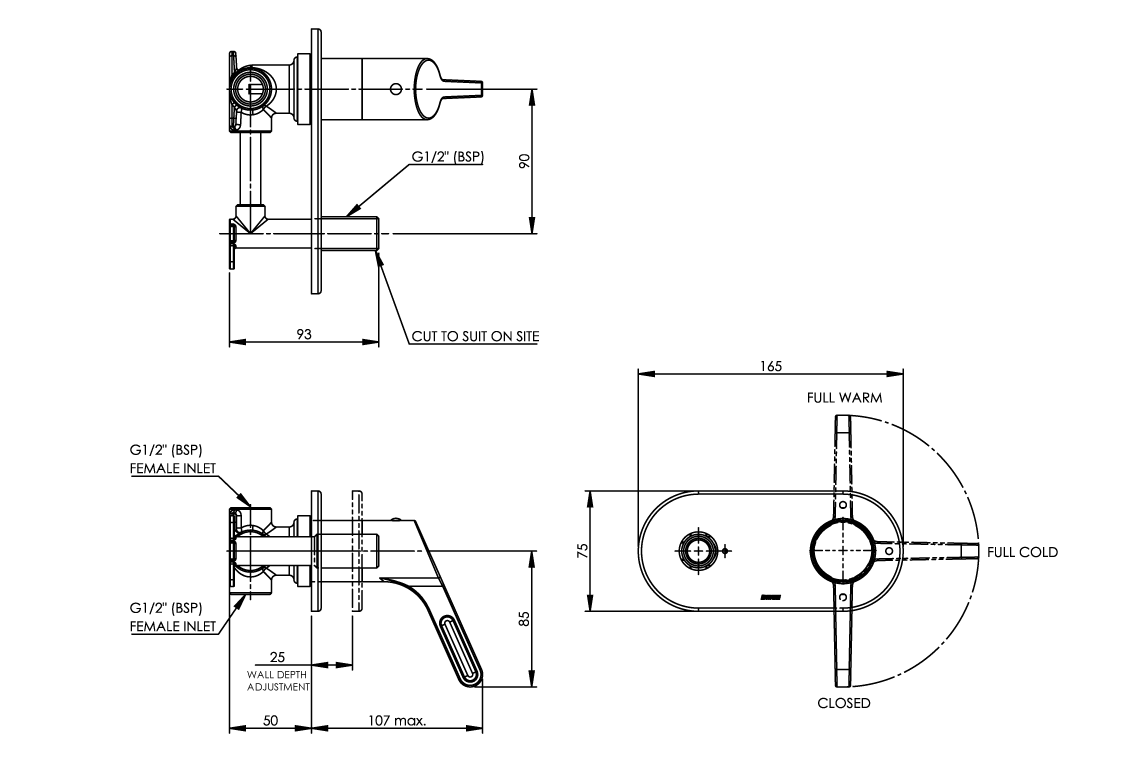

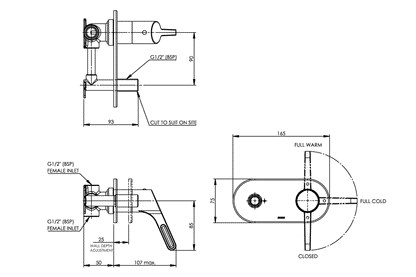

Dimensional Drawings
Product Information
