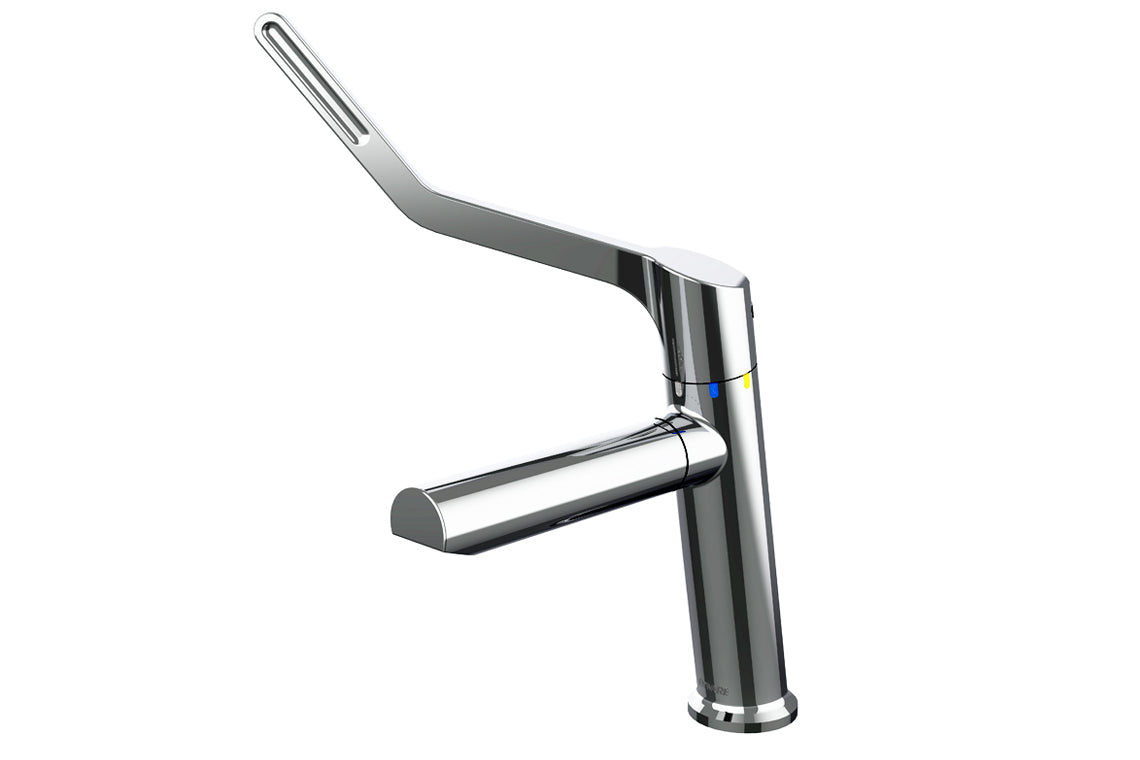

Leva Sequential Basin Mixer - 150mm Lever
Leva Sequential Basin Mixer - 150mm Lever
Order Code: LEV150306SQ
Couldn't load pickup availability
Product description
The LEVA Sequential Basin Mixer is specifically designed for healthcare and aged care environments, combining ergonomic operation with hygienic design. Its extended 150mm lever operates a sequential ceramic cartridge that progresses from off, to cold, to mixed water without a lift action, providing intuitive control and helping to reduce unnecessary hot water consumption. The elevated mixer profile and extended spout improve handwashing accessibility, while the removable spout facilitates cleaning and disinfection. By directing the water stream clear of the basin waste, the spout design helps minimise splash and supports infection control practices in clinical environments. Compatible with the Aquablend Health TMV with Four Way Mixer.
Key Selling Points
- Sequential ceramic disc cartridge provides smooth, intuitive operation with cold-start activation and positive shut-off
- Distinct tactile "click" positions at Off, Cold and Mixed settings enhance user control and confidence
- Extended 150mm lever handle supports AS1428/ADA applications and enables ergonomic wrist or hands-free elbow operation
- Removable spout supports effective cleaning and disinfection procedures
- Laminar flow aerator helps support hygiene-sensitive environments by minimising water aeration and splash
- NEOPERL Soft-PEX inlet hoses provide flexibility, durability and long-term reliability
- Colour indicators clearly identify Off, Cold, Warm and Hot operating positions
- Durable lead-free brass construction with high-quality chrome finish
- 80mm lever handle option available to suit a range of user requirements and applications
- Designed for healthcare, aged care and commercial applications where hygiene and ease of use are critical
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 5
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-5 Star-5Lpm,A&A - AS1428.1 Accessible,Health Approved - AU
- Maximum Working Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 5
- Inlet Connection
- 1/2” BSP (15mm)
- Finish
- Chrome
- Valve Type
- Ceramic Disc
- Materials
- Brass
BIM Files
Brochures

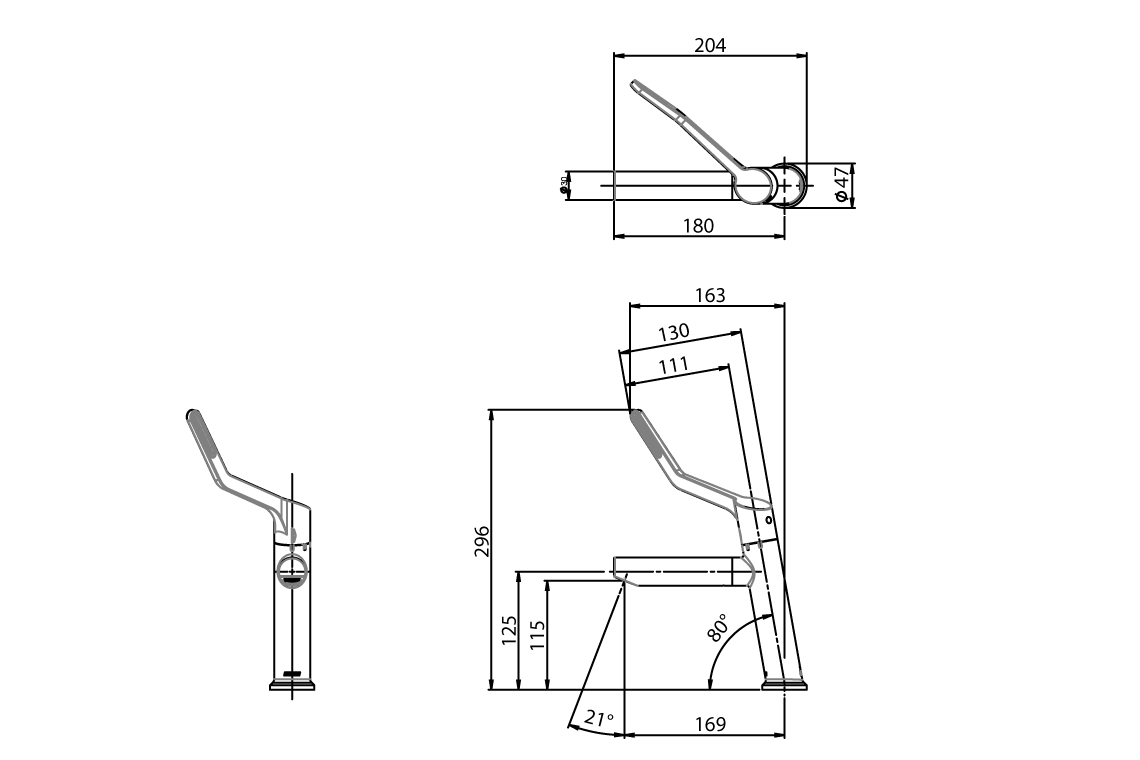

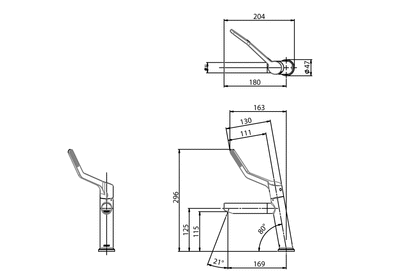

Dimensional Drawings
