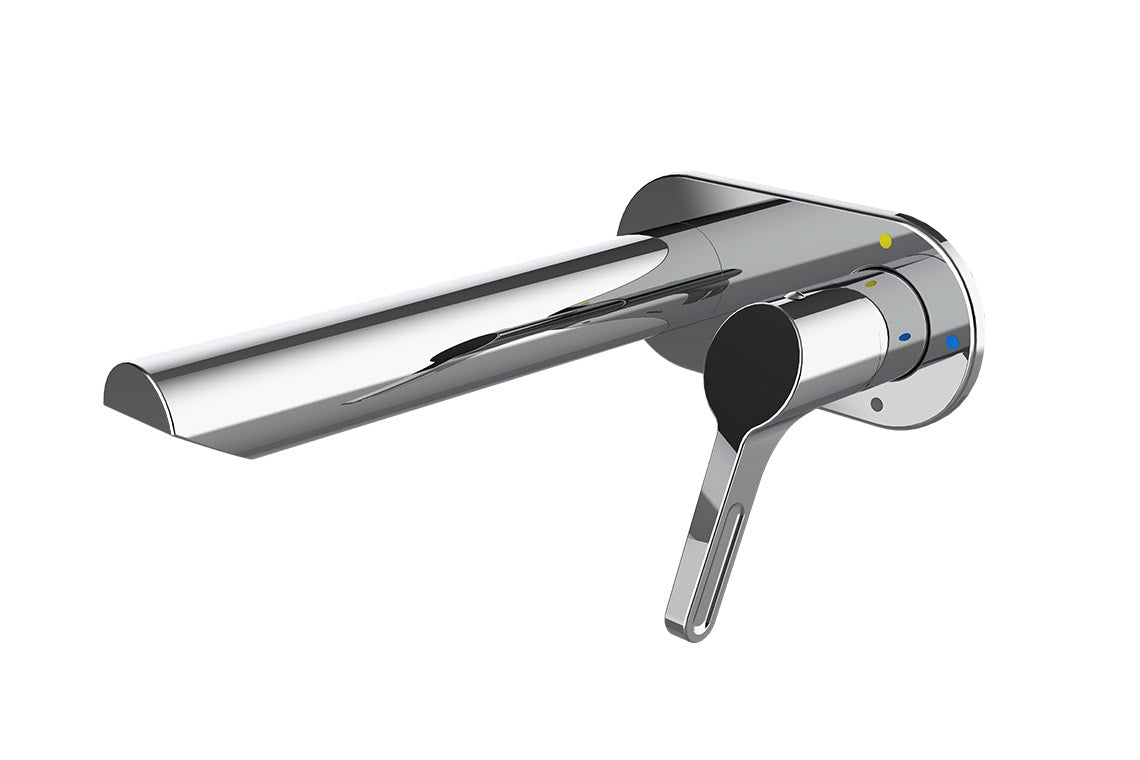

Leva Sequential In-Wall Basin Mixer with 230mm Spout
Leva Sequential In-Wall Basin Mixer with 230mm Spout
Order Code: LEV80306WSQ-250
Couldn't load pickup availability
Product description
The LEVA Sequential range combines premium quality, ergonomic design, and intuitive operation. Developed for healthcare, aged care, and commercial environments, it is designed to withstand the rigours of daily use while accommodating a diverse range of users. The ergonomic lever enables effortless hand or wrist activation through a simple single-plane movement, improving accessibility and ease of use. The sequential ceramic cartridge progresses smoothly from Off, to Cold, to Mixed water without a lift action, providing intuitive control and helping to reduce unnecessary hot water consumption.
Key Selling Points
- Sequential ceramic disc cartridge provides smooth, intuitive operation with cold-start activation and positive shut-off
- Colour indicators clearly identify Off, Cold, Warm and Hot operating positions
- Adjustable wall flange with O-ring seal simplifies installation and provides a neat, professional finish
- Compact in-wall design with 50mm installation depth suits space-constrained applications
- Supplied with SPC250 spout for integrated basin mixer installation
- Laminar flow aerator helps support hygiene-sensitive environments by minimising water aeration and splash
- Durable lead-free brass construction
- Designed for healthcare, aged care and commercial environments where accessibility and ease of use are important
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 5
- Certifications
- WMKA1583 - LF,WELS-5 Star-5Lpm,Health Approved - AU
- Maximum Recommended Temperature (Deg C)
- 70
- Maximum Working Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 5
- Inlet Connection
- 1/2" BSP (15mm) FI
- Finish
- Chrome
- Valve Type
- Ceramic Disc
- Materials
- Brass
BIM Files
Brochures

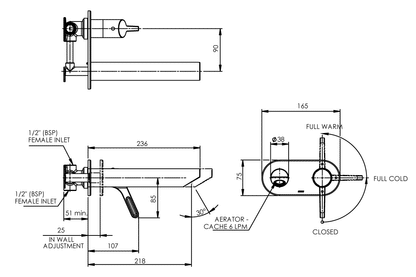

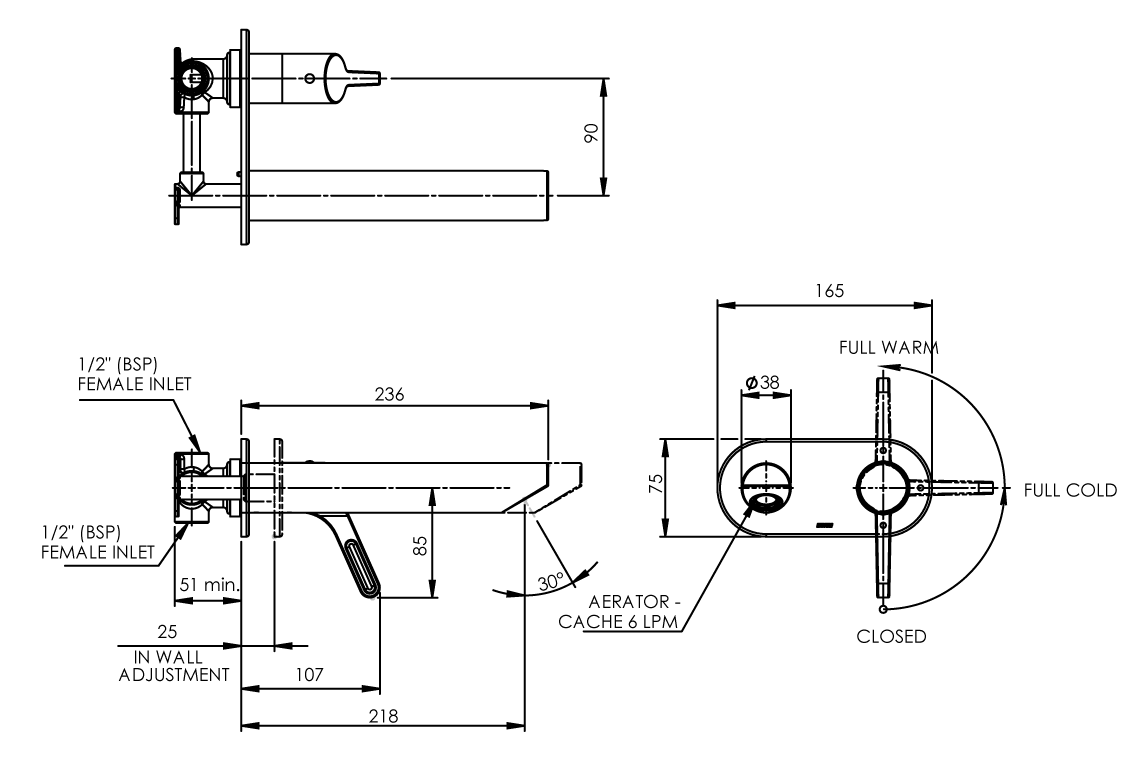

Dimensional Drawings
Product Information
