Leva Sequential Surgeon Mixer - 150mm Lever

Leva Sequential Surgeon Mixer - 150mm Lever

Order Code: LEV150420SQ

Product description

The LEVA Sequential Surgeon Mixer combines ergonomic functionality, intuitive operation, and hygienic design for clinical healthcare and aged care environments. Its sleek profile and streamlined construction minimise bacterial harbourage points and simplify cleaning, supporting effective infection control practices. The extended 150mm lever operates a sequential ceramic cartridge that progresses smoothly from Off, to Cold, to Mixed water without a lift action. Distinct tactile click positions assist the user in locating each setting, while the extended lever enables convenient hands-free operation using the elbow or wrist. The removable spout supports effective cleaning and disinfection procedures, while its extended design directs the water stream away from the basin waste to help minimise splash and support hygiene-sensitive environments. Designed to pair seamlessly with the Aquablend Health TMV with Four Way Mixer and other LEVA Sequential tapware products.

Key Selling Points

  • Sequential ceramic disc cartridge provides smooth, intuitive operation with cold-start activation and positive shut-off
  • Distinct tactile "click" positions at Off, Cold and Mixed settings support hands-free elbow operation and enhance user control
  • Cold-start operation improves water health and reduces growth of opportunistic pathogens within the warm water system
  • Removable spout supports effective cleaning and disinfection procedures
  • Colour indicators clearly identify Off, Cold, Warm and Hot operating positions
  • Durable lead-free brass construction with high-quality chrome finish
  • Extended 150mm lever handle supports AS1428/ADA applications and enables ergonomic wrist or hands-free elbow operation

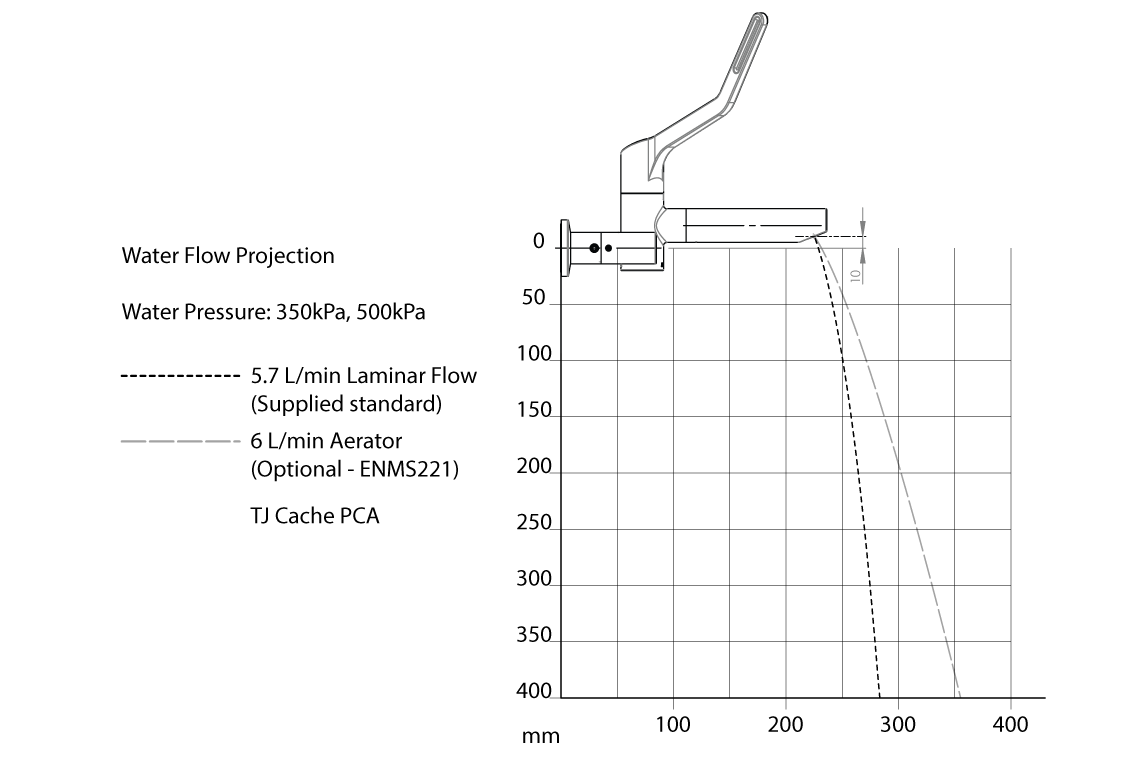

  • Laminar flow aerator helps support hygiene-sensitive environments by minimising water aeration and splash
  • Optional 80mm lever handle available to suit a range of user requirements and applications
  • Streamlined design minimises bacterial harbourage points and simplifies cleaning in clinical environments

Standard WELS (Stars)
5
Standard WELS Flow Rate (L/min)
5
Certifications
WMKA1583 - LF,WELS-5 Star-5Lpm,Health Approved - AU
Maximum Ceramic Disc Operating Temperature (Deg C)
85
Maximum Recommended Temperature (Deg C)
50
Maximum Static Pressure (kPa)
800
Minimum Recommended Pressure (kPa)
50
Maximum Recommended Pressure (kPa)
500
Inlet Connection
1/2" BSP (15mm)
Finish
Chrome
Valve Type
Ceramic Disc
Materials
Brass

BIM Files

Brochures

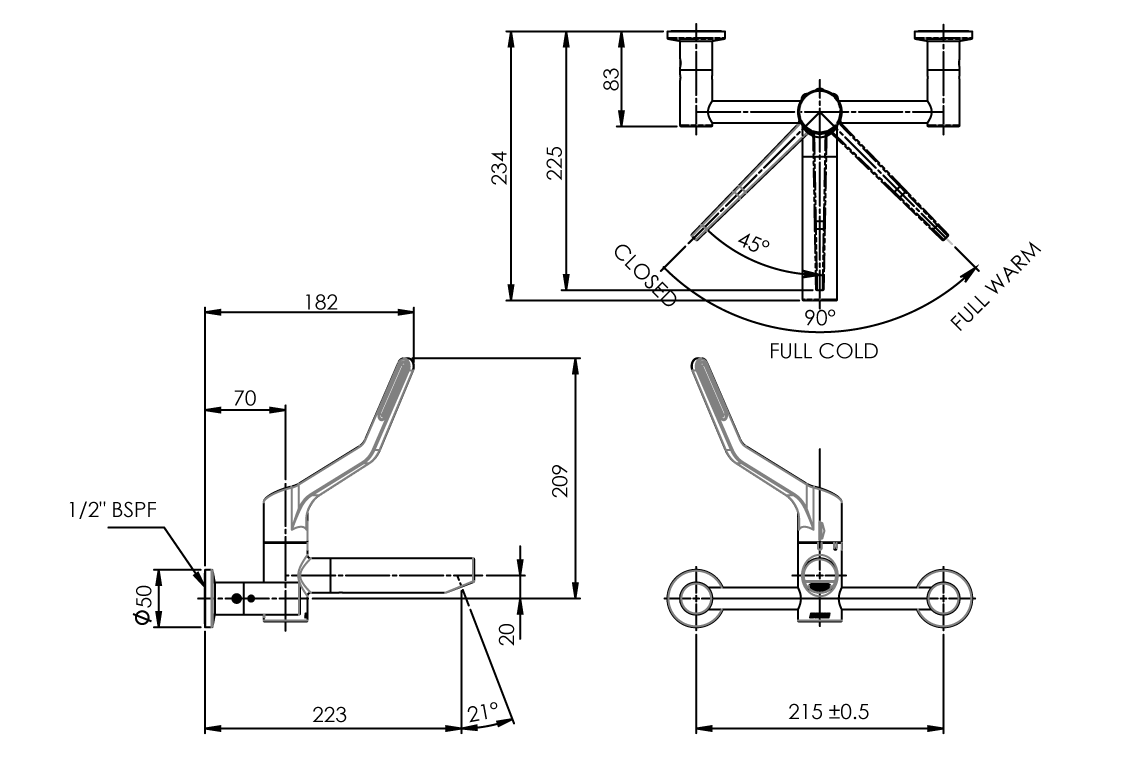

    Dimensional Drawings

    Product Information
