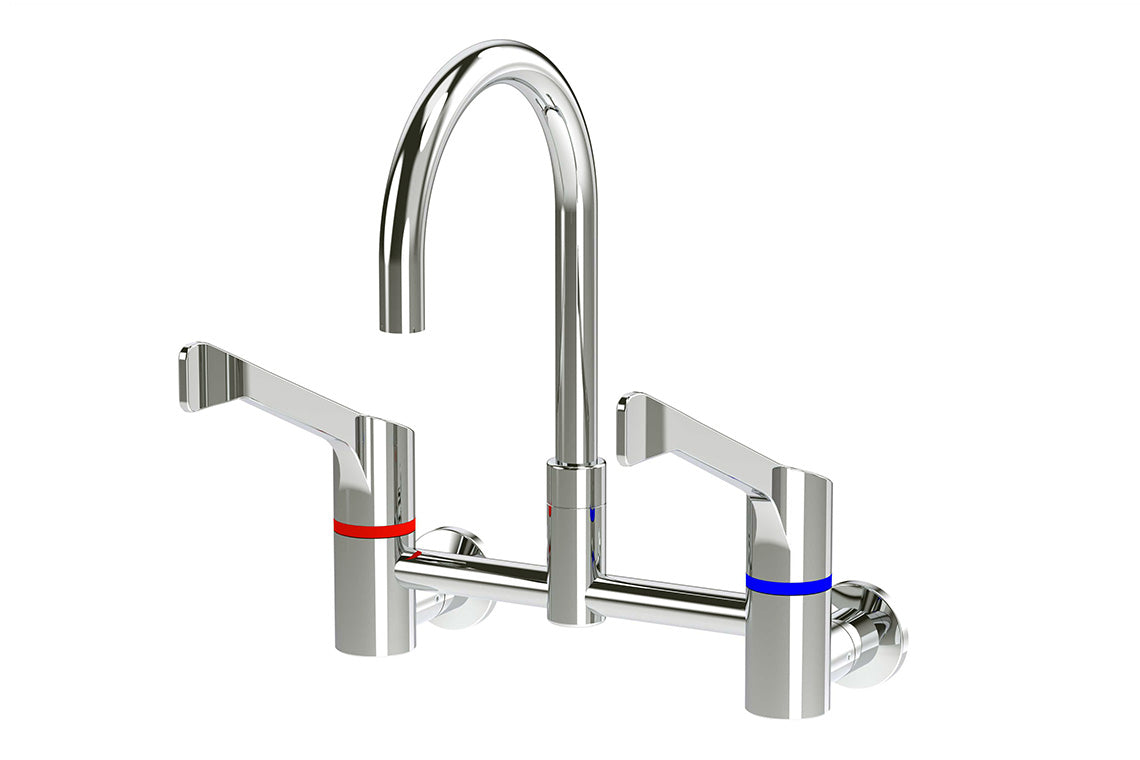

Leva Type 51 150mm Wall Mounted Mixing Set with SPC020 Swivel Spout
Leva Type 51 150mm Wall Mounted Mixing Set with SPC020 Swivel Spout
Order Code: LEV150402
Couldn't load pickup availability
Product description
The LEVA range combines exceptional quality, ergonomic functionality, and durable design. Developed for hospital, healthcare, and aged care clinical environments, it provides improved reach, effortless operation, and enhanced hygiene. The extended 150mm lever enables convenient hands-free elbow operation, supporting applications where infection control is paramount. The tap body and handles feature a streamlined design that minimises bacterial harbourage points and simplifies cleaning. Suitable for Type A and Type B clinical handwash applications, the range can also be configured for surgeon handwashing applications as a surgeon set or surgeon mixer.
Key Selling Points
- Quarter-turn ceramic disc cartridges provide smooth operation and long-term reliability
- Extended 150mm lever handles enable ergonomic wrist or hands-free elbow operation
- Unique handle fixing system ensures secure installation and long-term durability
- Concealed pressure-compensating aerator delivers a clean aesthetic and consistent water efficiency
- Blue (cold), Yellow (warm) and Red (hot) indicators supplied standard
- SPC020 swivel spout enhances reach and flexibility, with laminar flow suited to healthcare and hygiene-sensitive environments
- Laminar flow aerator helps minimise water aeration and splash
- Durable lead-free construction with bright chrome finish
- Robust commercial-grade construction for demanding environments
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 5
- Certifications
- WMKA1583 - LF,WELS-5 Star-5Lpm,Health Approved - AU
- Maximum Ceramic Disc Operating Temperature (Deg C)
- 85
- Maximum Recommended Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2” BSP FI
- Finish
- Chrome
- Valve Type
- 1/4 Turn Ceramic Disc
BIM Files
Brochures

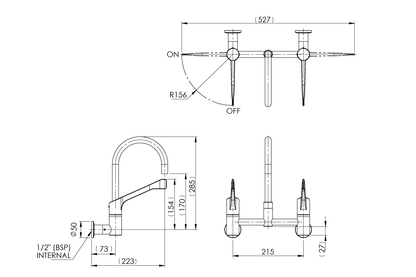

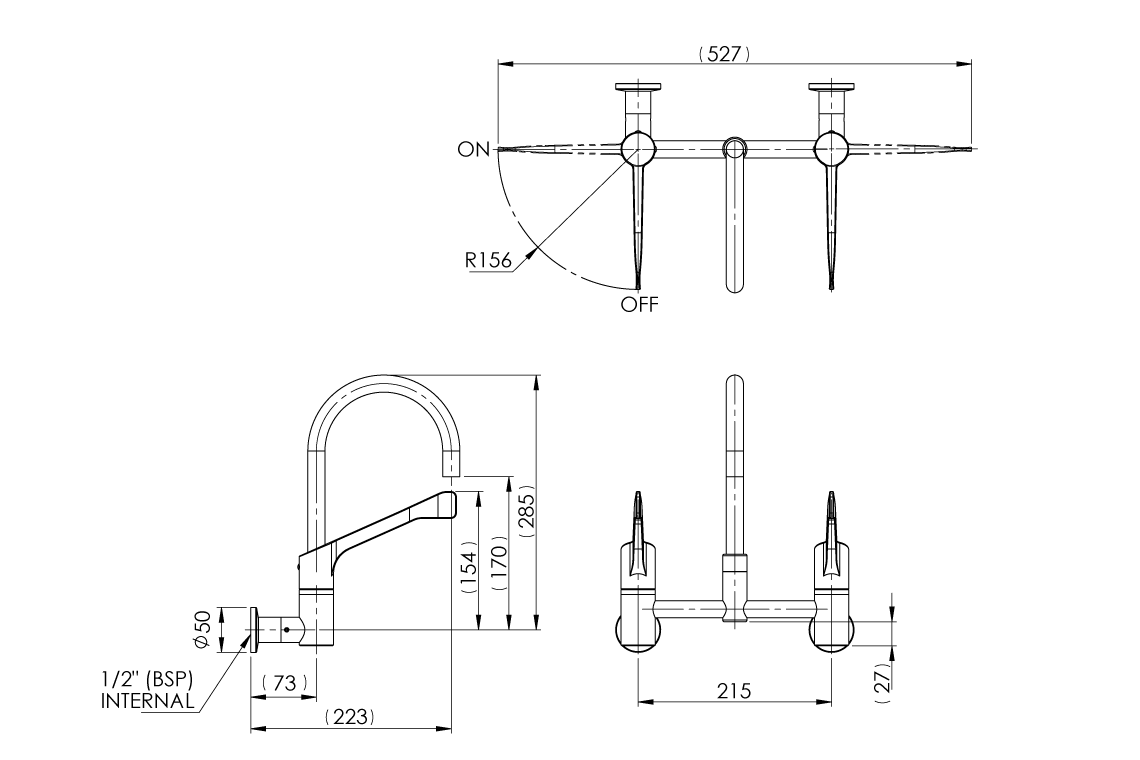

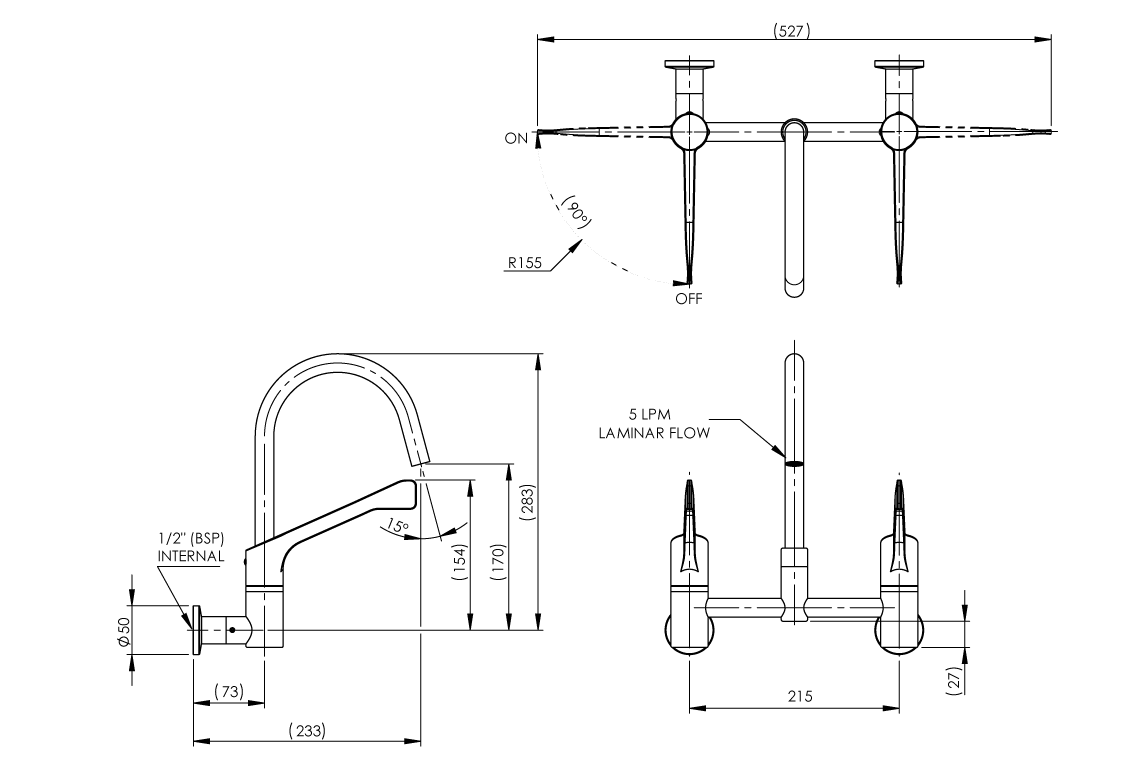

Dimensional Drawings
Product Information
