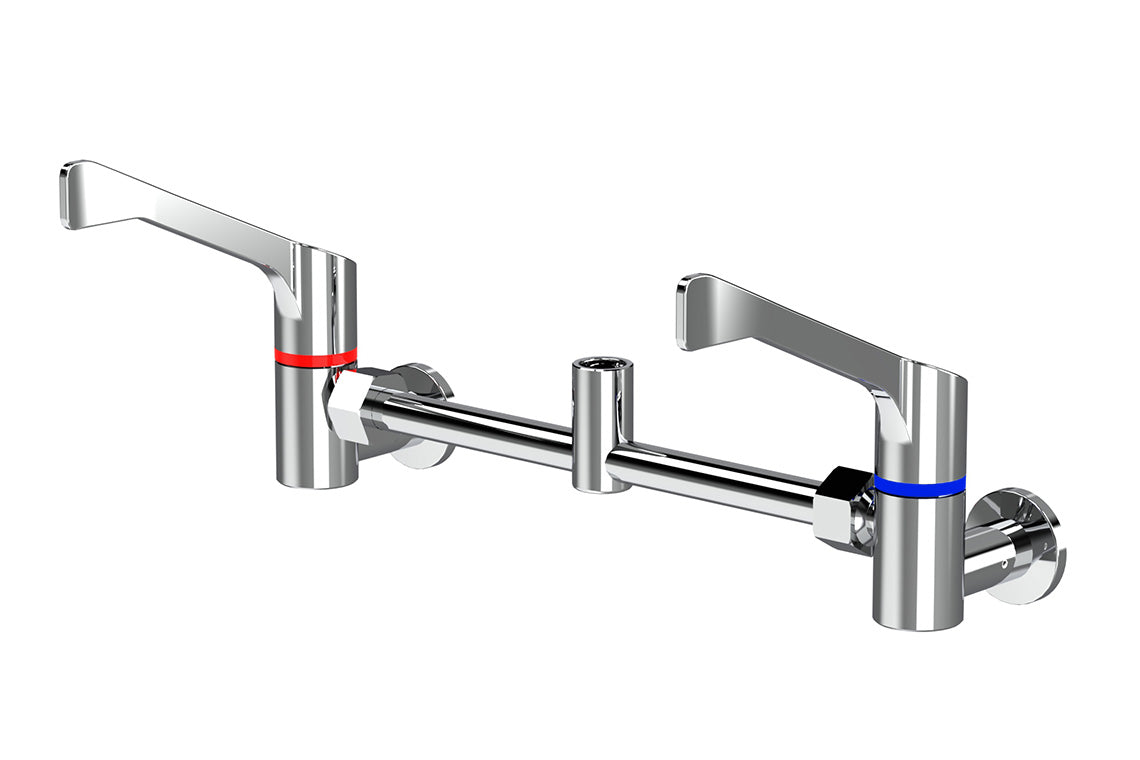

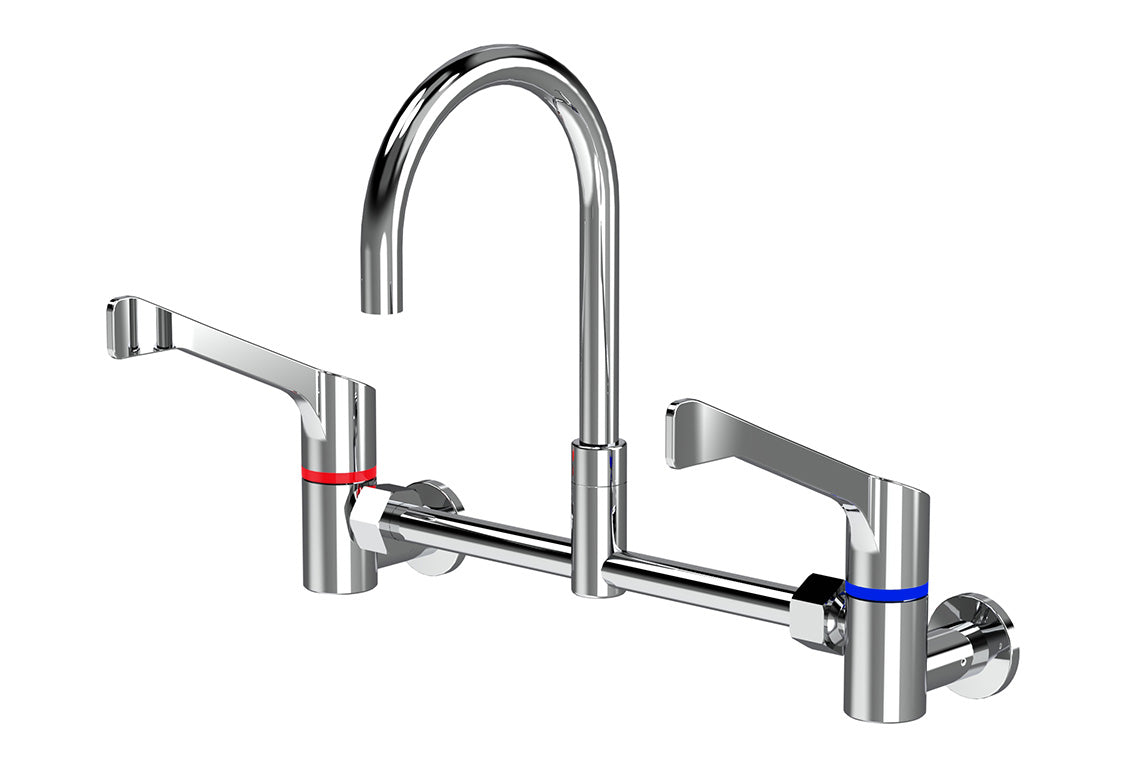

Leva Type 51 Wall Mounted Adjustable Mixing Set - 1/4 Turn Ceramic Disc
Leva Type 51 Wall Mounted Adjustable Mixing Set - 1/4 Turn Ceramic Disc
Order Code: LEV150422
Couldn't load pickup availability
Product description
The LEVA range combines exceptional quality, ergonomic functionality, and durable design. Developed for hospital, healthcare, and aged care environments, it provides improved reach, effortless operation, and enhanced hygiene. The extended 150mm lever enables convenient hands-free elbow operation, while adjustable inlet centres simplify retrofit installations by accommodating a range of existing pipework set-outs. The tap body and handles feature a streamlined design that minimises bacterial harbourage points and simplifies cleaning. Suitable for Type A and Type B clinical handwash applications, the range can also be configured for surgeon handwashing applications as a surgeon set or surgeon mixer.
Key Selling Points
- Quarter-turn ceramic disc cartridges provide smooth operation and long-term reliability
- Extended 150mm lever handles enable ergonomic wrist or hands-free elbow operation
- Adjustable inlet centres (150-348mm) accommodate a wide range of existing pipework set-outs for simplified retrofit installation
- Unique handle fixing system ensures secure installation and long-term durability
- Concealed pressure-compensating aerator delivers a clean aesthetic and consistent water efficiency
- Blue (cold), Yellow (warm) and Red (hot) indicators supplied standard
- SPC020 swivel spout with laminar flow enhances reach and flexibility while supporting healthcare and hygiene-sensitive environments
- Durable lead-free construction with bright chrome finish
- Robust commercial-grade construction for demanding environments
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 5
- Certifications
- WMKA1583 - LF,WELS-5 Star-5Lpm,WELS-6 Star-4Lpm,Health Approved - AU
- Maximum Ceramic Disc Operating Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 800
- Inlet Connection
- 1/2” BSP (15mm)
- Finish
- Chrome
- Valve Type
- Ceramic Disc
BIM Files
Brochures

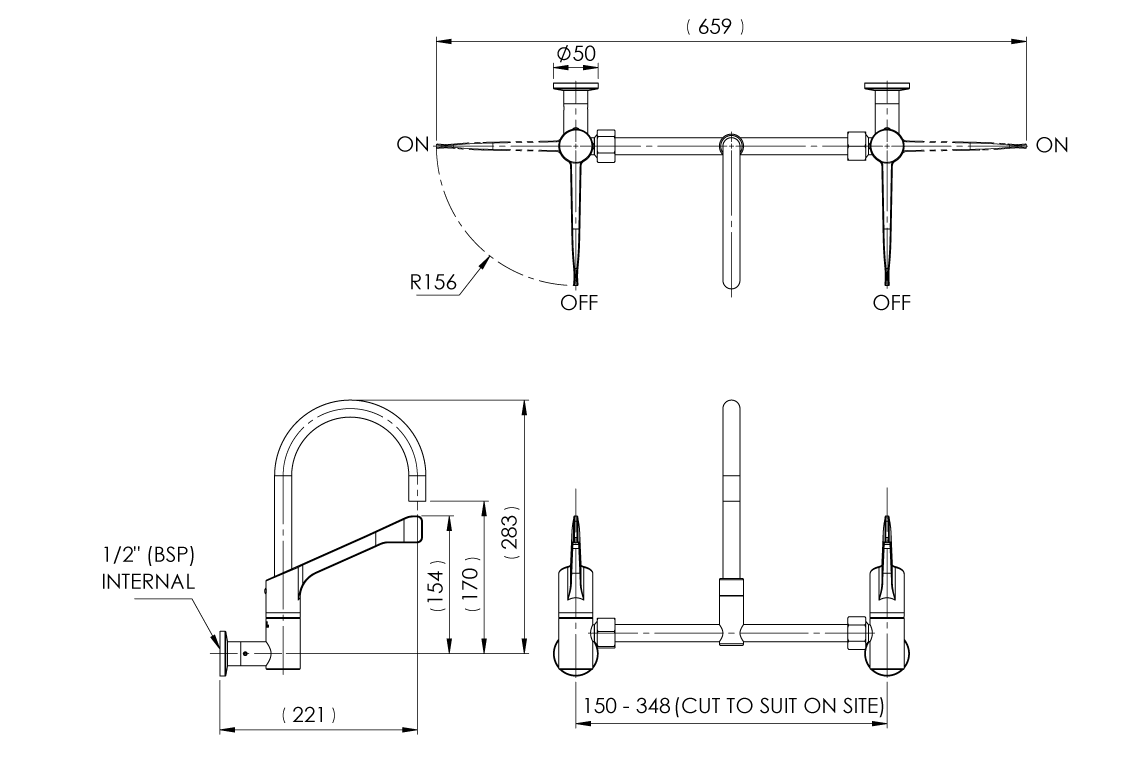

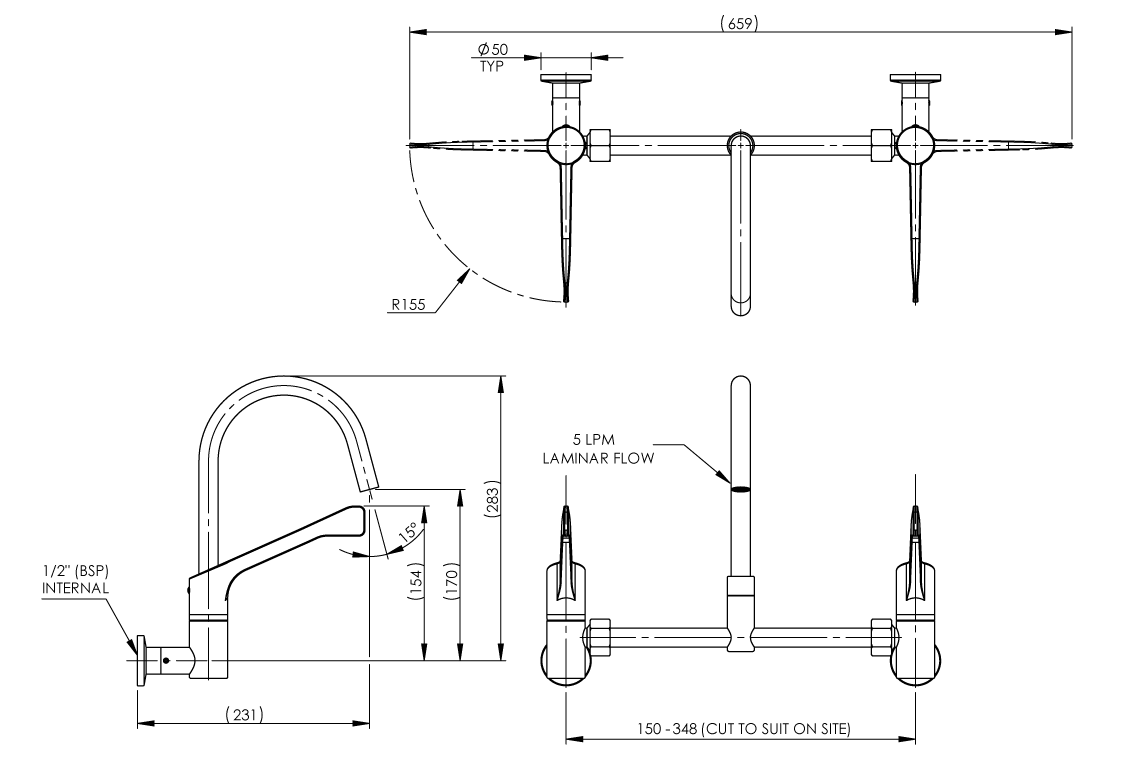

Dimensional Drawings
