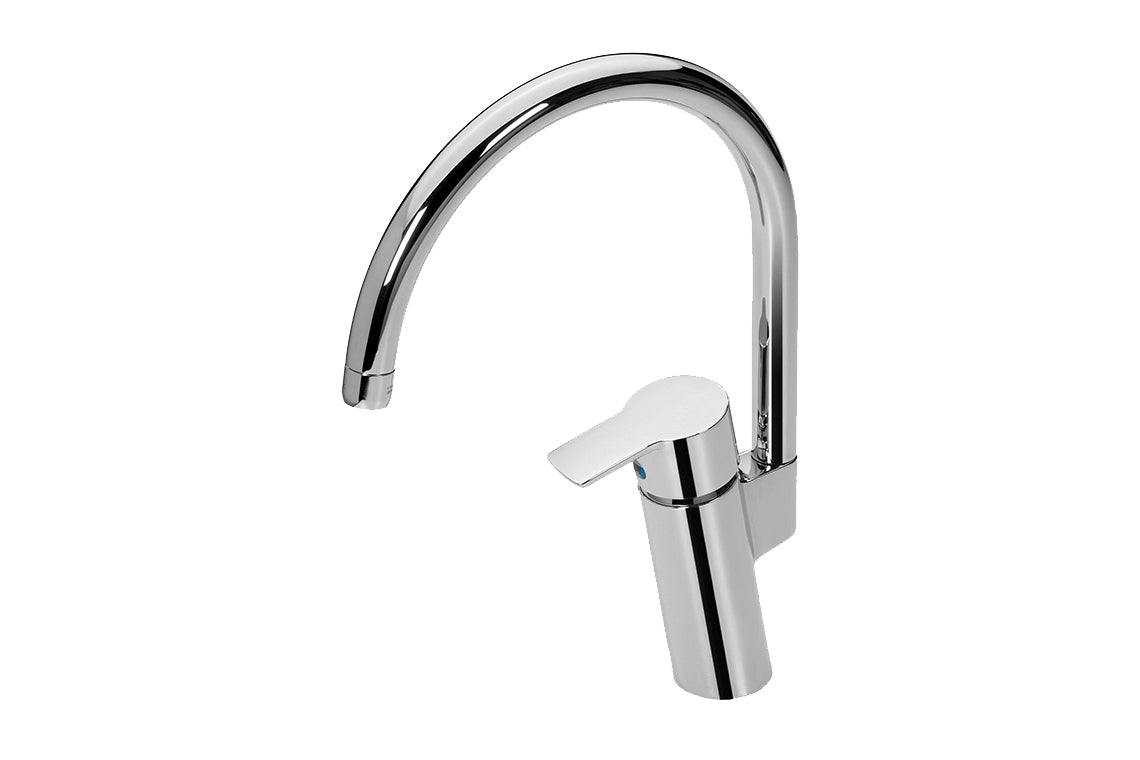

Oras Cubista Sink Mixer Gooseneck Spout - Aerated 6 Star
Oras Cubista Sink Mixer Gooseneck Spout - Aerated 6 Star
Product Code: SLM809-6
Couldn't load pickup availability
Product description
Cubista is an ultra-modern product family from Enware-Oras, inspired by cubist art.The timeless, understated and geometrically shaped mixers are the handy work of top designer Kirsi Svard. In keeping with the Oras tradition, the Cubista mixers are not only elegant, but easy to use and high in quality. The SLM809 Viva sink mixer has a Swivel Gooseneck spout with flow control aerator. The spout has a swing angle pre-set to 120 degrees allowing freedom to rotate but limiting it from travelling past the sink. The proven cartridge design provides easy control with a metal spindle and handle connection for superior strength. Cubista mixers are fully serviceable, with a range of spare parts for an even longer life. The Cubista range suits all upmarket home, hotel and business environments.
Key Selling Points
- Cartridge with metal connection improves mixer strength and vandal resistance
- Surface mount washer for sealing
- Concealed flow controlled aerator technology for a clean look and
- WELS compliance
- Bright Chrome standard finish
- Dual fixing points to help reduce risk of rotation
- Flexible hose with reverse thread into mixer body
- Integral mesh strainer
- Includes support bracket for fixing to thin material such as stainless steel bench tops
- Spout swivel angle: 120ø. To set to a smaller swivel angle of 60ø, an optional spout stopper(SLMS625) is required. For more details refer to Installation Instructions.
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 4
- WELS Category
- Tapware
- Certifications
- WM 40054
- Minimum Operating Temperature (Deg C)
- 0
- Maximum Working Temperature (Deg C)
- 80
- Maximum Operating Temperature (Deg C)
- 80
- Maximum Static Pressure (kPa)
- 1000
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 8
- Inlet Connection
- 1/2" BSP
- Finish
- Chrome
- Valve Type
- Cartridge
BIM Files
Brochures

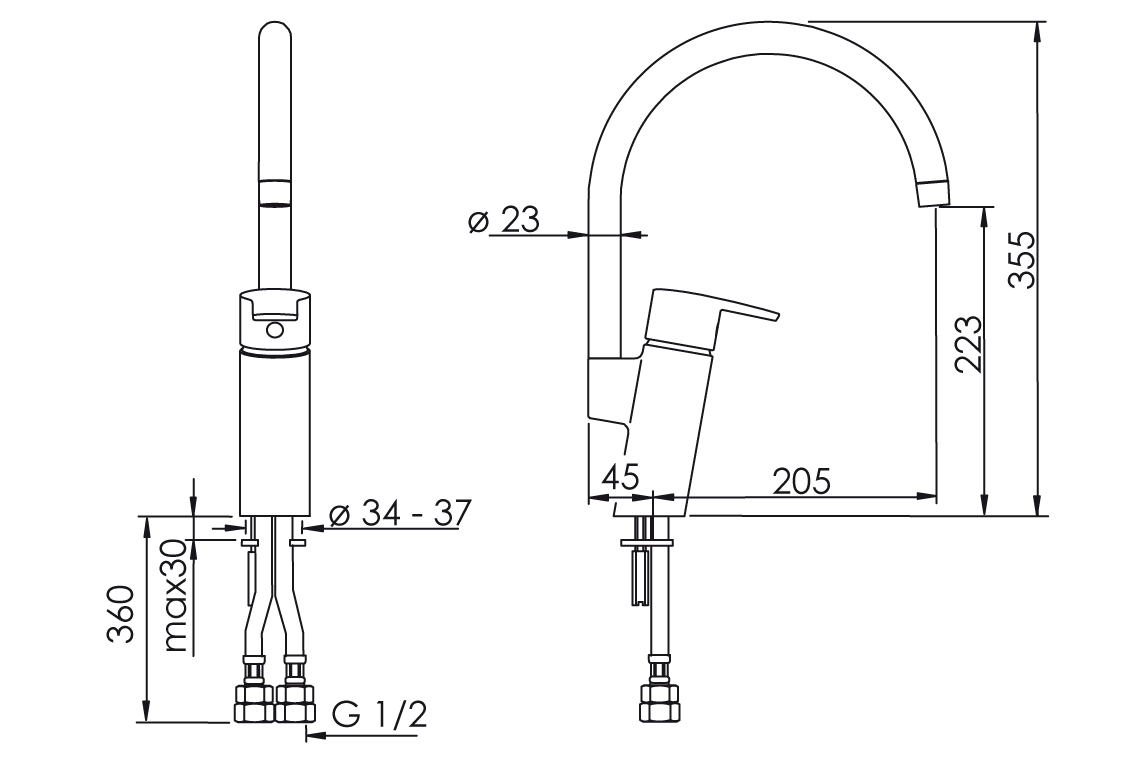

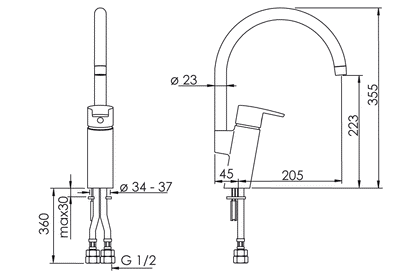

Dimensional Drawings
Product Information
