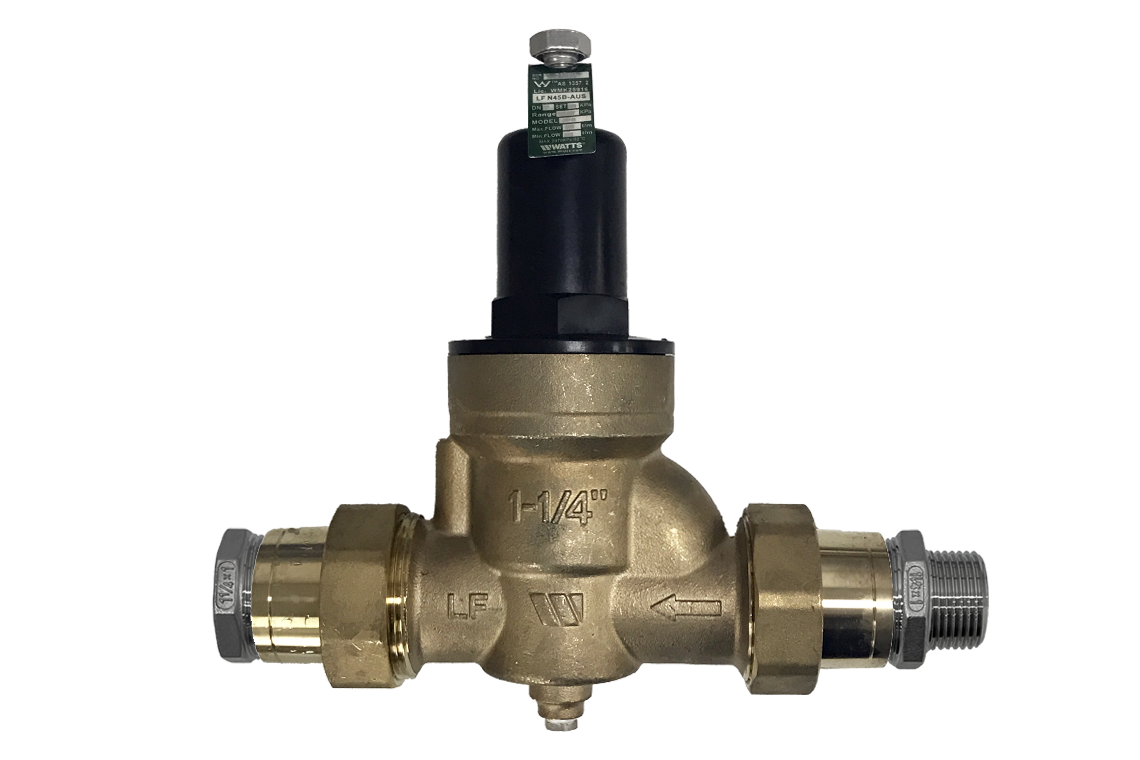

Pressure Reducing Valve 32mm for ECE Safety Showers with fittings
Pressure Reducing Valve 32mm for ECE Safety Showers with fittings
Product Code: EAA940
Couldn't load pickup availability
Product description
The EAA940 incorporates Watts LFN45B Pressure Reducing Valve (PRV) and is supplied complete with fittings for a seamless integration with Enware combination safety showers. It is engineered to control and reduce the incoming water pressure to a compliant level to protect users from excessive force while ensuring effective emergency shower operation. Suitable for water supply pressures up to 2070 kPa, each unit is factory pre-set at 500 kPa. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.
Key Selling Points
Features
- Complete PRV - Supplied with fittings for seamless installation on Enware safety showers

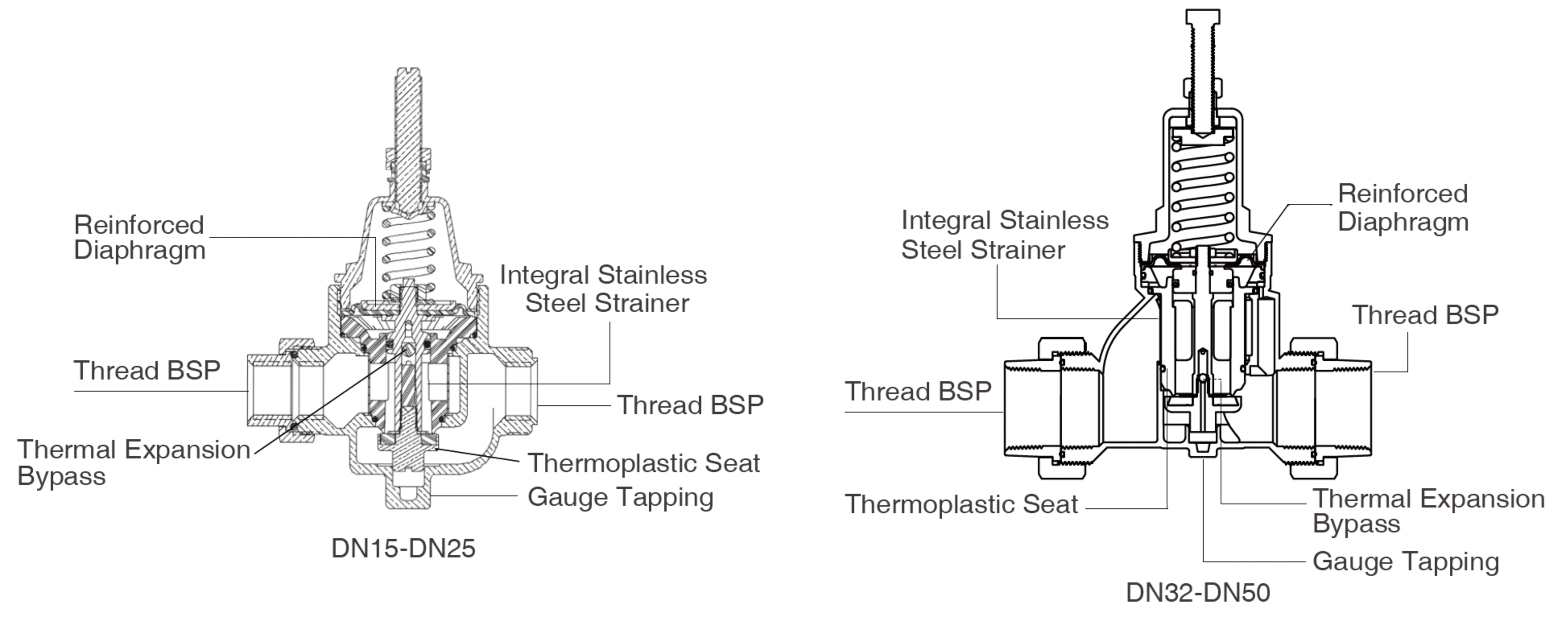

- Lead-free cast copper silicon alloy body construction

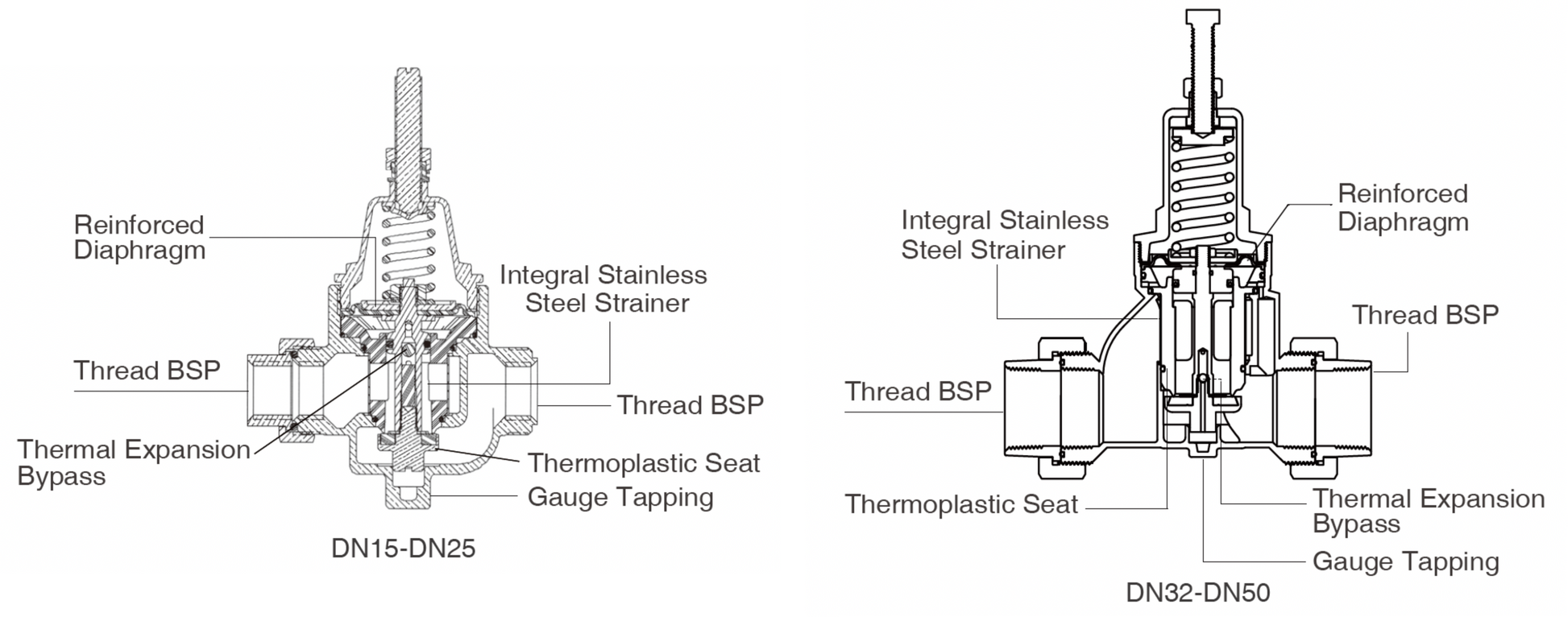

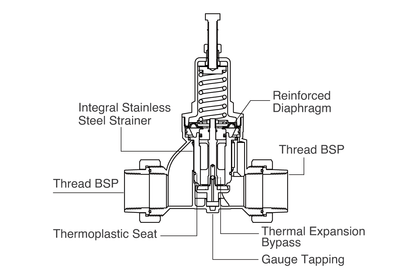

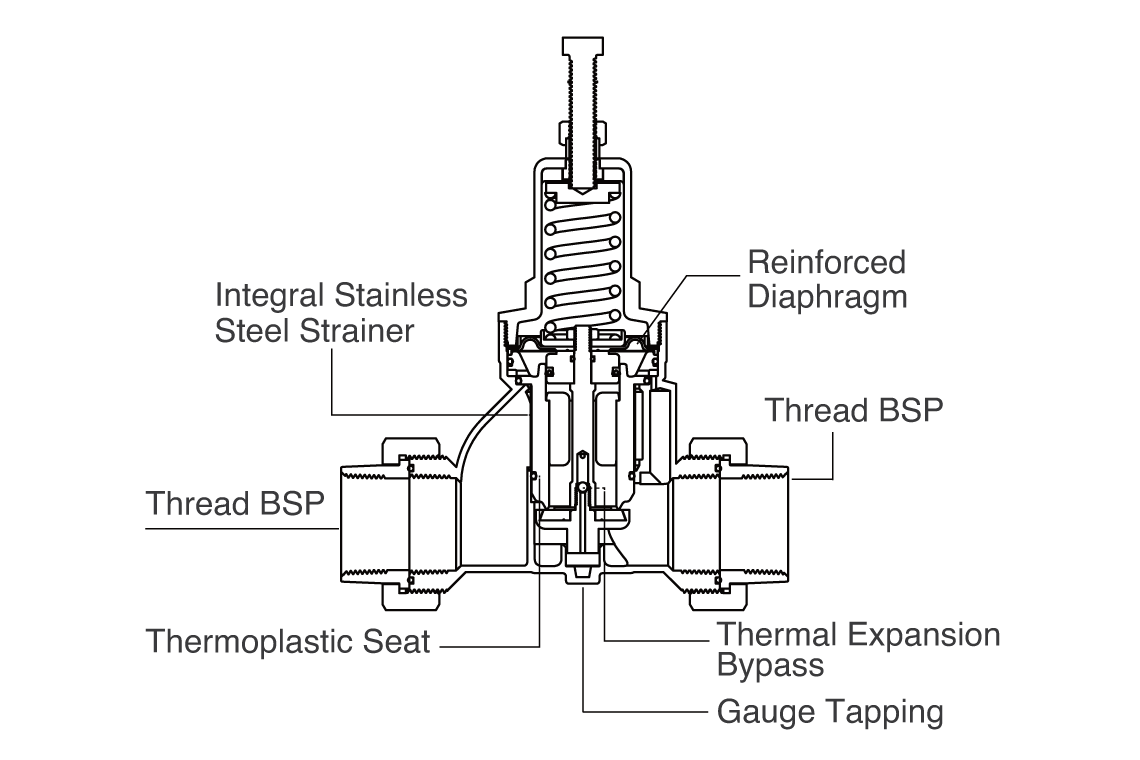

- Integral stainless steel strainer
- Thermoplastic seat and cage
- Built-in bypass feature controls thermal expansion pressure
- Easy servicing design
- Enhanced Safety – Delivers controlled, compliant water pressure for user protection
- User Protection – Protects from high supply pressures
- Easy Installation – Supplied with fittings for quick integration
- Thermal Expansion Control – Built-in bypass prevents pressure build-up
- Low Maintenance – Durable design with easy servicing
- Certifications
- WMK25916-LF
- Minimum Recommended Temperature (Deg C)
- 0.5
- Maximum Recommended Temperature (Deg C)
- 82
- Pressure Notes
- Standard Pressure Setting: 500kPa
- Inlet Connection

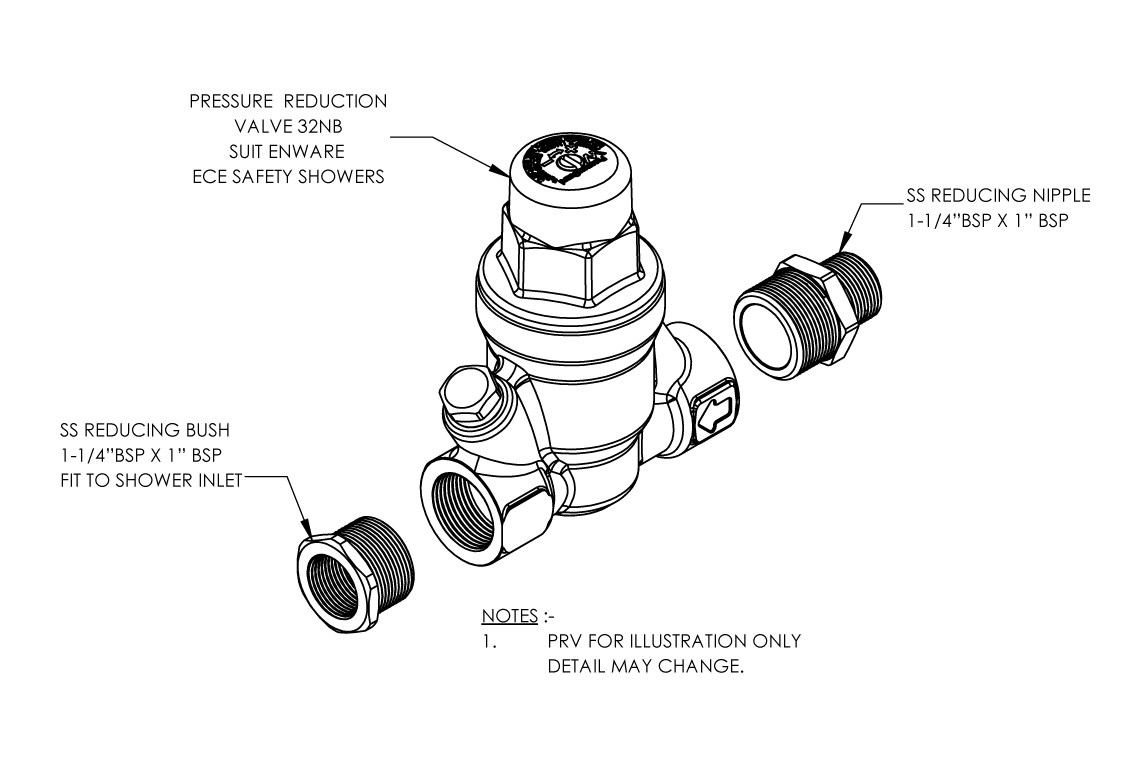

- 1-1/4" BSP Female with 1-1/4" BSP MI x 1" BSP FI Bush
- Outlet Connection
- 1-1/4" BSP Female with 1-1/4" BSP MI x 1" BSP MI Reducing Nipple
BIM Files
Brochures

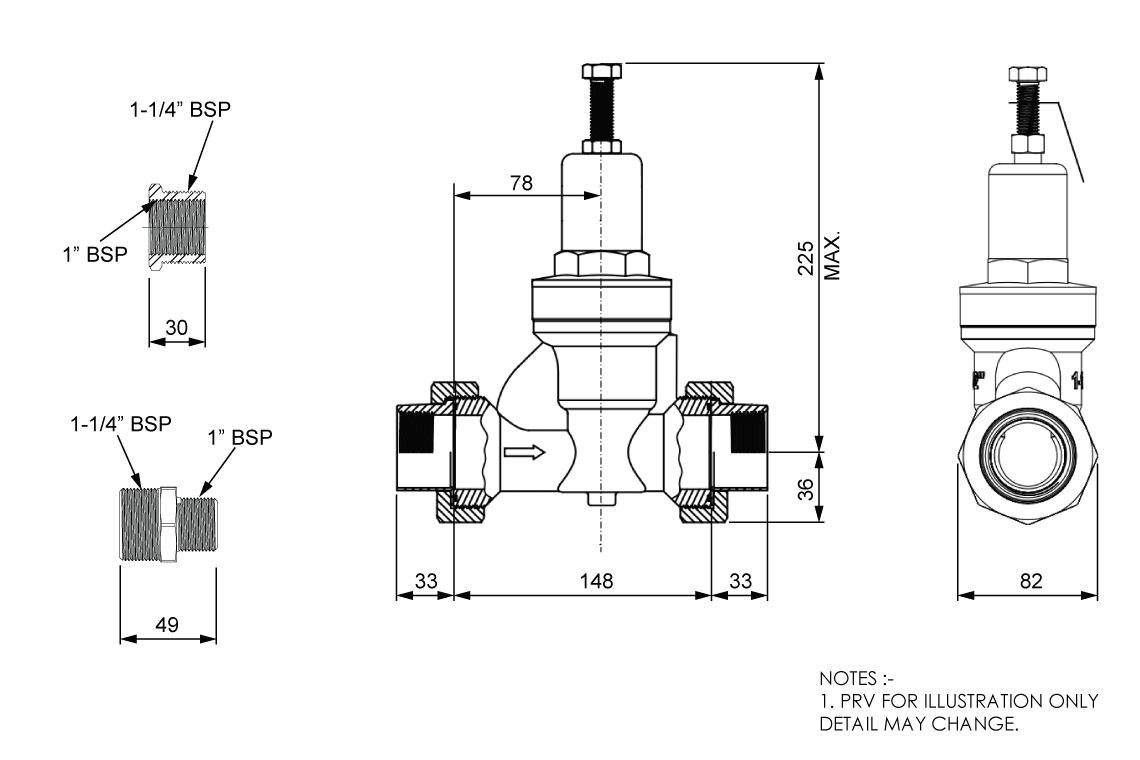

Dimensional Drawings
