Restore Mental Health Wall Mixer with Piezo Touch Time Flow - Back-of-Wall Assembly

Restore Mental Health Wall Mixer with Piezo Touch Time Flow - Back-of-Wall Assembly

Product Code: RHMIXSQ-BOW-PT

Download data sheet Download install guide

Product description

Enware's Restore range of Mental Health Secure Ensuite basin and shower mixers help to normalise the bathroom environment while providing safe, secure and comforting experiences. Supplied as Front-of-Wall and Back-of-Wall Assemblies.

Key Selling Points

  • Designed to promote good water health with sequential style mixing always closing through the cold position

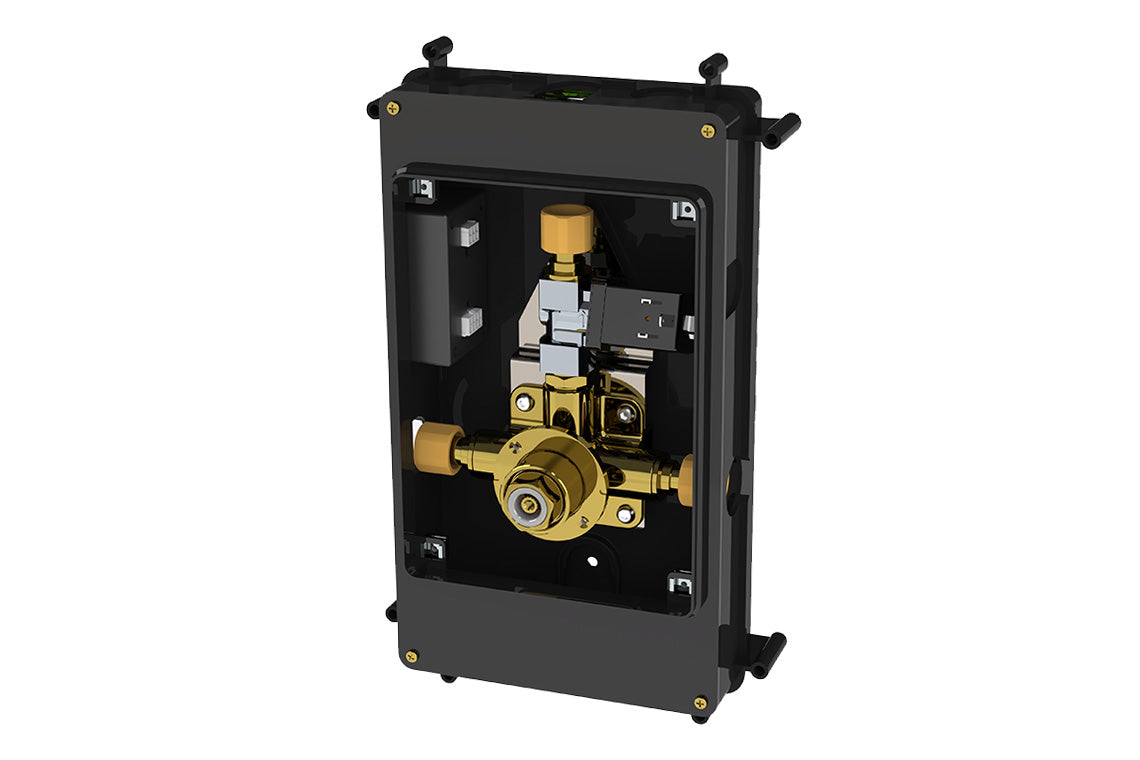

  • New Lead-Free Brass Mixer and stainless steel solenoid is easy to install in its in-wall installation box with variable depth adjustment
  • Front of wall surround can be permanently fixed and sealed to wall. Access for maintenance is made through secure removeable fascia, avoiding wall damage or breaching of wall seal.
  • Normalized shower mixer design to assist rehabilitation with easy to clean bright chrome finish
  • Patient safety at the heart of the design with anti-ligature handle and piezo touch button tested to TS001:2013 (Grade A4)
  • Robust design for challenging environments with IK10 impact tested front of wall construction
  • Low profile ergonomic handle for easy temperature adjustment and water control
  • Piezo touch time flow default to 4 min run time with 30 second lockout. Can be provided with different timing on request.
  • Requires 240VAC GPO for connection of power transformer
  • Supplied as Front of Wall (FOW) and Back of Wall (BOW) assemblies for easy installation

Certifications
WMKA1583 - LF,Lead Free
Maximum Working Temperature (Deg C)
70
Maximum Static Pressure (kPa)
1000
Minimum Recommended Pressure (kPa)
50
Maximum Recommended Pressure (kPa)
500
Inlet Connection
1/2" BSP FI
Outlet Connection
1/2" BSP FI
Power Supply (AC/DC)
AC
Power Supply (V)
240
Maximum Current (A)
1.25
Operating Voltage (V)
24
Operating Voltage (AC/DC)
DC

BIM Files

Brochures

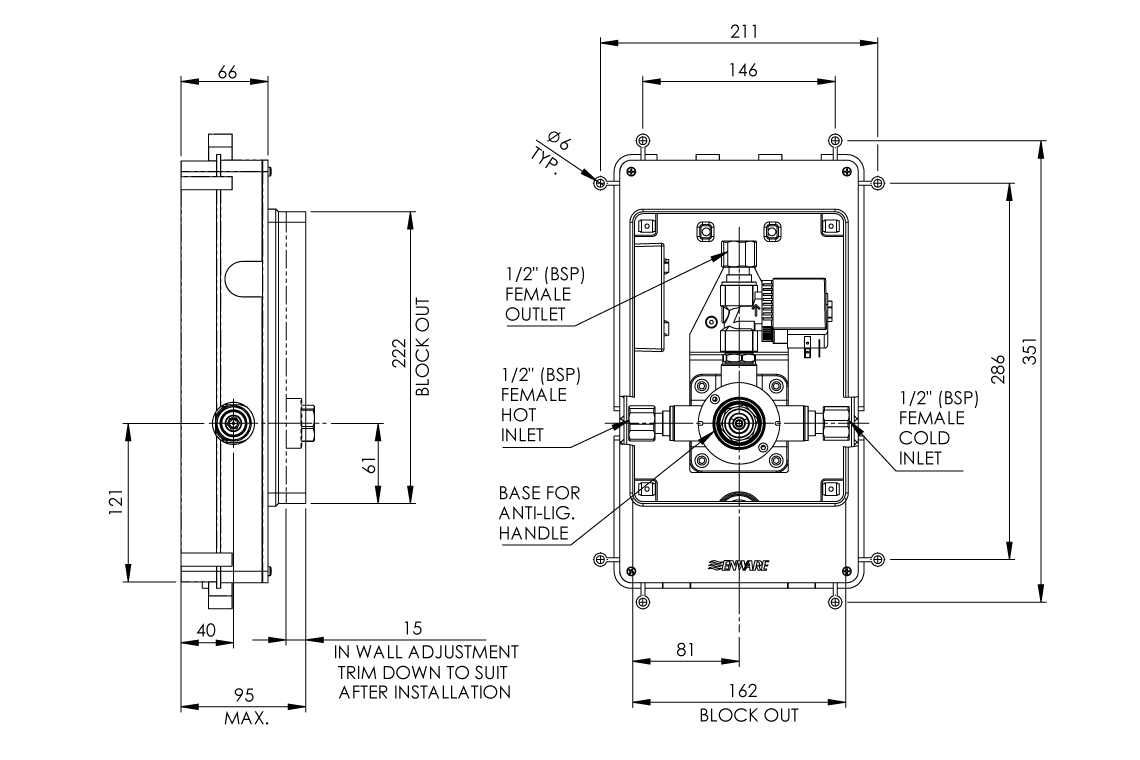

    Dimensional Drawings
