Restore Pneumatic In-Wall Dual Flush Cistern with Raised Buttons Anti-Vandal Plate 4.5/3L

Restore Pneumatic In-Wall Dual Flush Cistern with Raised Buttons Anti-Vandal Plate 4.5/3L

Product Code: RH-CIS4-ACC

Product description

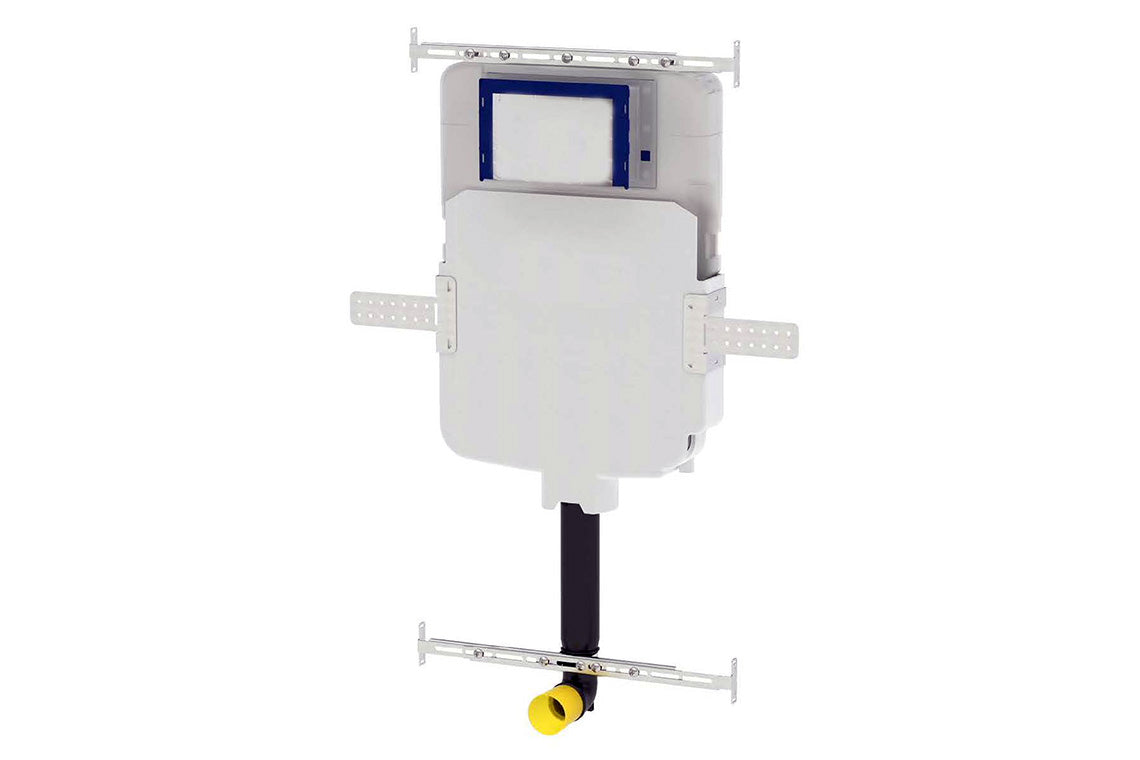

RH-CIS4 is a highly vandal resistant toilet pan flushing option for in-wall, in-duct or in-ceiling installation. With a space saving cistern slim enough to fit between 410mm studs in a true 85mm cavity, the 4.5/3L dual-flush concealed cistern is both WELS and WaterMark approved and is ideal for pairing with any vandal resistant Solid Surface wall-faced toilet pan. The cistern tank can be mounted in-ceiling or reverse mounted for service through a service duct or a service opening to the rear of the pan. All serviceable parts on the cistern are of the highest quality and are accessible through the service panel on the tank itself. Included is a pre-fitted pneumatic lifter and hose (1.3m) for remote dual-flush, pneumatic actuation via anti-vandal S.S. buttons. The one-piece moulded cistern tank carries a 15-year warranty and is manufactured of leak-proof high-density polyethylene for high impact resistance.

Key Selling Points

  • Highly vandal resistant WC flushing option
  • Perfectly suited to Solid Surface toilet pans
  • Ultra slim tank - 80mm
  • Operating Pressure: 10-1000 kPa

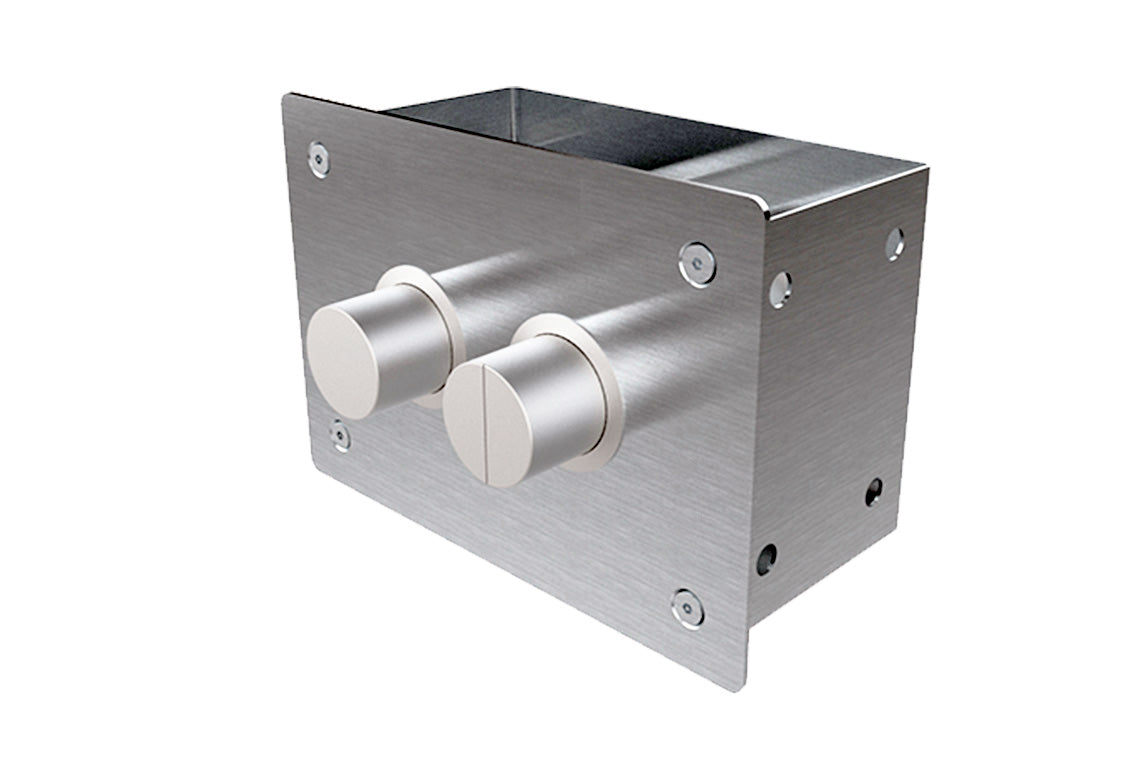

  • Pneumatic remote actuator plate
  • Stainless Steel backing plate and buttons
  • Choice of 6/3 or 4.5/3 Litre flushing capacities for toilets
  • Flexible cistern and actuator installation possibilities
  • WELS and WaterMark certified
  • Ideal for public amenities in high-risk areas where security is required

Standard WELS (Stars)
4
WELS Category
Lavatory
Certifications
WELS-4 Star-3.4L-WC Flush 0021,WM 21713- AS1172.2
WELS Half Flush Volume (L)
3
WELS Average Flush Volume (L)
3.4
Maximum Recommended Pressure (kPa)
500
Inlet Connection
15mm (1/2" BSP)

BIM Files

    Brochures

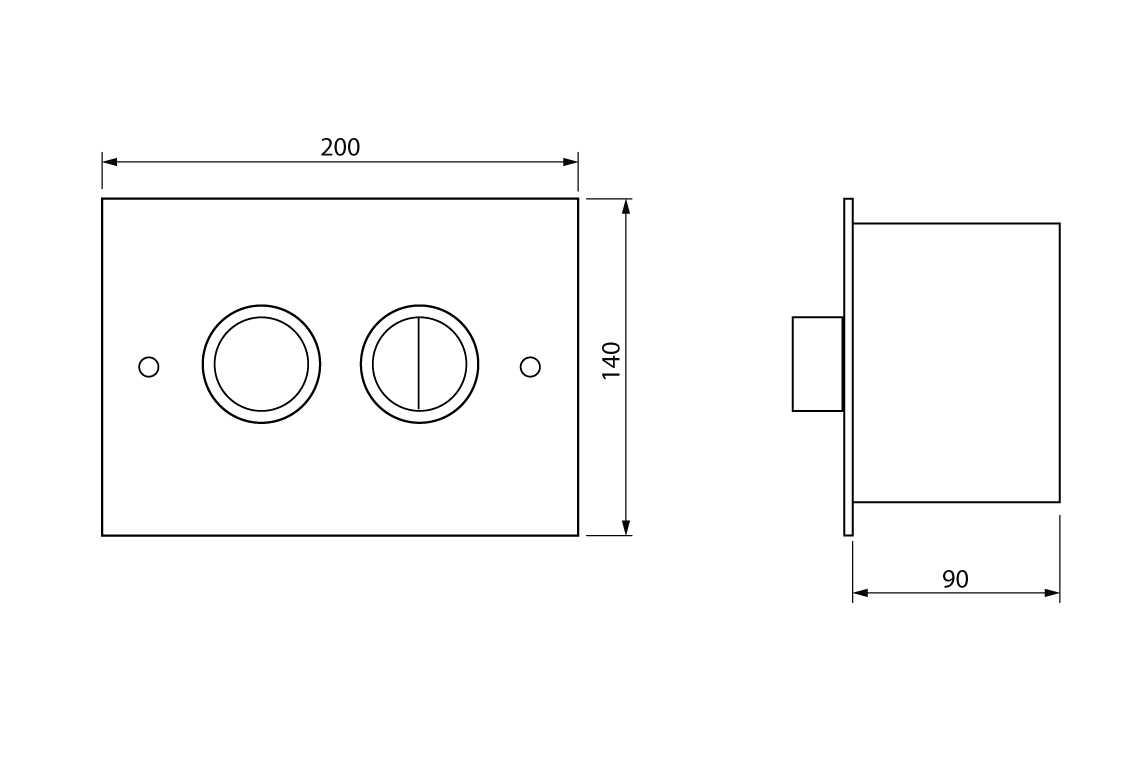

      Dimensional Drawings

        Product Information
