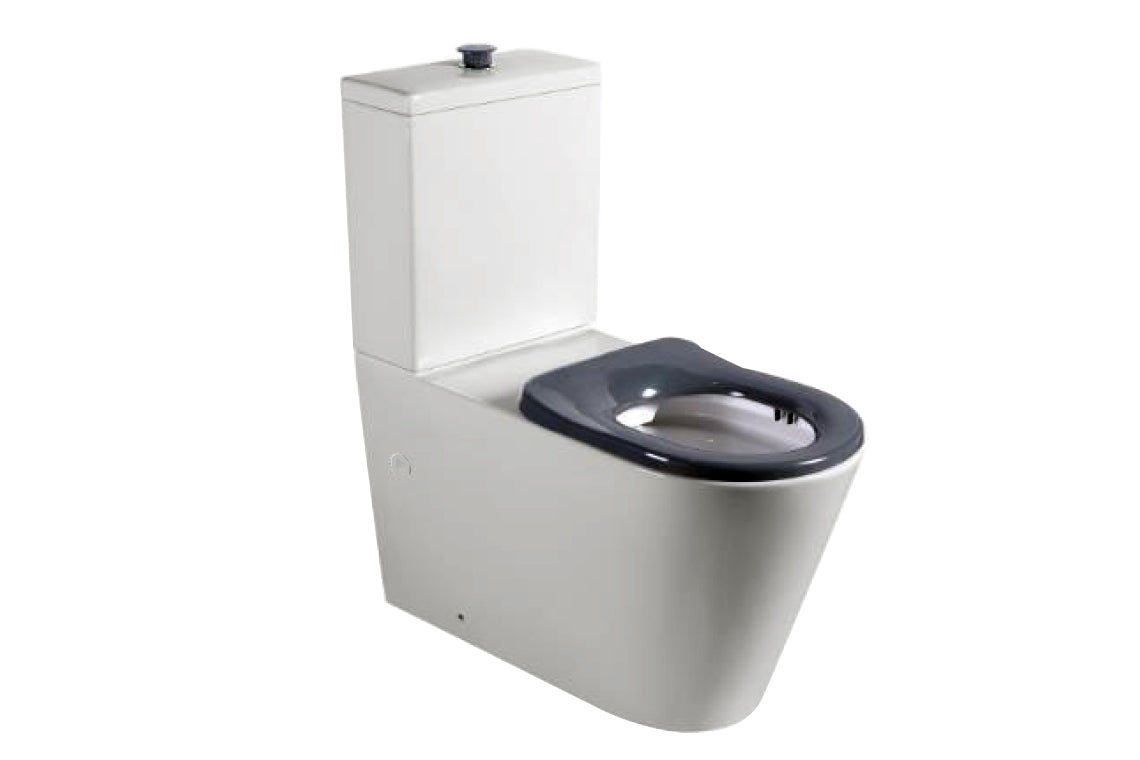

Wellbeing 800 Close Coupled Back-to-Wall Toilet Suite

Product Information

Wellbeing 800 raised height wall faced close-coupled vitreous china toilet suite, ideal for hospitals, aged care and commercial applications to meet AS1428.1 compliance for people with disabilities and restricted movement.

  • Meets AS1428.1 when installed with a backrest, Rimless design for improved flushing and cleanliness
  • Extended pan length of 800mm suitable for wheelchair use, WDI inlet and outlet valves, bottom or rear entry water inlet cistern
  • Available with S or P Trap installations (S-trap Adaptor included), WELS 4 star rated - 4.5/ 3L
  • Comes standard with a single- flap grey seat , Raised height dual flush buttons, Floor fixing bolts included, with concealed fixing brackets and screws
  • Pan load tested to 450kg, Seat load tested to 150kg
  • Coving available on request (additional lead times apply), Also available in a floor mounted pan version

Water Supply

Water Supply Inlet Pressure Min. 50 kPa - Max. 500 kPa *

Inlet & Outlet

Inlet Connection 1/2” BSP (DN15)
Water Inlet Connection Method Back inlet, or bottom inlet (on either side of pan)
Outlet Connection DN100 DWV PVC Pipe (S-Trap Adaptor) / DN100 DWV PVC Pan Collar (P-Trap)
Product Code Description
WELLBEING800CCWC 800mm Close Coupled Back-to-Wall Toilet Suite – with Grey Single Flap Seat Add to spec
