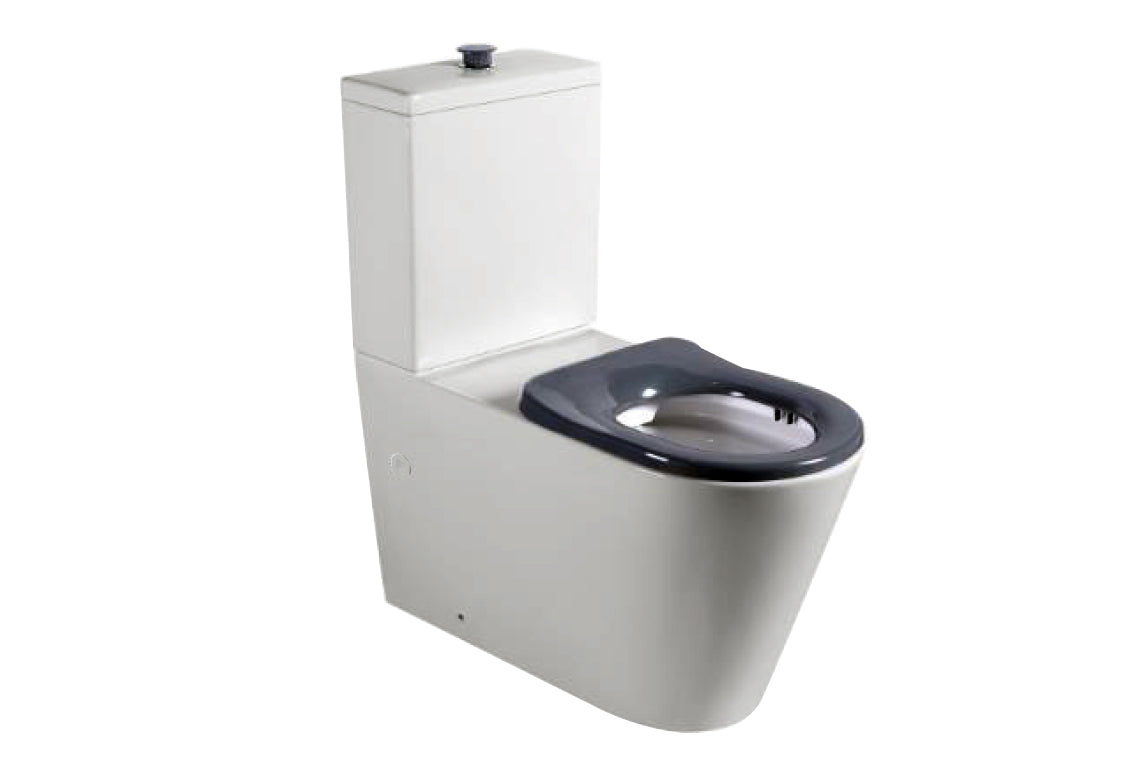

Wellbeing 800 Close Coupled Back-to-Wall Toilet Suite with Grey Single Flap Seat
Wellbeing 800 Close Coupled Back-to-Wall Toilet Suite with Grey Single Flap Seat
Product Code: WELLBEING800CCWC
Couldn't load pickup availability
Product description
Wellbeing 800 raised height back to wall close-coupled vitreous china toilet suite, ideal for hospitals, aged care and commercial applications to meet AS1428.1 compliance for people with disabilities and restricted movement.
Key Selling Points
- Meets AS1428.1 when installed with a backrest, Rimless design for improved flushing and cleanliness
- Extended pan projection of 800mm suitable for wheelchair use, WDI inlet and outlet valves, bottom or rear entry water inlet cistern
- Available with S or P Trap installations (S-trap Adaptor included), WELS 4 star rated - 4.5/ 3L
- Raised height dual flush buttons, Floor fixing bolts included, with concealed fixing brackets and screws
- Single-flap grey seat included, which is statically load tested to 407kg
- Coving available on request (additional lead times apply), Also available in a floor mounted pan version
- Standard WELS (Stars)
- 4
- WELS Category
- Lavatory
- Certifications
- WMK25988,WELS-4 Star-3.5L-WC Flush-1509,A&A - Accessible
- Other Compliance
- WHEELCHAIR ACCESSIBLE
- WELS Half Flush Volume (L)
- 3
- WELS Average Flush Volume (L)
- 3.5
- Inlet Connection
- 1/2" BSP
- Outlet Connection
- DN100 DWV PVC Pipe (S-Trap Adaptor) DN100 DWV PVC Pan Collar (P-Trap)
- Water Inlet Connection Method
- Back inlet, or bottom inlet (on either side of pan)
- Connection Notes
- Back inlet, or bottom inlet (on either side of pan)
BIM Files
Brochures

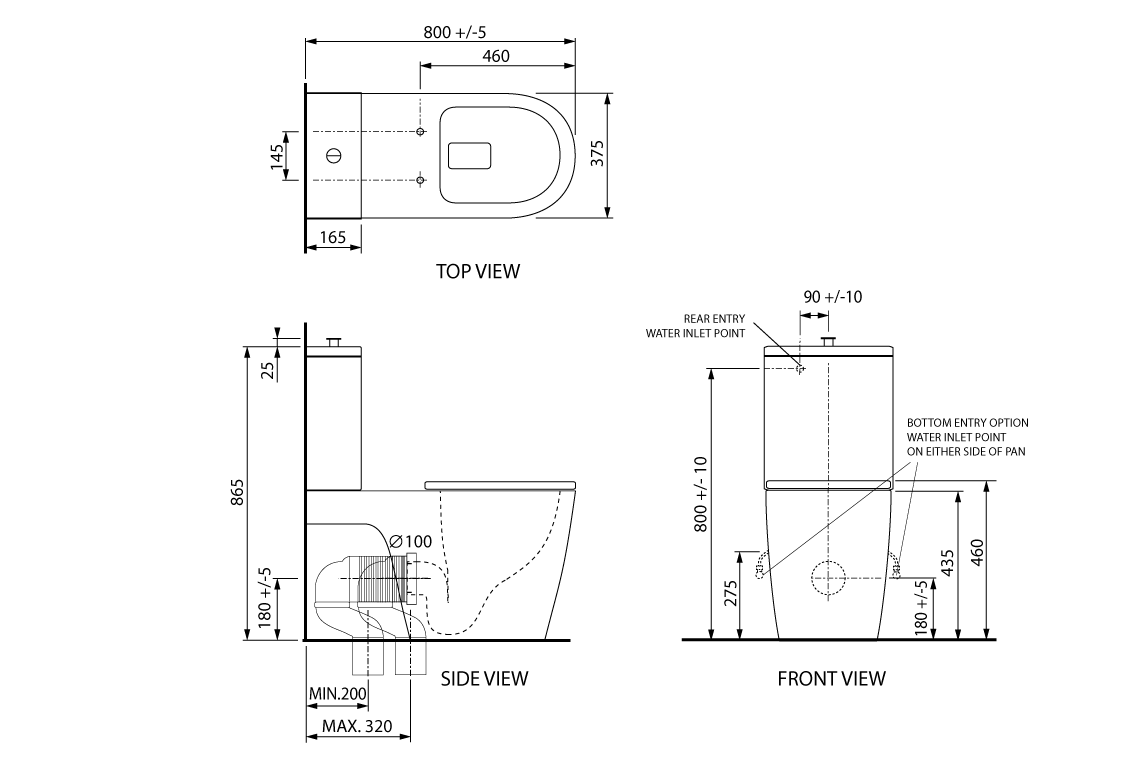

Dimensional Drawings
Product Information
