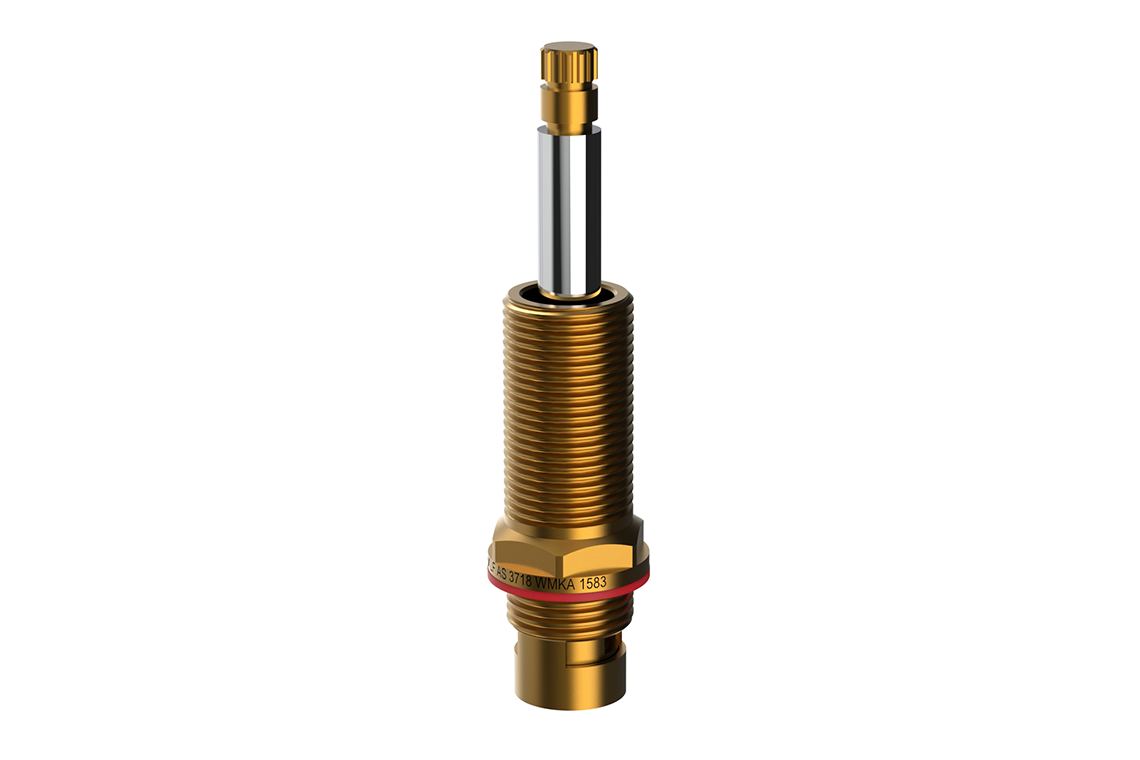

School Pattern Stuffing Box Assembly - Recess - 1/4 Turn Ceramic Disc - 15mm Extended - LTC
School Pattern Stuffing Box Assembly - Recess - 1/4 Turn Ceramic Disc - 15mm Extended - LTC
Order Code: VPQ383LTC
Couldn't load pickup availability
Product description
School Pattern Recess Stuffing Box Assembly Extended - 1/4 Turn Ceramic Disc 15mm Extended LTC
Key Selling Points
- 1/4 turn ceramic disc
- Contra-rotating
- LTC (Left-turn or Anti-clockwise to close)
- Suitable for Livia - 15mm extended SBA
- Certifications
- WMKA1583 - LF
- Maximum Ceramic Disc Operating Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Finish
- Chrome
- Valve Type
- 1/4 Turn Ceramic Disc
BIM Files
Brochures

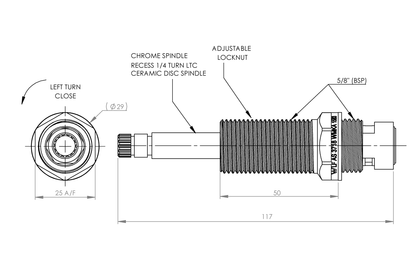

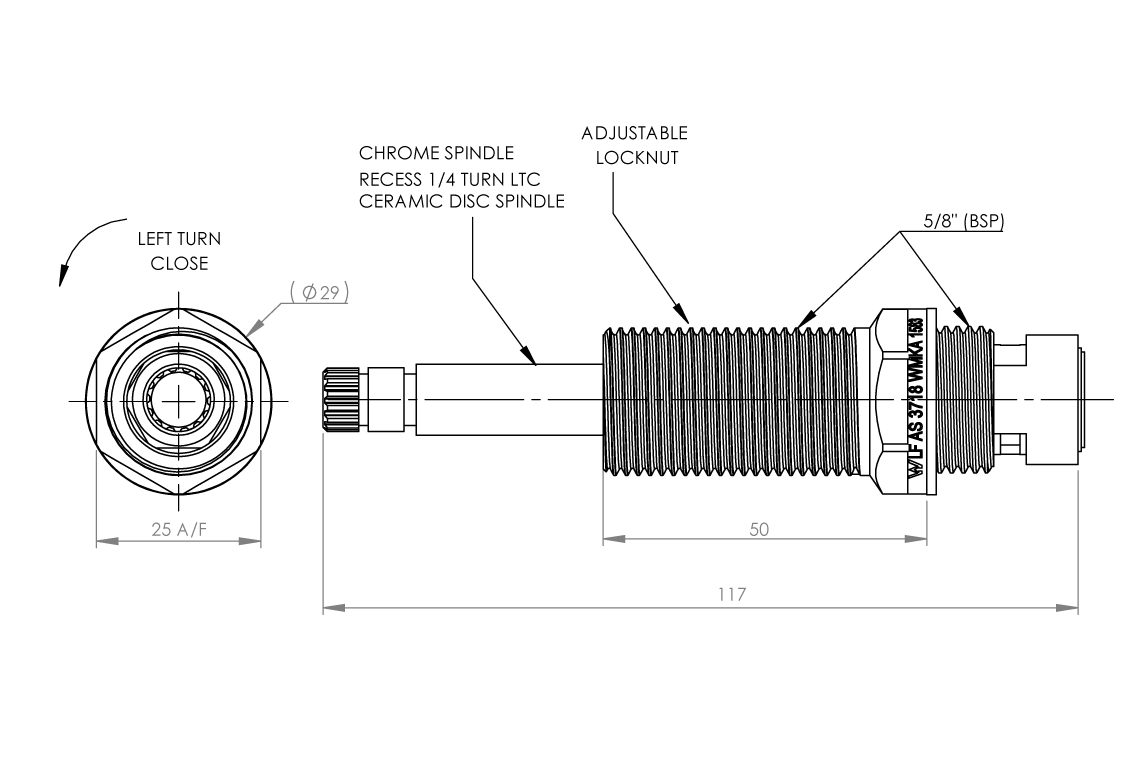

Dimensional Drawings
