Secure Wall Mounted Sensor Tap - Hands-Free - Ligature Resistant Basin Outlet
Secure Wall Mounted Sensor Tap - Hands-Free - Ligature Resistant Basin Outlet
Product Code: DET5071A-CNBSN
Couldn't load pickup availability
Product description
Enware's water efficient easy-to-use secure tapware products have been designed to provide a high level of security and vandal resistant features. They also provide smooth surfaces to remove ligature points and lessen the possibility of user harm.
Key Selling Points
- Ideal for all Secure environments where user comfort and safety is essential
- To turn tap on, place hand under spout in front of sensor
- To turn tap off, move hand away
- Valve stays open for 6 seconds, or as long as the hand is within sensor range
- Maximum flow time of 45 seconds* per activation reduces waste and prevents vandalism
- Equipped with automatic hygiene flush function (1-10min/24hr) - enabled on request*
- Stainless steel sensor plate with vandal resistant fixings
- Anti-ligature design and anti-vandal aerator outlet
- Removal of sharp edges to reduce potential for user harm
- Spout has anti-rotation pin and high Security Torx grub screw, designed to exceed anti-ligature requirements of TS001-2013
- WELS: 3 Star Rating (8 L/min)
- Watermark: AS/NZS 3718 WMKA 1583
- * Anti-Pick sealant around wall face plate is recommended to provide higher level of ligature resistance
- * Longer flow times, hygiene flush function and other program settings are available at the time of ordering. Contact Enware for more information.
- Standard WELS (Stars)
- 3
- Standard WELS Flow Rate (L/min)
- 8
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-3 Star-8Lpm,Lead Free
- Minimum Recommended Pressure (kPa)
- 100
- Maximum Recommended Pressure (kPa)
- 500
- Flow Notes

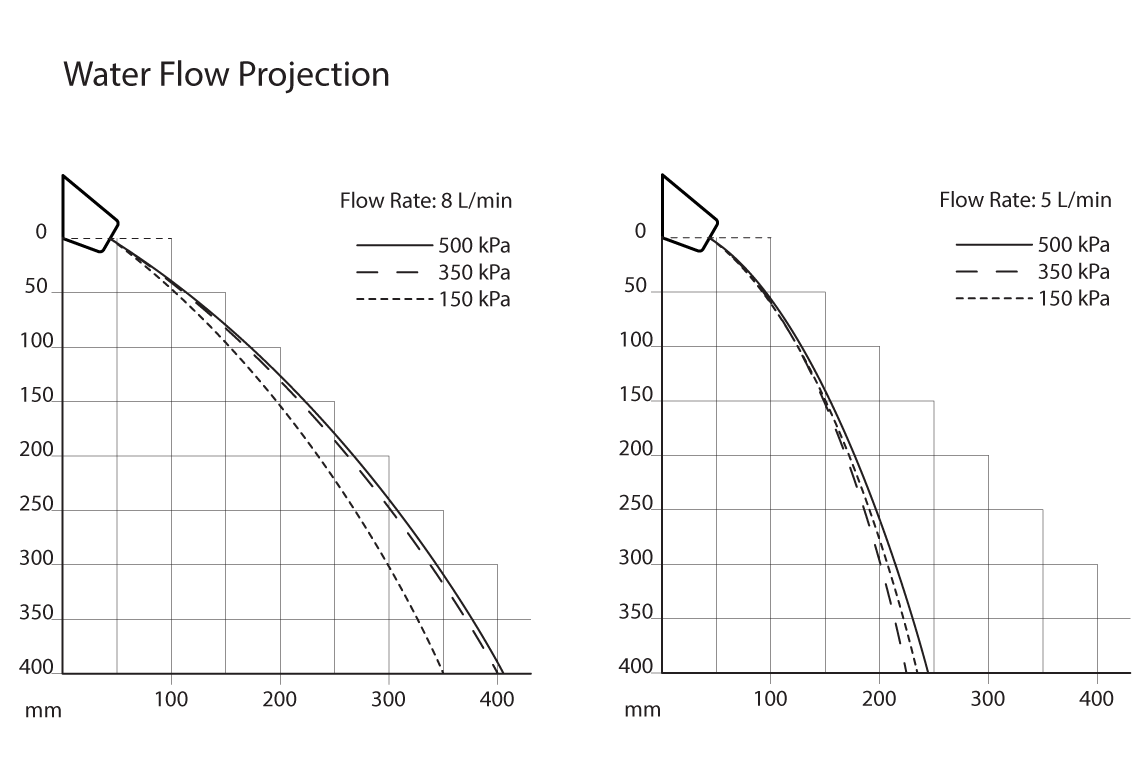

- Runs as long as hand is within range. (Active Sense) When out of range, runs for 6 seconds. (Afterfl ow) Maximum continuous fl ow period per sensor activation is 45 seconds. (Security Time Out)
- Inlet Connection
- 1/2" BSP
- Maximum Current (A)
- 1
- Operating Voltage (V)
- 24
- Operating Voltage (AC/DC)
- DC
- IP Rating Front Panel and Sensor Lens
- IP67
- IP Rating Behind Panel
- Nil
- Minimum Sensor Range (mm)
- 100
- Maximum Sensor Range (mm)
- 235
BIM Files
Brochures

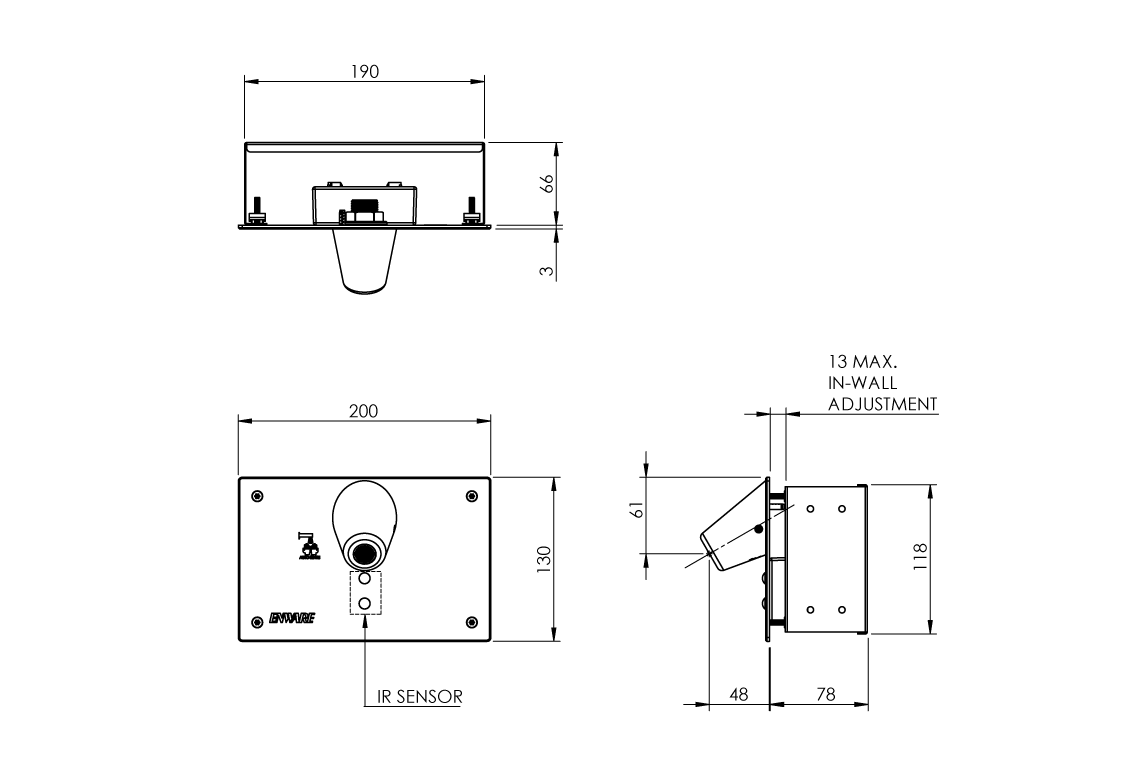

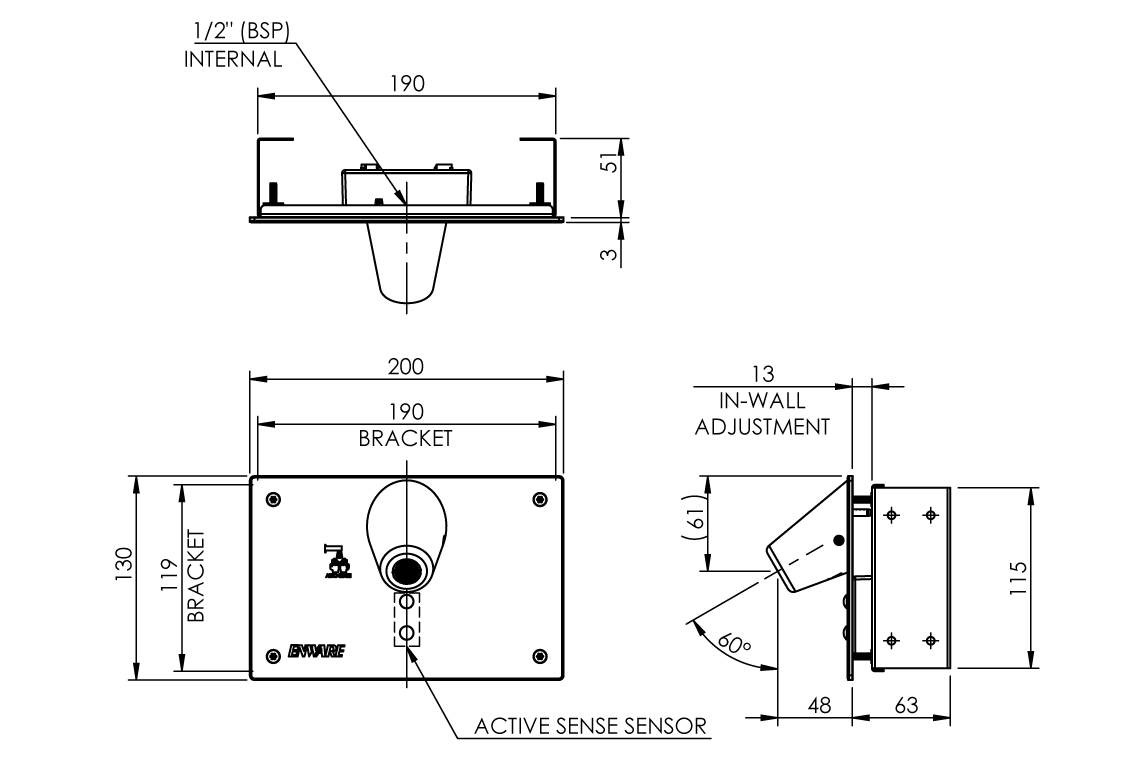

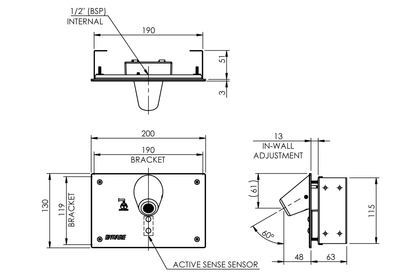

Dimensional Drawings
