Sensor-Activated Urinal Flushing System
Sensor-Activated Urinal Flushing System
Product Code: EMF301M-3
Couldn't load pickup availability
Product description

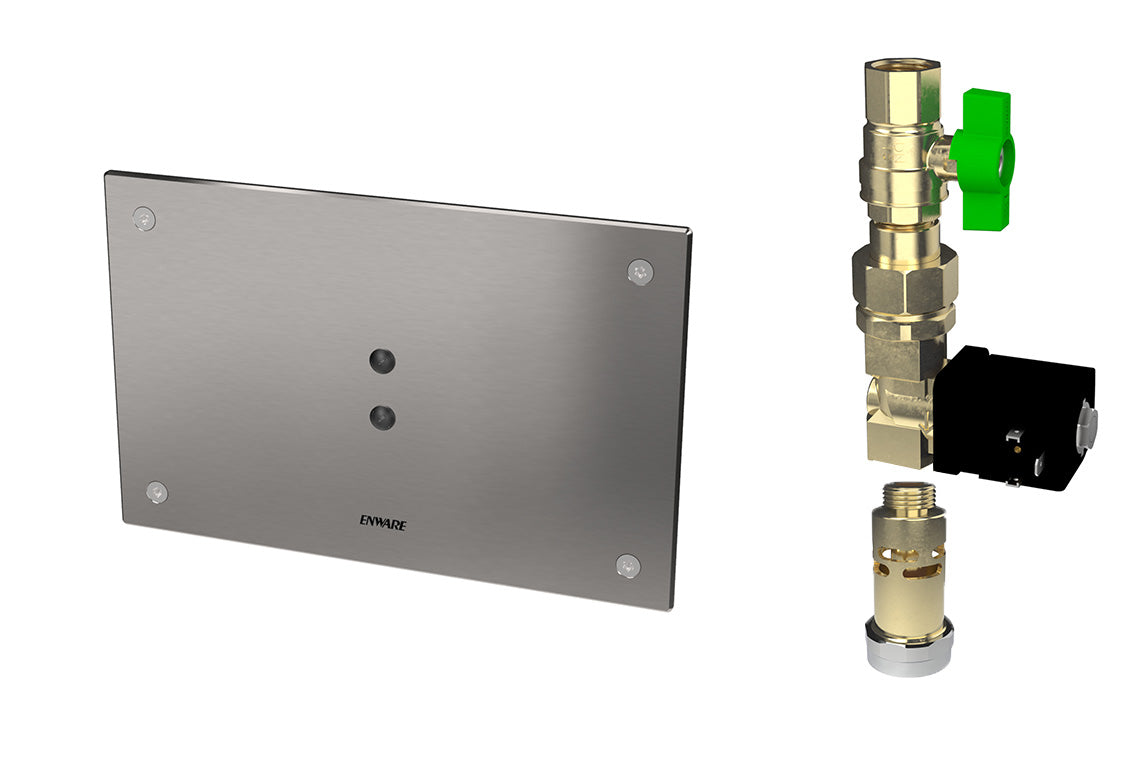

Enware's urinal flushing systems provide a neat and reliable flushing solution using infra-red sensor technology particularly suited for public access applications. Uses a WaterMarked solenoid that when combined with an appropriate urinal delivers 1L flush. Best suited for duct style installation. (Flush unit and sensor plate must be separated.) Semi-concealed installation with a stainless steel panel and security screws. Shut-off valve and airbreak included.
Key Selling Points
- Activation via Infra-Red sensor
- Flushes automatically
- Mains power 24V
- Compact face plate
- Vandal resistant Torx screws
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 1
- WELS Category
- Urinal
- Maximum Recommended Pressure (kPa)
- 500
- Water Supply Line Size
- 1" [25mm] copper pipe
- Water Inlet Connection Method
- Inlet - 1/2” BSP (15mm)
- Kv Factor (m3/h)
- 1.9
- Automatic Flush Sensor Activation
- Time to identify urinal in use (Minimum length of time user has to be in sensor range to activate flush): 10 sec Time delay before flushing (After user leaves sensor range, the length of time before flushing): 3 sec
- Automatic Flush Sensor range
- 0.5 - 1 METRE
