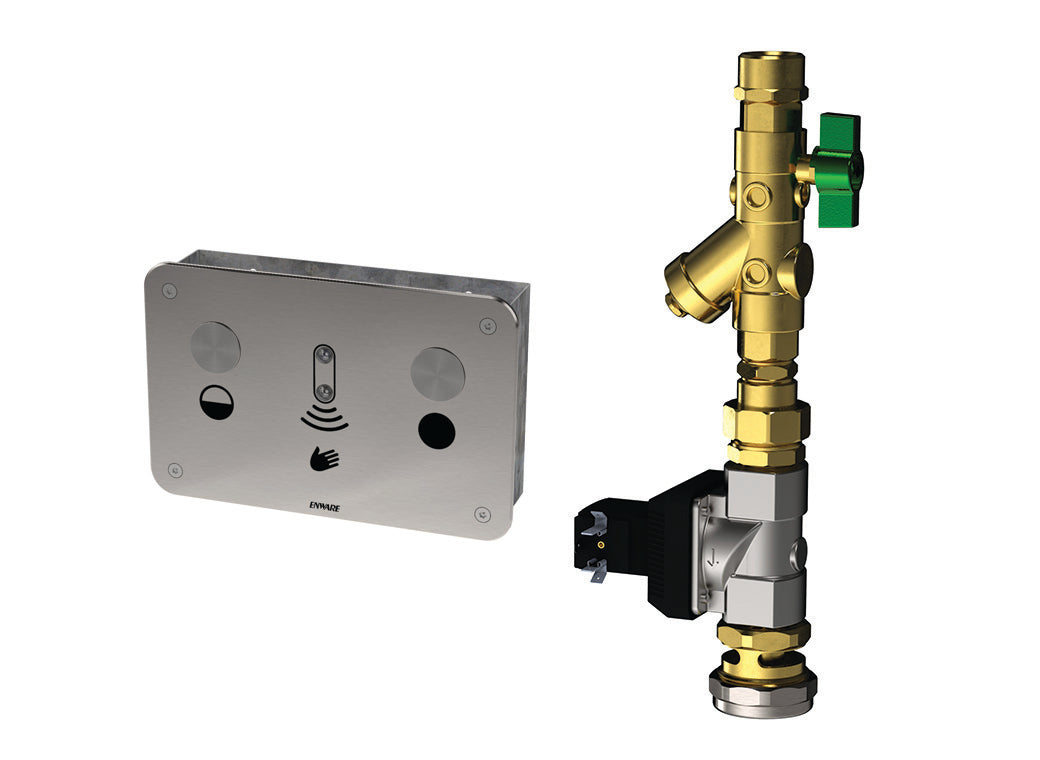

Sensor and Touch-Activated WC Flushing System

Product Code: EMF501MIR-3

Download data sheet Download install guide

Product description

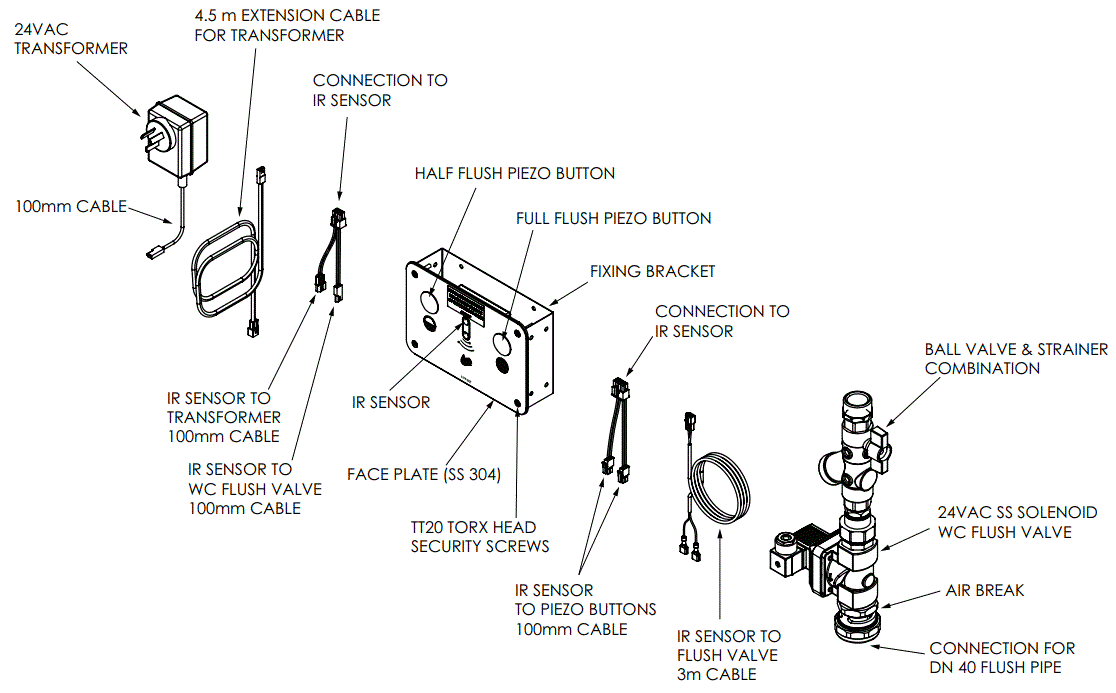

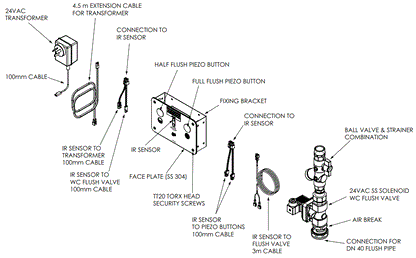

Enware’s WC flushing systems provide a neat and reliable flushing solution using infra-red and piezoelectric technology particularly suited for public access applications. Uses a WaterMarked solenoid that when combined with an appropriate pan delivers either a 3L or 4.5L flush. Best suited for duct style installation (Flush unit and activation plate must be separated). Stylish and strong electronic piezo operation using mains power. Semi concealed installation with a stainless steel panel and security screws. Shut off valve, strainer and airbreak included.

Key Selling Points

Touch-free flush activation with infra-red sensor, or touch activation via piezo button control
Mains power 24V
Compact face plate
Vandal resistant torx screws

Standard WELS (Stars): 3
Standard WELS Flow Rate (L/min): 4
WELS Category: Urinal
Certifications: WM 40116,WELS-3 Star-4L-WC Flush
WELS Half Flush Volume (L): 3
Maximum Recommended Pressure (kPa): 500

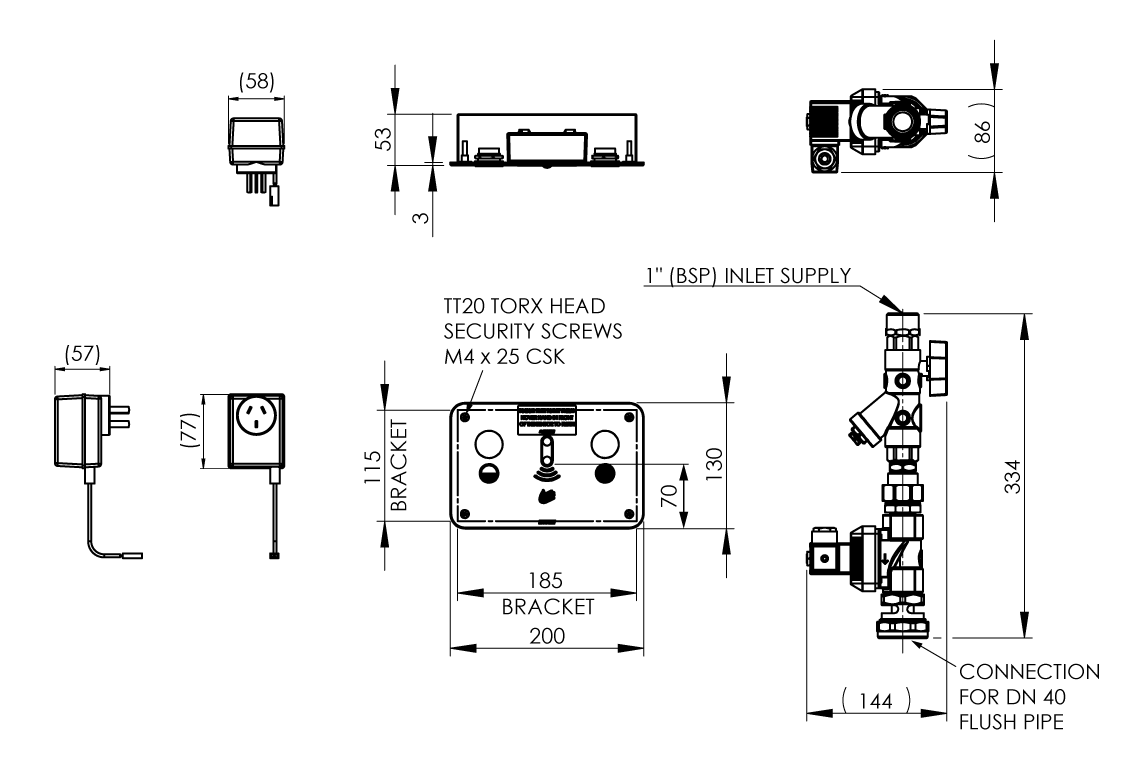

Inlet Connection: 1” BSP (25mm)
Outlet Connection: 1 ½” BSP (40mm) with connection for DN40 copper pipe
Water Supply Line Size: 1" [25mm] copper pipe
Flush Pipe: Flush Pipe: 1½” (40mm) flush pipe is required below the air break. (Note: use a maximum of 1x90º bend in flush pipe. If an offset is required 2 x 45º bends must be used. Maximum of 1 offset per flush pipe. Air break must be installed in a vertica
Kv Factor (m3/h): 8.3
Power Supply (AC/DC): AC
Touch Sensor Flush Activation: Press electronic piezo button to activate Full Flush or Half Flush
Automatic Flush Sensor Activation: Hover hand in sensor range to activate Full Flush
Automatic Flush Sensor range: 20-100mm
