Single Solenoid In-Wall H & C Mixer and Bracket for Front Panel

Single Solenoid In-Wall H & C Mixer and Bracket for Front Panel

Product Code: WMS182MIX

Download install guide

Product description

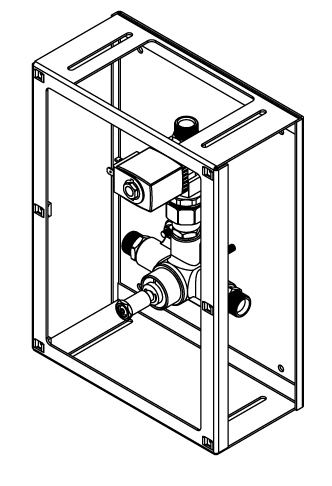

Hot and Cold Sequential type mixer body 1/2"MI inlet connections with NR Valves Ceramic mixing cartridge 1/2" 316SS Solenoid 24VDC Stainless Steel In- wall bracket for attaching front panel Suits either WMS182SHR or EMD182SHR front panel Lead Free

Certifications
WMKA1583 - LF,Lead Free
Maximum Working Temperature (Deg C)
50
Maximum Water Temperature (Deg C)
50
Maximum Static Pressure (kPa)
800
Maximum Recommended Pressure (kPa)
500
Inlet Connection
15mm (1/2" BSP)
Outlet Connection
15mm (1/2" BSP)
Power Supply (AC/DC)
24VDC
