Smart Flow Mixing Chamber with Probe
Smart Flow Mixing Chamber with Probe
Product Code: SFM3000
Couldn't load pickup availability
Product description
The Smarflow Mixing Chamber effectively mixes the outlet water from a Thermosatic Mixing Valve, allowing a stabilised reading of the mixed water temperature. This aids in producing more reliable temperature data in the Smartflow monitoring system.
Key Selling Points
- Mixing chamber has internal baffles that mixes water flow effectively to allow for stable temperature reading
- Temperature sensor probe connects to Smartflow monitoring system
- Connects directly to the outlet of Aquablend 1000, 1500 and 2500 Thermostatic Mixing Valves
- Solid brass construction
- Certifications
- WM-040336 LF
- Maximum Working Temperature (Deg C)
- 90
- Maximum Static Pressure (kPa)
- 1600
- Maximum Recommended Pressure (kPa)
- 1000
- Inlet Connection
- 1" BSP
- Outlet Connection
- 3/4” BSP
BIM Files
Brochures

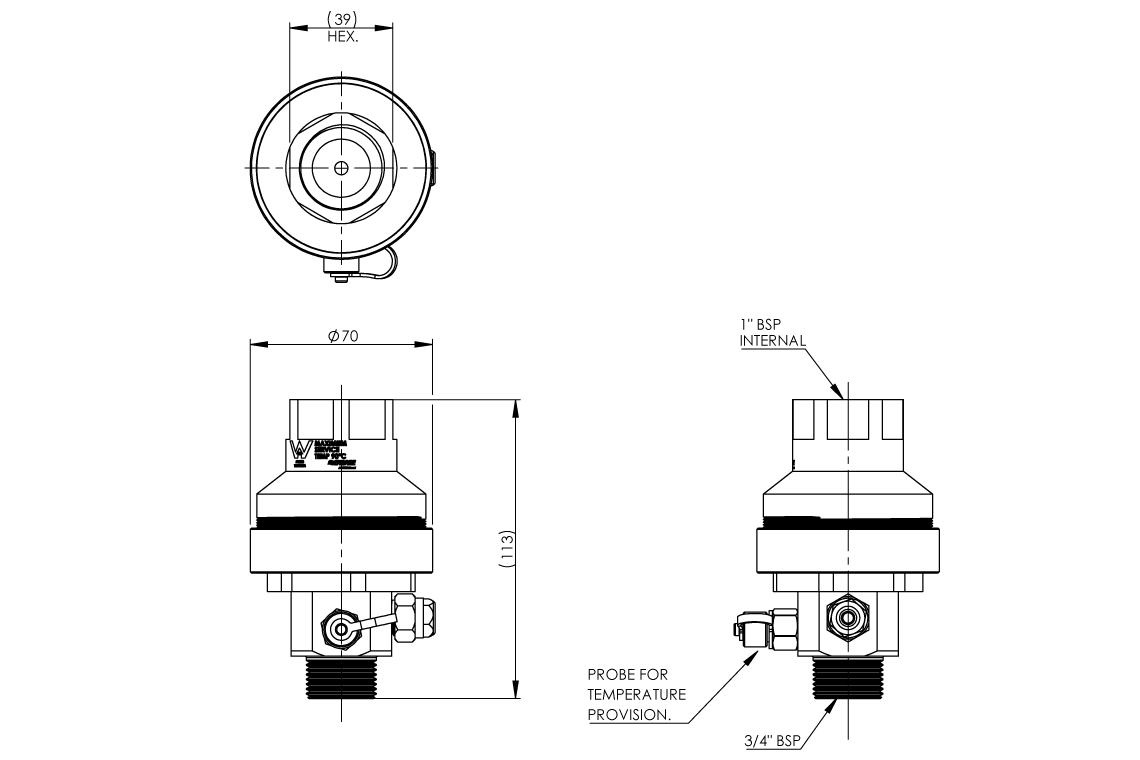

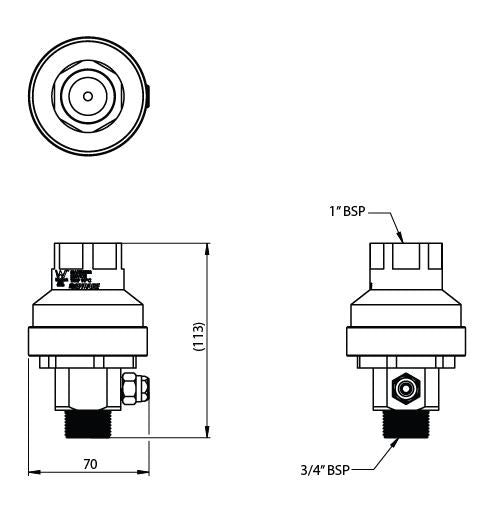

Dimensional Drawings
Product Information
