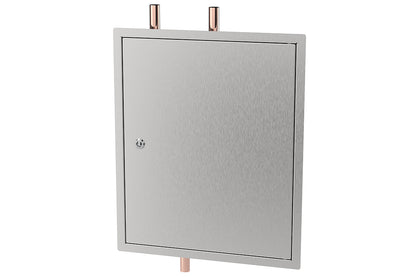

Tepid Water System for Emergency Shower and Eye Wash in SS Cabinet with lid
Tepid Water System for Emergency Shower and Eye Wash in SS Cabinet with lid
Product Code: ETW2500L
Couldn't load pickup availability
Product description
In critical emergency situations, rapid access to tepid water is essential to mitigate the severity of workplace injuries. Emergency showers and eye wash stations must deliver water within the AS4775-recommended temperature range (15.6°C–37.8°C) to enable continuous flushing for a minimum of 15 minutes.
In cold climates or during winter months, maintaining tepid water supply is vital to prevent hypothermia and ensure effective decontamination. The ETW2500L (upgrade from ETW2500) tepid water system is designed to supply flushing fluid within recommended temperature guidelines of 15.6°C to 37.8°C (as per AS4775).

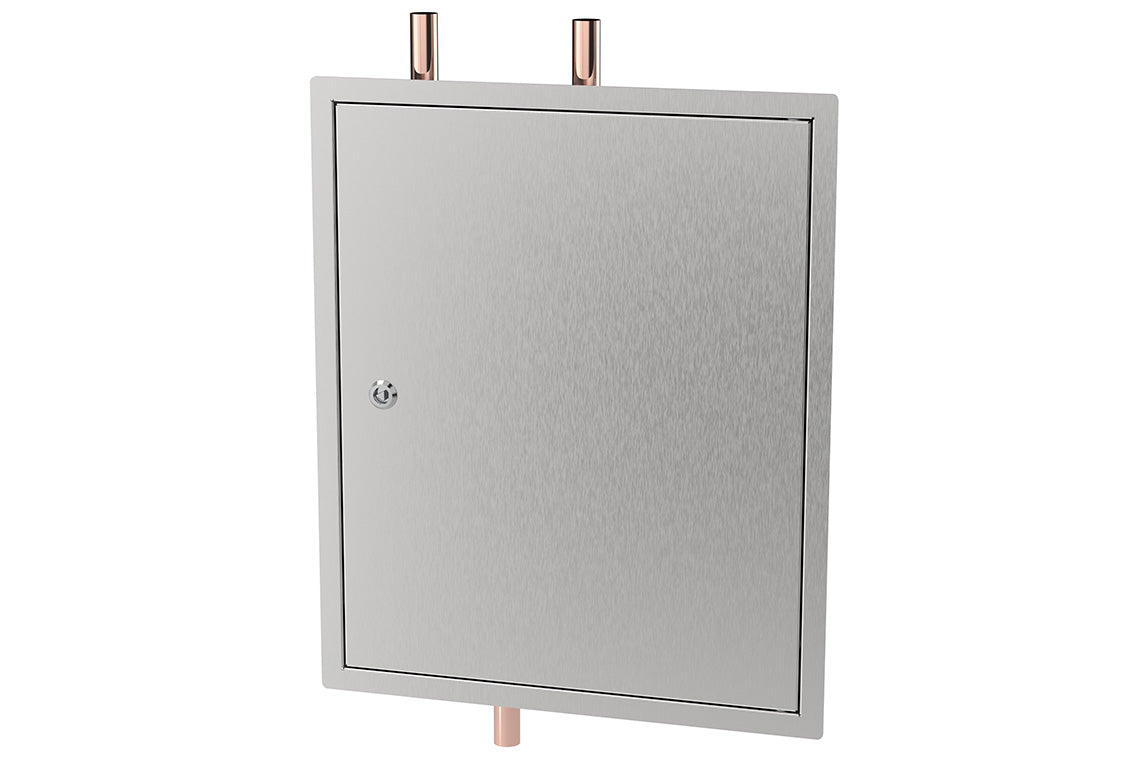

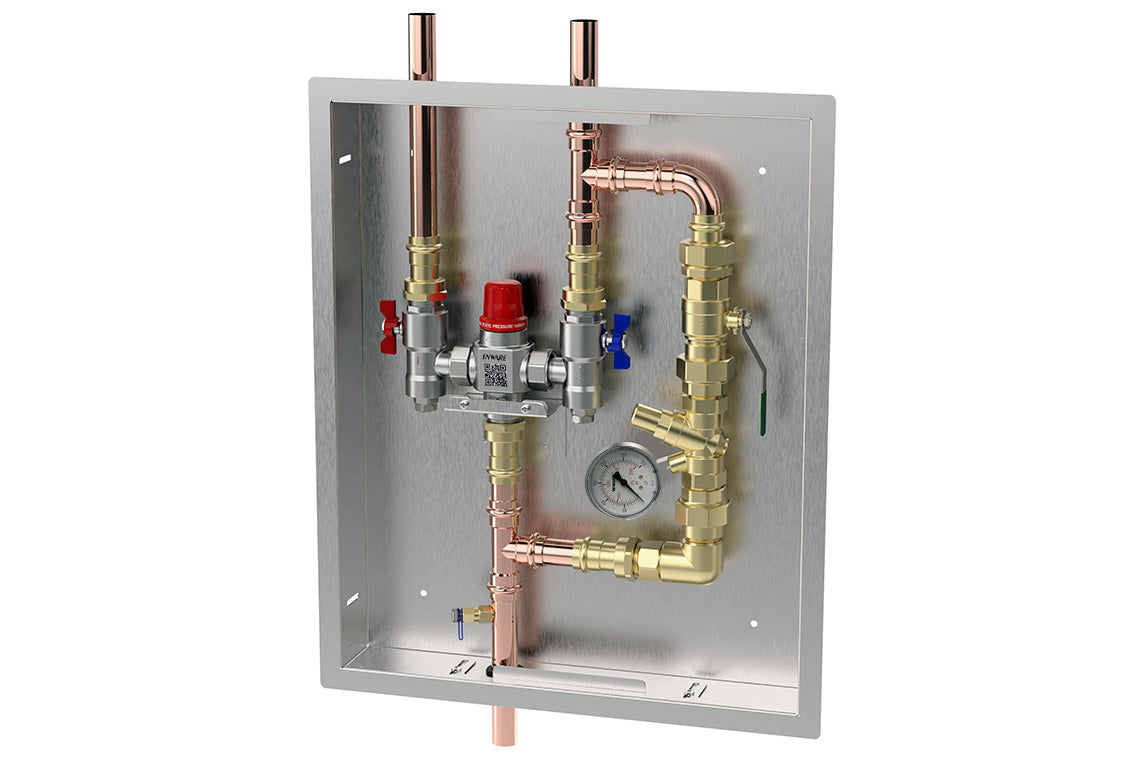

The system design integrates the Aquablend 2500 Thermostatic Mixing Valve to mix the hot and cold water which is then fed back into the inlet feed to the emergency shower and eye wash to ensure a comfortable water temperature meets AS4775. Now comes standard in a stainless-steel cabinet with a hinged lid. New slimline design fits within a 75 mm deep wall cavity.
Key Selling Points
- Supplied complete with Aquablend 2500 Megamix Thermostatic Mixing Valve (TMV), certified to AS 4032.1. All components are WaterMark certified and manufactured using lead-free fittings.
- Delivers tepid water within the recommended temperature range of 15.6°C to 37.8°C in accordance with AS 4775, capable of continuous flushing for a minimum of 15 minutes.
- Fully assembled housed in a stainless steel cabinet with hinged removable lid as a standard making it ready to install (requires commissioning and testing on site to ensure operational compliance to AS4775)

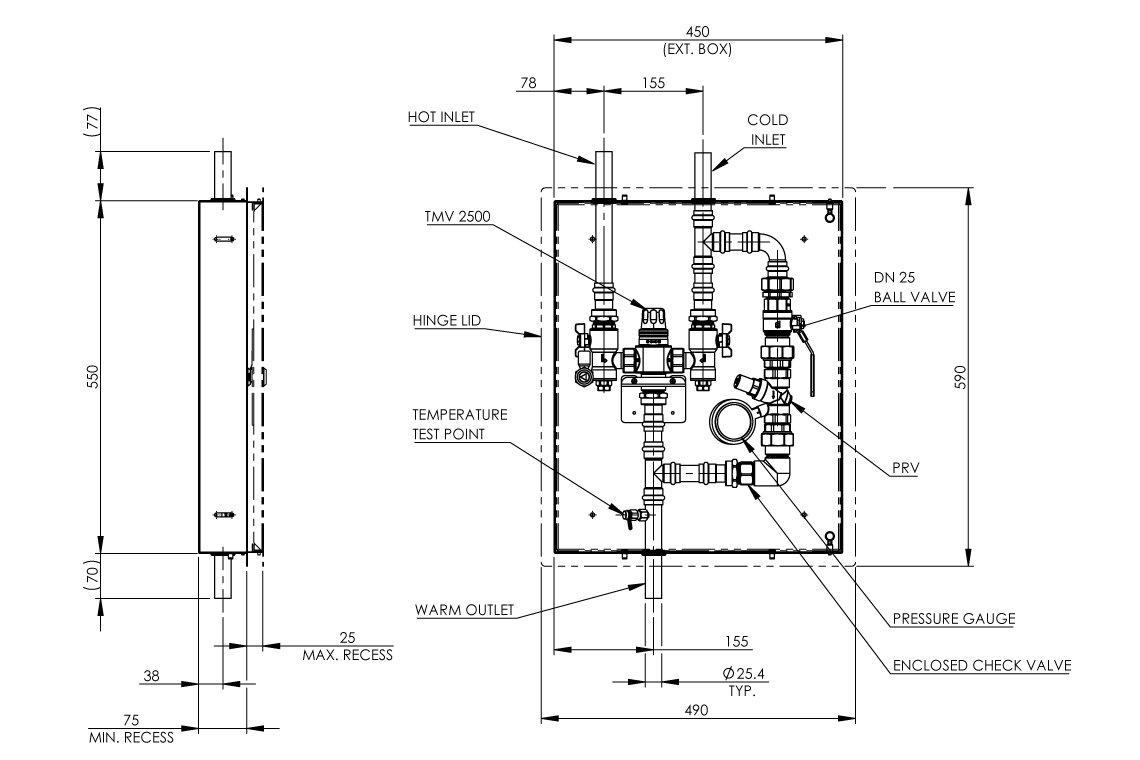

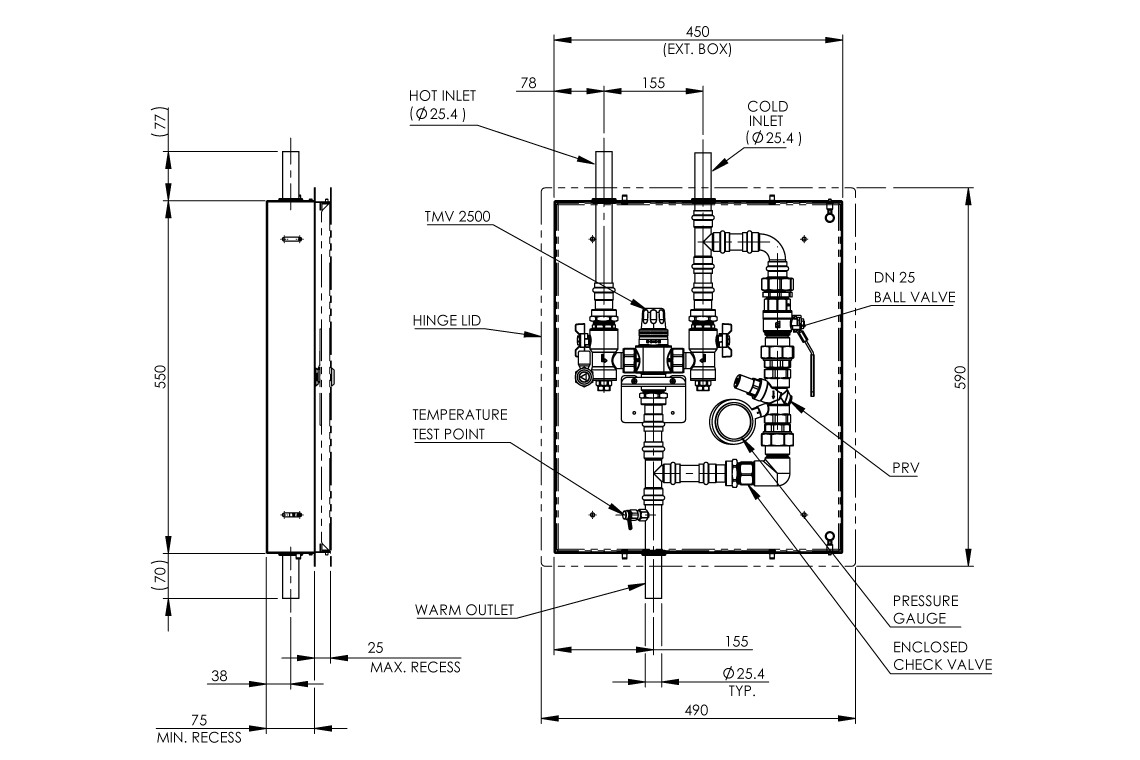

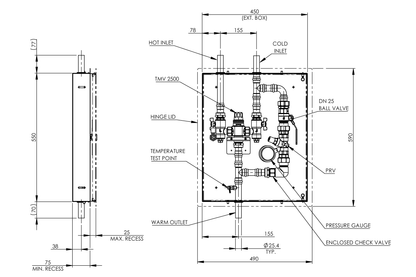

- New slimline recessed design suitable for installation within a 75 mm deep wall cavity, providing a space-efficient solution.

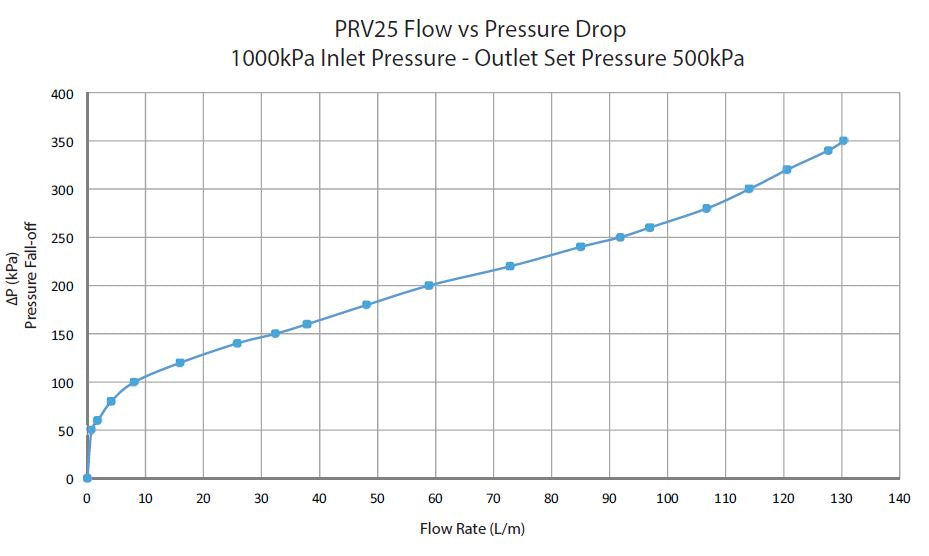

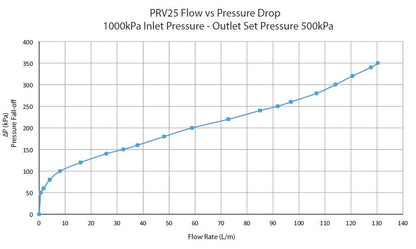

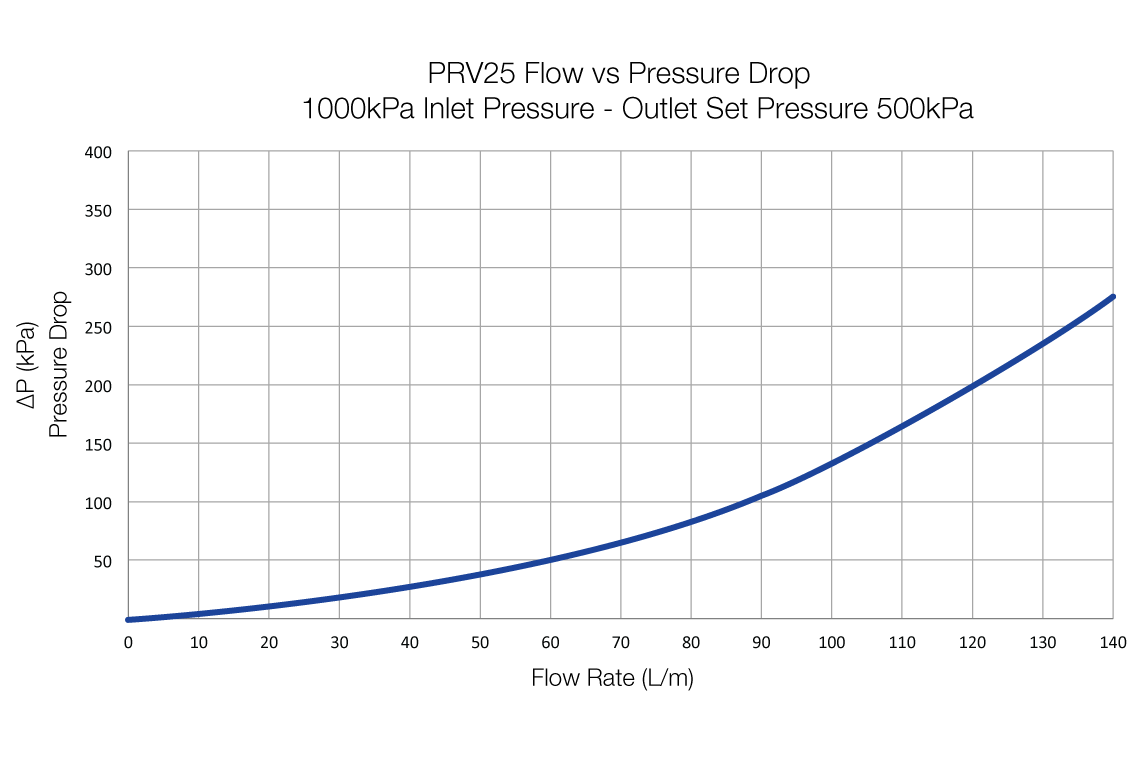

- Pressure Reducing Valve (PRV) and pressure gauge fitted to cold water bypass line
- Integrated cold water bypass maintains flow in the event of hot water supply failure
- Automatic thermal shut-off in the event of cold water supply failure to prevent scalding
- Each unit pressure tested prior to delivery
- Designed for connection to emergency safety showers, eye wash stations, eye/face wash units and combination units
-
Assured compliance with relevant Australian Standards for safety and performance
-
Maintains safe and comfortable water temperature during emergency operation
-
Provides reliable system performance with integrated pressure monitoring
-
Ensures continued operation during hot water supply interruption while protecting users from scalding
-
Flexible solution suitable for a wide range of emergency safety equipment
-
Reduces installation time and associated labour costs
-
Durable stainless steel construction with accessible components for simplified servicing and maintenance
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 30
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 90
- Maximum Static Pressure (kPa)
- 1600
- Minimum Flow Rate for Stable Outlet Temperature (L/min)
- 17

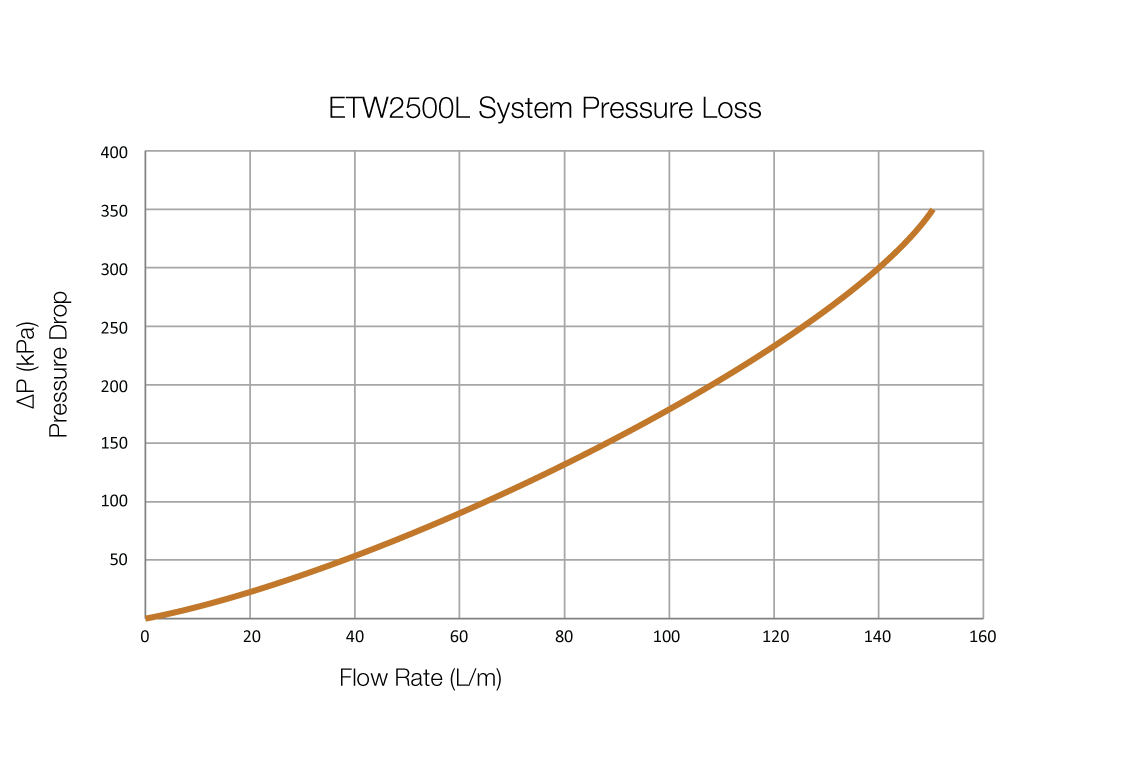

- Maximum Flow Rate (L/min@300kPa pressure loss)
- 118
- Finish
- Stainless Steel Brushed
- Valve Type
- TMV
