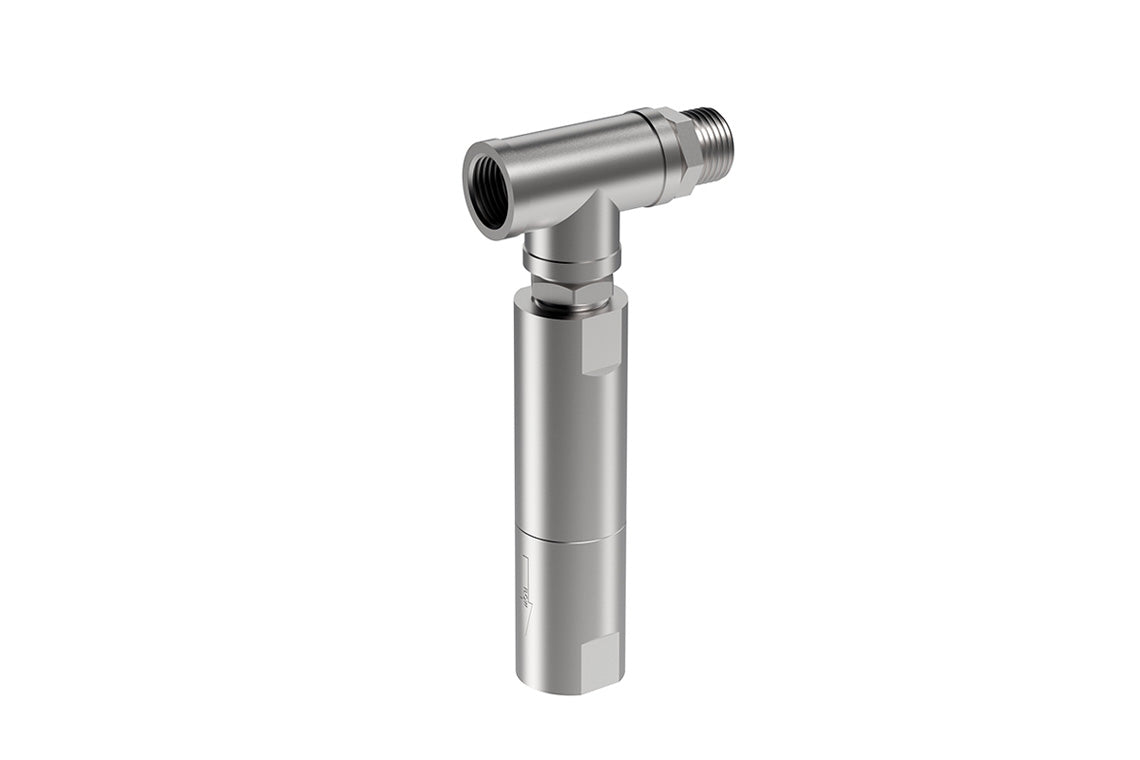

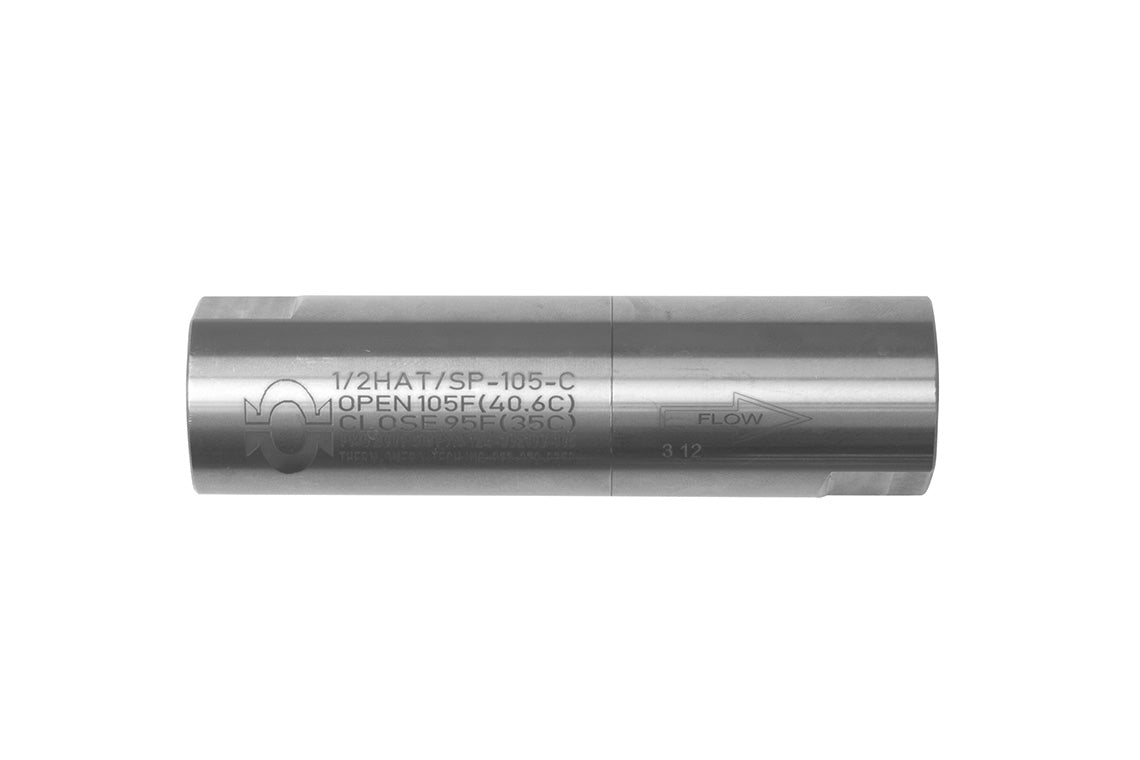

Thermal Relief Valve
Thermal Relief Valve
Product Code: EAATRV-FE
Couldn't load pickup availability
Key Selling Points
- Helps prevent over temperature of systems

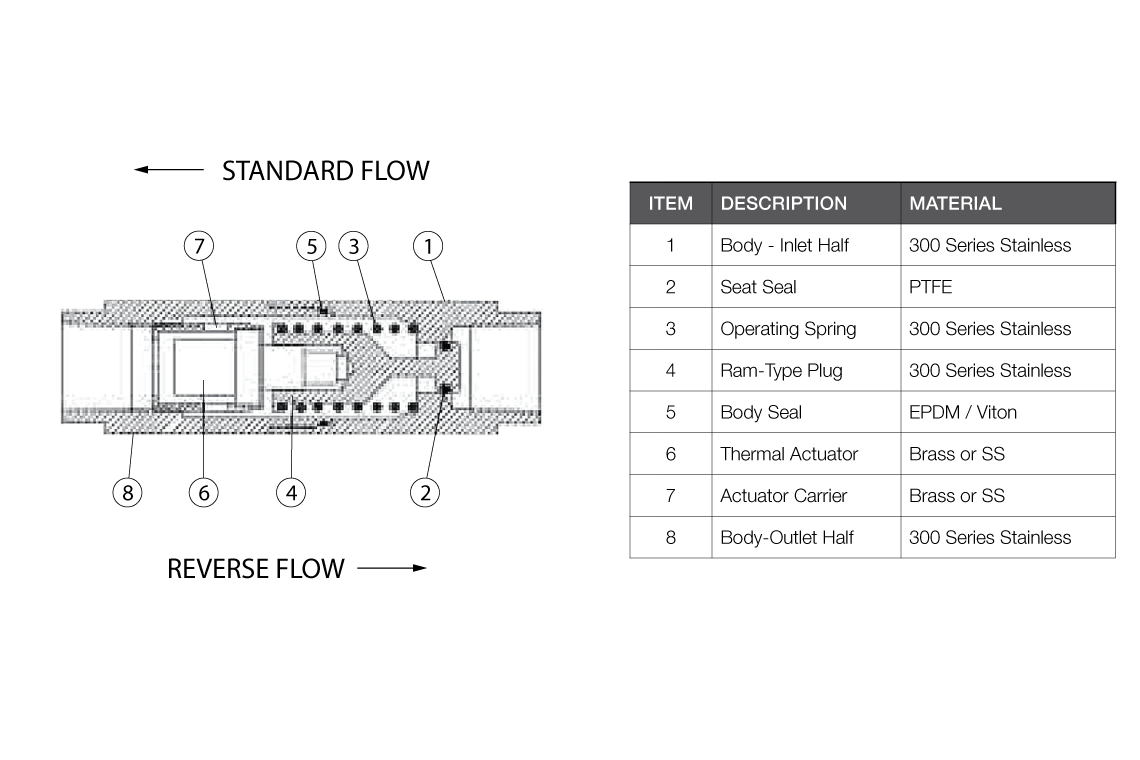

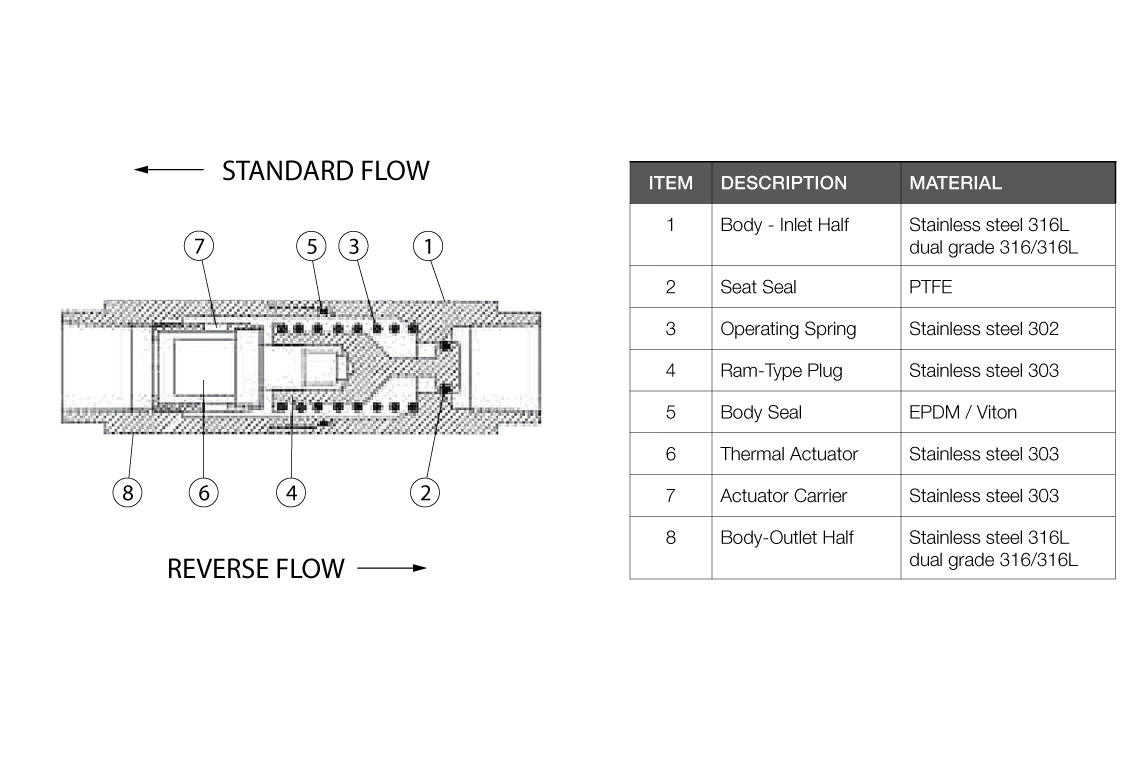

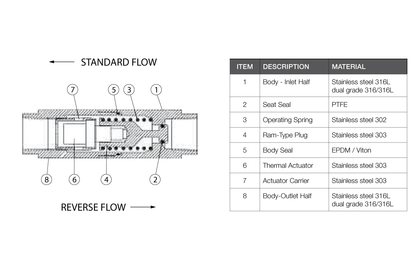

- Stainless steel body, fittings, spring, and plug
- Discharges the minimum amount of water required to keep water temperature within pre-set limits
- Robust and corrosion resistant
- Compact, low-mass - fast response
- Opens when valve senses fluid temperature, not ambient temperature
- Ram-type plug for reliable and tight shut-off
- Unaffected by pressure variations
- Easy installation
- Installs in any orientation
- Self-actuating - no air or electricity required

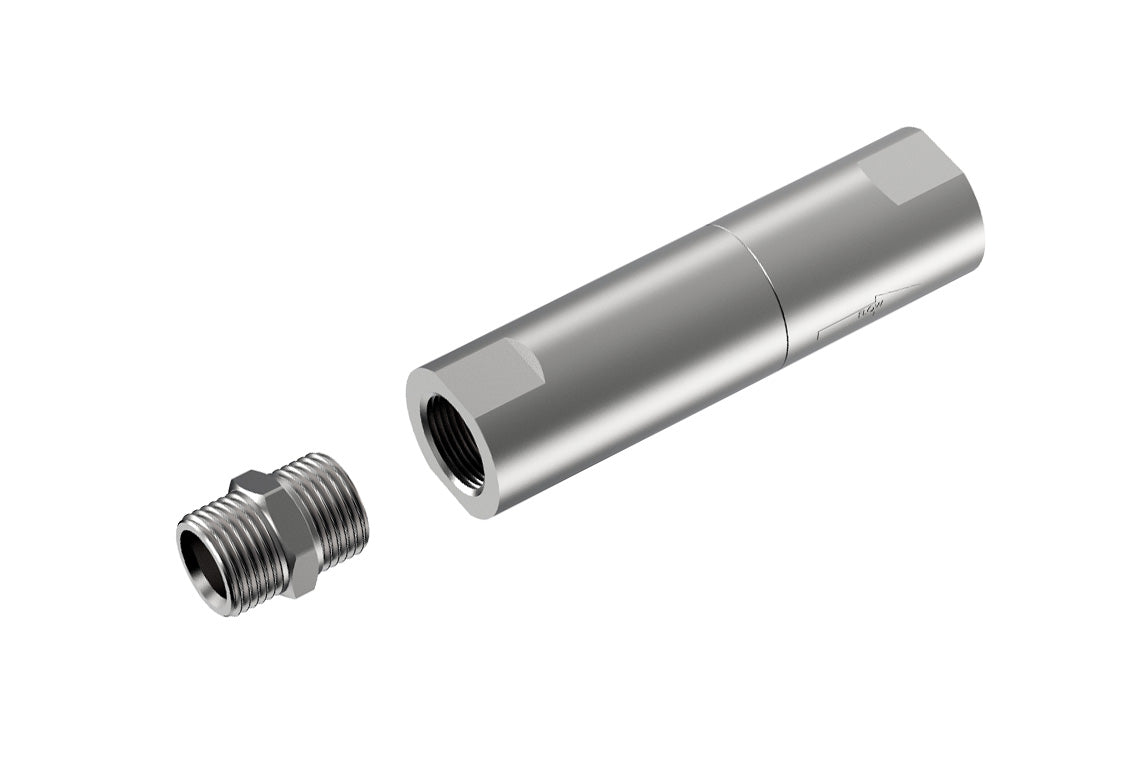

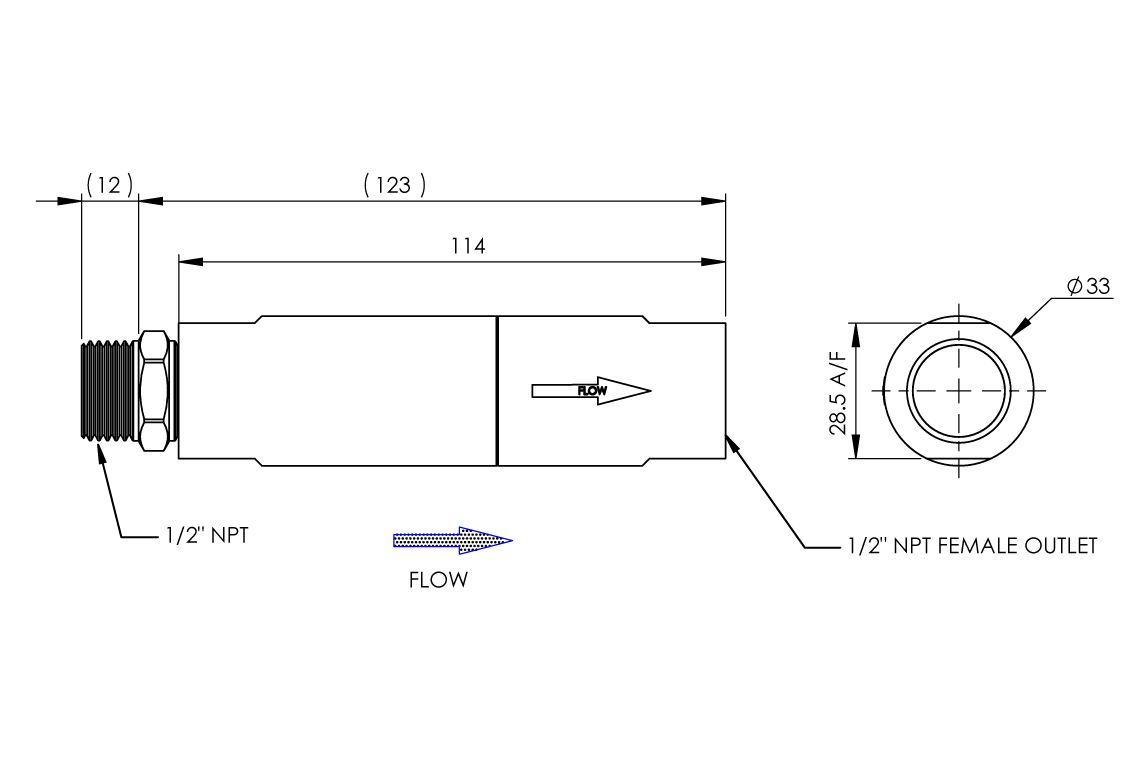

- Inlet Connection
- 1/2” (NPTF) female
- Outlet Connection
- 1/2” (NPT) nipple
- Depth (mm)
- 33
- Length (mm)
- 114
- Weight (kg)
- 0.41
