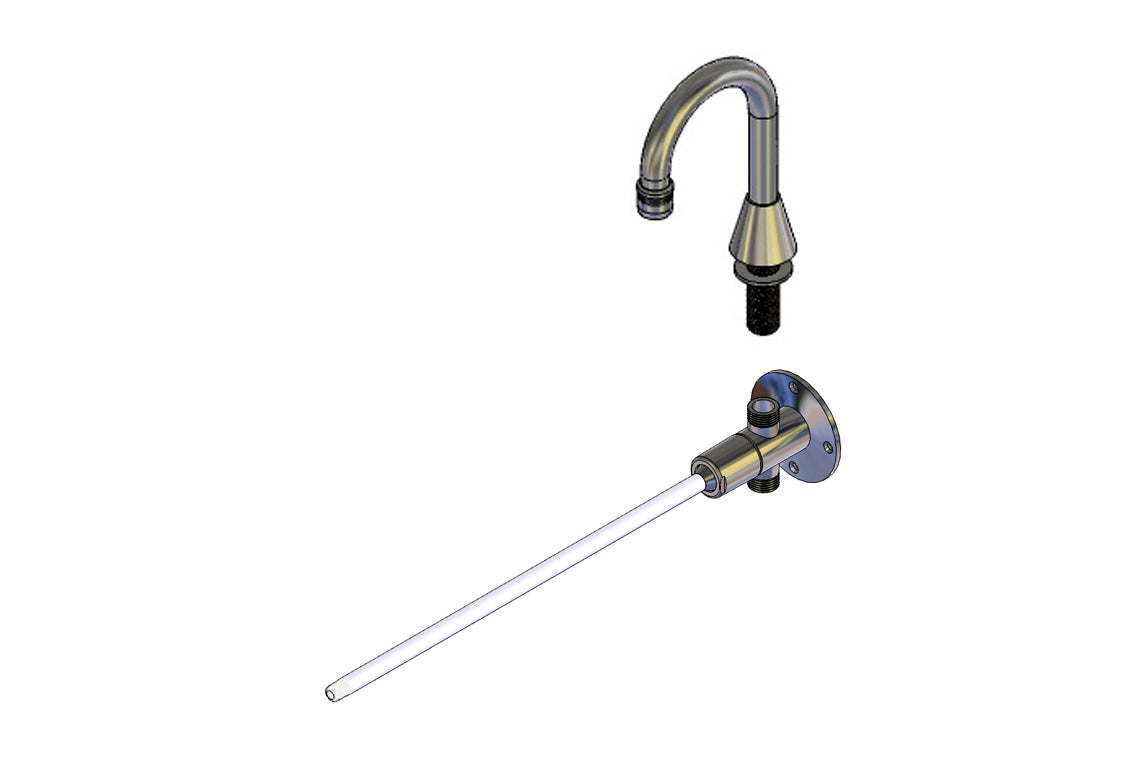

Time-Flow Knee Operated Valve - 100mm Hob Spout
Time-Flow Knee Operated Valve - 100mm Hob Spout
Product Code: HFS735
Couldn't load pickup availability
Product description
The self-closing knee operated valve is located beneath the basin and when activated with the knee or leg the water flows for approximatley 15 seconds, allowing the user to wash hands without having to touch the taps. The knee lever can be operated in any direction to activate water flow. As it is a mechanical device, the knee operated valve is particularly appropriate in wet or wash down areas including fish and meat processing facilities.
Key Selling Points
- 15 seconds* flow time
- Knee-operated self-closing valve provides hygienic, hands-free activation of tapware
- 100mm fixed aerated basin outlet (SP001)
- *Flow times are indicative only and may vary depending on water supply pressure and flow conditions
- Standard WELS (Stars)
- 3
- Standard WELS Flow Rate (L/min)
- 8
- WELS Notes
- Spout - SP001
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Recommended Temperature (Deg C)
- 45
- Maximum Working Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 500
- Minimum Recommended Pressure (kPa)
- 250
- Maximum Recommended Pressure (kPa)
- 350
- Primary Flow Rate (L/min)
- 6
- Flow Time
- 15 seconds
- Flow Notes
- Enware-Delabie time flow tapware uses mechanical technology and flow times may vary under different flow and pressure conditions.
- Inlet Connection
- 1/2" BSP (15mm)
- Finish
- Chrome
- Valve Type
- Time Flow
BIM Files
Brochures

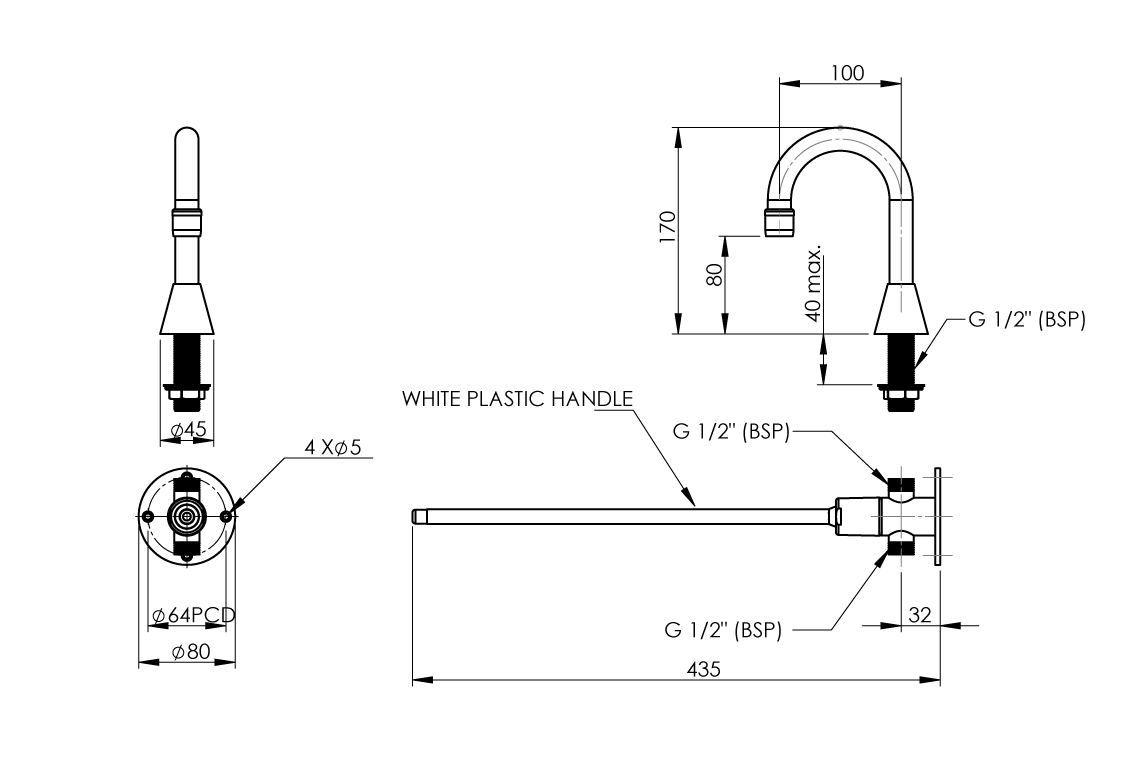

Dimensional Drawings
