Type 16A Laboratory Stop Tap Swivel and Fixed Outlet Aerated/ Tube Nozzle - School Pattern Handle 1/4 Turn Ceramic Disc
Type 16A Laboratory Stop Tap Swivel and Fixed Outlet Aerated/ Tube Nozzle - School Pattern Handle 1/4 Turn Ceramic Disc
Product Code: LFQ110
Couldn't load pickup availability
Product description
A single hole Vandal resistant laboratory tap with swivel spout and locking mechanism for fixed spout. Supplied with WELS 6 Star aerator and 5 Star Tube Nozzle. Can be installed Left or Right Hand orientation.
Key Selling Points
- 1/4 turn ceramic disc
- Bench mounted
- 150mm Spout can be Fixed or Swivel
- Left or Right Handed
- Aerated (WELS 6 Star)
- Tube Nozzle (WELS 5 Star)
- Anti-rotation pins
- Vandal resistant school pattern handle
- High quality construction with durable chrome plating
- Supplied with Hot/ Cold/ Warm Indicators
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 4
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-5 Star-6Lpm,WELS-6 Star-4Lpm,Lead Free
- First Additional WELS (Stars)
- 5
- First Additional WELS Flow Rate (L/min)
- 6
- Maximum Ceramic Disc Operating Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 800
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 15mm (1/2" BSP)
- Finish
- Chrome
- Valve Type
- 1/4 Turn Ceramic Disc
BIM Files
Brochures

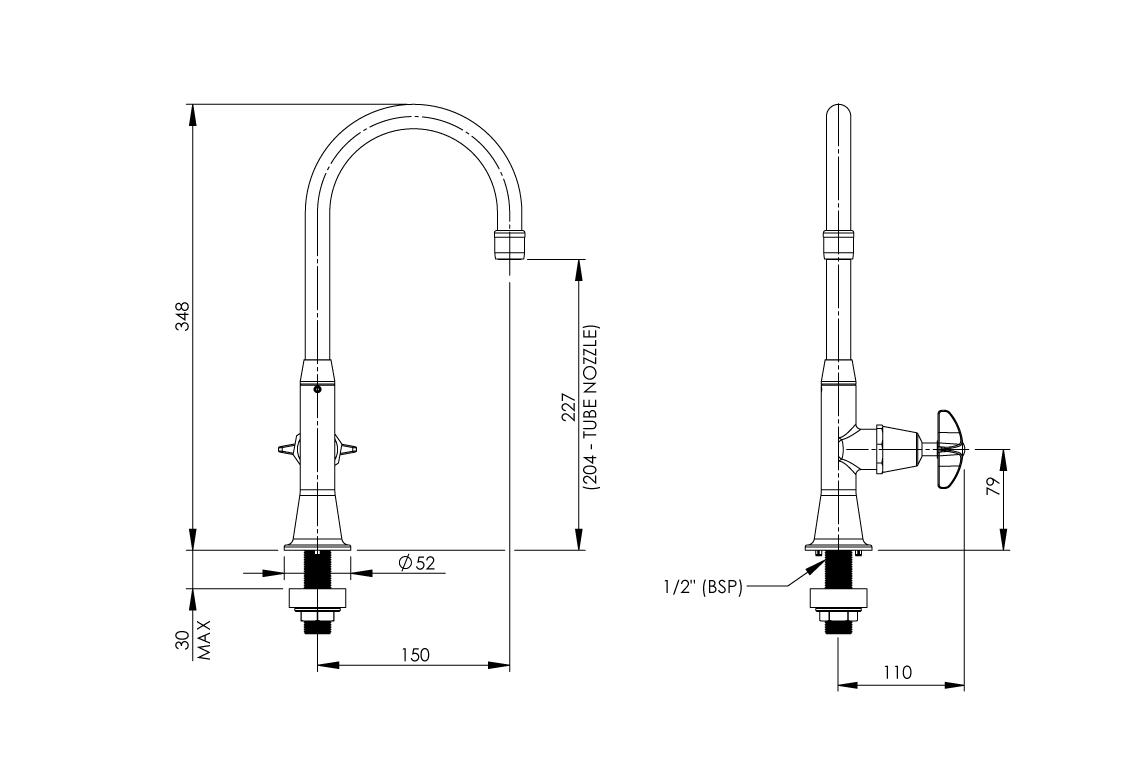

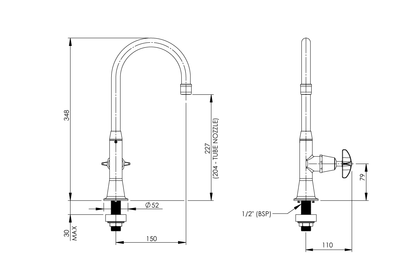

Dimensional Drawings
Product Information
