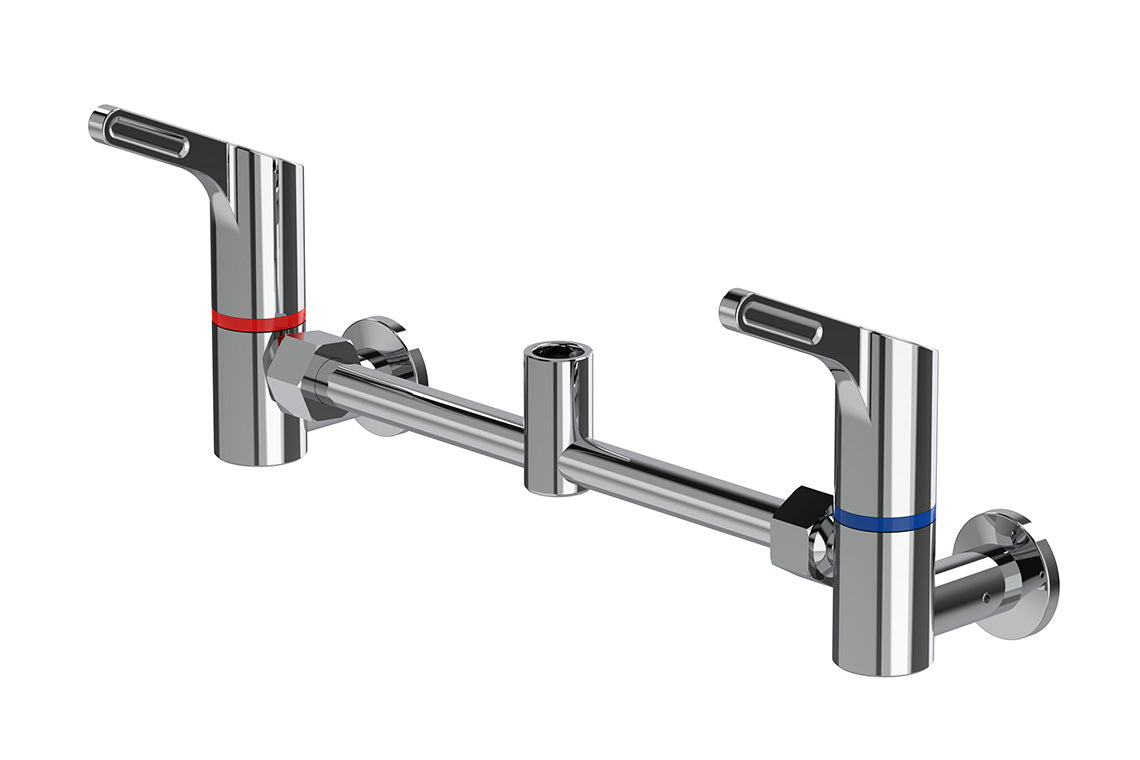

Wall Mounted Adjustable Exposed Mixer Base with 80mm Lever Handles - Jumper Valve
Wall Mounted Adjustable Exposed Mixer Base with 80mm Lever Handles - Jumper Valve
Product Code: FS022ADJ
Couldn't load pickup availability
Product description
A heavy-duty wall mounted exposed mixer base with adjustable centres.
Key Selling Points
- Quarter-turn, contra-rotating 80mm lever handles
- Jumper Valve
- Suitable for a swivel spout or Pre-Rinse riser assembly
- Adjustable centres for wall inlet points allow the mixing set to fit a range of set outs (max. 350mm)
- Clear identification on all lever handles with blue, yellow or red coloured indicator collars
- Attractive, solid brass chrome body
- Robust construction for superior performance
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Working Temperature (Deg C)
- 95
- Maximum Static Pressure (kPa)
- 1200
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 15mm (1/2" BSP)
- Valve Type
- 1/4 Turn Jumper Valve
BIM Files
Brochures

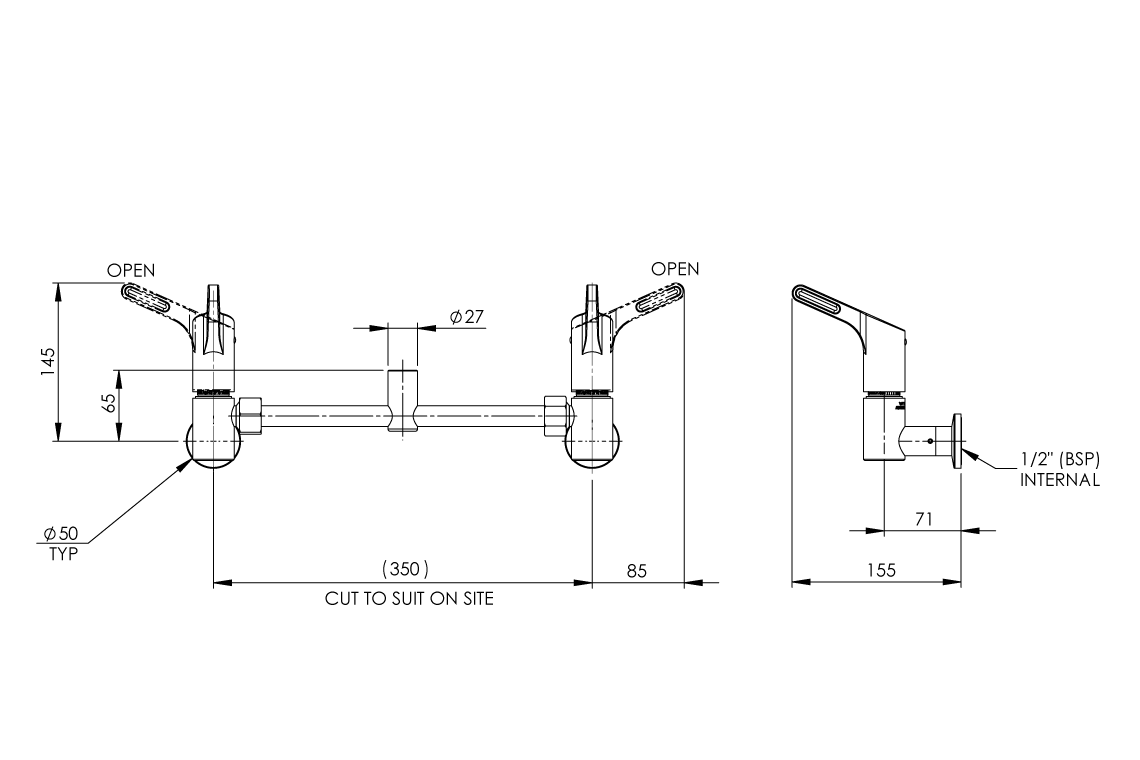

Dimensional Drawings
Product Information
