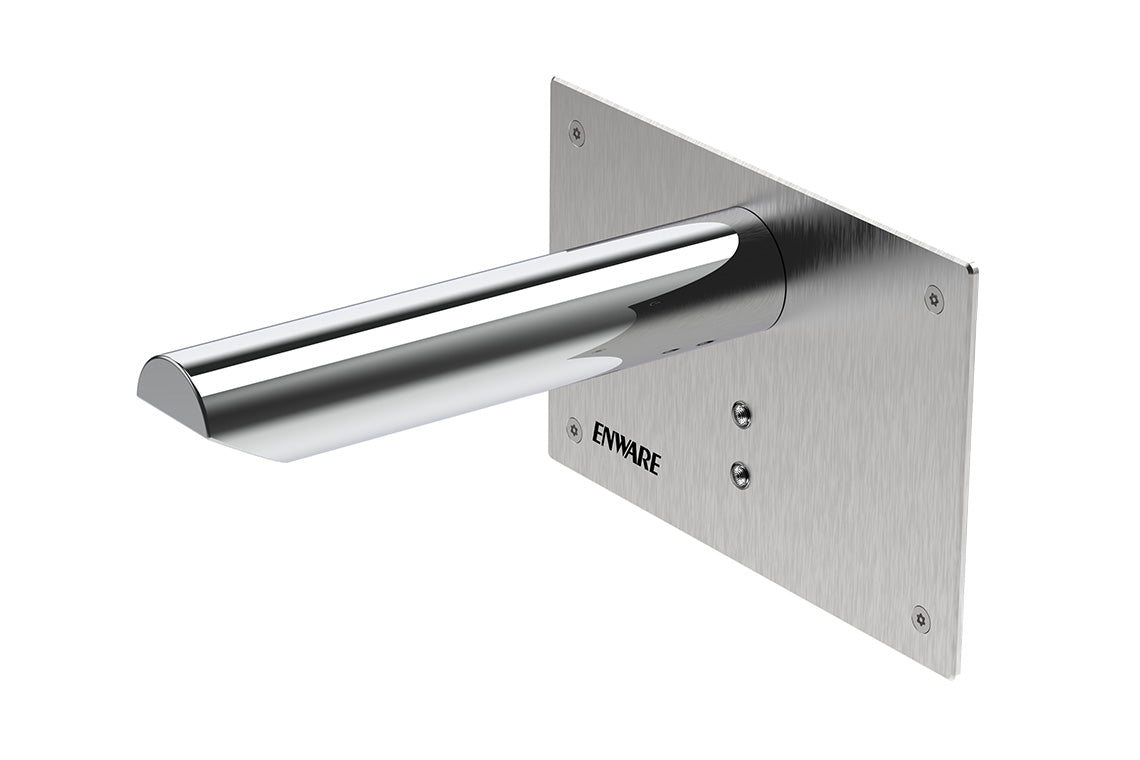

Wall Mounted Sensor Tap: Hands-Free - 205mm Spout
Wall Mounted Sensor Tap: Hands-Free - 205mm Spout
Product Code: ENM5071A-205
Couldn't load pickup availability
Product description
The Touch-Free Wall Mounted Sensor is a wall-mounted, sensor operated, hands-free tap that is installed above sinks and basins. It operates by sensing a hand in front of the sensor unit. It uses a beam of invisible Infrared light which, when reflected from hand back to the sensor, operates the unit.
Key Selling Points
- To turn tap on, place hand under spout in front of sensor
- To turn tap off, move hand away
- Valve stays open for 6 seconds, or as long as the hand is within sensor range
- Maximum flow time of 45 seconds per activation reduces waste and prevents vandalism
- Equipped with automatic hygiene flush function (1-10min/24hr) - enabled on request
- Stainless steel sensor plate
- Fixed 205mm spout with 6 Star (4.5 L/min) laminar flow concealed aerator
- * Longer flow times, hygiene flush function and other program settings are available at the time of ordering. Contact Enware for more information.
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 5.5
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-6 Star-5.5Lpm,Lead Free
- Maximum Water Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 1000
- Minimum Recommended Pressure (kPa)
- 100
- Maximum Recommended Pressure (kPa)
- 500
- Flow Time
- Runs as long as hand is within range (Active Sense). When out of range, runs for 6 seconds (Afterflow). Maximum continuous flow period per sensor activation is 45 seconds (Security Time Out).
- Flow Notes
- Runs as long as hand is within range. (Active Sense) When out of range, runs for 6 seconds. (Afterfl ow) Maximum continuous fl ow period per sensor activation is 45 seconds. (Security Time Out)
- Inlet Connection
- 15mm (1/2" BSP)
- Power Supply (AC/DC)
- AC
- Maximum Current (A)
- 1
- Operating Voltage (V)
- 24
- Operating Voltage (AC/DC)
- DC
- Power Consumption (W)
- 10
- IP Rating
- 67
- IP Rating Front Panel and Sensor Lens
- IP67
- IP Rating Behind Panel
- Nil
- Minimum Sensor Range (mm)
- 100
- Maximum Sensor Range (mm)
- 235
BIM Files
Brochures

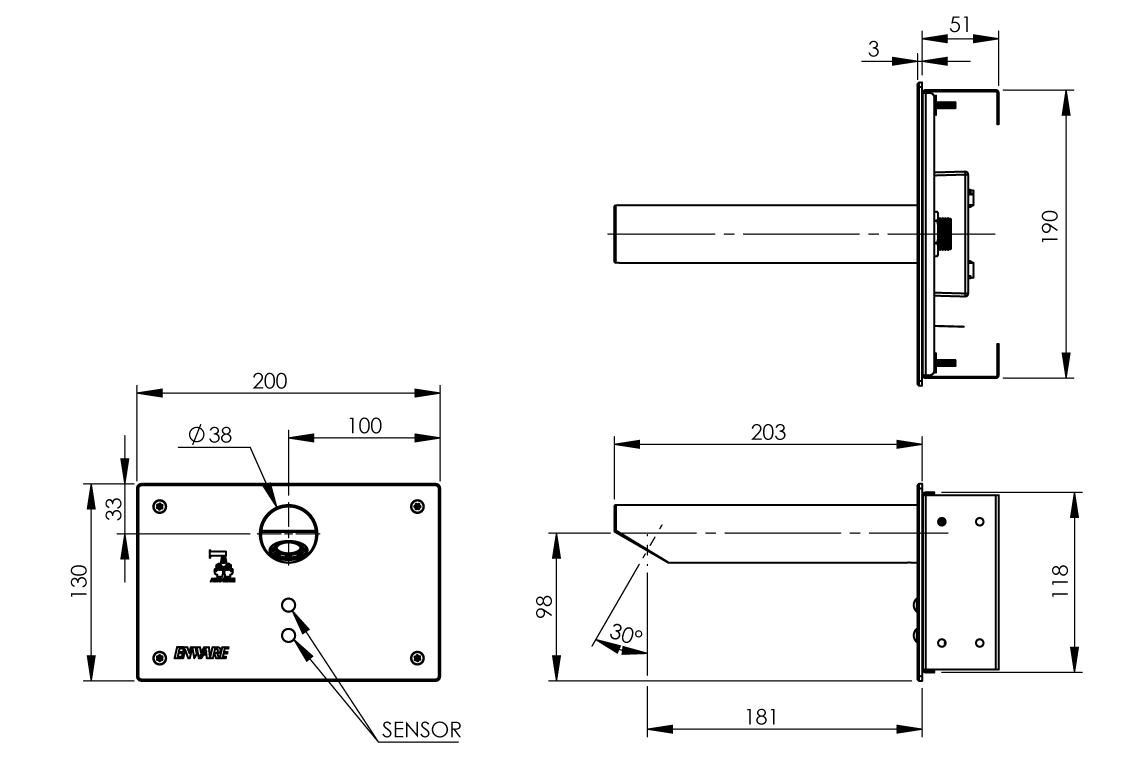

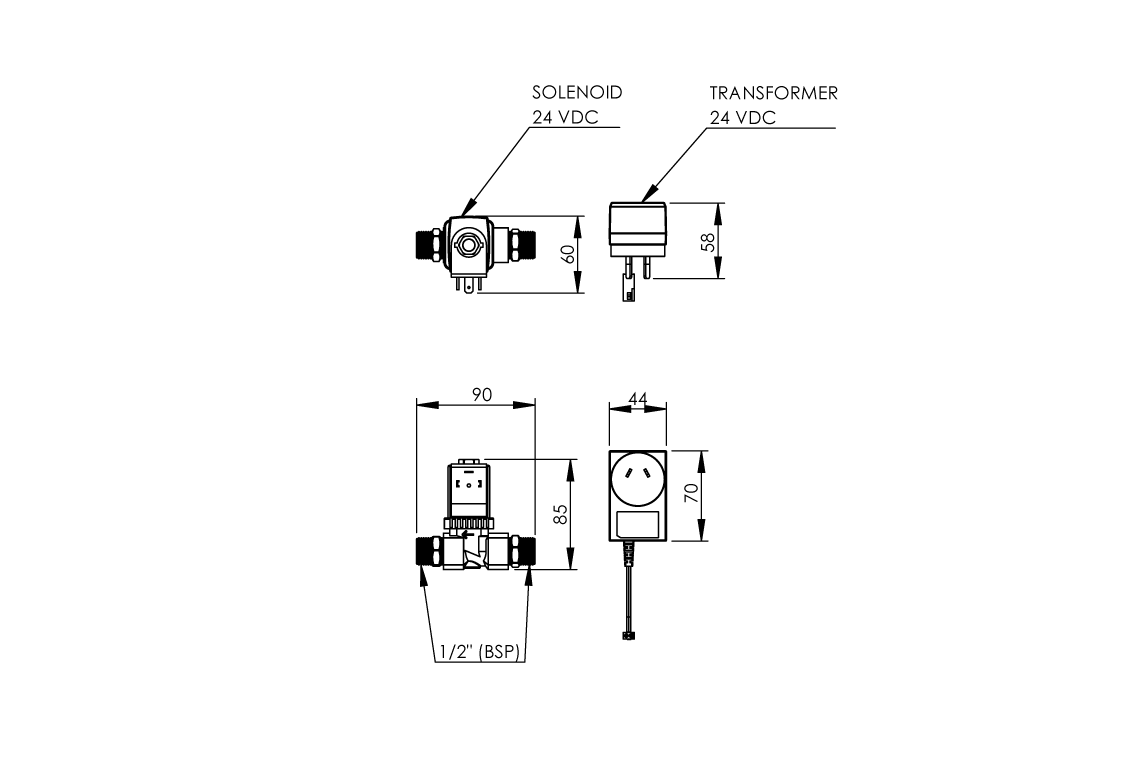

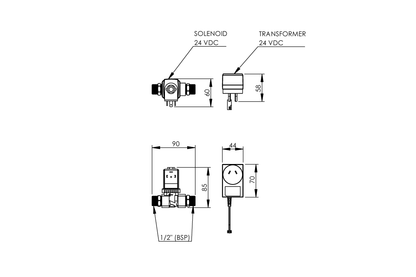

Dimensional Drawings
