Wall Mounted Sensor Tap - Hands-Free On/Off Demand Sensor - 200mm Spout
Wall Mounted Sensor Tap - Hands-Free On/Off Demand Sensor - 200mm Spout
Product Code: EMW803A-200
Couldn't load pickup availability
Product description

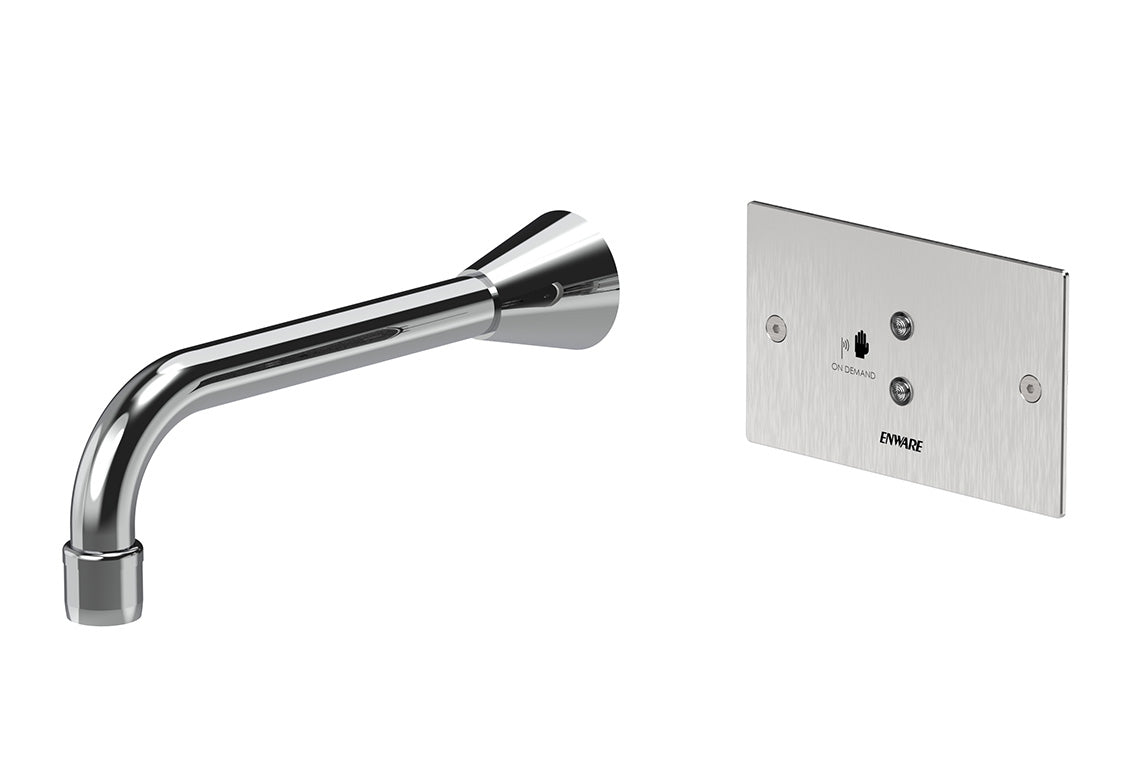

The Touch-Free Wall Mounted Sensor is a wall-mounted, sensor operated, hands-free tap that is installed above sinks and basins. It operates by sensing a hand, placed within 5 cm of the sensor unit. It uses a beam of invisible Infrared light which, when reflected from hand back to the sensor, operates the unit.
Key Selling Points
- To turn tap on, place hand in front of sensor for half a second
- To turn tap off, place hand in front of sensor again for half a second
- Valve stays open without hand remaining in the beam
- Maximum flow time 45 seconds* reduces waste and overflow if accidentally activated
- Equipped with automatic hygiene flush function (1-10min/24hr) - enabled on request*
- Stainless steel sensor plate
- 200mm spout with 8 L/min aerator
- * Longer flow times, hygiene flush function and other program settings are available at the time of ordering. Contact Enware for more information.
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 4
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-4 Star-8.5LPM 0058,Lead Free
- Maximum Water Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 1000
- Minimum Recommended Pressure (kPa)
- 100
- Maximum Recommended Pressure (kPa)
- 500
- Flow Time
- Place hand in sensor range to activate. Place hand in sensor range again to stop. Maximum of 45 seconds time out per activation *.
- Inlet Connection
- 15 mm (1/2”) BSP
- Power Supply (AC/DC)
- AC
- Maximum Current (A)
- 1
- Operating Voltage (V)
- 24
- Power Consumption (W)
- 10
- IP Rating
- IP67
BIM Files
Brochures

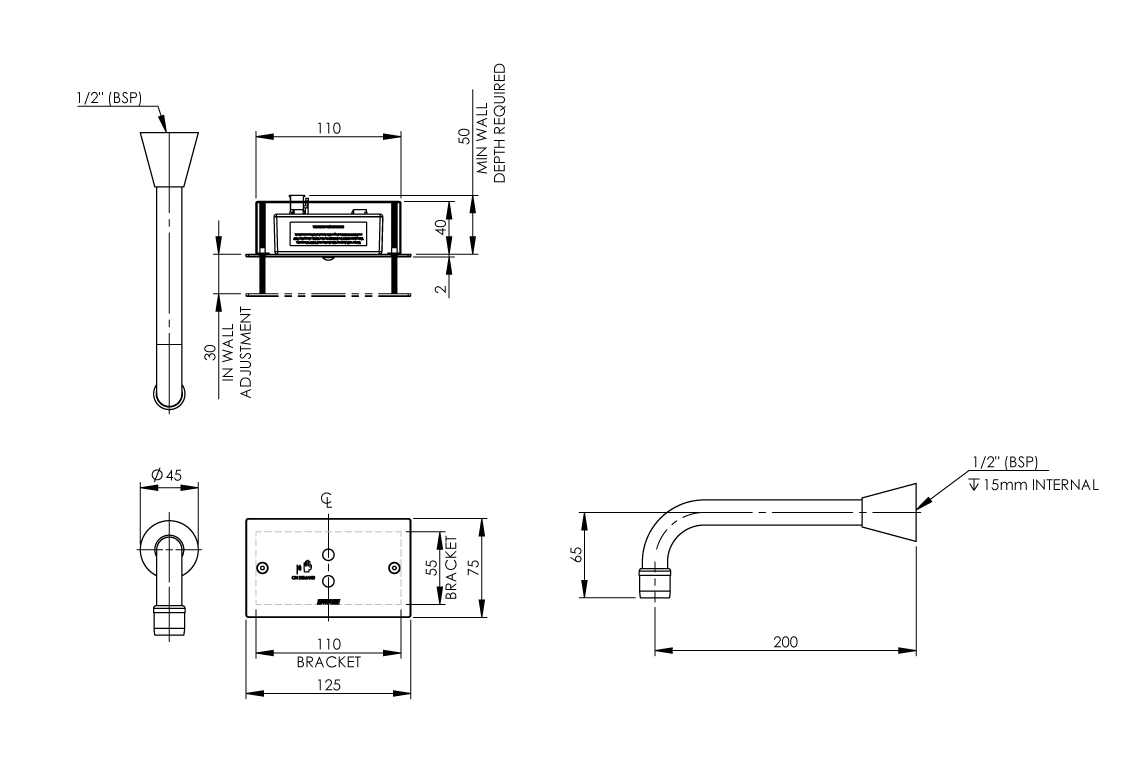

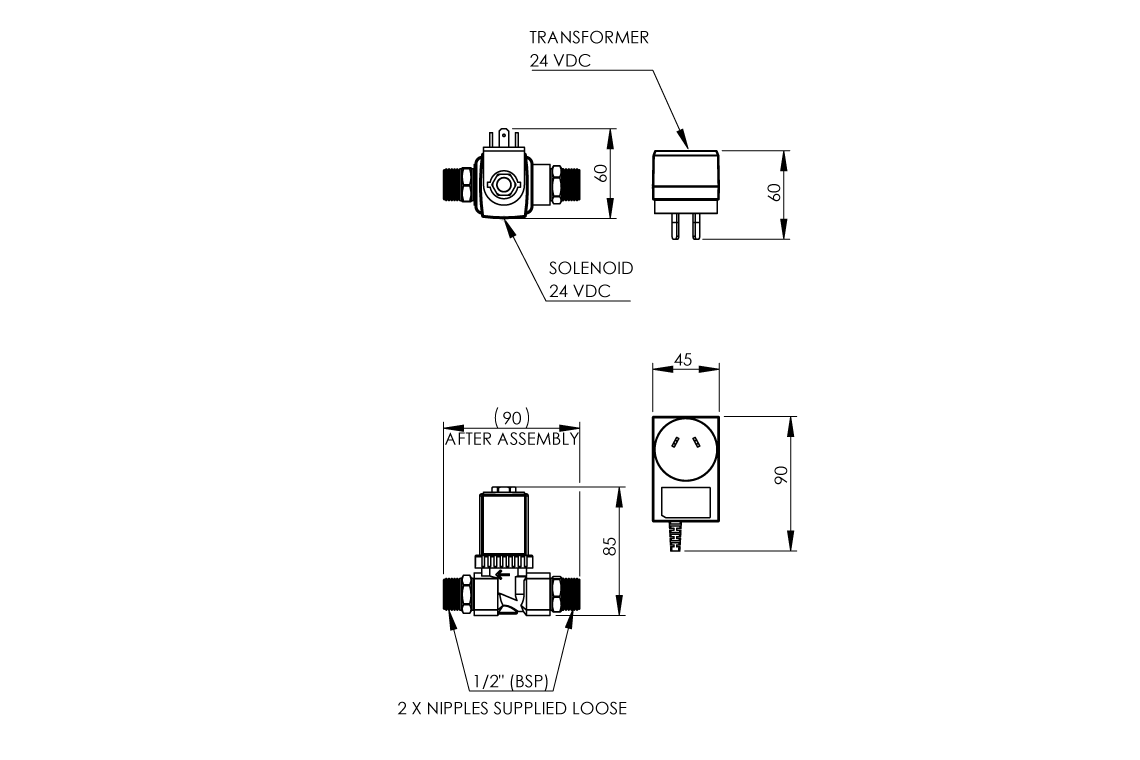

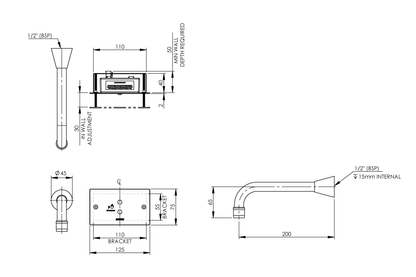

Dimensional Drawings
Product Information
