Concealed Spindle Recess Adaptor - Wall Top Assembly- 1/2 Turn Ceramic Disc
Concealed Spindle Recess Adaptor - Wall Top Assembly- 1/2 Turn Ceramic Disc
Product Code: CSQ308
Couldn't load pickup availability
Product description
The ergonomically designed CS (Concealed Spindle) Series handle features a dress skirt that conceals the anti-vandal handle fixing and the spindle. An internal locking ring secures the handle to the spindle, which may only be released by using the key provided.
Key Selling Points
- Vandal-resistant internal locking ring secures the handle which requires special key to release (key supplied)
- Blue (Cold), Red (Hot) or Yellow (Warm) coloured indicator button. (3 colour indicator buttons included)
- Heavy duty bright chrome
- High quality dezincification resistant (DR) brass construction
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Ceramic Disc Operating Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Finish
- Chrome
- Valve Type
- 1/2 Turn Ceramic Disc
BIM Files
Brochures

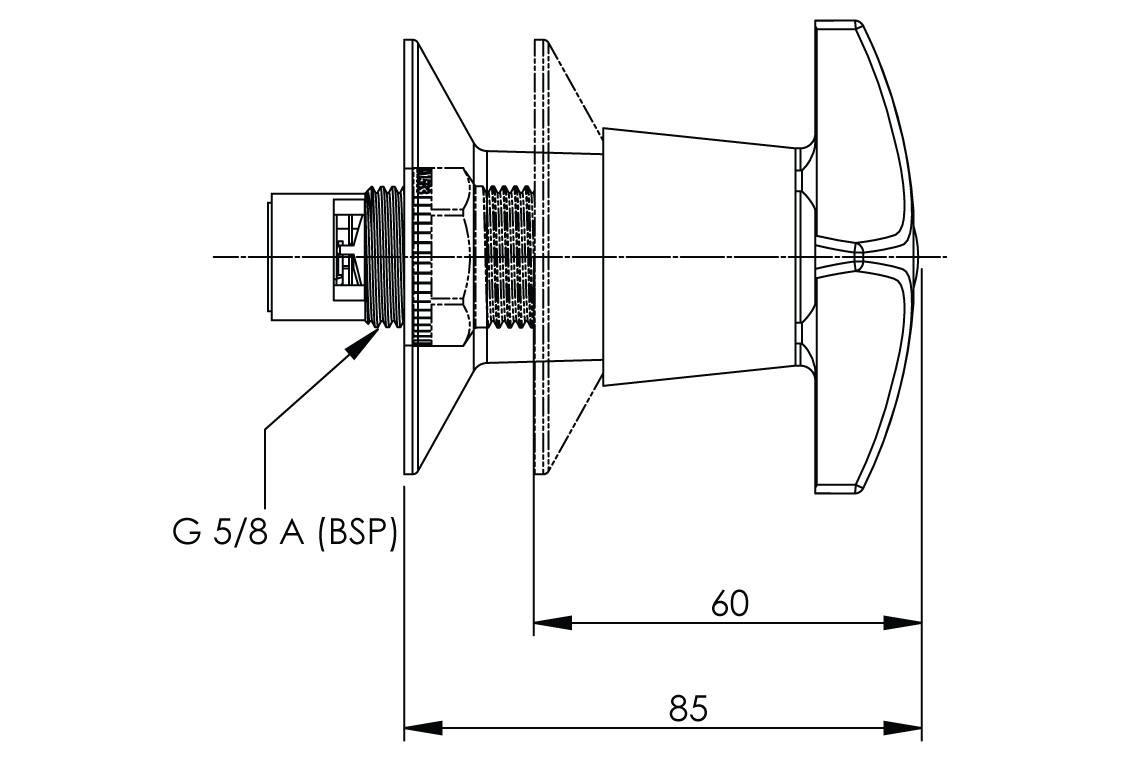

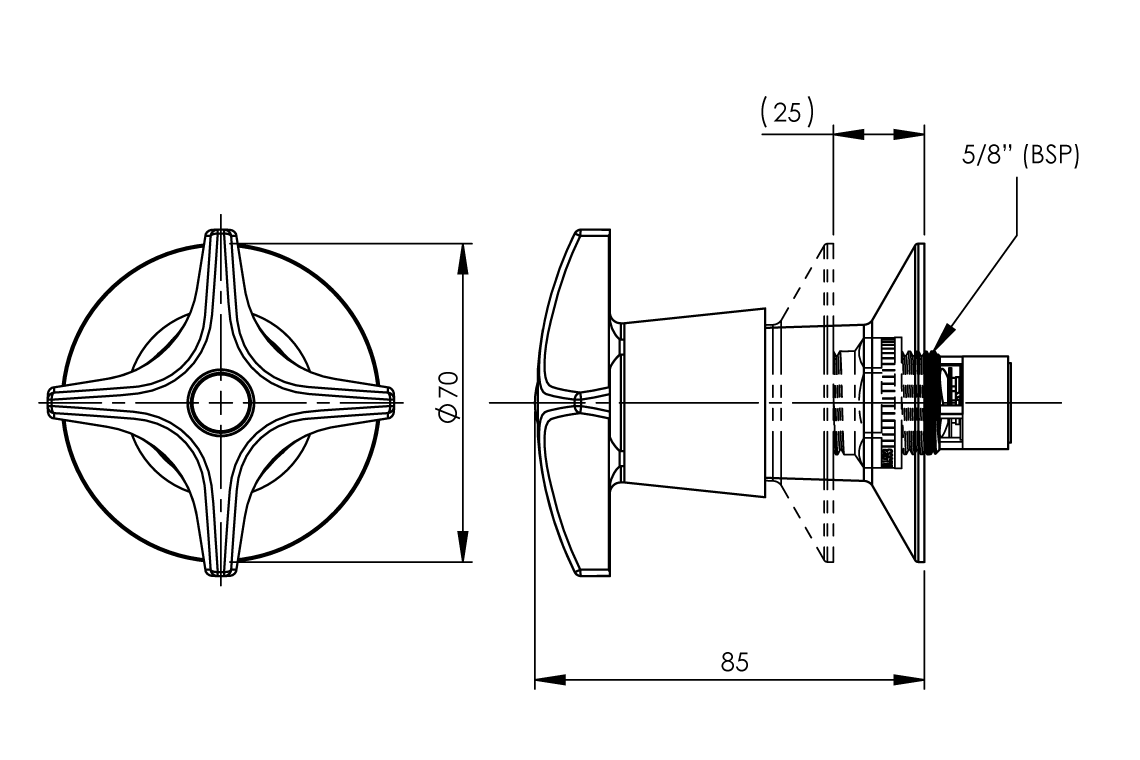

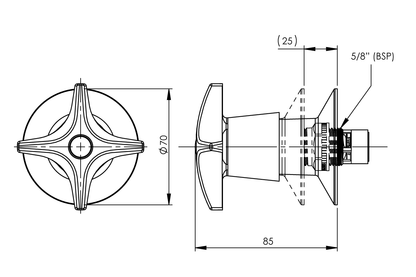

Dimensional Drawings
Product Information
