Concealed Spindle Wall Set with SP201 Fixed Aerated Spout - 1/2 Turn Ceramic Disc
Concealed Spindle Wall Set with SP201 Fixed Aerated Spout - 1/2 Turn Ceramic Disc
Product Code: CSQ314
Couldn't load pickup availability
Product description
The ergonomically designed CS (Concealed Spindle) Series handle features a dress skirt that conceals the anti-vandal handle fixing and the spindle. An internal locking ring secures the handle to the spindle, which may only be released by using the key provided.
Key Selling Points
- Half-turn ceramic disc
- High quality dezincification resistant (DR) brass construction
- Vandal-resistant internal locking ring secures the handle which requires special key to release (key supplied)
- Serviceable with all wearing components replaceable, thus providing an even longer life
- Blue (Cold), Red (Hot) or Yellow (Warm) coloured indicator button. (3 colour indicator buttons included)
- Heavy duty bright chrome
- 3 Star WELS rating (8 L/min) aerator
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,WELS-5 Star-6Lpm,Lead Free
- Maximum Ceramic Disc Operating Temperature (Deg C)
- 70
- Maximum Static Pressure (kPa)
- 800
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 6
- Flow Notes
- 3.8L/min aerator supplied loose in carton
- Finish
- Chrome
- Valve Type
- 1/2 Turn Ceramic Disc
BIM Files
Brochures

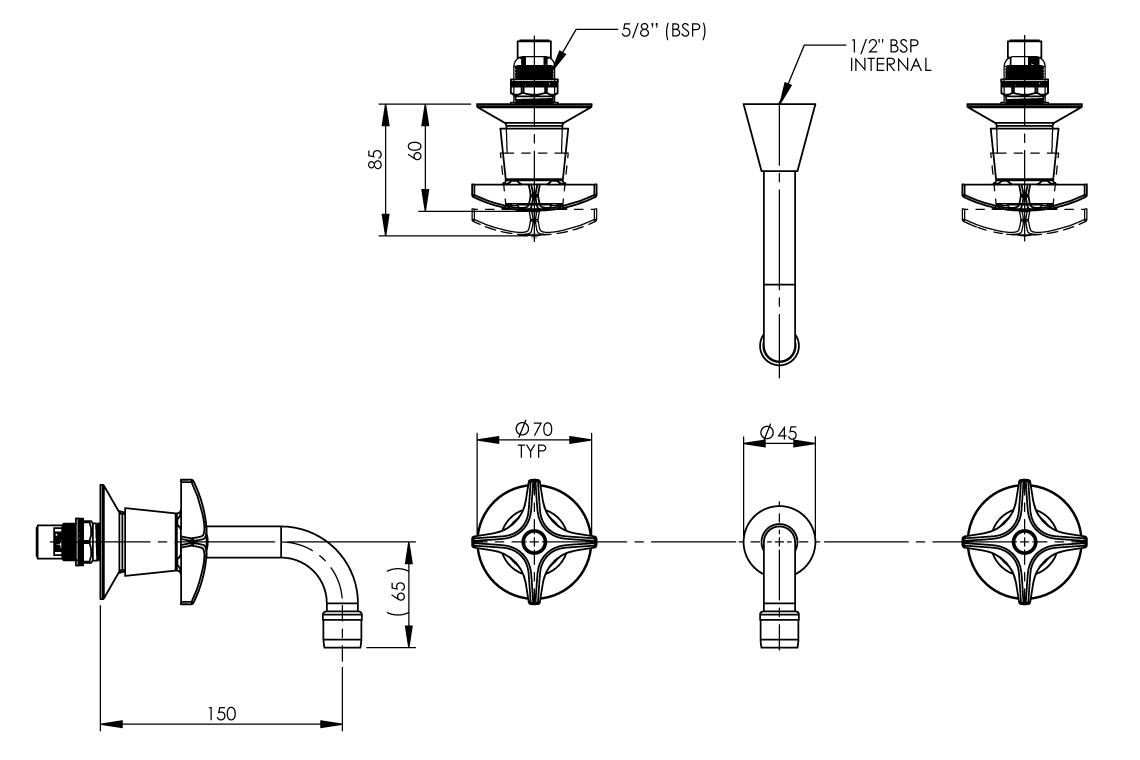

Dimensional Drawings
Product Information
