Aquablend: eSQX - Front of Wall Component - On Demand Sensor - Custodian Basin Outlet - 12V Mains - 8Lpm

Name: Aquablend: eSQX - Front of Wall Component - On Demand Sensor - Custodian Basin Outlet - 12V Mains - 8Lpm
Brand: Aquablend
SKU: ATWM-CNBSN
Price: 1014.04 AUD
Availability: InStock

Product Code: ATWM-CNBSN

Download data sheet Download install guide

Product description

Aquablend eSQX is Australia’s first and most technically advanced touch-free thermostatic mixer solution. Designed to deliver touch-free pre-mixed warm water for enhanced infection control and cross-contamination prevention. The solution includes an infra-red sensor located above Custodian® basin outlet.

Key Selling Points

On Demand Sensor - place hand in front of sensor to turn on, valve stays open without hand remaining in the sensor range. Place hand in front of sensor again to turn off
Low voltage 12V mains power supply
Custodian® anti-ligature basin outlet
Flush cycle stagnation management to reduce risk of bacterial growth, usage monitoring and other function settings are adjustable via Oras App and Bluetooth connectivity
Effective reduction of Legionella risk
Compatible with Smartflow Monitoring System for TMV monitoring and reporting
Smart, durable easy-clean chrome surfaces
IP67 rated connections
Faceplate can be removed to access integral isolation/check valves, strainers and inspection ports

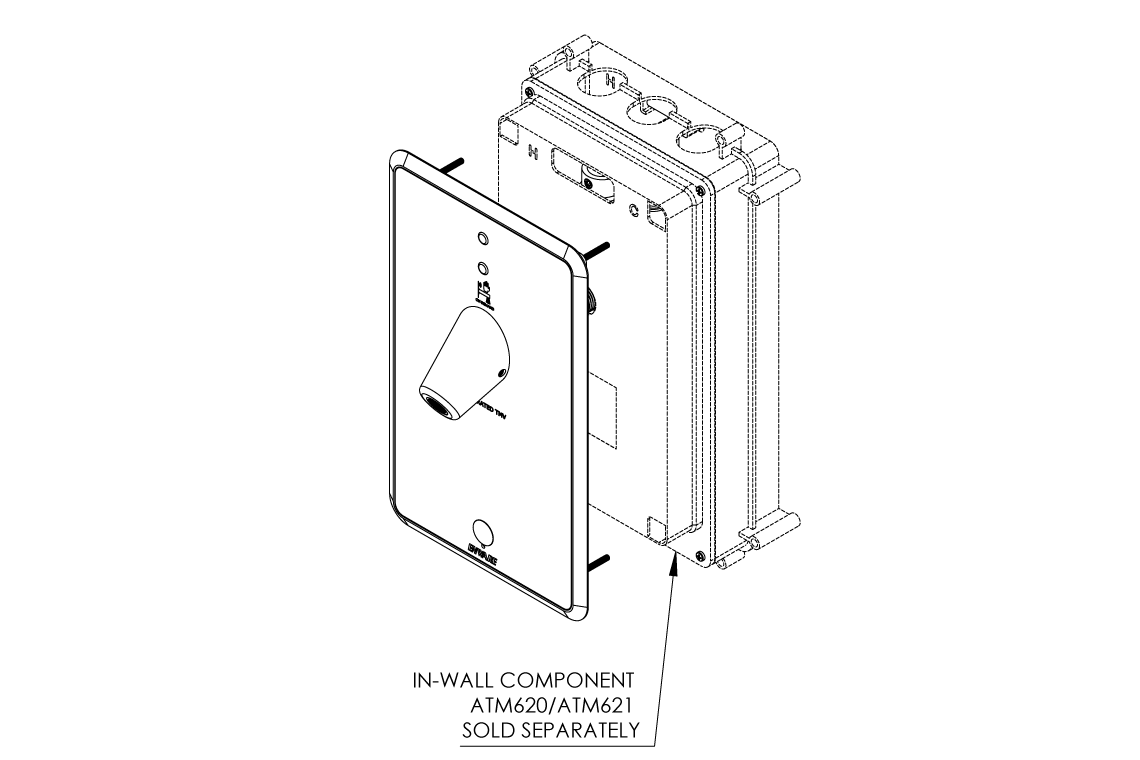

Requires In-Wall Component ATM621

Standard WELS (Stars): 3

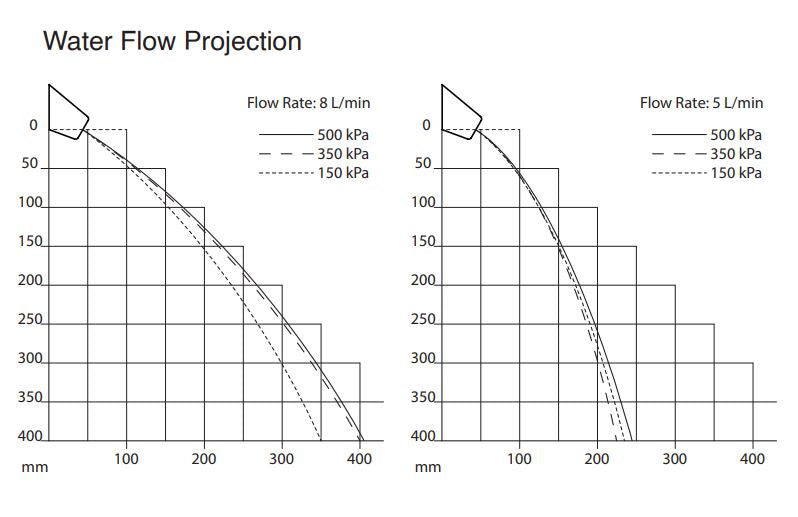

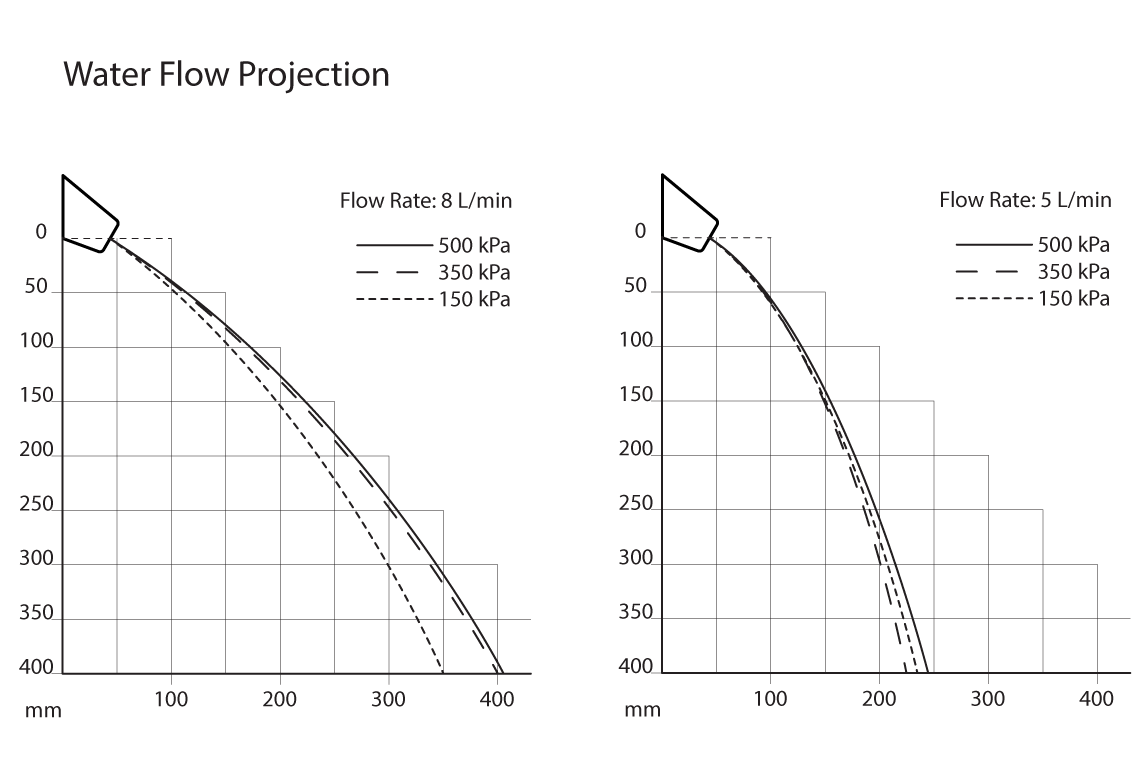

Standard WELS Flow Rate (L/min): 8
WELS Category: Tapware
Certifications: WMKA1583 - LF,WELS-3 Star-8Lpm,Health Approved - NSW,Smart Flow Enabled,Lead Free
Power Supply (AC/DC): DC
Power Supply (V): 12
Minimum Sensor Range (mm): 20
Maximum Sensor Range (mm): 100
