Aquablend eSQX LF Touch-Free Point-of-Use Thermostatic Wall Mixer Thermal Flush - Back of Wall Component - 9V Mains

Name: Aquablend eSQX LF Touch-Free Point-of-Use Thermostatic Wall Mixer Thermal Flush - Back of Wall Component - 9V Mains
Brand: Aquablend
SKU: ATM621L
Price: 1315.01 AUD
Availability: InStock

Product Code: ATM621L

Download data sheet

Product description

Aquablend eSQX MK2 touch-free thermostatic mixer solution. suitable for Type A, Type B and all Commercial Basin applications. Designed and engineered in Australia to deliver pre-mixed warm water using advanced infrared touch free sensors for enhanced infection control and cross-contamination prevention.

Key Selling Points

Integral TMV with adjustable temperature ensures ultimate user comfort
Thermal Flush function for fast and efficient thermal disinfection

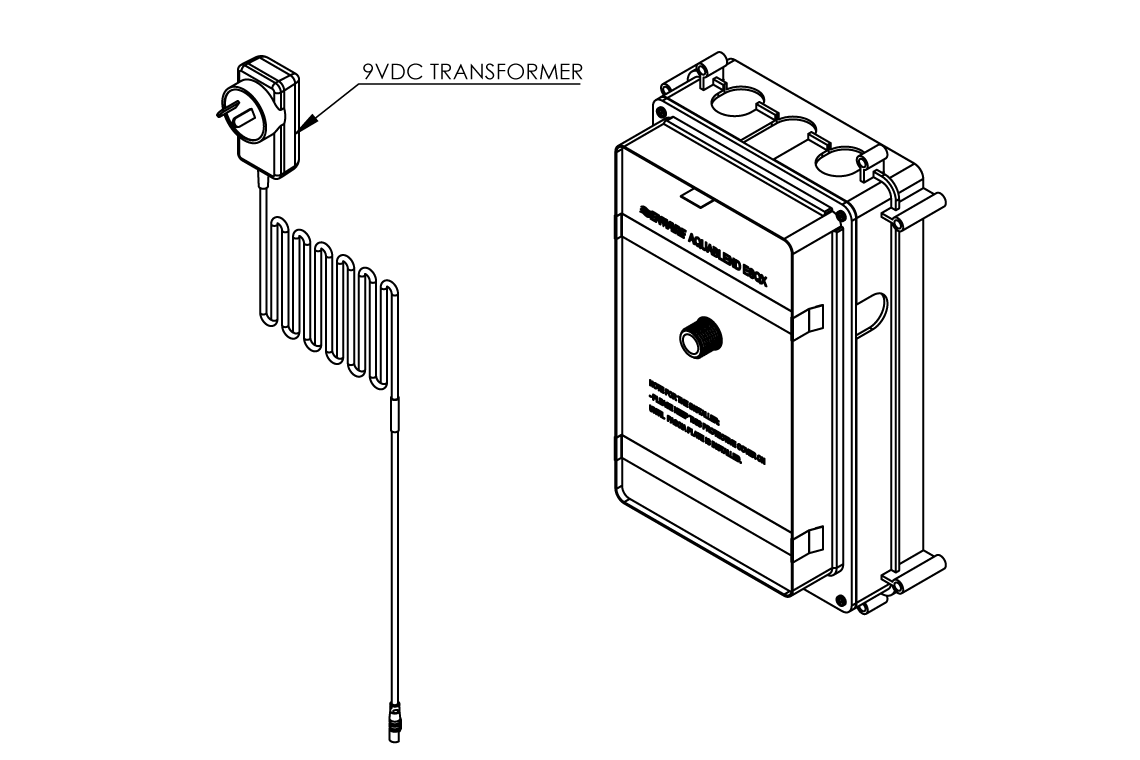

Low voltage 9V mains power supply via transformer (4.5mtr cable length)
Self draining copper lined spout for advanced anti-bacterial/legionella protection
Advanced PSD low energy sensor technology with improved detection area and an extended range of App-based settings
New low energy consumption solenoid valve with self cleaning membrane for extended lifetime
Bluetooth connectivity allows on-the-spot adjustment of functionality parameters to suit user needs and preferences
Sensor can be programmed on site for various functions:
maximum flow time, Intelligent After Flow, periodic flush, and sensor sensitivity (via App.)
Compatible with Smartflow Monitoring System for real-time 24/7 TMV monitoring and reporting
Fast and easy installation in-wall cabinet
Improved maintenance accessibility with integral isolation valves
Back and front of wall components are ordered and supplied separately to meet construction needs
Requires eSQX Front-of-Wall component

WELS Notes: Exempt from WELS as a Thermostatic Mixing Valve
Certifications: WMKA25301_AS4032.4_LF,Health Approved - NSW,Smart Flow Enabled,Lead Free
Minimum Cold Temperature Supply (Deg C): 5
Maximum Cold Temperature Supply (Deg C): 25
Minimum Hot Temperature Supply (Deg C): 55
Maximum Hot Temperature Supply (Deg C): 85
Minimum Thermostatic Temperature (Deg C): 35
Maximum Thermostatic Temperature (Deg C): 46
Minimum Temperature Differential (Deg C): 10
Maximum Static Pressure (kPa): 1000
Minimum Flow Rate (L/min): 2
Inlet Connection: 1/2" BSP
Valve Type: TMV
