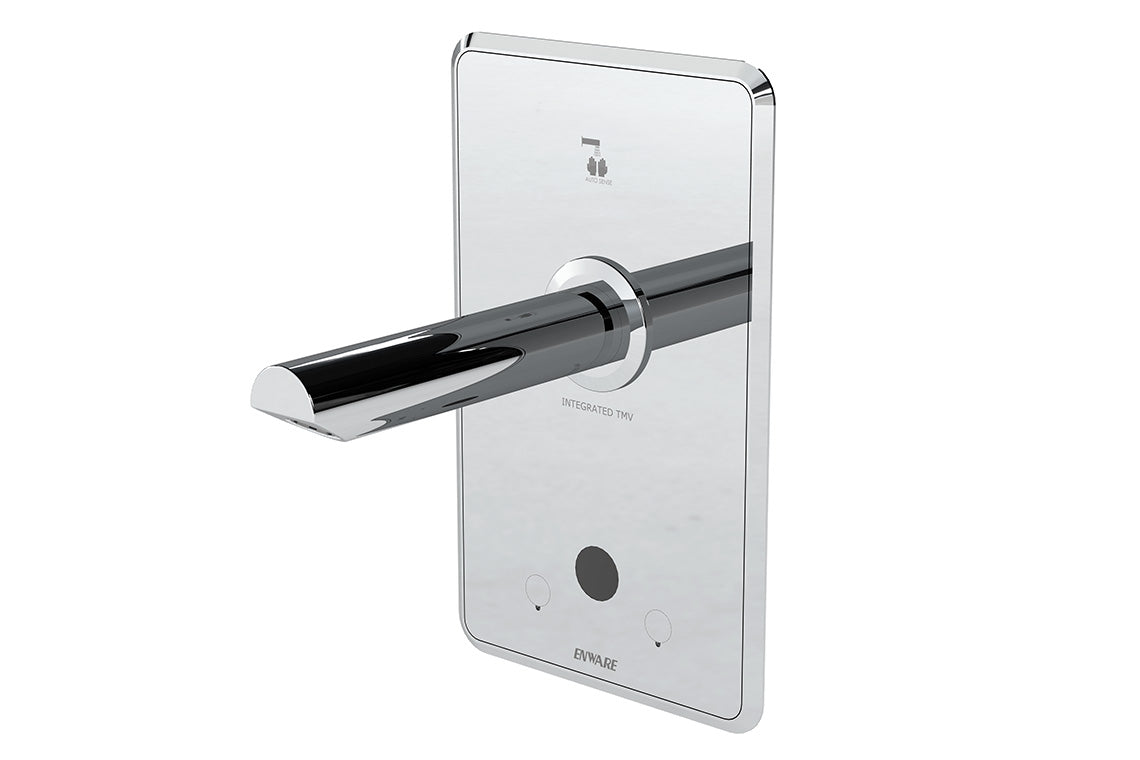

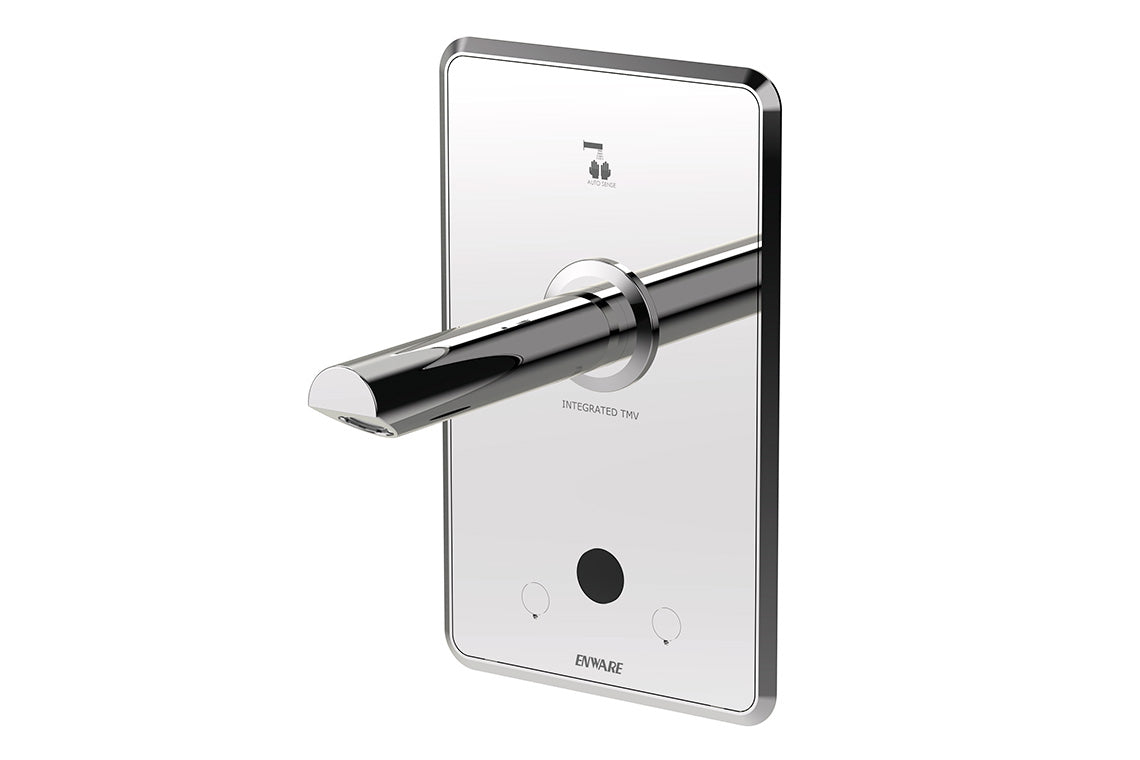

Aquablend eSQX MK2 Touch-Free Auto Sense Point-of-Use Thermostatic Wall Mixer with 200mm Spout 4/6Lpm Laminar Mains/Battery - Front of Wall Component
Aquablend eSQX MK2 Touch-Free Auto Sense Point-of-Use Thermostatic Wall Mixer with 200mm Spout 4/6Lpm Laminar Mains/Battery - Front of Wall Component
Product Code: ATAMC1L6L
Couldn't load pickup availability
Product description
Aquablend eSQX MK2 touch-free thermostatic mixer solution. Suitable for Type A, Type B and all Commercial Basin applications. Designed and engineered in Australia to deliver pre-mixed warm water using advanced infrared touch free sensors for enhanced infection control and cross-contamination prevention.
Key Selling Points
- Integral TMV with adjustable temperature ensures ultimate user comfort
- Activated automatically when hands are in front of the sensor and turns off when hands are removed from sensing zone (subject to after-flow setting)
- Self draining copper-lined spout for advanced anti-bacterial/legionella protection
- Advanced PSD low energy sensor technology with improved detection area and an extended range of App-based settings
- Bluetooth connectivity allows on-the-spot adjustment of functionality parameters to suit user needs and preferences
- Sensor can be programmed on site for various functions: maximum flow time, Intelligent After Flow, periodic flush, and sensor sensitivity (via App.)
- Low voltage 3V battery operated (2 x 1.5V AA Lithium- approx. 5+ years life); or
- Mains power 9V transformer with 4.5mtr connection cable
- Fast and easy installation in-wall cabinet
- Improved maintenance accessibility with integral isolation valves
- Faceplate can be removed to access integral isolation/check valves, strainers and inspection ports

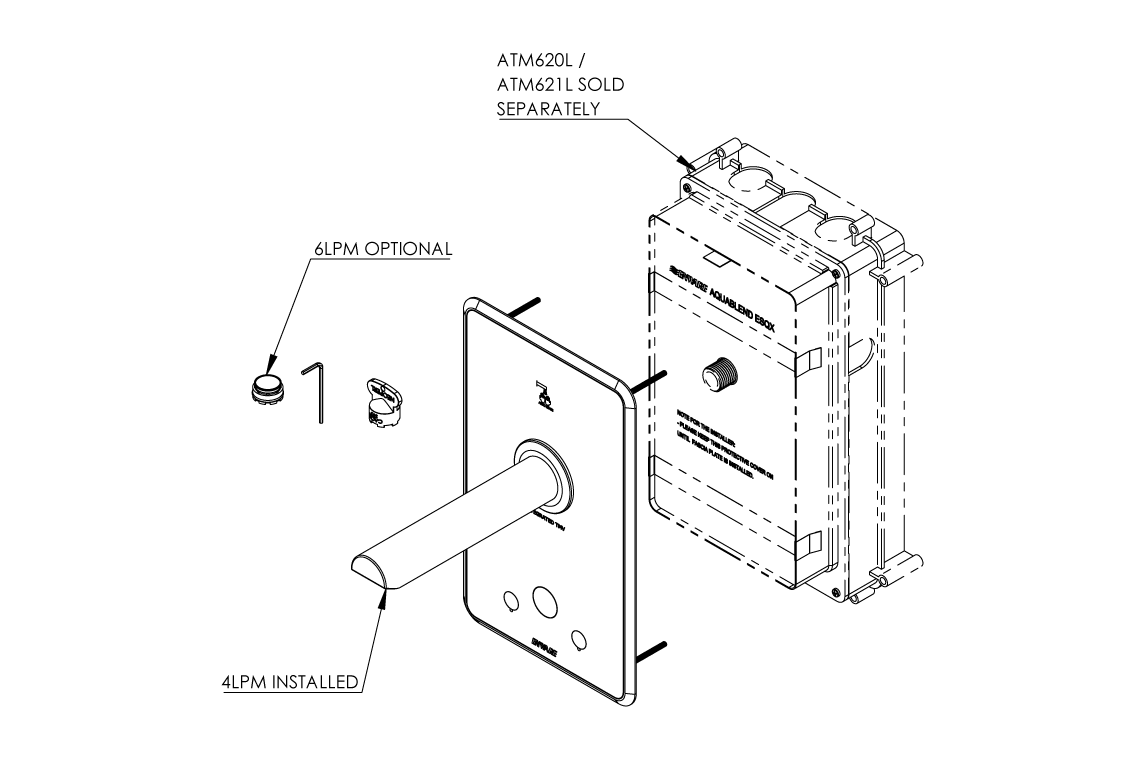

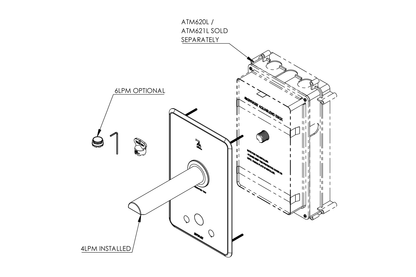

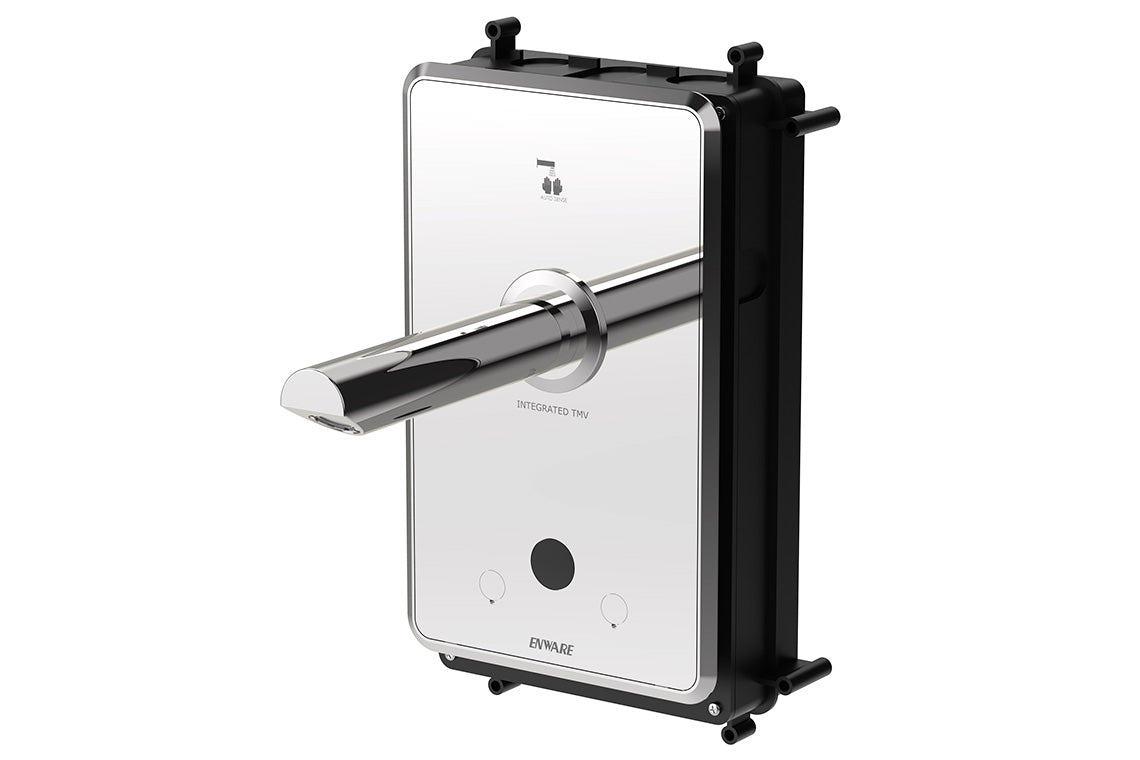

- Back- and front-of-wall components are ordered and supplied separately to meet construction needs
- Requires eSQX Back-of-Wall component (ATM621L or ATM620L)
- WELS Notes
- WELS EXEMPT- THERMOSTATIC TAP
- Certifications
- WMKA1583 - LF,Health Approved - NSW,Smart Flow Enabled,Lead Free
BIM Files
Brochures

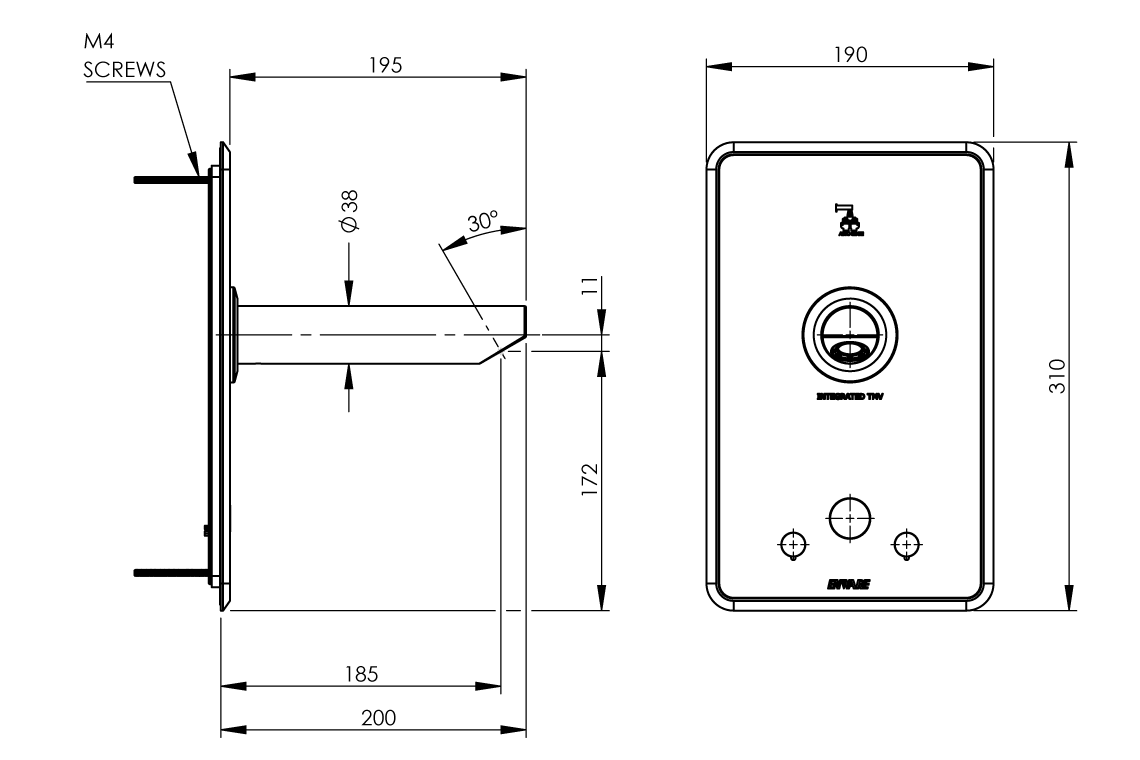

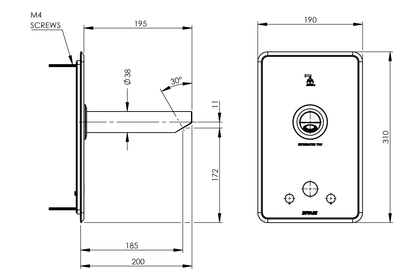

Dimensional Drawings
Product Information
