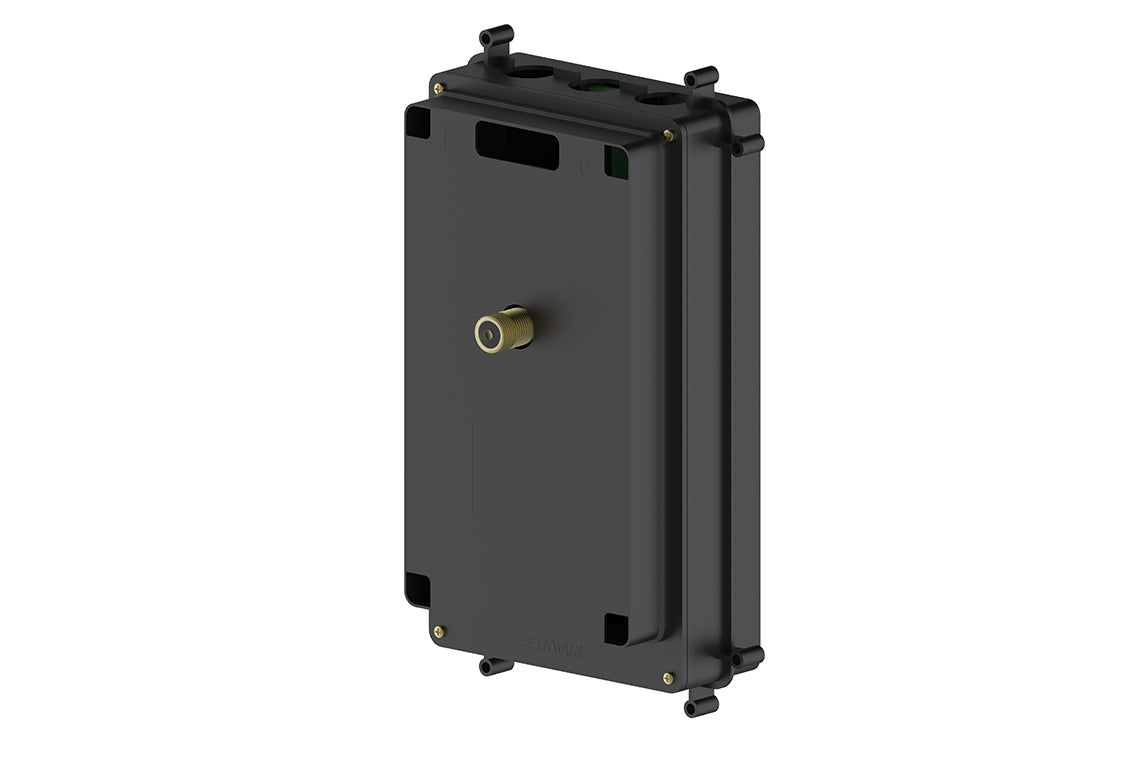

Aquablend: eSQX - Touch-Free - Point-of-Use Thermostatic Wall Mixer In-Wall Component - Battery
Aquablend: eSQX - Touch-Free - Point-of-Use Thermostatic Wall Mixer In-Wall Component - Battery
Product Code: ATM620
Couldn't load pickup availability
Product description
Aquablend eSQX is Australia’s first and most technically advanced touch-free thermostatic mixer solution. Designed to deliver touch-free pre-mixed warm water for enhanced infection control and cross-contamination prevention.
Key Selling Points
- Integral TMV adjustable temperature ensures ultimate user comfort
- Low voltage 6V battery operated
- Effective reduction of Legionella risk
- Compatible with Smartflow Monitoring System for TMV monitoring and reporting
- Back and front of wall components offered may be ordered and supplied separately to meet construction needs
- Requires eSQX front of wall component
- Certifications
- WMKA25301,Health Approved - NSW,Smart Flow Enabled
- Minimum Cold Temperature Supply (Deg C)
- 5
- Maximum Cold Temperature Supply (Deg C)
- 25
- Minimum Hot Temperature Supply (Deg C)
- 55
- Maximum Hot Temperature Supply (Deg C)
- 85
- Minimum Thermostatic Temperature (Deg C)
- 35
- Maximum Thermostatic Temperature (Deg C)
- 46
- Minimum Temperature Differential (Deg C)
- 10
- Maximum Static Pressure (kPa)
- 1000
- Minimum Flow Rate (L/min)
- 2
- Inlet Connection
- 1/2" BSP
BIM Files
Brochures

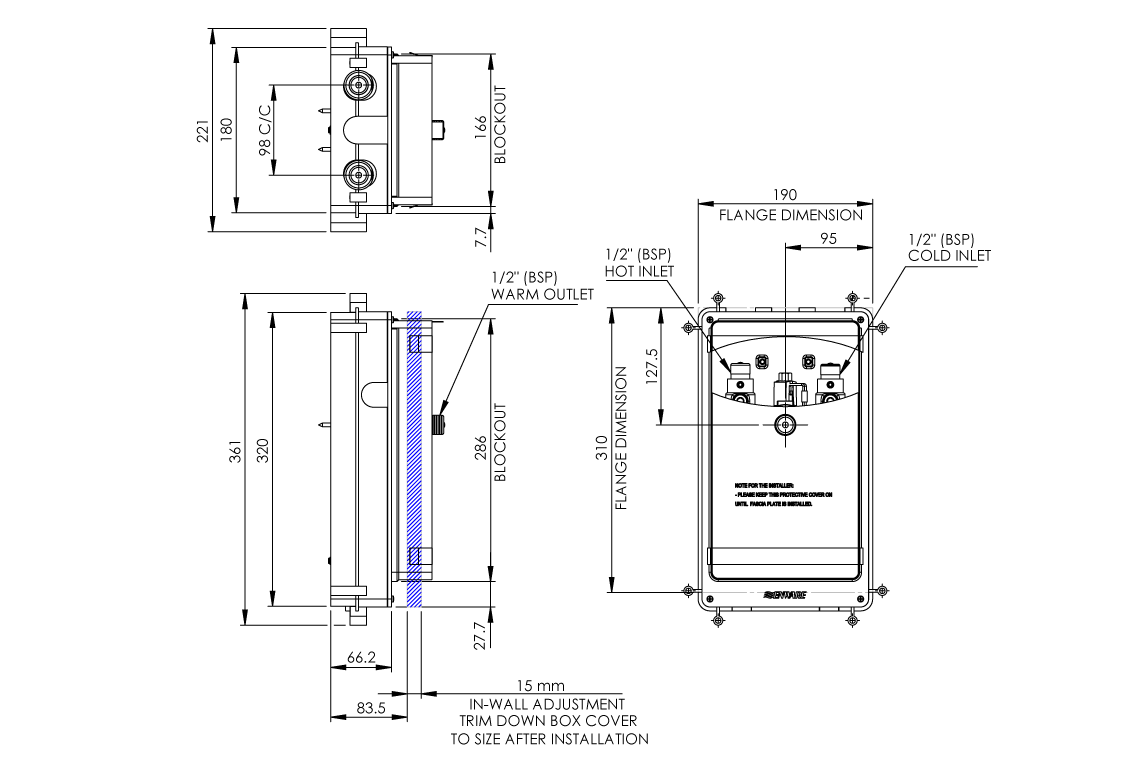

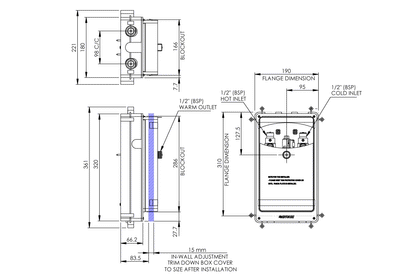

Dimensional Drawings
Product Information
