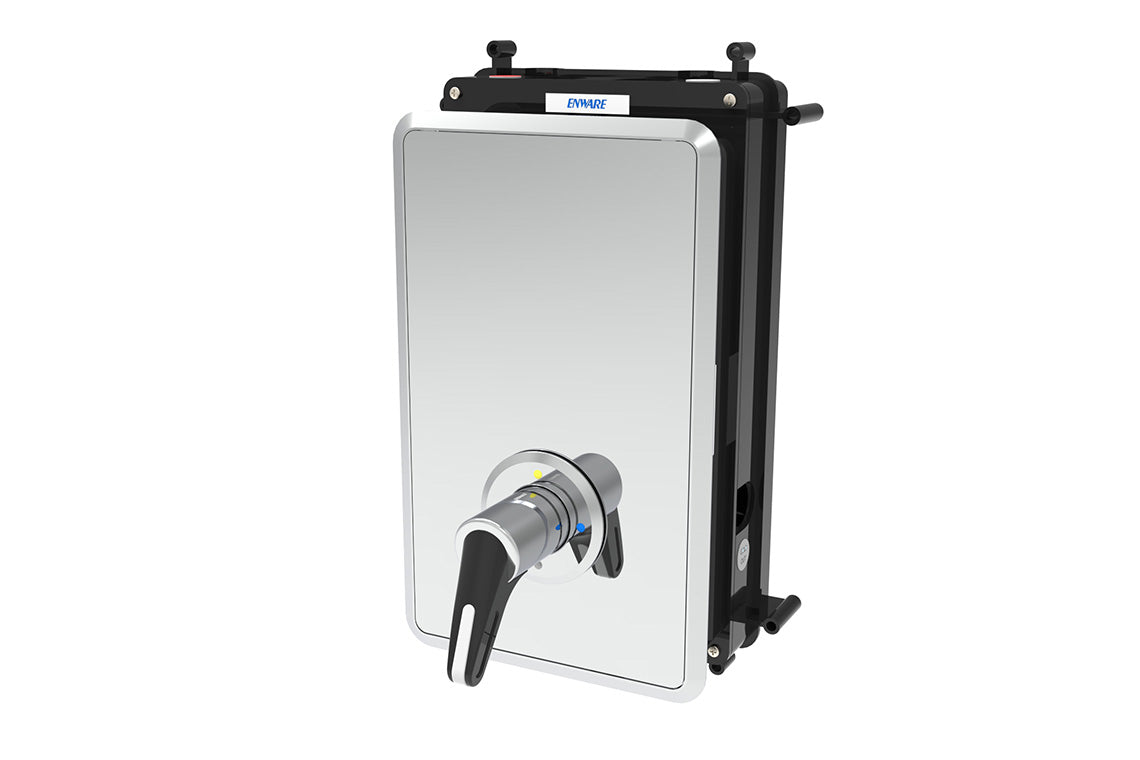

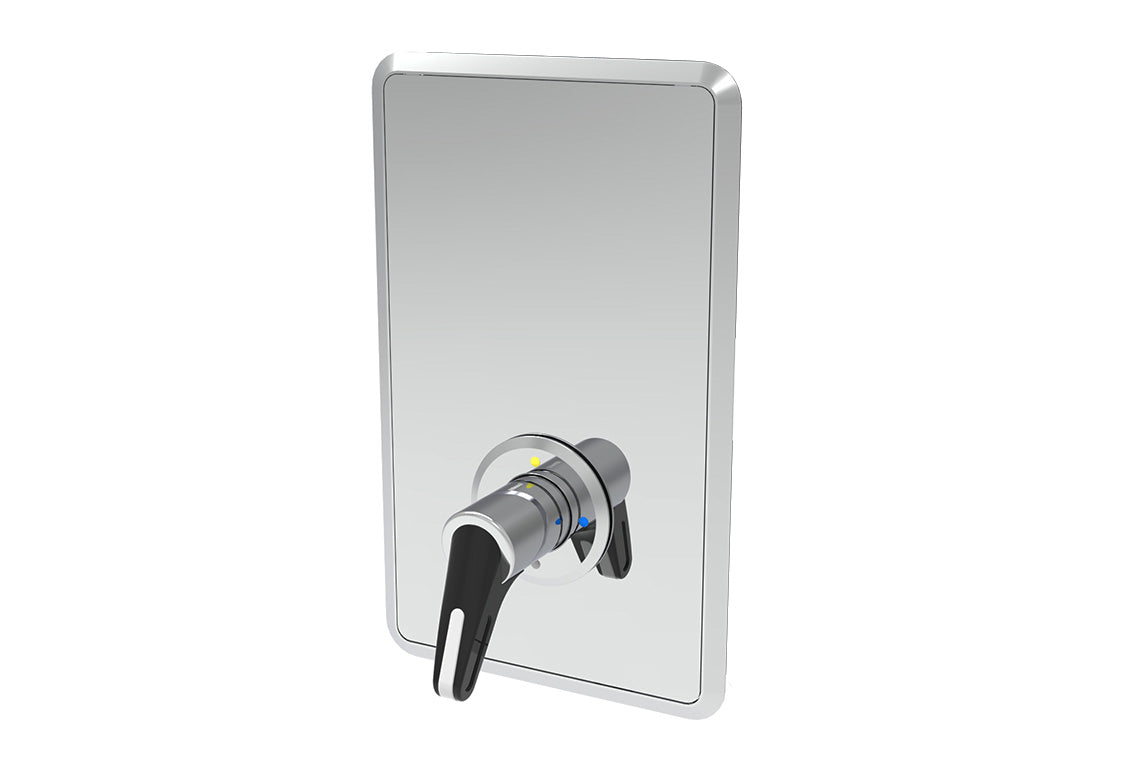

Aquablend Health Point-of-Use TMV Four Way Mixer with WB 65mm Lever Handle

Product Code: ATMHE-WB65SQ-FOW

Download data sheet Download install guide

Product description

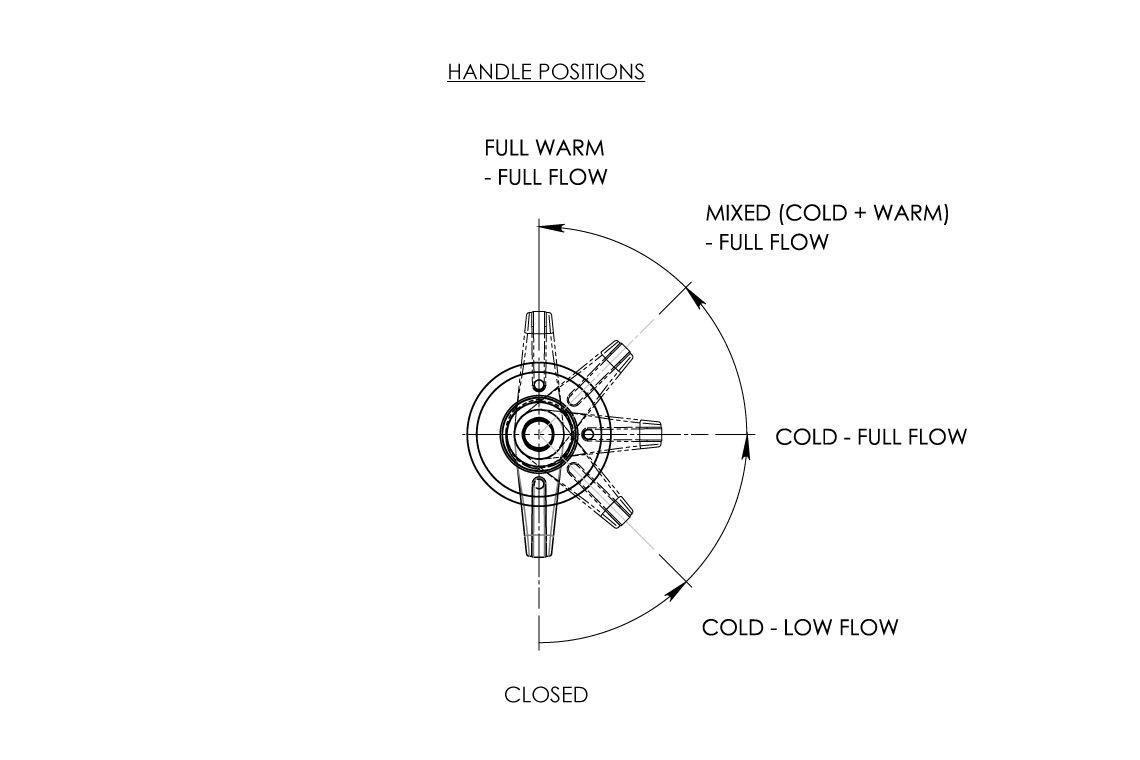

The New Aquablend Health TMV delivers an all new approach to hygiene, safety and convenience for Health Care and Aged Care Ensuites. The Aquablend Health TMV is a point of use (POU) thermostatic mixing valve coupled with a unique 4-way mixer allowing the user to easily and safely mix water for showering at the desired temperature from Cold through to Full Warm. Simultaneously, pre-mixed warm and/or cold water can be delivered to adjacent fixtures. The benefit of this design is by increasing the flow through the Thermostatic Mixer, it comes up to full operating temperature and maximum flow more regularly, thereby helping to reduce the risk of legionella and other waterborne bacteria developing.

Key Selling Points

- Point-of-Use TMV coupled with a unique 4 way mixer - supplies mixed and/or cold water to additional fixtures - ideal for Ensuites - Wellbeing 65mm lever handle - Sequential Ceramic Disc Mixing Cartridge ensures ultimate control with cold start up and stop - Low lead content brass for peace of mind and bacteria control - Attractive, chrome wall plate and 80mm Leva Handle ensures ease of use and cleaning - Faceplate can be removed for easy access to TMV and mixer components for servicing - Matches with the Enware Wellbeing range - Compact wall box allows easy access for servicing - Suitable for Smartflow connection (requires connection kit)

Certifications: WMKA1583 - LF,Health Approved - NSW,Smart Flow Enabled,Lead Free
Minimum Cold Temperature Supply (Deg C): 5
Maximum Cold Temperature Supply (Deg C): 30
Minimum Hot Temperature Supply (Deg C): 55
Maximum Hot Temperature Supply (Deg C): 90
Minimum Thermostatic Temperature (Deg C): 35
Maximum Thermostatic Temperature (Deg C): 48
Minimum Temperature Differential (Deg C): 10
Inlet Pressure Ratio: 10
Static Inlet Pressure (kPa): 1000
Minimum Flow Rate (L/min): 4
Maximum Flow Rate (L/min@300kPa pressure loss): 23

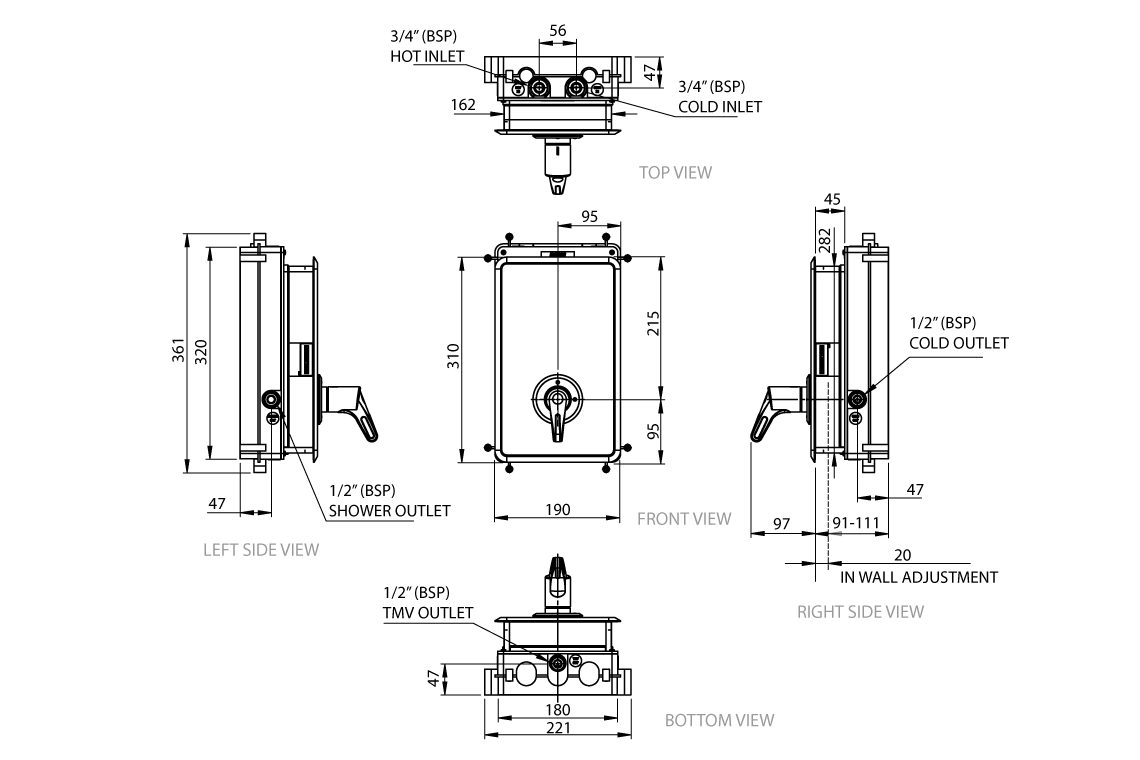

Inlet Connection: 3/4" BSP (20mm)
Outlet Connection: 1/2" BSP (15mm)
