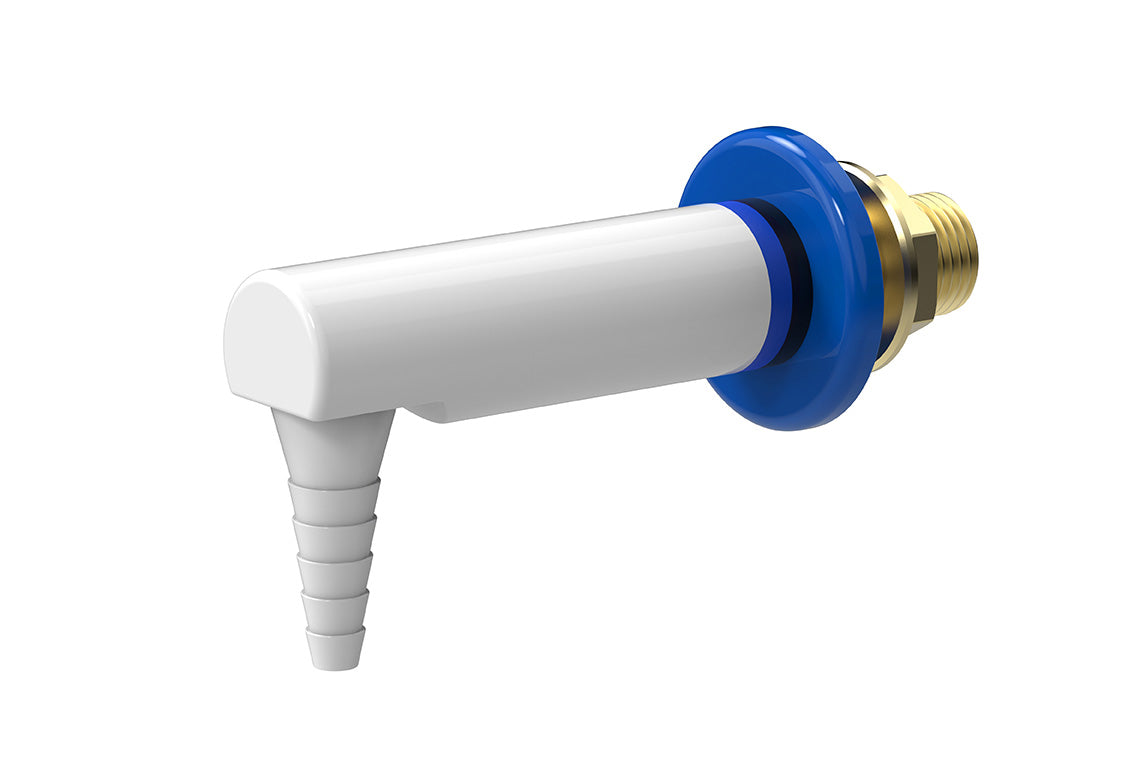

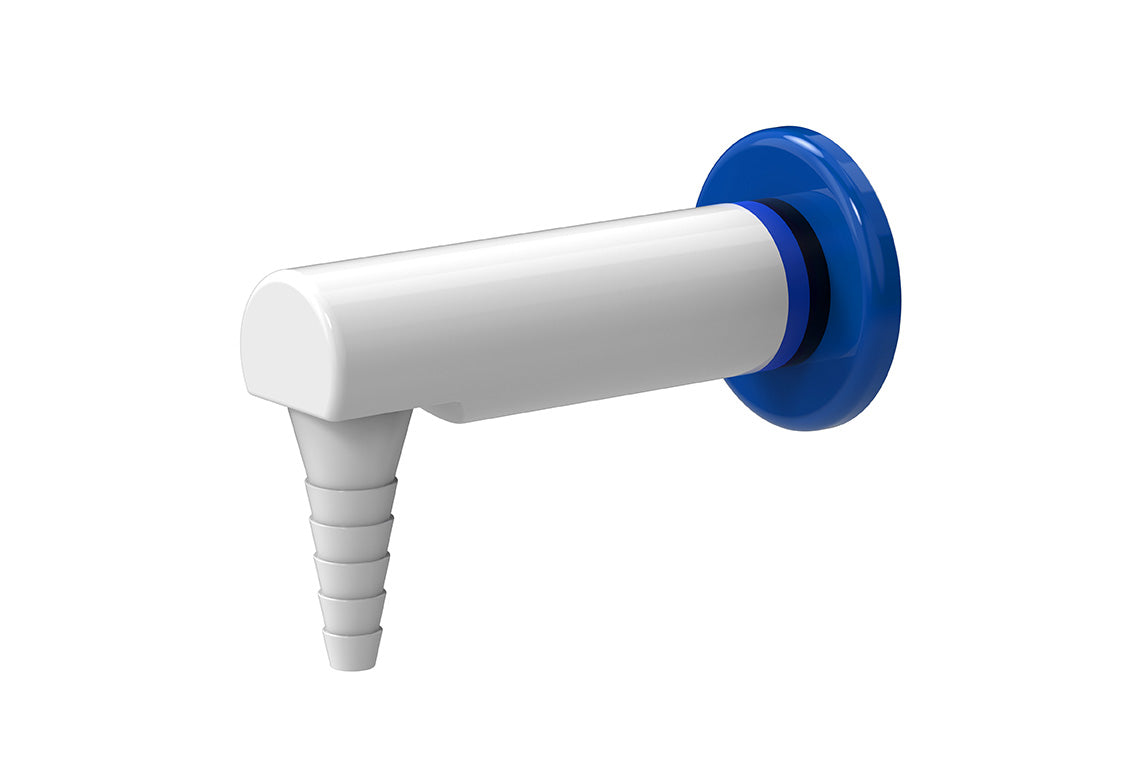

ComLab 90 Degree Fume Cupboard Outlet - Oxygen
ComLab 90 Degree Fume Cupboard Outlet - Oxygen
Product Code: LCN161OXY
Couldn't load pickup availability
Product description
Enware Commercial Laboratory outlets are supplied with a tapered tube nozzle. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Colour coded back plate and indicator rings are provided to identify services.
Key Selling Points
- Suited for dry media up to technical gas level 5.0
- Chemically and ultrasonically cleaned
- 90 degree outlet suitable mounting in Fume Cupboards
- Durable white epoxy powder coat finish with colour coded back plate and indicator rings
- 1/2” BSP male inlet tail and backnut with internal 1/4” BSP female thread connection
- Tube nozzle outlet. 3/8" BSP FI when removed
- Compatible media: Oxygen, Carbogen
- Maximum Recommended Pressure (kPa)
- 700
- Inlet Connection
- 1/2” BSP Male, 1/4” BSP Female
- Finish
- Powder Coating
- Mounting Type
- 45 Degree Fume Cupboard Outlet
BIM Files
Brochures

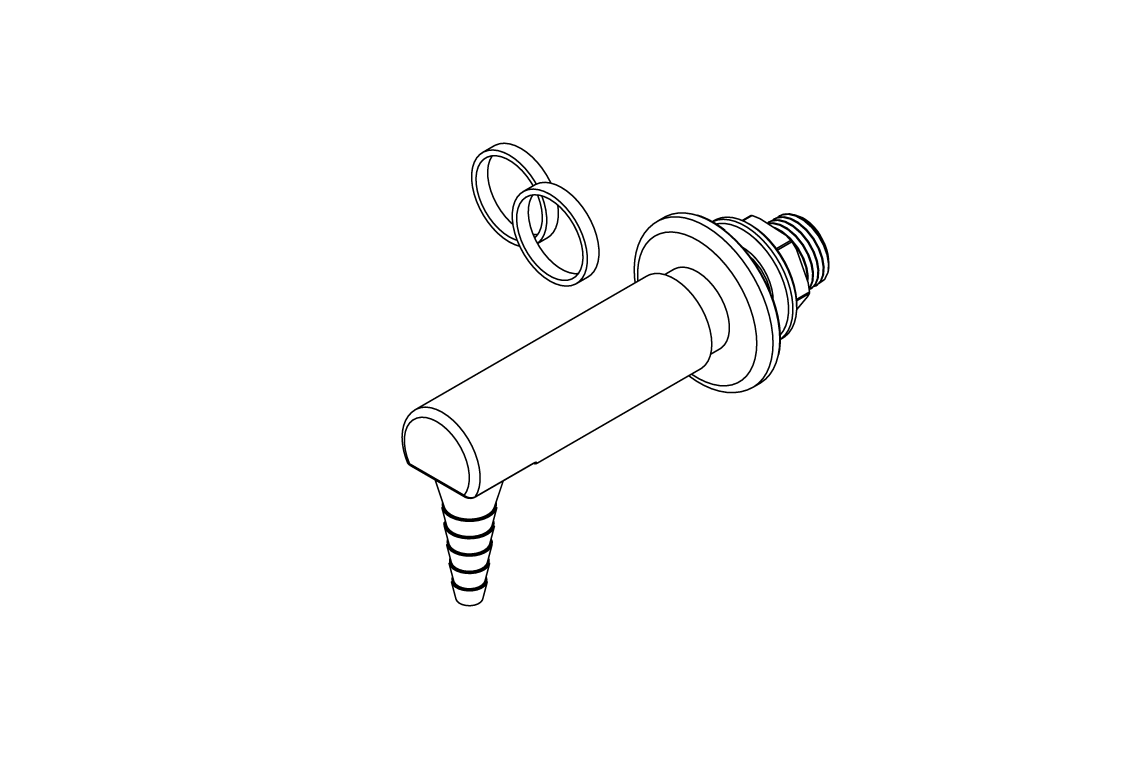

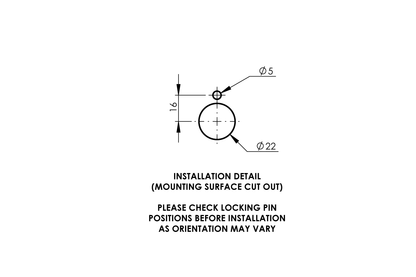

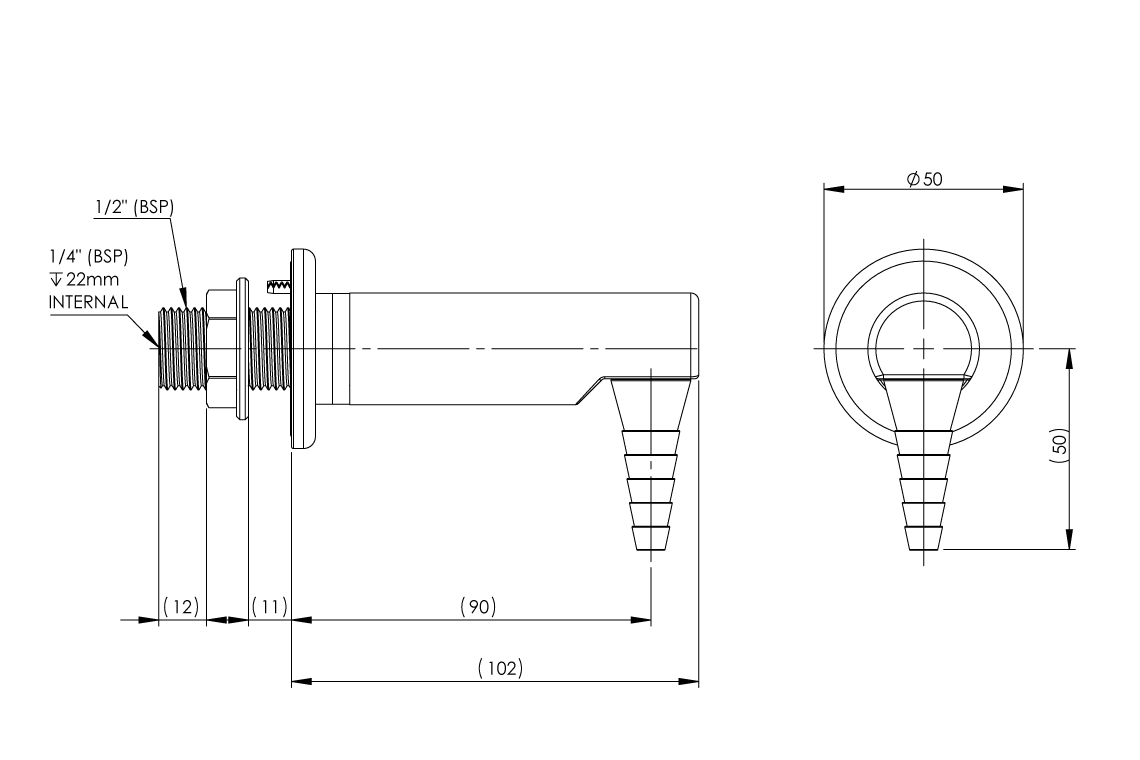

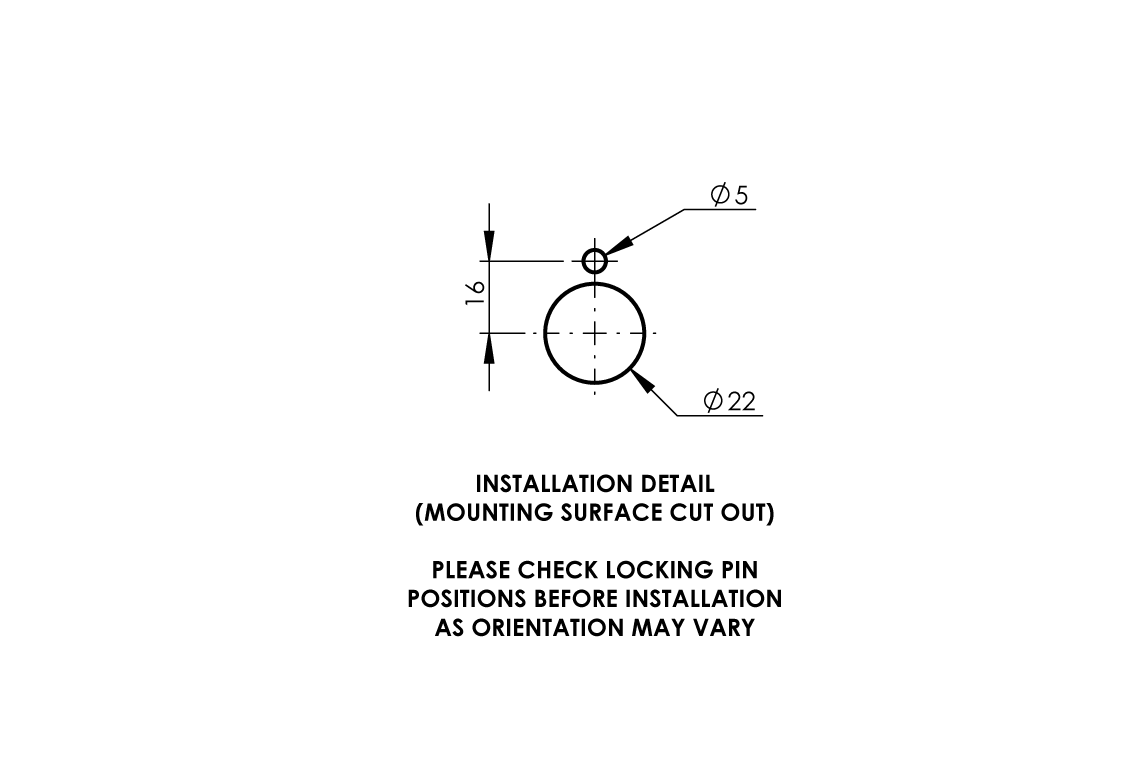

Dimensional Drawings
