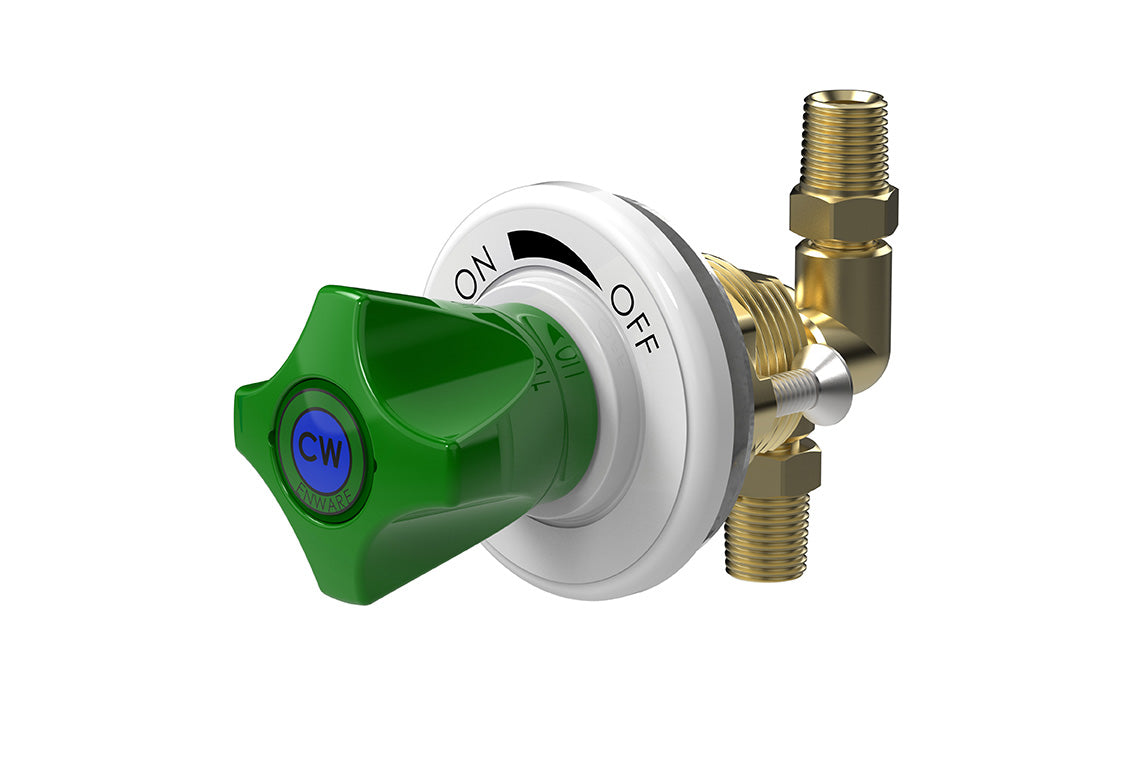

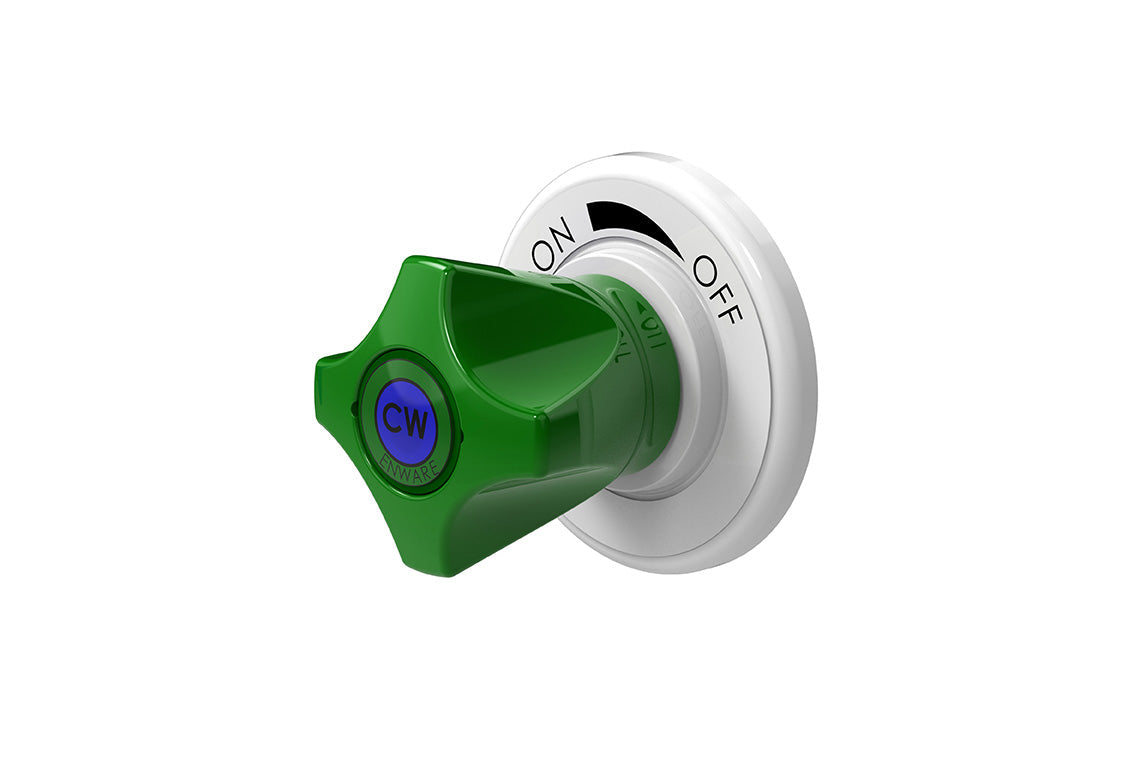

ComLab Front Panel Valve 90 Degree 1/4" BSPT Inlet/Outlet for Hose Connection - Ceramic Disc - Water
ComLab Front Panel Valve 90 Degree 1/4" BSPT Inlet/Outlet for Hose Connection - Ceramic Disc - Water
Product Code: LCN153WATER
Couldn't load pickup availability
Product description
Enware laboratory front panel valves are designed for fitting to the front panels or mullions of Fume Cupboards or similar equipment. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons. Designed to be connected to incoming service and remote outlet nozzle.
Key Selling Points
- Ceramic disc (3/4 turn) headworks
- Durable white epoxy powder coat finish with coloured metal handles
- 90 Degree 1/4" BSPT Inlet/Outlet for Hose Connection
- Requires LC189 Approved Water hoses
- Green handle and indicator button identification to DIN EN13792

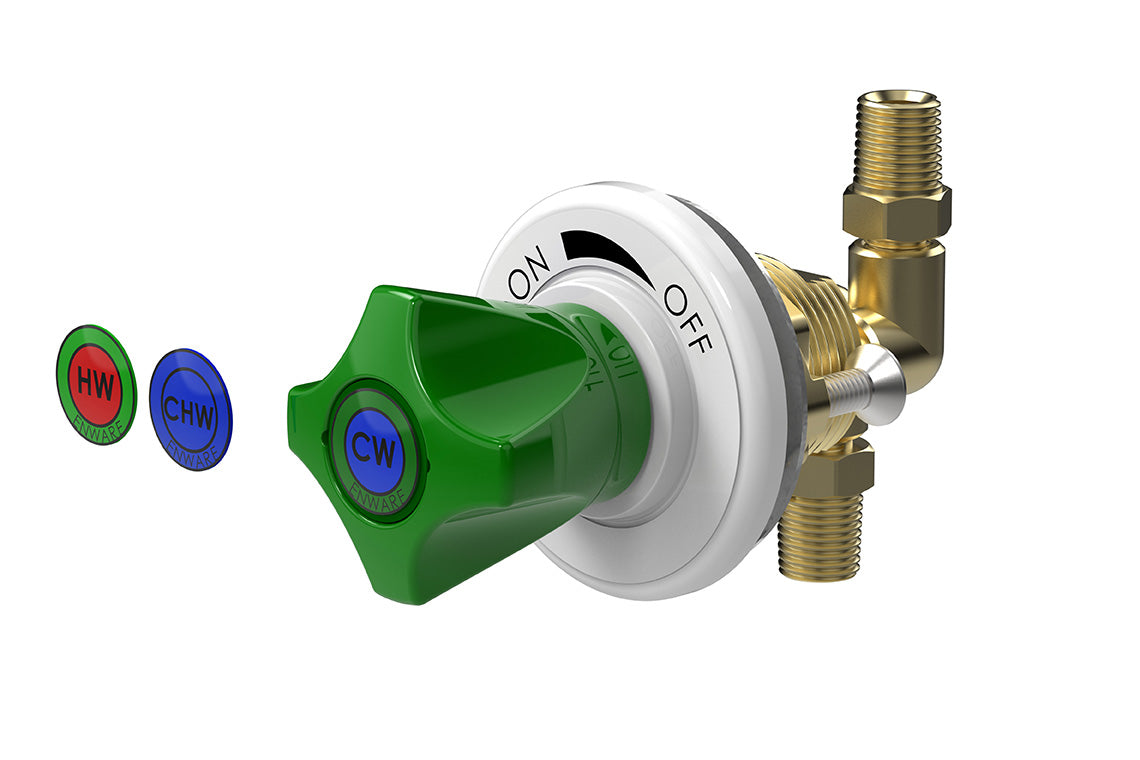

- Indicator buttons for compatible media included
- Compatible media: Cold Water, Hot Water, Chilled Water
- Lead free brass
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Working Temperature (Deg C)
- 90
- Maximum Recommended Pressure (kPa)
- 700
- Inlet Connection
- 1/4" BSPMI
- Outlet Connection
- 1/4" BSPMI
- Connection Notes
- Union spigot suitable for LC189 connecting hose
- Finish
- Powder Coating
- Valve Type
- Ceramic Disc
- Mounting Type
- Front Panel Valve

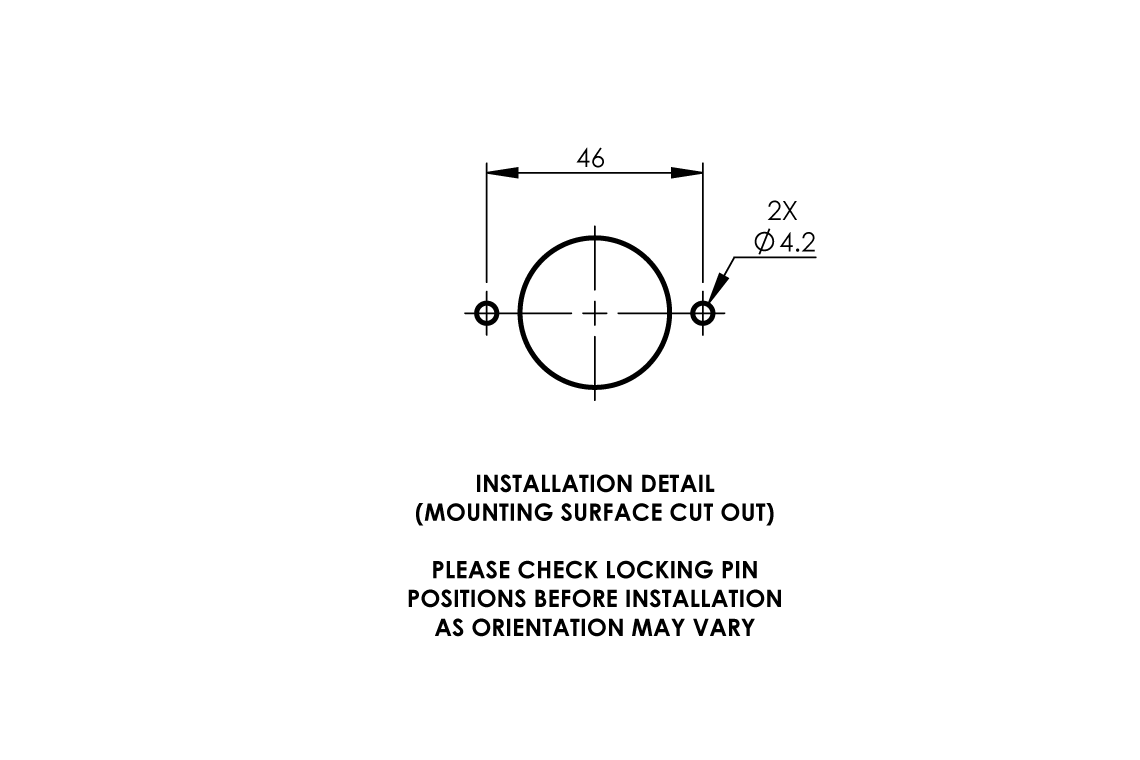

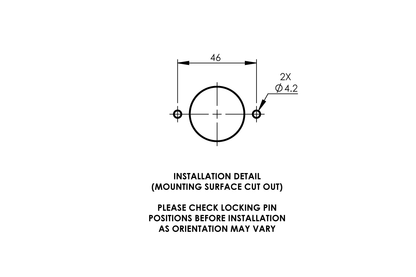

- Mounting Notes
- Can be mounted from front with screws or secured from back with back nut
BIM Files
Brochures

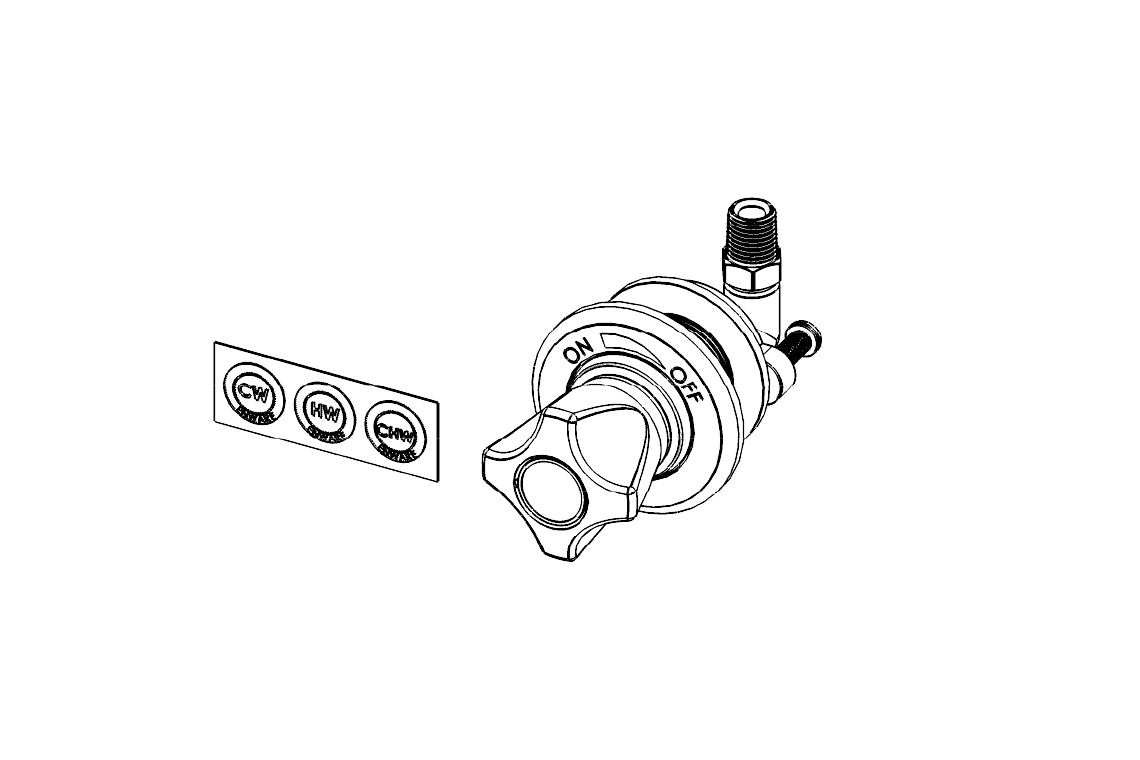

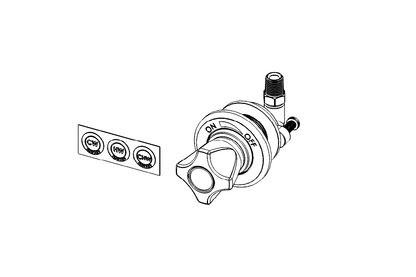

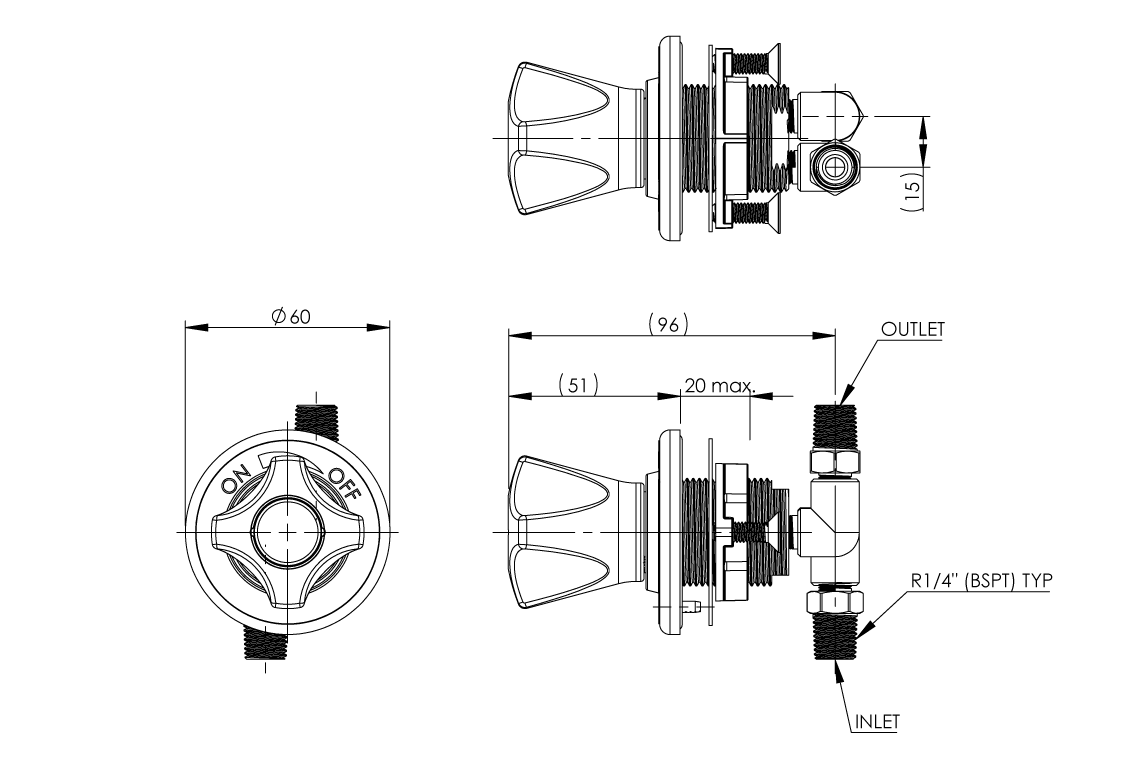

Dimensional Drawings
Product Information
