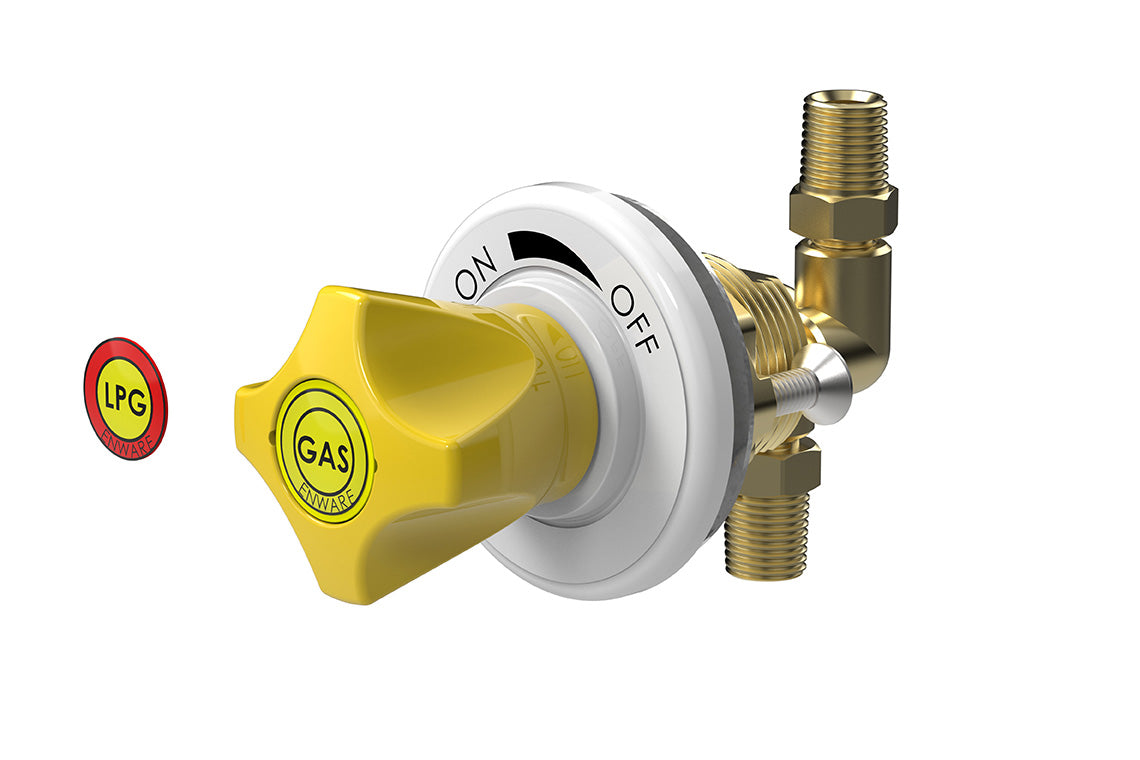

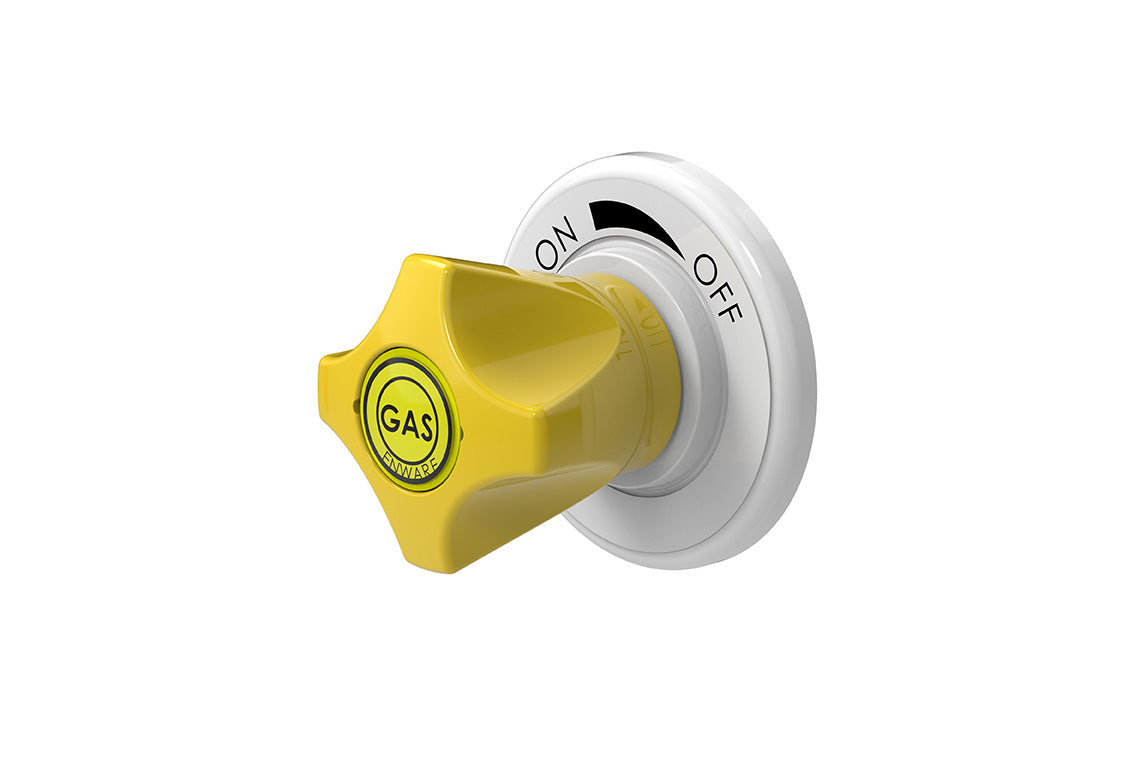

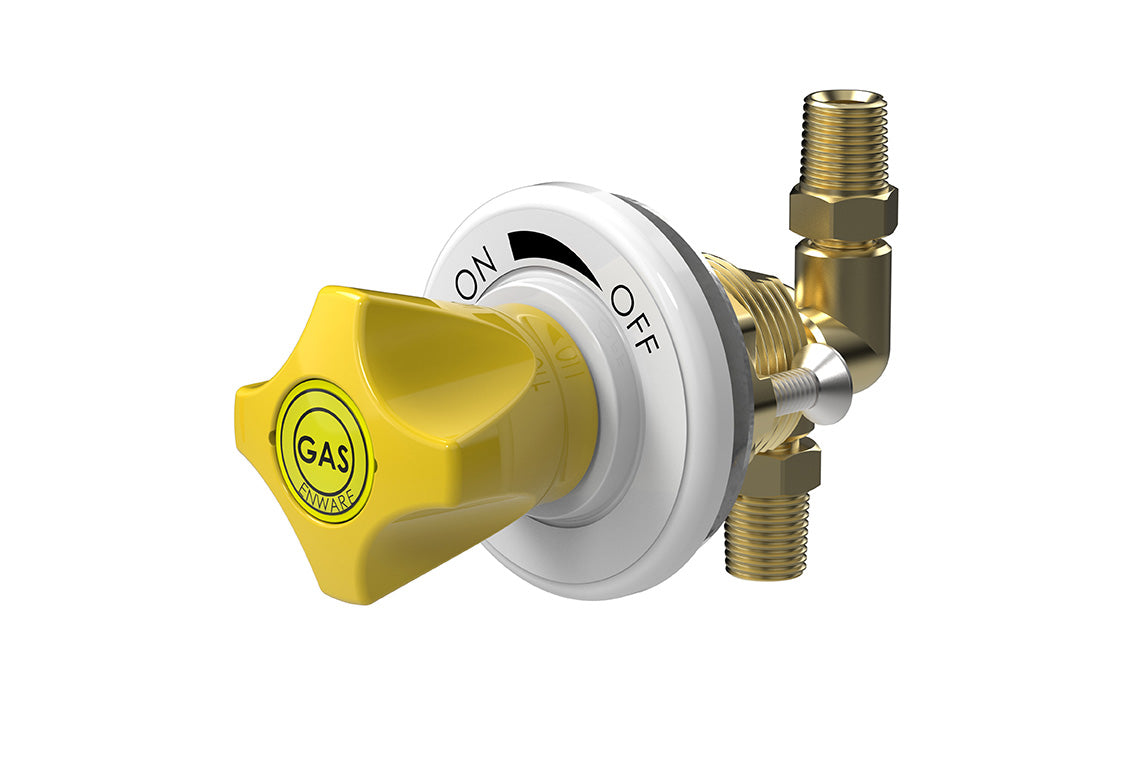

ComLab Front Panel Valve - 90 Degree 1/4" BSPT Inlet/Outlet for Hose Connection - Needle Valve - Natural Gas/LPG
ComLab Front Panel Valve - 90 Degree 1/4" BSPT Inlet/Outlet for Hose Connection - Needle Valve - Natural Gas/LPG
Product Code: LCN153NGAS
Couldn't load pickup availability
Product description
Enware laboratory front panel valves are designed for fitting to the front panels or mullions of Fume Cupboards or similar equipment. The durable powder coat finish gives significant protection against corrosion, discolouration and surface damage. Slimline handles are ergonomically designed for precise feel and fingertip control. Handles are colour coded for easy service identification and use complimentary buttons. Designed to be connected to incoming service and remote outlet nozzle.
Key Selling Points
- AGA approved
- Suited for burning gases up to technical gas level 2.0
- Teflon needle valve with stainless steel seat
- Durable white epoxy powder coat finish with coloured metal handles
- 90 Deg 1/4" BSPT Inlet/ Outlet for hose connection
- Can be fixed from the front with screws (not supplied) or from the rear with backnut
- Yellow handle and indicator button identification to DIN EN13792
- Indicator buttons for compatible media included
- Compatible media: Natural Gas, LPG
- Certifications
- AGA CERT 4757
- Maximum Recommended Pressure (kPa)
- 7
- Inlet Connection
- 1/4" BSPMI
- Outlet Connection
- 1/4" BSPMI
- Connection Notes
- Union spigot suitable for LC188 connecting hose
- Finish
- Powder Coating
- Valve Type
- Needle Valve
- Mounting Type
- Front Panel Valve
- Mounting Notes
- Can be mounted from front with screws or secured from back with back nut
BIM Files
Brochures

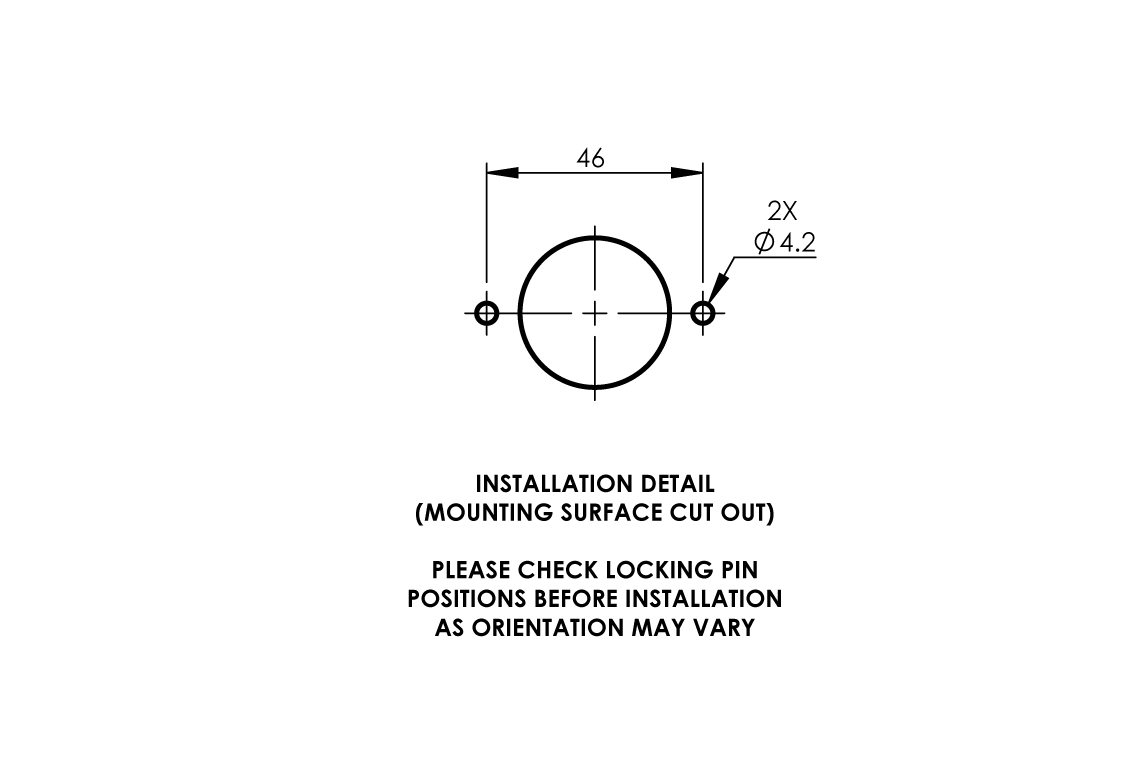

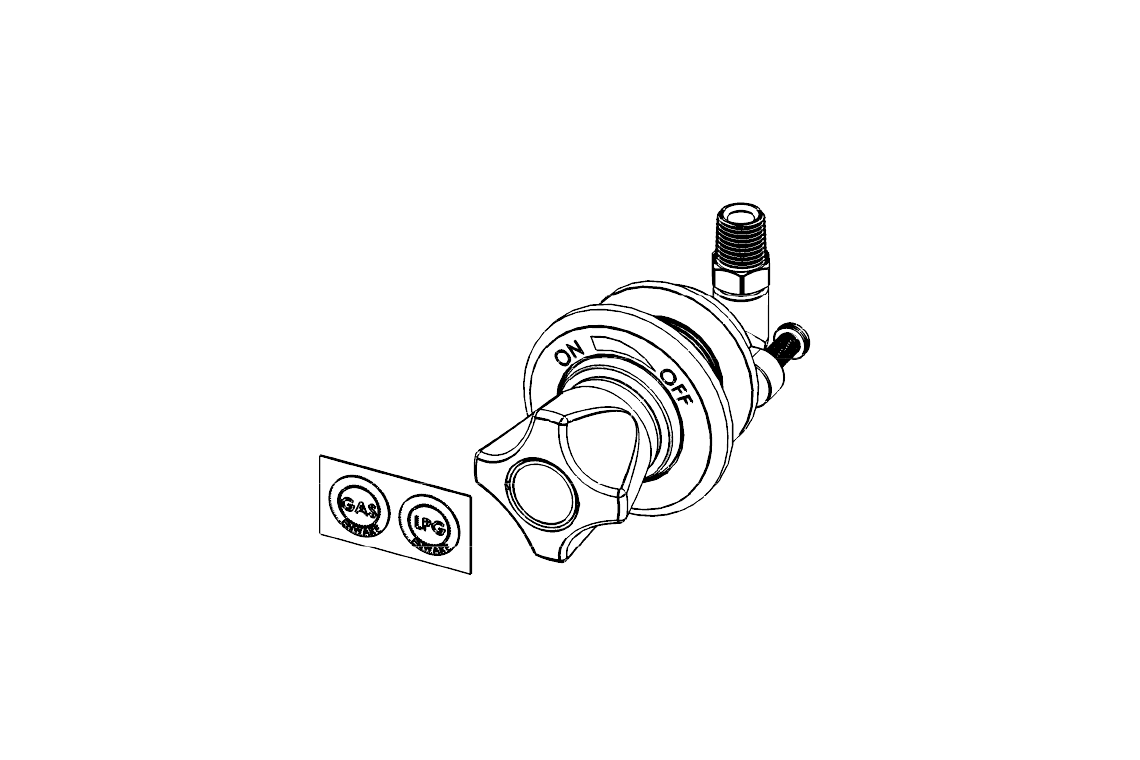

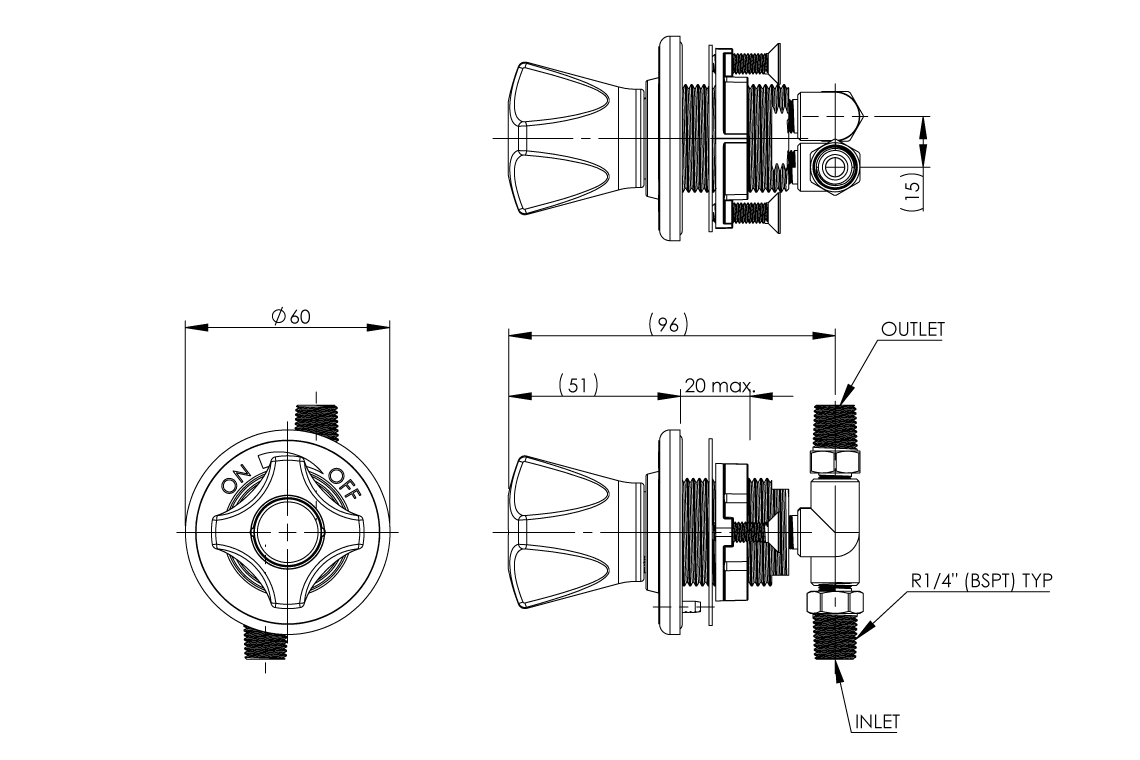

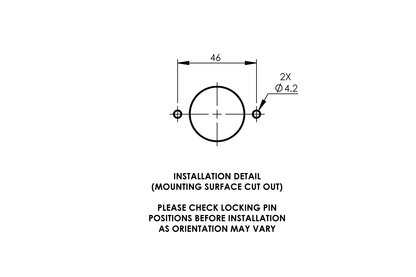

Dimensional Drawings
Product Information
