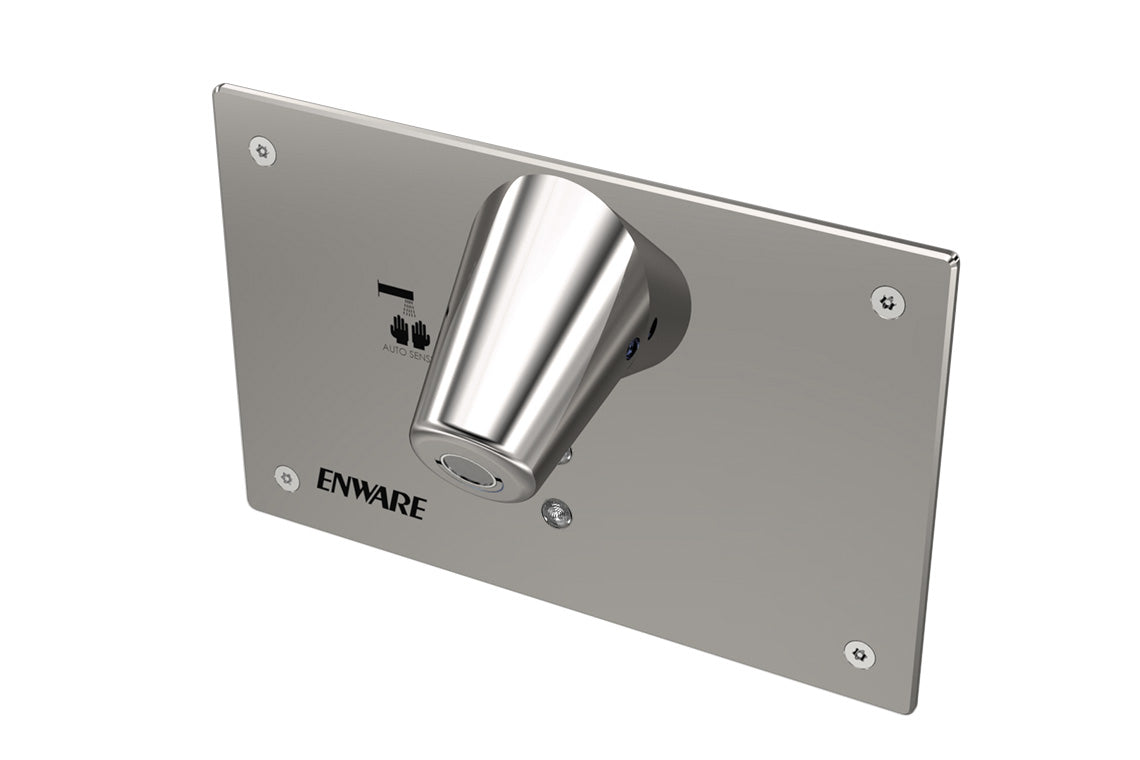

Wall Mounted Sensor Tap – Hands-Free – Active Sense with Custodian® Basin Outlet

Product Information

The Touch Free Wall Mounted Sensor is a sensor operated, hands-free tap that is installed above sinks and basins. It operates by sensing a hand in front of the sensor unit. It uses a beam of invisible Infrared light which, when reflected from hand back to the sensor, operates the unit.

  • To turn tap on, place hand under spout in front of sensor
  • To turn tap off, move hand away
  • Valve stays open for 6 seconds, or as long as the hand is within sensor range
  • Maximum flow time of 45 seconds* per activation reduces waste and prevents vandalism
  • Equipped with automatic hygiene flush function (1-10min/24hr) - enabled on request
  • Stainless steel sensor plate
  • Spout has anti-rotation pin and high Security Torx grub screw, designed to exceed anti-ligature requirements of TS001-2013

Inlet & Outlet

Inlet Connection 15 mm (1/2”) BSP

Pressure

Recommended Working Pressure 100 - 500 kPa

Flow Rate

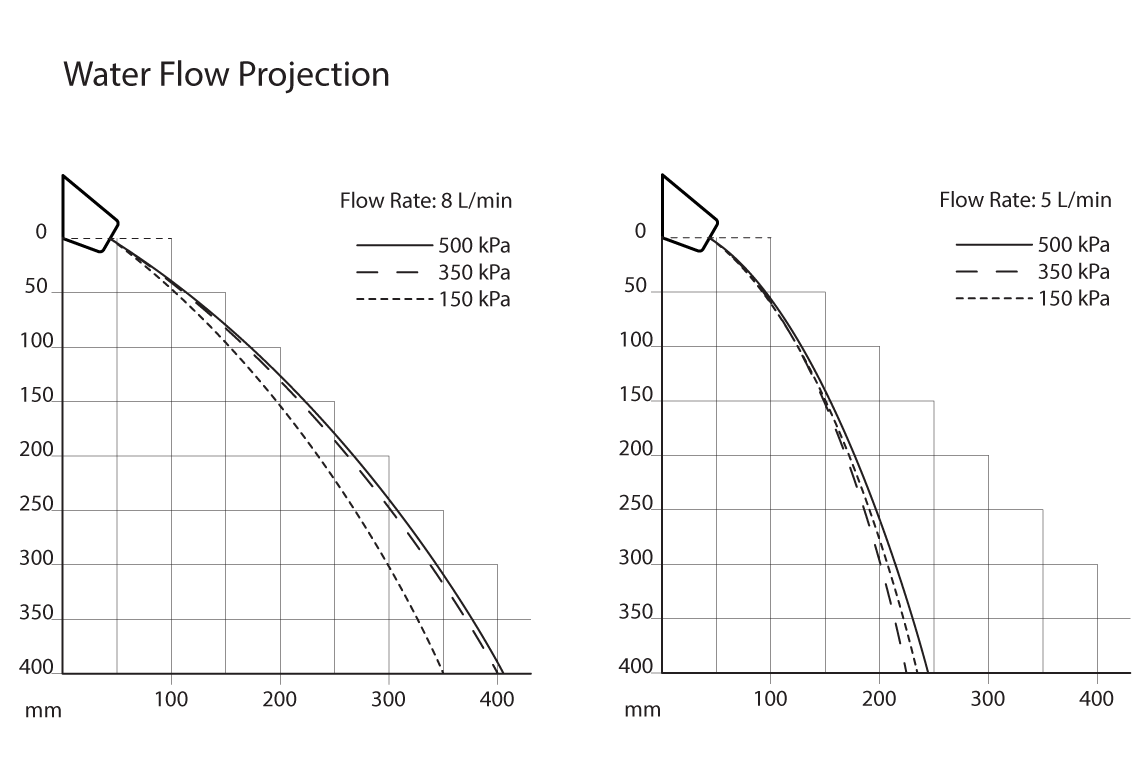

Flow Rate 8 lpm supplied standard. 5 lpm available on request.

Temperature

Maximum Temperature 70 °CC

Power Source

Operating Voltage 24V DC
Maximum Current 1A
Power Consumption Less than 10W

Sensor

Sensor Range Sensor Min / Max Ambient Temperature: Minimum: -5 °C, Maximum: 50 °C
Sensor Range 100 - 235 mm

IP Rating

Sensor Protection Rating IP67 for the front panel and sensor lens. No IP rating behind panel.

Time Flow

Flow Time Runs as long as hand is within range. (Active Sense) When out of range, runs for 6 seconds. (Afterfl ow) Maximum continuous fl ow period per sensor activation is 45 seconds. (Security Time Out)
