Custodian: Shower Rose - Duct Mount
Custodian: Shower Rose - Duct Mount
Order Code: CNSHRS-SD
Couldn't load pickup availability
Product description
The Custodian Shower Rose is specifically designed for correctional and secure facility environments, delivering superior showering comfort without compromising security. Its robust, anti-ligature design supports safer installations in high-security applications while providing reliable, long-term performance. Featuring a fixed 200 mm tail for duct-mounted installations, the shower rose suits wall thicknesses from 70 mm to 175 mm, offering a durable and dependable solution for secure amenities.
Key Selling Points
- Compatible with detatchable hand shower CNHNDSHHS-D
- Designed to exceed anti-ligature requirements of TS001-2013
- Anti-rotation pin
- Fixed 200mm tail to suit duct mounting (wall thickness 70 - 175mm)
- Constructed from DR brass
- Durable bright chrome finish
- Standard WELS (Stars)
- 4
- Standard WELS Flow Rate (L/min)
- 7
- Certifications
- WM 40051,WELS-4 Star-7Lpm,Health Approved - AU
- Maximum Water Temperature (Deg C)
- 70
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2" BSP Male
- Finish
- Chrome
- Materials
- Brass
BIM Files
Brochures

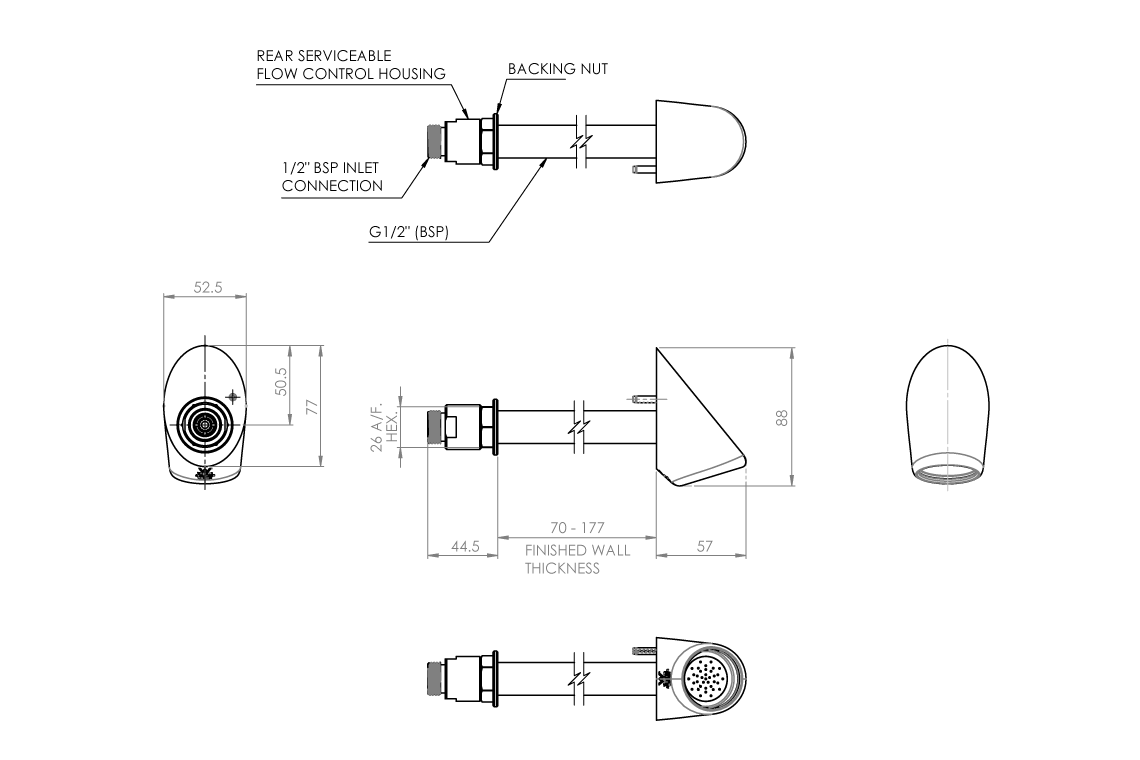

Dimensional Drawings
Product Information
