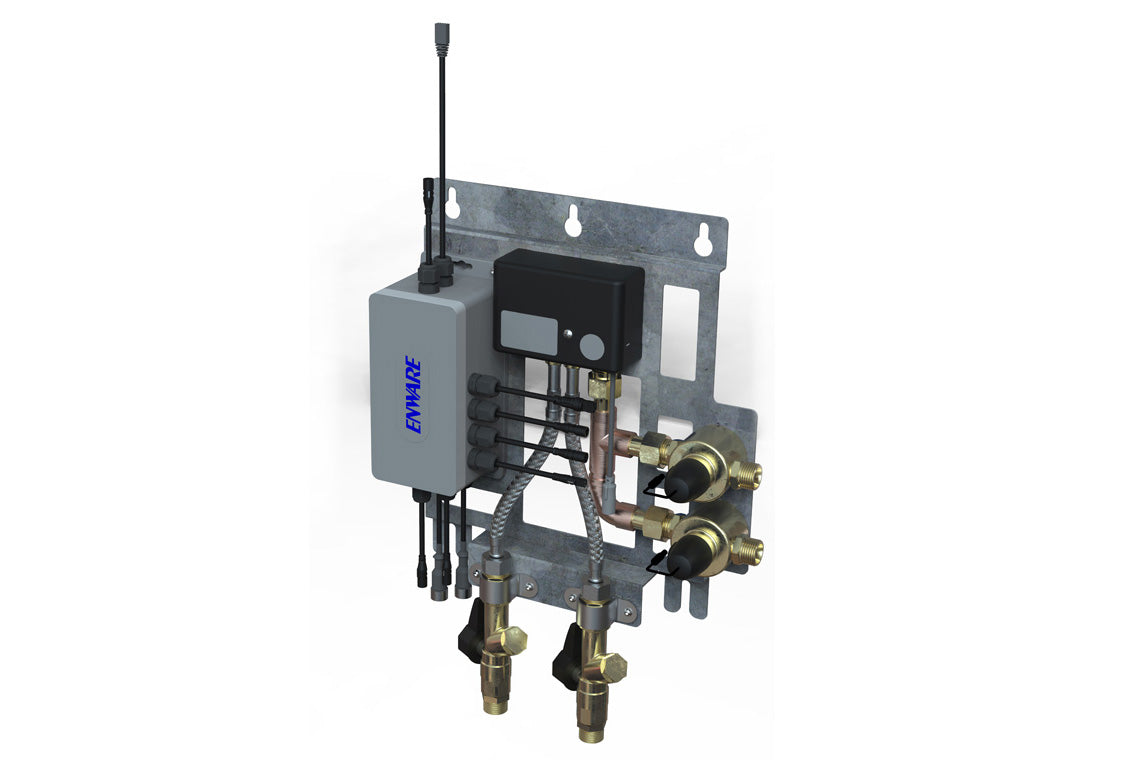

CUSTODIAN SMARTBOARD 2 SOLENOID
CUSTODIAN SMARTBOARD 2 SOLENOID
Product Code: WMSSB-001
Couldn't load pickup availability
Product description
The Custodian® Smart Board provides direct control and monitoring of water delivery in secure or controlled bathroom environments. Designed for compact and easy installation, the smart board includes: - Custodian Smart Flow Hub and Power Supply (WMS-CNHUB) - Electronic Thermostatic Mixing Valve (WMS-ETMV01) - Shower and Basin Solenoids (WMS207) - Hot and Cold Inlet Service Isolation Ball Valves - Hot and Cold Strainers - Hot and Cold Check Valves Additionally, the WMS8312 flush solenoid can be connected to the smart board for enhanced functionality. A WMS8004 cable kit is required for installation.
Key Selling Points
- Rapid installation of pre-assembled and tested plumbing assembly
- Integrated control of water flow state and thermostatic temperature control of both the shower and basin
- Toilet full and half flush
- Plug-and-play cable connectors for all fixtures and Smart Flow Water Management System
- Certifications
- WM 40175,WM 40260
- Minimum Working Temperature (Deg C)
- 5
- Maximum Working Temperature (Deg C)
- 85
- Maximum Water Temperature (Deg C)
- 50
- Maximum Inlet Temperature (Deg C)
- 85
- Maximum Static Pressure (kPa)
- 1600
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 1/2” BSP Male
- Outlet Connection
- 1/2” BSP Male
- Width (mm)
- 300
- Height (mm)
- 440
- Weight (kg)
- 4
- Valve Type
- Ceramic Disc
- Power Supply (AC/DC)
- DC
- Power Supply (V)
- 12
- Power Supply Current (A)
- 3
- Maximum Current (A)
- 3
- Mains Powered
- Yes
- Operating Voltage (V)
- 12
- Operating Voltage (AC/DC)
- DC
- Power Consumption (W)
- 36
