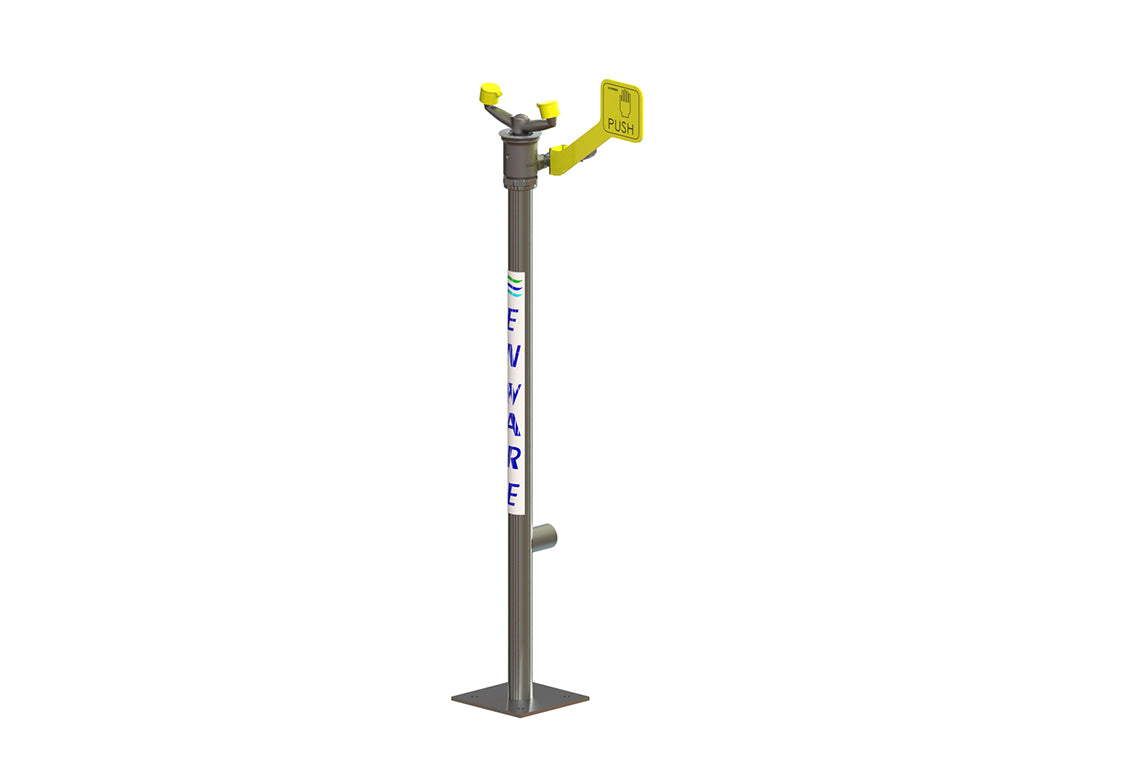

Emergency Eye Wash No-Bowl Pedestal Mounted Hand Operated

Emergency Eye Wash No-Bowl Pedestal Mounted Hand Operated

Product Code: ENBE180OR

Download data sheet Download install guide

Product description

Enware’s emergency eye wash units help to flush contaminants and irritants from eyes and surrounding facial area. Designed and manufactured in Australia. Stainless steel construction provides superior durability and reliability. ADDITIONAL OPTIONS - Foot activation kit for eye wash activation ESPE001 - Audio/Visual alarms for alerts - Flow pressure and proximity switches to activate alarms and lights - Thermal relief valve removes built-up hot water - Insulation of pipe work to moderate water temperature build up - Anti-freeze valve for cold weather climates help prevent water freezing - NPT flange connectors - Custom manufacturing & design - Signage compliant to AS1319

Key Selling Points

- Independently tested for compliance to ANSI Z358.1 and AS4775 - Freestanding for stand-alone operation - Stainless steel pipe work, stay-open ball valve and hand actuator - Hand push activated eye wash with soft aerated flow and integral auto-open dust covers - Eye wash features Vertech Technology where dedicated eye wash streams deliver optimum coverage - Zero velocity apex point provides more comfort and control for effective cleansing of eyes - High visibility yellow powder coated push handle

Certifications
AS4775,ANSI Z358.1
Minimum Eyewash Flow Rate (L/min)
17
Inlet Connection
1/2" BS15 mm (1/2”) BSP
Water Supply Line Size
Must be hydraulically sized to meet requirements.
Waste Water Outlet Connection
38 mm (1 ½”) OD
Finish
Brushed
Valve Type
Ball Valve
Mounting Type
Floor
Mounting Base Length (mm)
150
Mounting Base Width (mm)
150
Mounting Base Bolt Hole Dia (mm)
11
Mounting Base Bolt Holes
4
