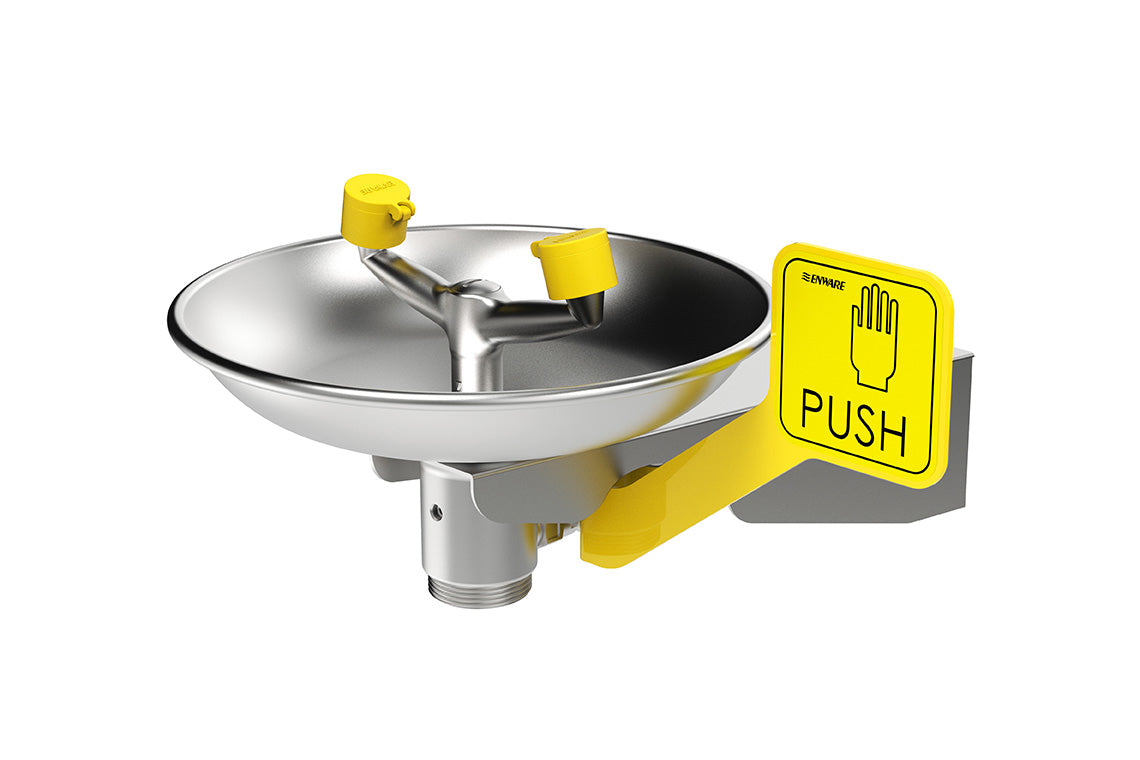

Emergency Eye Wash Wall Mounted Hand Operated

Product Information

Enware’s emergency eyewash units flush hazardous contaminants and irritants from eyes and surrounding facial area.
Designed and manufactured in Australia. Stainless steel construction provides superior durability and reliability.

  • Independently tested to comply with ANSI Z 358.1 and AS/NZS 4775
  • Stainless steel bowl, stay-open ball valve and hand actuator
  • Push activated eye wash with soft aerated flow and integral auto-open dust covers
  • Integral flow volume control
  • Eye wash features “Vertech™ Technology” where dedicated eyewash streams deliver optimum coverage
  • Zero velocity apex point provides more comfort and control for effective cleansing of eyes
  • High visibility yellow powder coated push handle

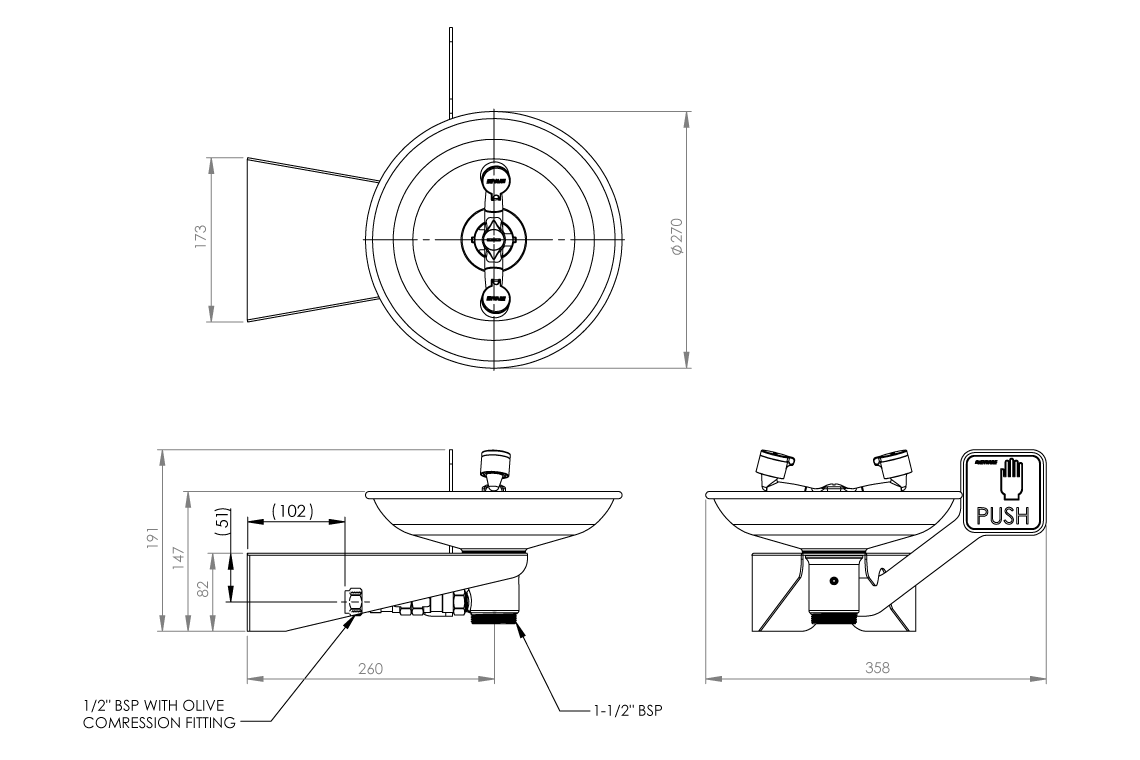

Inlet & Outlet

Inlet Connections 15mm (1/2" BSP)
Waste Water Outlet Size G 1-1/2” BSP

Water Supply

Water Supply Line Size Must be hydraulically sized to meet requirements.

Flow Rate

Minimum Performance Requirements – Min Working Pressure 210 kPa Caution should be taken when pressure exceeds 550 kPa (80 psi)kPa
Minimum Flow Rate 1.5 lpm (0.4 US gpm), Eyewash flow: 17lpm (4.5 US gpm)L/min
Product Code Description FINISH VALVE
EEE120 Emergency Eyewash Wall Mounted Hand Operated – Brushed Stainless Finish Brushed Stainless Ball Valve Add to spec
EEE120GR Emergency Eyewash Wall Mounted Hand Operated – Powder Coated Finish – GREEN Powder Coating Ball Valve Add to spec
EEE120OR Emergency Eyewash Wall Mounted Hand Operated – Powder Coated Finish – ORANGE Powder Coating Ball Valve Add to spec
EEE120WH Emergency Eyewash Wall Mounted Hand Operated – Powder Coated Finish – WHITE Powder Coating Ball Valve Add to spec
EEE120YE Emergency Eyewash Wall Mounted Hand Operated – Powder Coated Finish – YELLOW Powder Coating Ball Valve Add to spec
