Custodian 15mm Solenoid and Brass Body Housing
Custodian 15mm Solenoid and Brass Body Housing
Product Code: WMS8206
Couldn't load pickup availability
Product description
- Enware Custodian 15mm solenoid and brass body housing for WMSSB-001
- 6VDC with KCC Connector
- Used in conjunction with Custodian Smartboard
Key Selling Points
- 1/2" BSP MI Connections
- Brass Body
- KCC Connector
INSTALLATION NOTE
• Installation shall be in accordance with the Plumbing Code of Australia (PCA), AS/NZS3500 and the manufacturer’s instructions.
• Connect water supply to inlet and fixture line to the outlet, taking note of the direction of flow marked on the solenoid.
• Connect sensor cable to connector. Care should be taken with the position and orientation of the connectors. Align white markings on the connectors when connecting.
- Certifications
- WMK27086
- Maximum Water Temperature (Deg C)
- 70
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 1000
- Operating Voltage (V)
- 6
- Power Consumption (W)
- 1.5
- IP Rating
- 67
BIM Files
Brochures

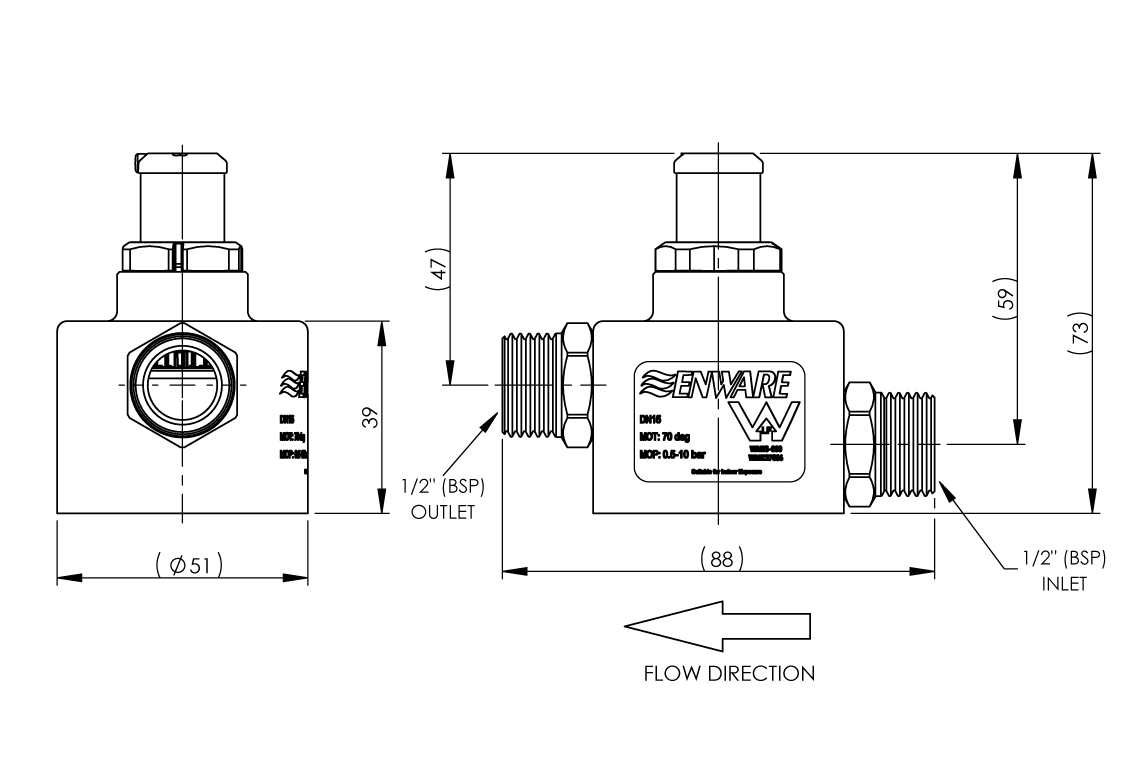

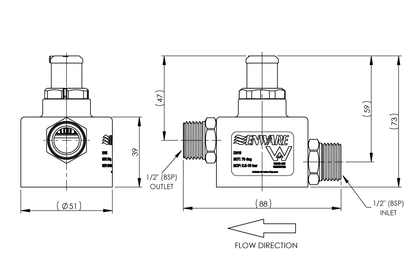

Dimensional Drawings
