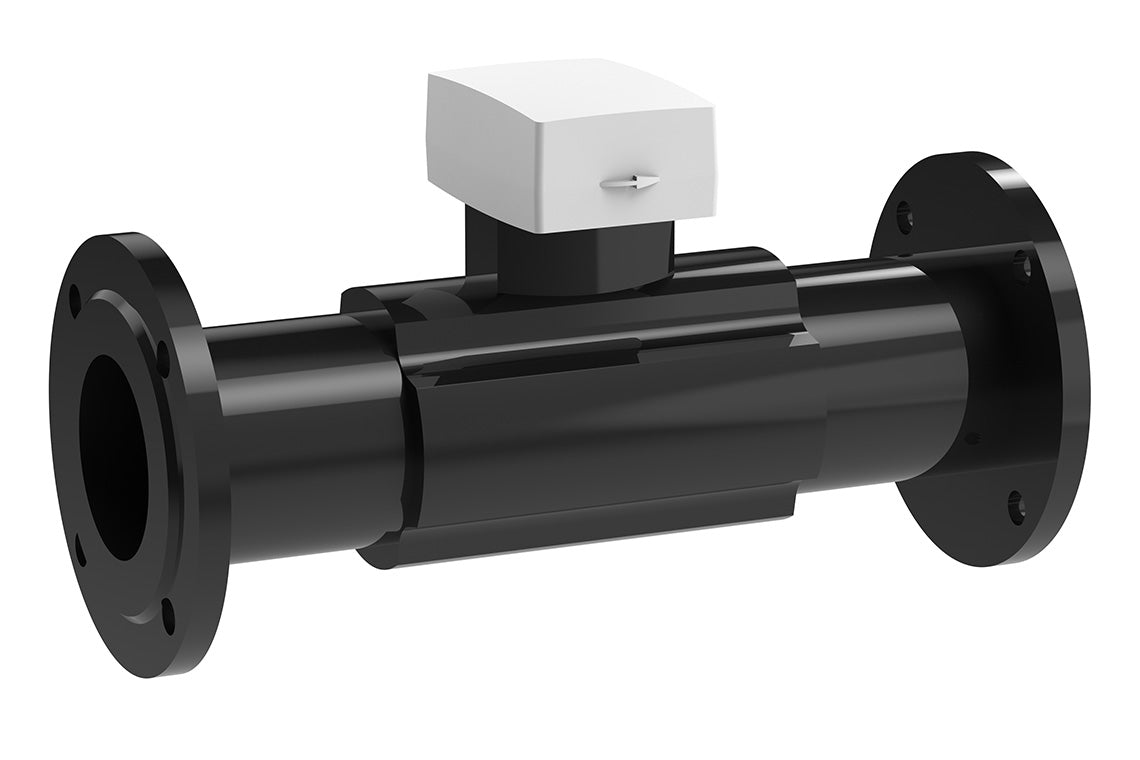

Hydrus 2.0 Cold DN100 L483mm Ultrasonic Water Meter Radio/Pulse
Hydrus 2.0 Cold DN100 L483mm Ultrasonic Water Meter Radio/Pulse
Product Code: EHM50100X4FL
Couldn't load pickup availability
Product description
Hydrus 2.0 Cold Ultrasonic Water Meter DN100 Radio / L-Bus / Pulse
Key Selling Points
- NMI approved and WaterMarked with dynamic range up to R800

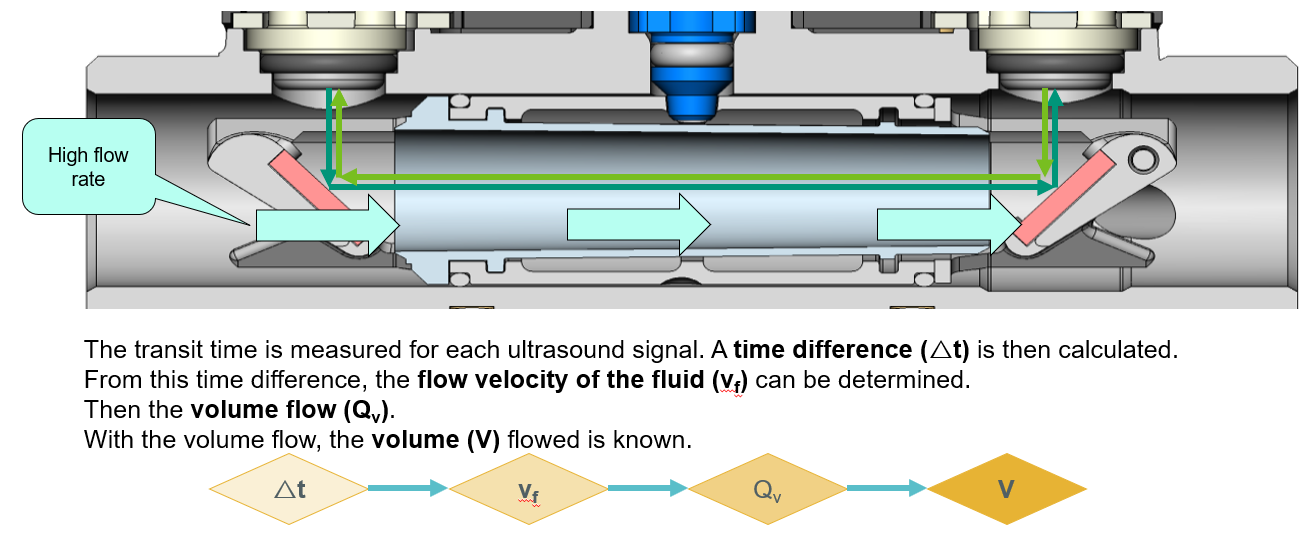

- Ultrasonic design minimises sedimentation
- Horizontal and vertical installation
- No magnetic influence
- U0 / D0, no need for calming sections
- Integrated radio communication based on Open Metering telegram (OMS Generation 3 or 4, Profile B)
- IP68 permanent immersion (suitable for outdoor installation)
- Higher performance than class 2 requirements
- Long-term stability under difficult conditions
- No measurement of air
- No over-run performance
- Display with error and alarm codes including leakage detection
- Battery lifetime up to 16 years
- Available in Cold Water DN 20, 25, 32, 40, 50, 80, 100, 150, 200
- Available in Hot Water DN 15, 20, 25, 32, 40
- Certifications
- WM 40207
- Inlet Connection
- Round Flange 100mm
- Outlet Connection
- Round Flange 100mm
- Power Supply (AC/DC)
- 3.6VDC
BIM Files
Brochures

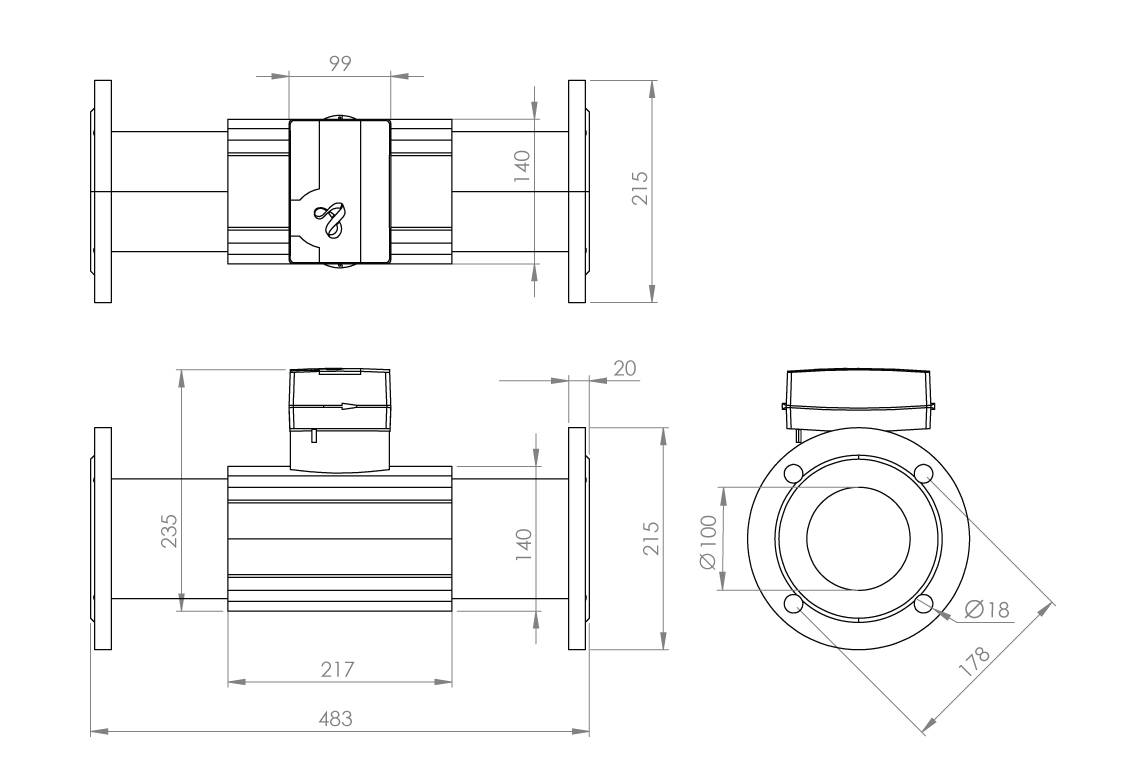

Dimensional Drawings
Product Information
