HYDRUS2 COLD DN150 L500mm RADIO/PULSE SYDNEY WATER

HYDRUS2 COLD DN150 L500mm RADIO/PULSE SYDNEY WATER

Product Code: EHM50150X5FL-SW

Product description

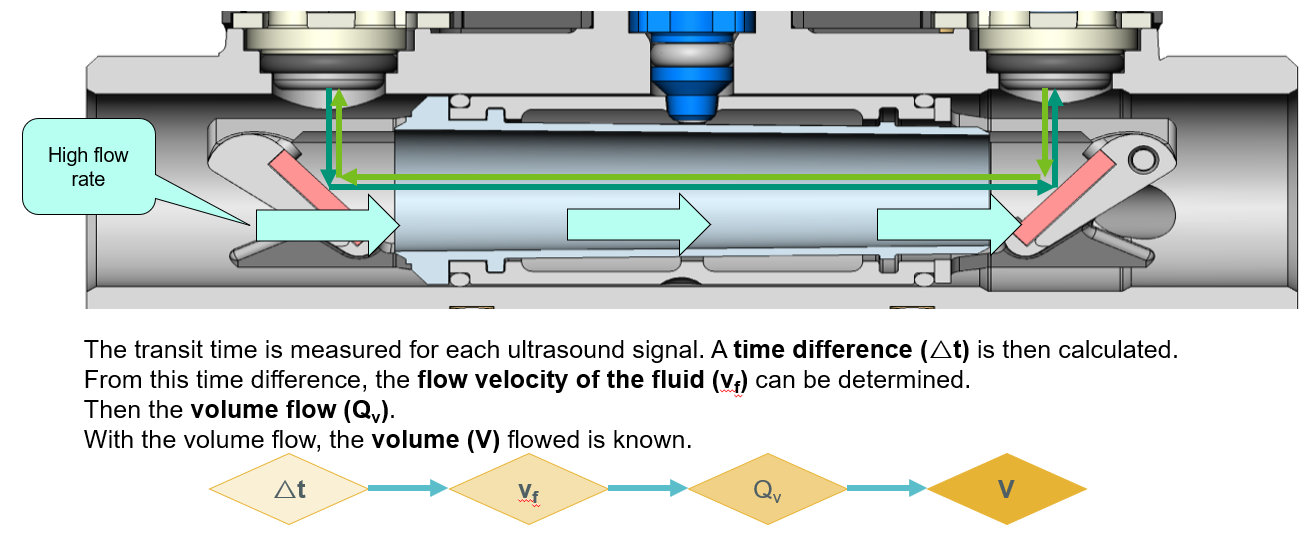

The HYDRUS2 Radio/Pulse SW ultrasonic water meter provides accurate, maintenance free measurement with integrated wireless radio communication and a wired pulse output designed for Sydney Water MLIM compliance. Its advanced ultrasonic technology provides long term stability, no moving parts, and reliable performance even in demanding conditions. The meter supports high resolution data, leak detection, backflow alerts, and robust diagnostics to enhance system visibility. With IP68 protection it is suitable for both indoor and outdoor use, with its long battery life it will continue to function in a blackout, a wide dynamic range of up to R800 enables measurement of flow down to the level of drips, support for both horizontal and vertical installation and no need for calming sections. HYDRUS2 suits a broad range of commercial and industrial environments. HYDRUS2 Radio/Pulse SW is suitable for multi level buildings and modern infrastructure, it delivers communication reliability, operational flexibility, and a low TCO while being certified for Sydney Water MLIM.

Key Selling Points

  • WaterMark certified on all sizes
  • NMI approved on all sizes
  • Higher performance than class 2 requirements
  • Q1/Q3 (Dynamic range) up to R800
  • Ultrasonic design minimises sedimentation
  • Long-term stability under difficult conditions
  • Horizontal and vertical installation
  • IP68 permanent immersion (suitable for outdoor installation)
  • U0 / D0, no need for calming sections
  • No moving parts & no magnetic influence
  • No measurement of air
  • Integrated communications
  • Battery lifetime up to 16 years
  • Display with error and alarm codes including leakage detection
  • Available in T50 (Cold Water) DN 20, 25, 32, 40, 50, 80, 100, 150, 200
  • Available in T90 (Hot Water) DN 15, 20, 25, 32, 40

Certifications
WM 40207
Inlet Connection
Round Flange 150mm
Outlet Connection
Round Flange 150mm

BIM Files

Brochures

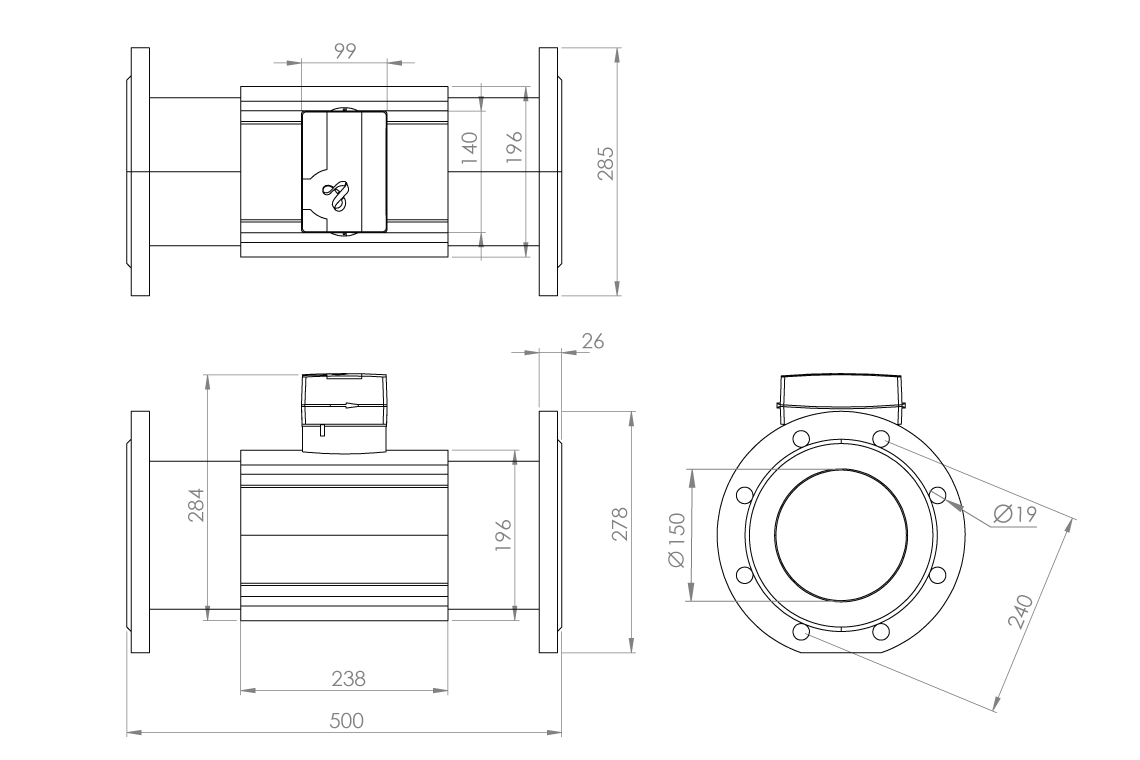

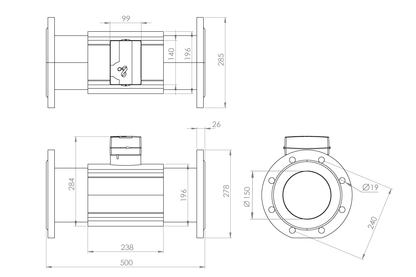

    Dimensional Drawings

      Product Information
