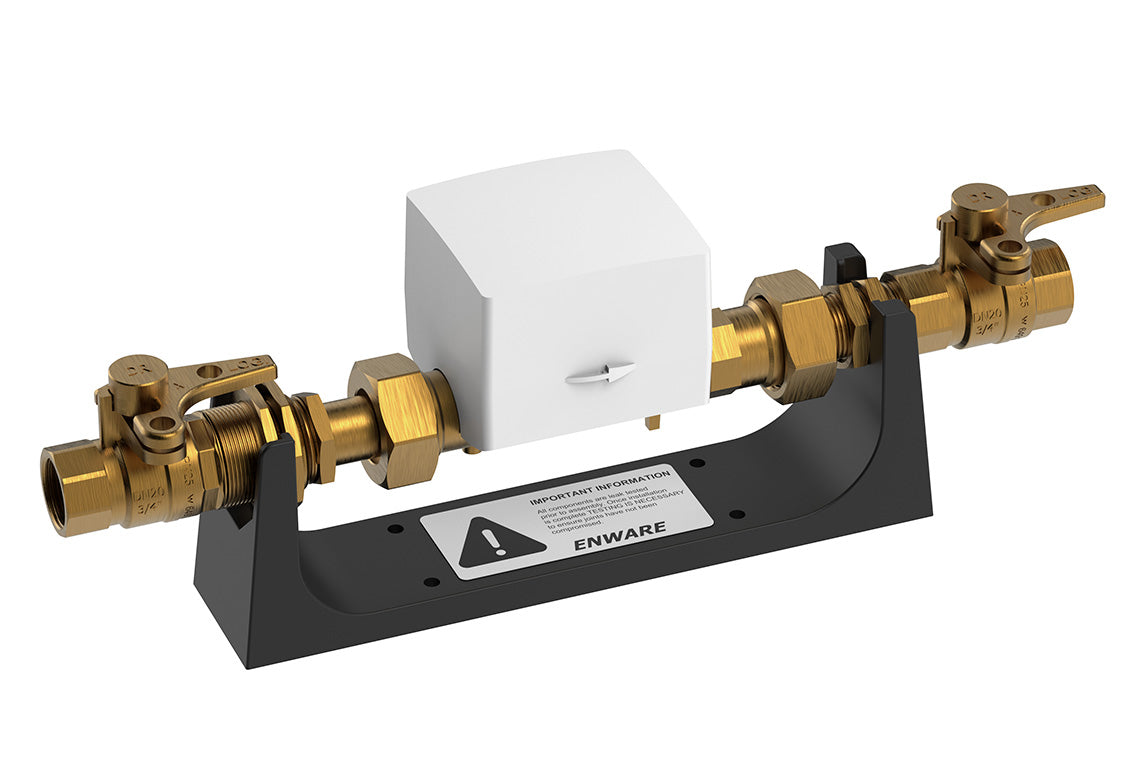

Hydrus 2.0 Cold DN20 L154mm Ultrasonic Water Meter Radio With Bracket
Hydrus 2.0 Cold DN20 L154mm Ultrasonic Water Meter Radio With Bracket
Product Code: EHM5020X1VR-B
Couldn't load pickup availability
Product description
Hydrus 2.0 Cold Ultrasonic Water Meter DN20 With Bracket
Key Selling Points
- NMI approved and WaterMarked with dynamic range up to R800

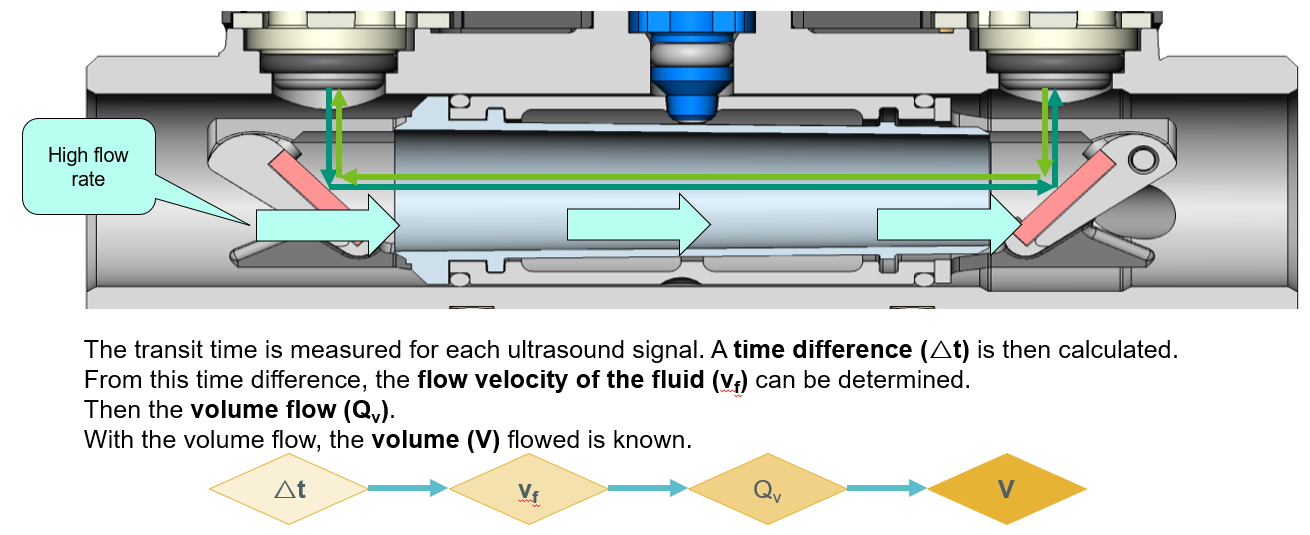

- Ultrasonic design minimises sedimentation
- Horizontal and vertical installation
- No magnetic influence
- U0 / D0, no need for calming sections
- Integrated radio communication based on Open Metering telegram (OMS Generation 3 or 4, Profile B)
- IP68 permanent immersion (suitable for outdoor installation)
- Higher performance than class 2 requirements
- Long-term stability under difficult conditions
- No measurement of air
- No over-run performance
- Display with error and alarm codes including leakage detection
- Battery lifetime up to 16 years
- Available in Cold Water DN 20, 25, 32, 40, 50, 80, 100, 150, 200
- Available in Hot Water DN 15, 20, 25, 32, 40
- Certifications
- WM 40207
- Inlet Connection
- 20mm (3/4” BSP) female
- Outlet Connection
- 20mm (3/4” BSP) female
- Power Supply (AC/DC)
- 3.6VDC
BIM Files
Brochures

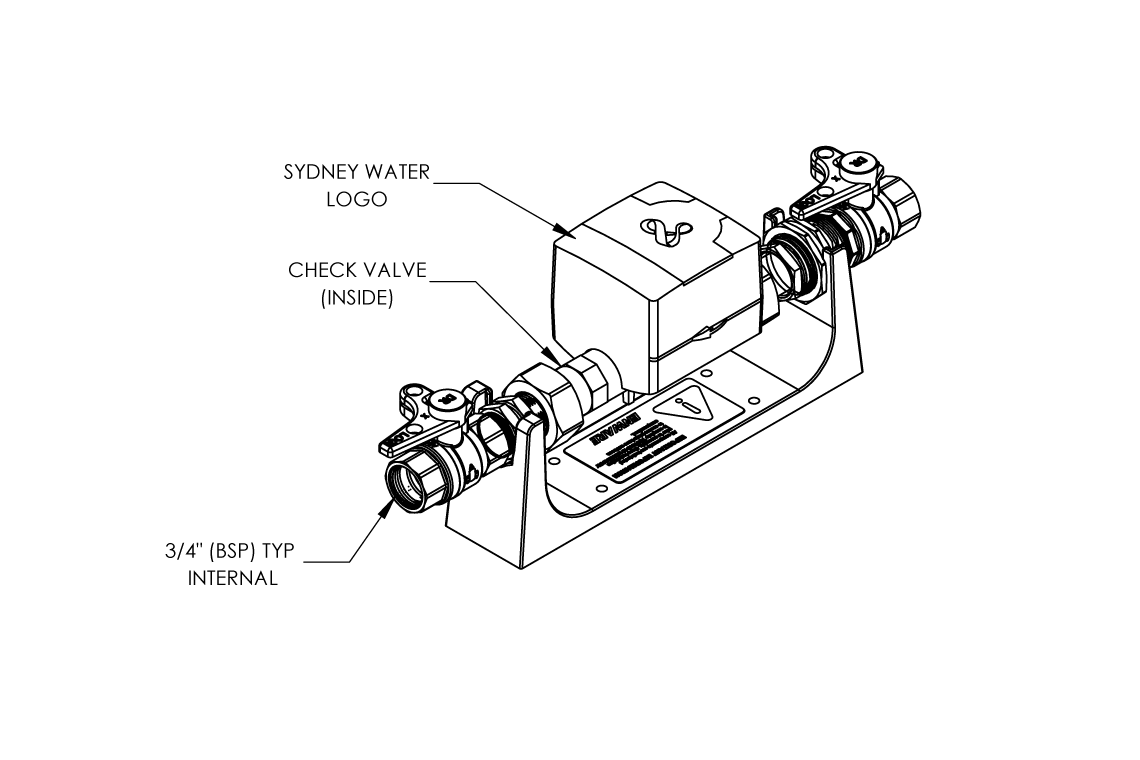

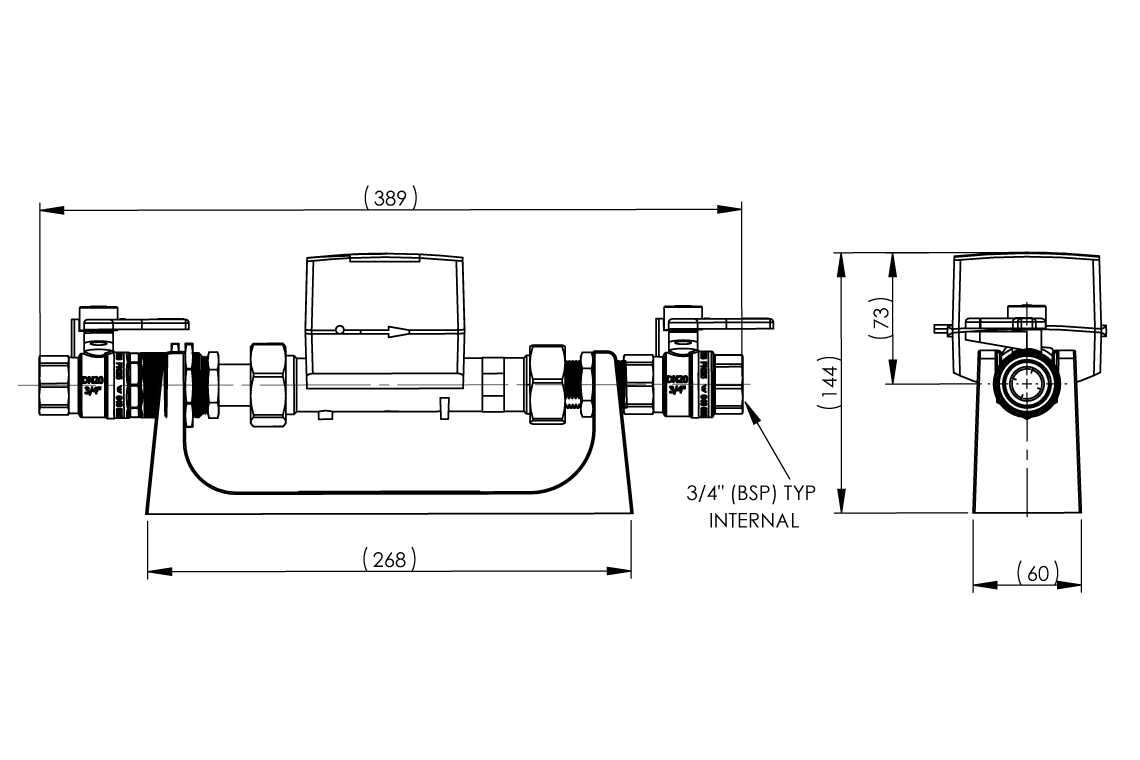

Dimensional Drawings
Product Information
