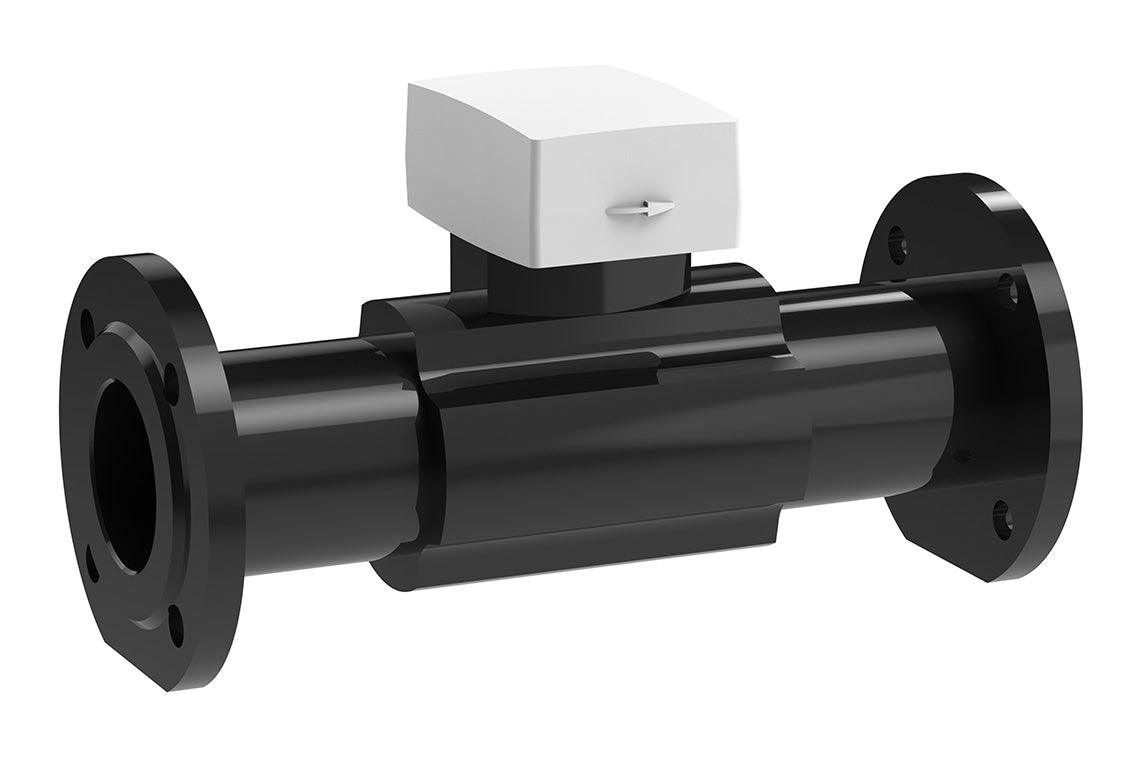

HYDRUS2 COLD DN80 RADIO/PULSE

Product description

This meter can be used in either of three applications:

On-Premises BMS (AMI)

Wireless Advanced Metering Infrastructure
Radio-enabled Hydrus 2.0 meters transmit data wirelessly to RDCs on the local network, the raw data is processed by and on-prem server hosting our Smart Flow Metering software that integrates with your BMS via BACnet over IP.
This eliminates the need for extensive cabling while providing close to real-time, high-resolution data including advanced features such as leakage, backflow and air in pipe alerts.

Green Star Compliance:
AMI solutions meet Green Star requirements for automated water monitoring and reporting, supporting sustainability goals.

Best for:

• Large facilities
• Minimal wiring installations
• Green Star certified projects

Mobile Meter Reading (AMR)

Efficient Manual Data Collection
AMR uses radio-enabled meters for quick drive-by or walk-by readings via handheld devices.
Ideal for sites without a BMS and where remote monitoring isn’t required.

Best for:

• Tenant billing
• Facilities without BMS requirements
• Quick manual reading
• Reducing labor costs
• Cost effective solutions

Wired Pulse

Simple BMS Integration
Wired pulse meters provide a basic signal output for Building Management Systems (BMS).
Each pulse represents a fixed volume of water, allowing the BMS to calculate usage.
This is ideal for projects where only a simple consumption count is needed.

Best for:

• Basic water monitoring
• Simple BMS setups
