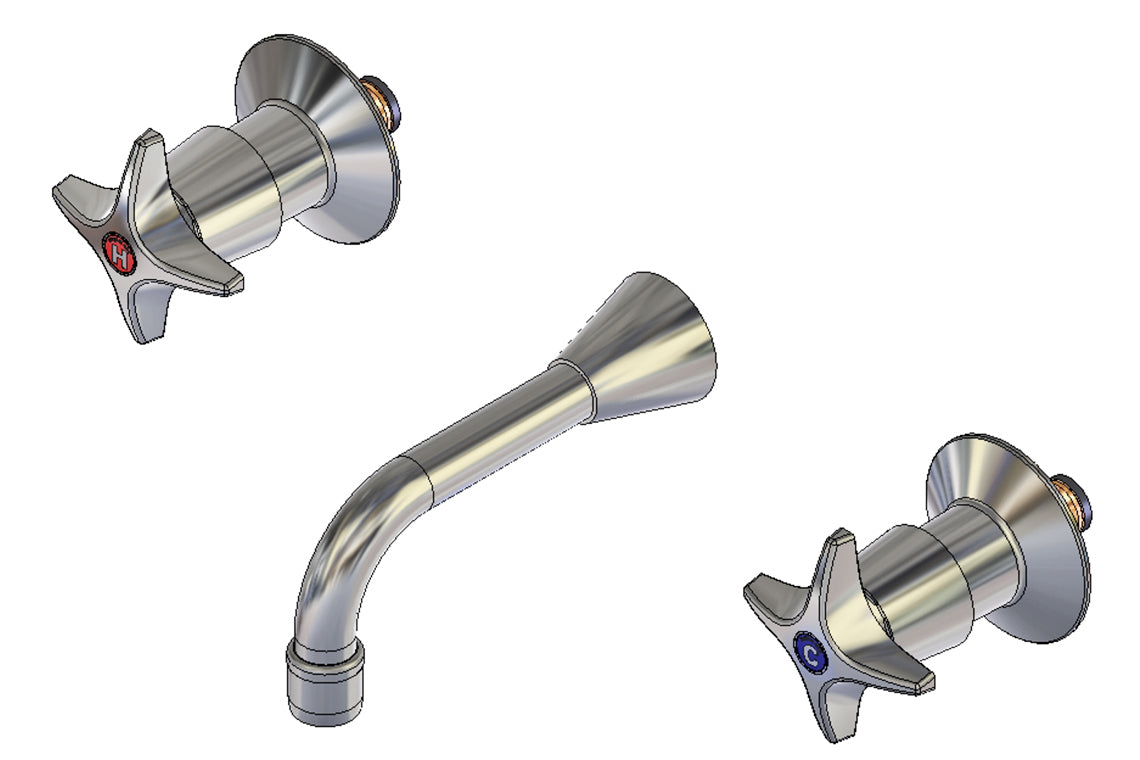

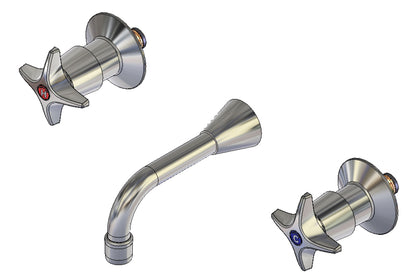

Concealed Spindle Wall Set with SP201 Fixed Aerated Spout - Jumper Valve
Concealed Spindle Wall Set with SP201 Fixed Aerated Spout - Jumper Valve
Product Code: CS314
Couldn't load pickup availability
Product description
The ergonomically designed CS (Concealed Spindle) Series handle features a dress skirt that conceals the anti-vandal handle fixing and the spindle. An internal locking ring secures the handle to the spindle, which may only be released by using the key provided.
Key Selling Points
- Vandal-resistant internal locking ring secures the handle which requires special key to release (key supplied)
- Blue (Cold), Red (Hot) or Yellow (Warm) coloured indicator button. (3 colour indicator buttons included)
- Heavy duty bright chrome
- High quality dezincification resistant (DR) brass construction
- Includes 5 Star WELS rating (6 L/min) aerator (fitted) and WELS 6 Star (3.8 L/min) aerator (supplied in carton)
- Standard WELS (Stars)
- 5
- Standard WELS Flow Rate (L/min)
- 6
- WELS Category
- Tapware
- Certifications
- WMKA1583 - LF,Lead Free,WELS-3 Star-8Lpm
- Maximum Recommended Temperature (Deg C)
- 70
- Maximum Jumper Valve Working Temperature (Deg C)
- 95
- Maximum Static Pressure (kPa)
- 1200
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 6
- Flow Notes
- 3.8L/min aerator supplied loose in carton
- Finish
- Chrome
- Valve Type
- Jumper Valve
BIM Files
Brochures

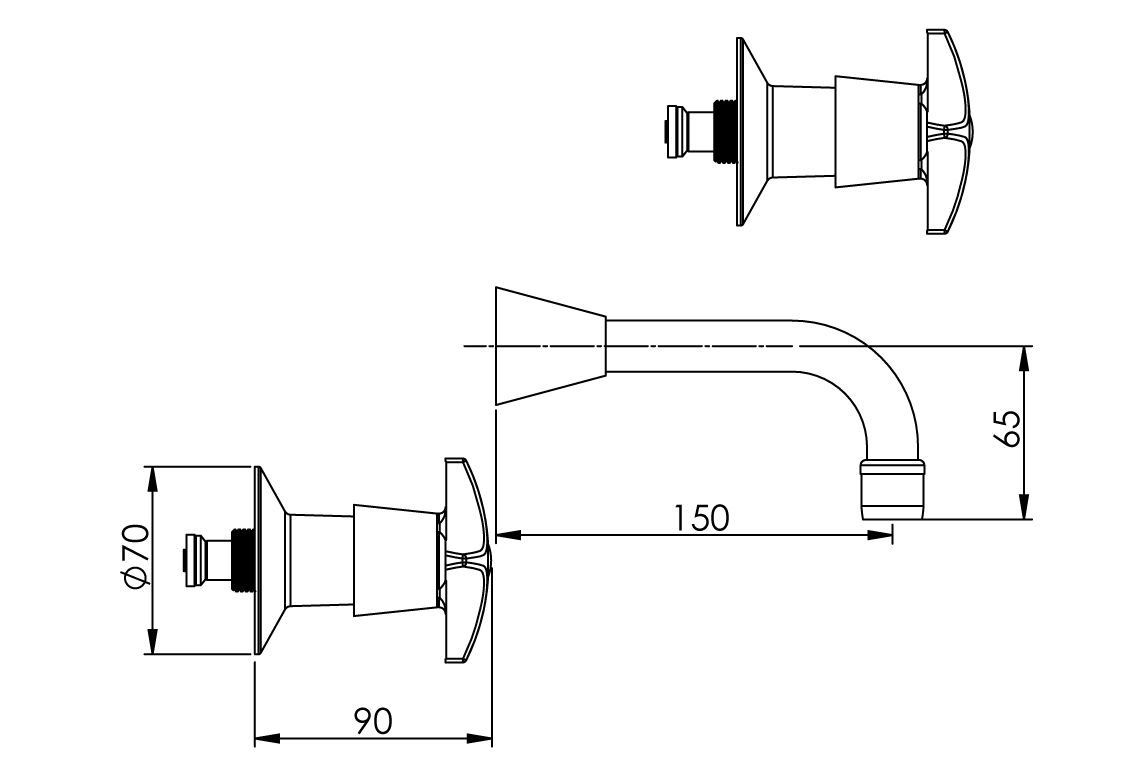

Dimensional Drawings
