Laboratory Mixing Set: Type 13 - Swivel/Fix Outlet - School Pattern Jumper Valve
Laboratory Mixing Set: Type 13 - Swivel/Fix Outlet - School Pattern Jumper Valve
Product Code: LF107
Couldn't load pickup availability
Product description

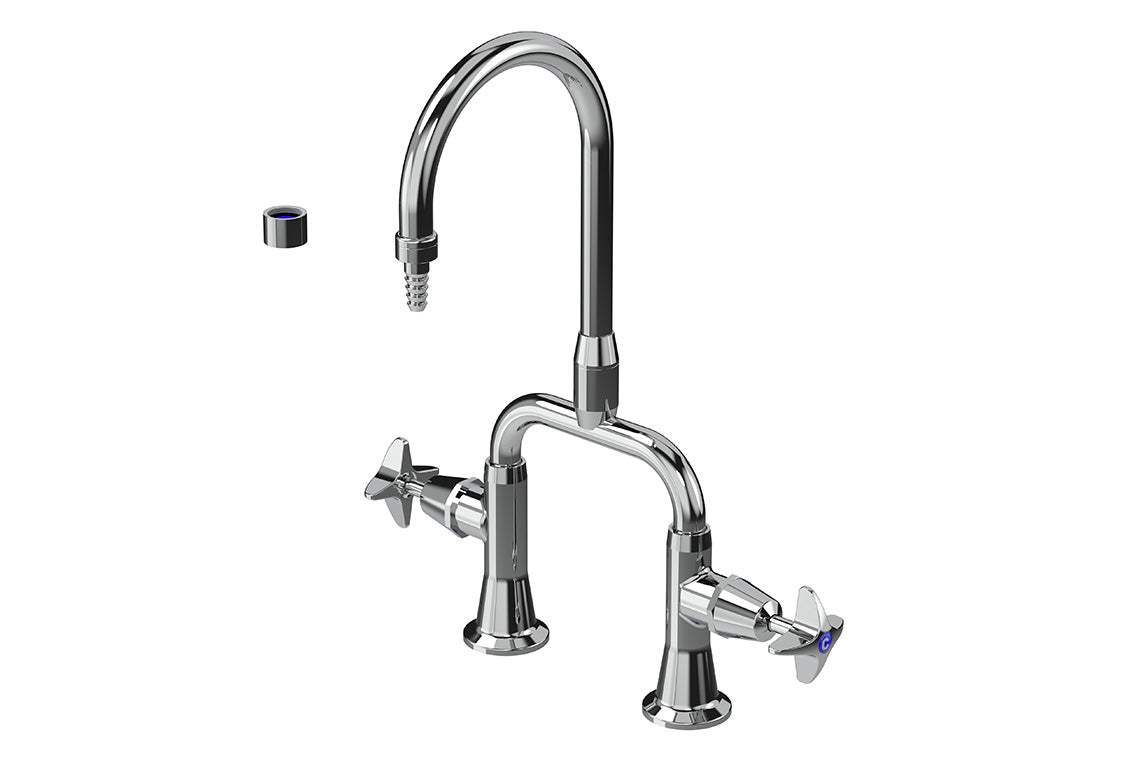

A two-hole dual control vandal-resistant laboratory tap with swivel spout and locking mechanism for fixed spout. Supplied with WELS 6 Star aerator and 5 Star Tube Nozzle.
Key Selling Points
- Spout can be Fixed or Swivel
- Aerated (WELS 6 Star)
- Tube Nozzle (WELS 5 Star)
- Anti-rotation pins
- Vandal-resistant school pattern handle
- High quality construction with durable chrome plating
- Supplied with Hot/ Cold/ Warm indicators
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 4
- Certifications
- WMKA1583 - LF,WELS-5 Star-6Lpm,WELS-6 Star-4Lpm,Lead Free
- First Additional WELS (Stars)
- 5
- First Additional WELS Flow Rate (L/min)
- 6
- Maximum Jumper Valve Working Temperature (Deg C)
- 95
- Maximum Static Pressure (kPa)
- 1200
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 15mm (1/2" BSP)
- Finish
- Chrome
- Valve Type
- Jumper Valve
- Mounting Notes

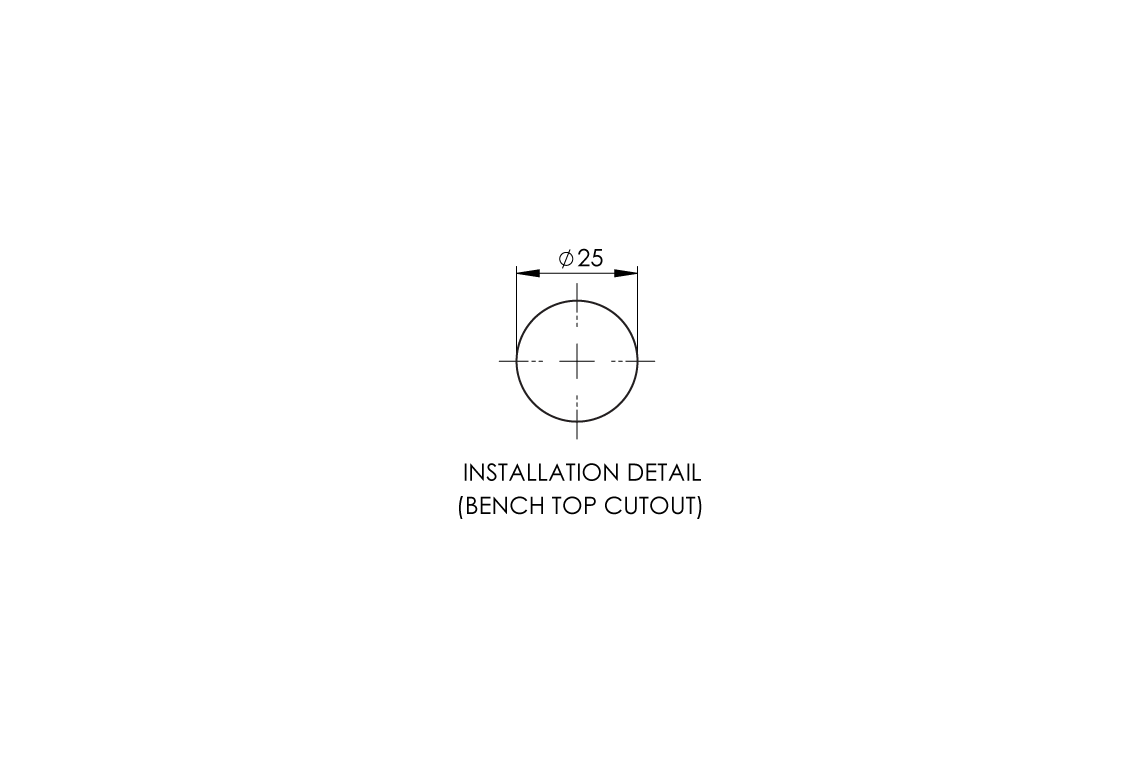

- Bench Mounted
BIM Files
Brochures

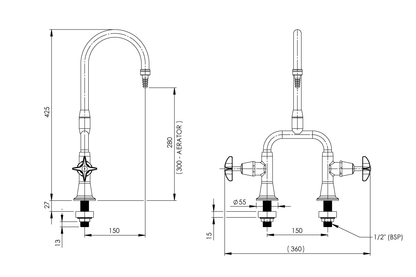

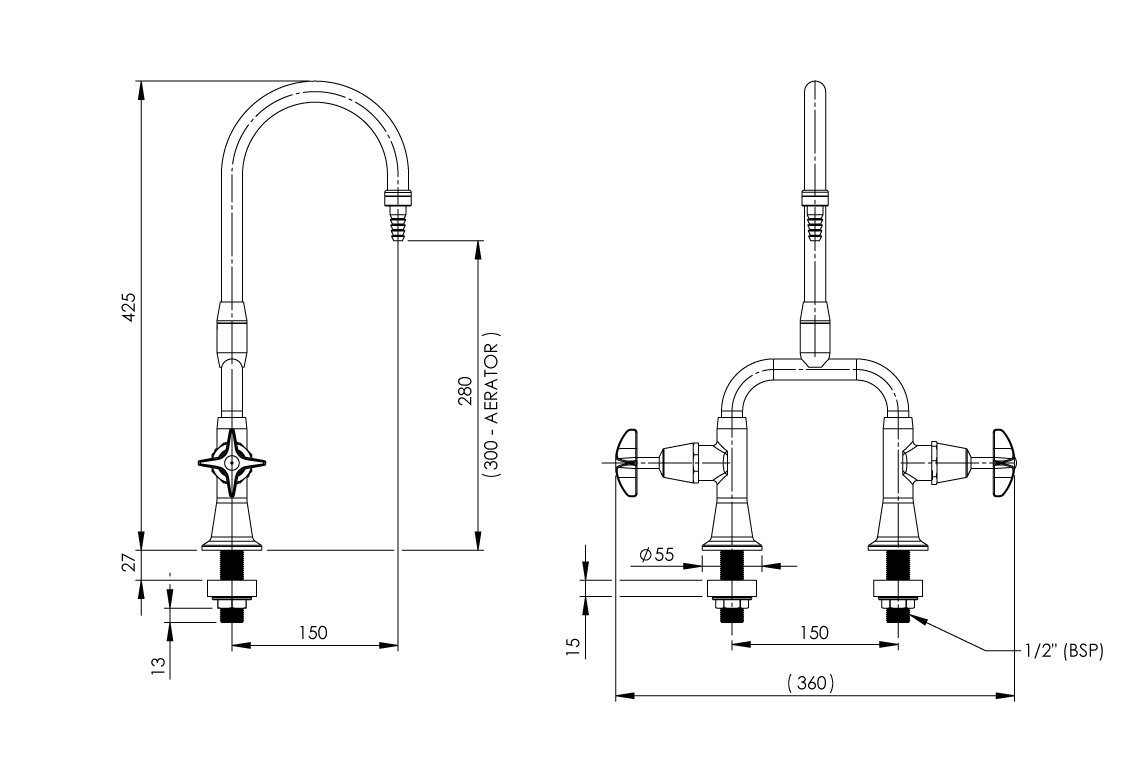

Dimensional Drawings
Product Information
