Meter Bracket Hydrus 2 20mm Sydney Water 1.28 Thread
Meter Bracket Hydrus 2 20mm Sydney Water 1.28 Thread
Product Code: EHM115-H2
Couldn't load pickup availability
Product description

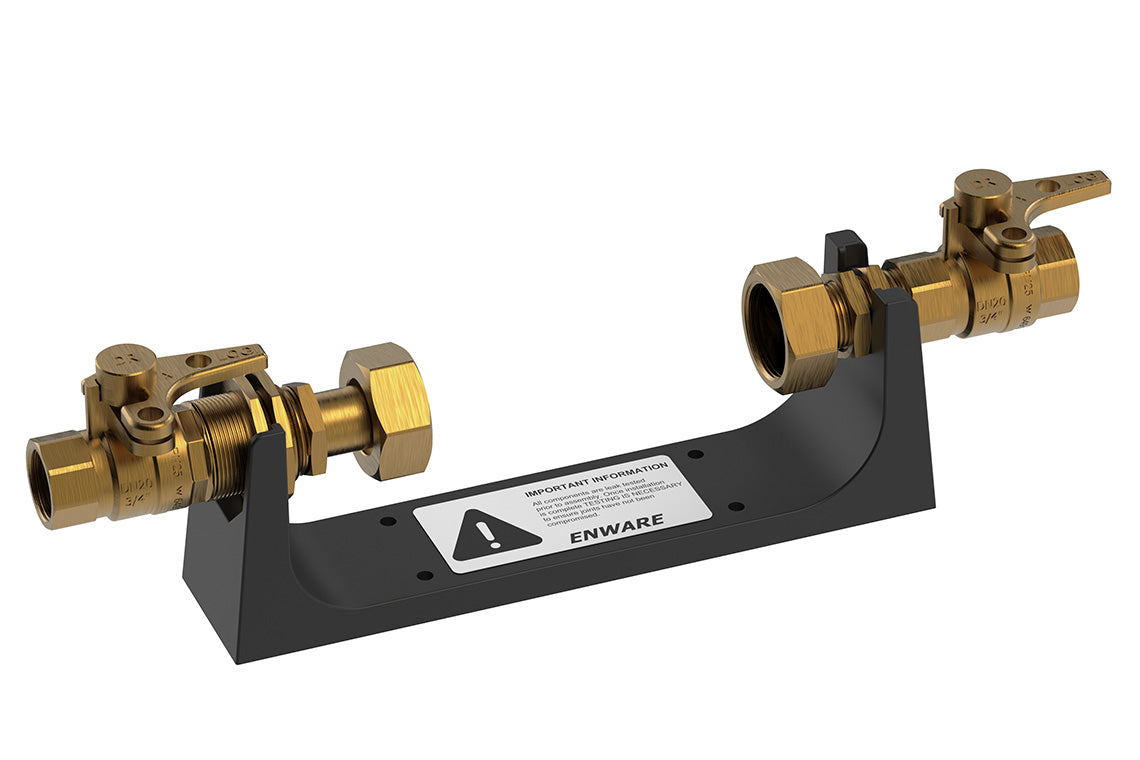

Polymer reinforced plastic base plate for meters, designed to withstand the test of time while also enabling optimum radio transfer from the meter into the surrounding environment, this product suits Hydrus 2 DN20 Meters 1.28 thread (EHM5020X1VR, EHM5020X1VR-SW)
Key Selling Points
- Made from polymer reinforced plastic
- Offers an enhanced signal strength over existing metal plate brackets
- Safer for the installing plumber with no sharp edges
- All fittings are made of brass and are compliant to Australian Standards and Sydney Water connection requirements
- Inlet Connection
- 20mm (3/4” BSP) female
- Outlet Connection
- 20mm (3/4” BSP) female
BIM Files
Brochures

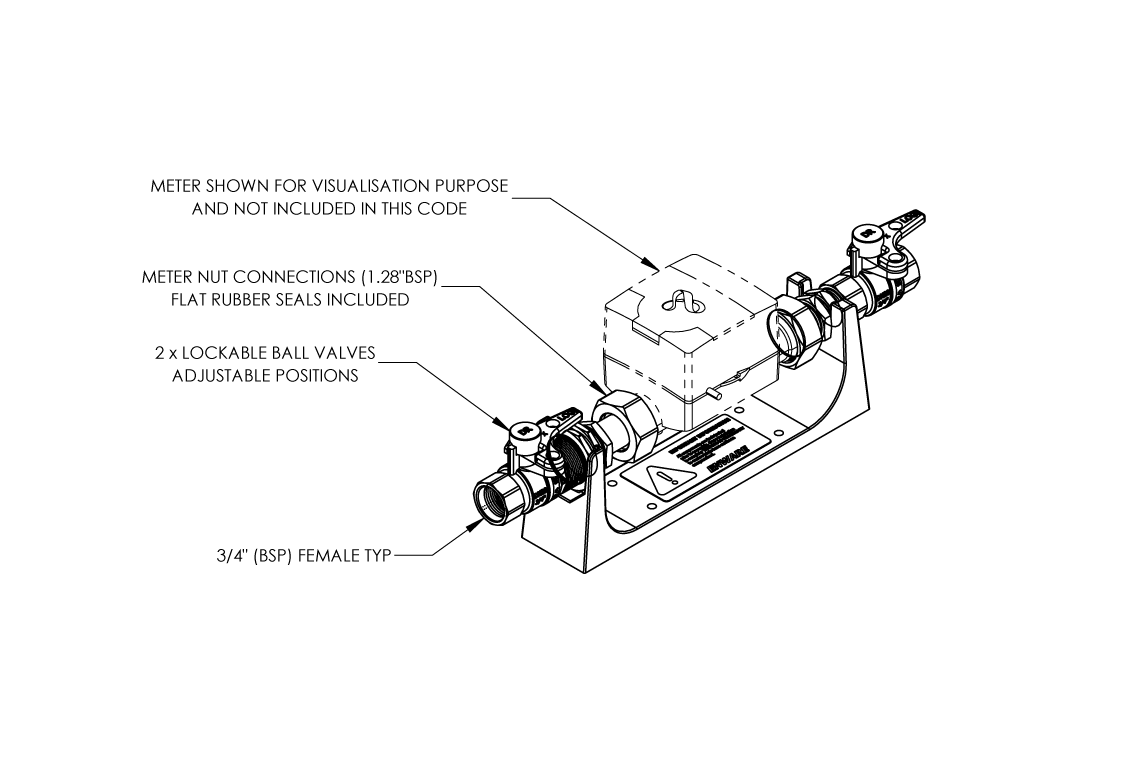

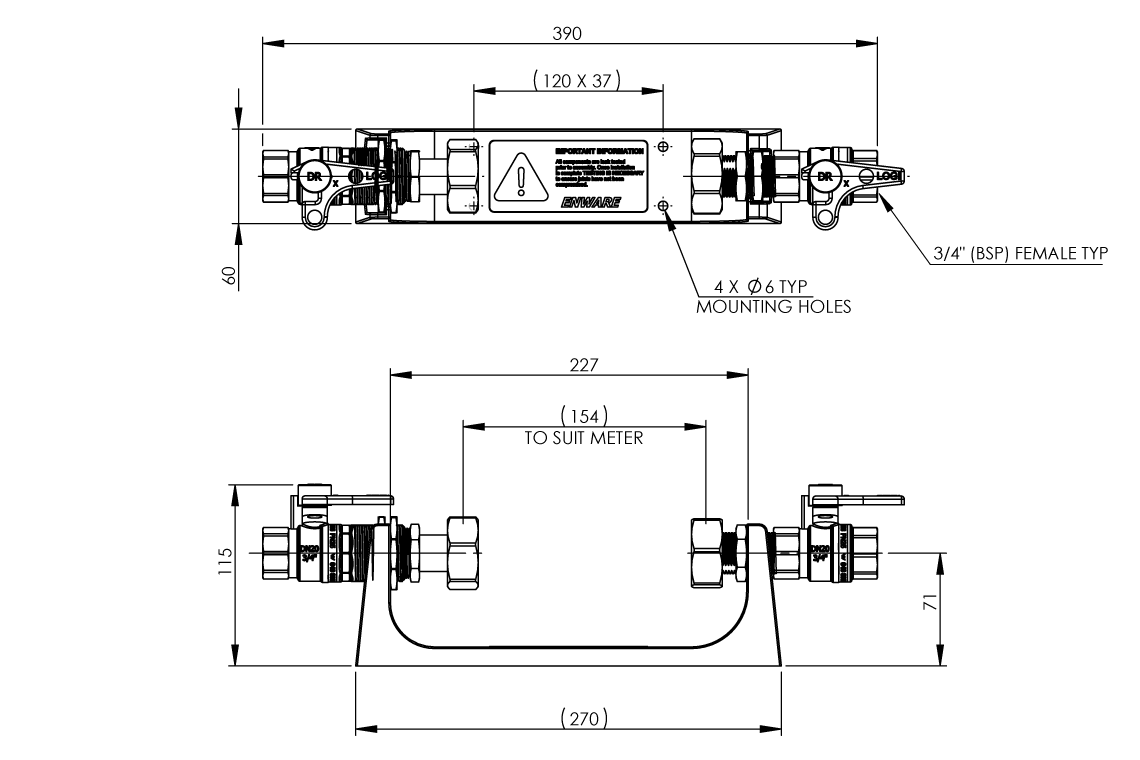

Dimensional Drawings
Product Information
