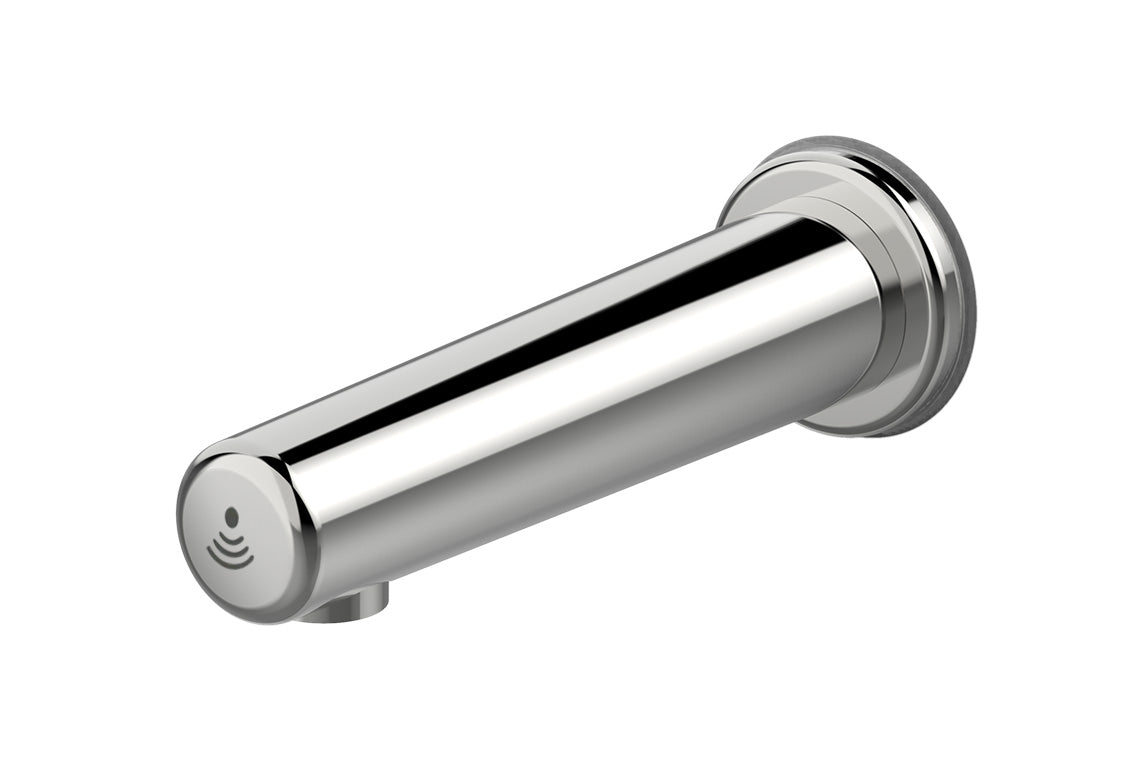

Oras: Electra Integrated Wall Sensor Spout - 185mm Spout
Oras: Electra Integrated Wall Sensor Spout - 185mm Spout
Product Code: ENM6186
Couldn't load pickup availability
Product description
** Discontinued product ** Hygienic and easy to use touchless sensor tap with Bluetooth Connectivity. Suitable for cold or pre-mixed water. Easy to clean and service with all components inside the spout which can be removed. No in-wall components. It is ideal for offices, commercial amenities, health care and education.
Key Selling Points
- No external parts or battery packs
- Bluetooth connectivity via the Oras App can control the following functions - - Automatic Flush cycle (stagnation management) to reduce risk of bacterial growth - usage monitoring and reporting - battery life - flow time - - - - ----- Autofocus sensor range and sensitivity adjustment - cleaning mode
- Low battery warning indicator
- Long battery* life
- Integrated isolation valve
- Laminar flow aerator minimising the risk of the spread of microbes
- Anti-vandal
- Suitable for cold or mixed water
- Supplied with blue and yellow colour indicator on wall flange
- Ideal for retrofit
- Suitable for controlled hygienic Thermal Flush up to 70°C
- 2x Lithium battery AA 1.5V
- Reach can be extended by the use of ATMS670 (28mm extra to 213mm)
- Standard WELS (Stars)
- 6
- Standard WELS Flow Rate (L/min)
- 5.5
- WELS Category
- Tapware
- Minimum Recommended Temperature (Deg C)
- 5
- Maximum Recommended Temperature (Deg C)
- 43
- Maximum Water Temperature (Deg C)
- 70
- Minimum Recommended Pressure (kPa)
- 100
- Maximum Recommended Pressure (kPa)
- 500
- Primary Flow Rate (L/min)
- 5.5
- Inlet Connection
- 1/2" BSP Female
- Finish
- Chrome
- Power Supply (AC/DC)
- Battery
- Power Supply (V)
- 1.5
- IP Rating
- IP55
BIM Files
Brochures

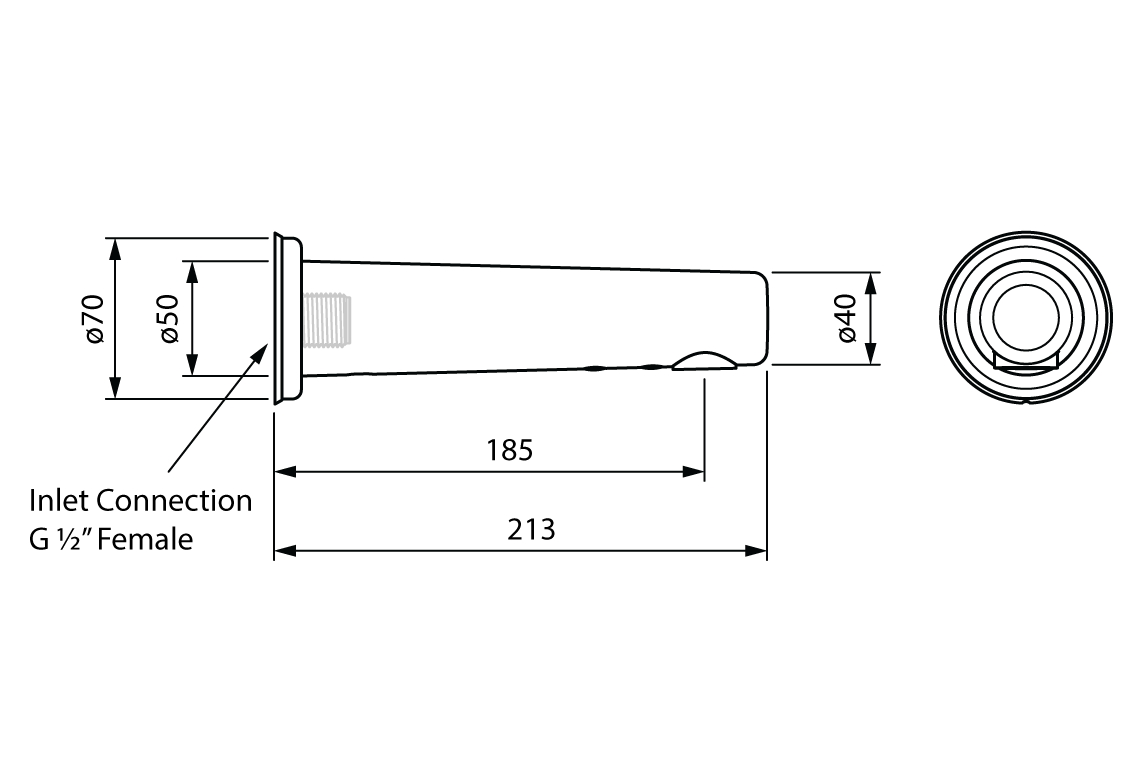

Dimensional Drawings
Product Information
