Single Button Control Kit: Front Access for In Wall Application
Single Button Control Kit: Front Access for In Wall Application
Product Code: EMD811SS
Couldn't load pickup availability
Product description
The water efficient Detention tapware series have been designed to provide a high level of security with the inclusion of vandal resistant features.
Key Selling Points

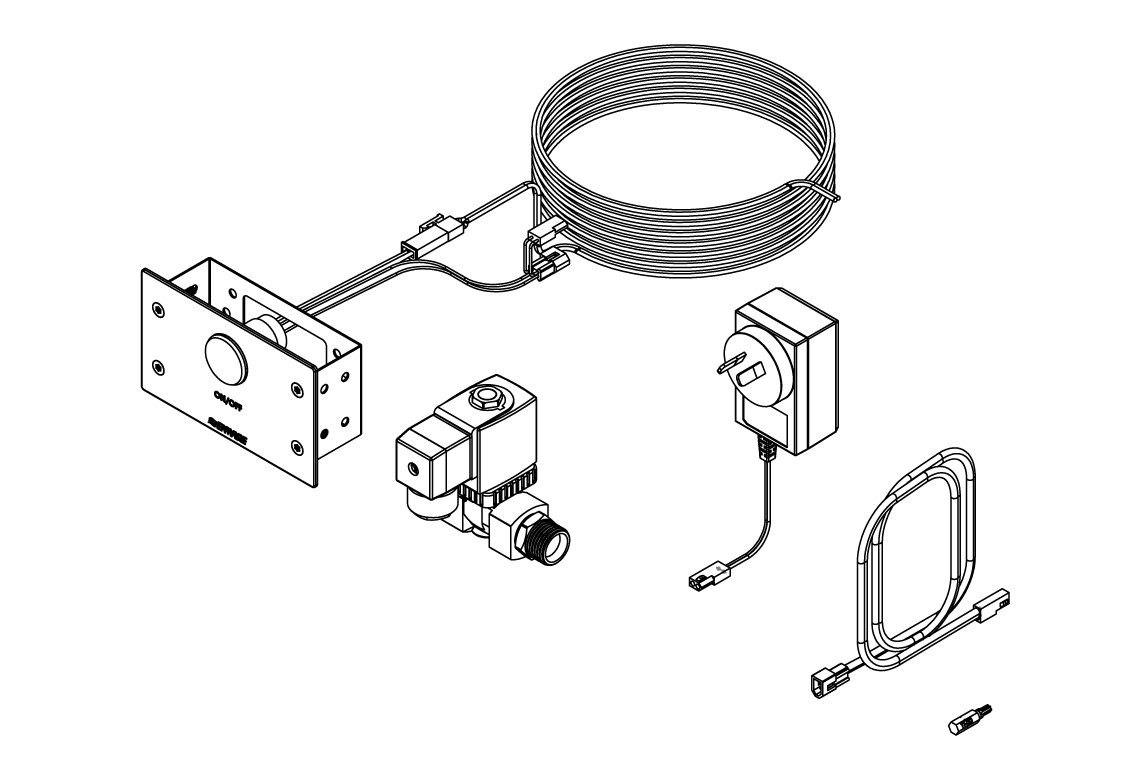

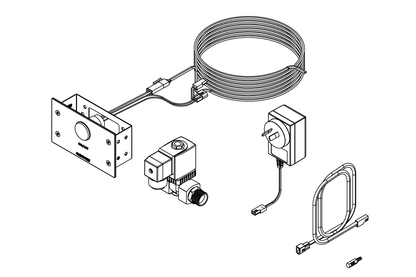

- Stainless steel face plate, in wall mounting bracket and secure screws
- Touch-activated Piezo button with 1/2" Stainless Steel solenoid valve
- 24V DC power pack and 4.5m cable requires 240V GPO
- Factory set run time, adjustable on site
- Factory set run time - 4 minutes with early stop enabled and 30 seconds time out
- Adjustable from 3 seconds up to 10 minutes run time, with lockout and touch off function
- Ideal for Detention, public areas, council and camping facilities.
- For Shower or Basin controls
- Suitable for Cold or Pre-mixed (warm water)
- IP68 Rated Piezo button
- Certifications
- WMKA1583 - LF,Lead Free
- Maximum Inlet Temperature (Deg C)
- 70
- Minimum Recommended Pressure (kPa)
- 50
- Maximum Recommended Pressure (kPa)
- 500
- Inlet Connection
- 15mm (1/2" BSP)
- Finish
- Brushed
- Power Supply (AC/DC)
- DC
- Power Supply (V)
- 24
- Power Supply Current (A)
- 1.25
- IP Rating
- IP68
BIM Files
Brochures

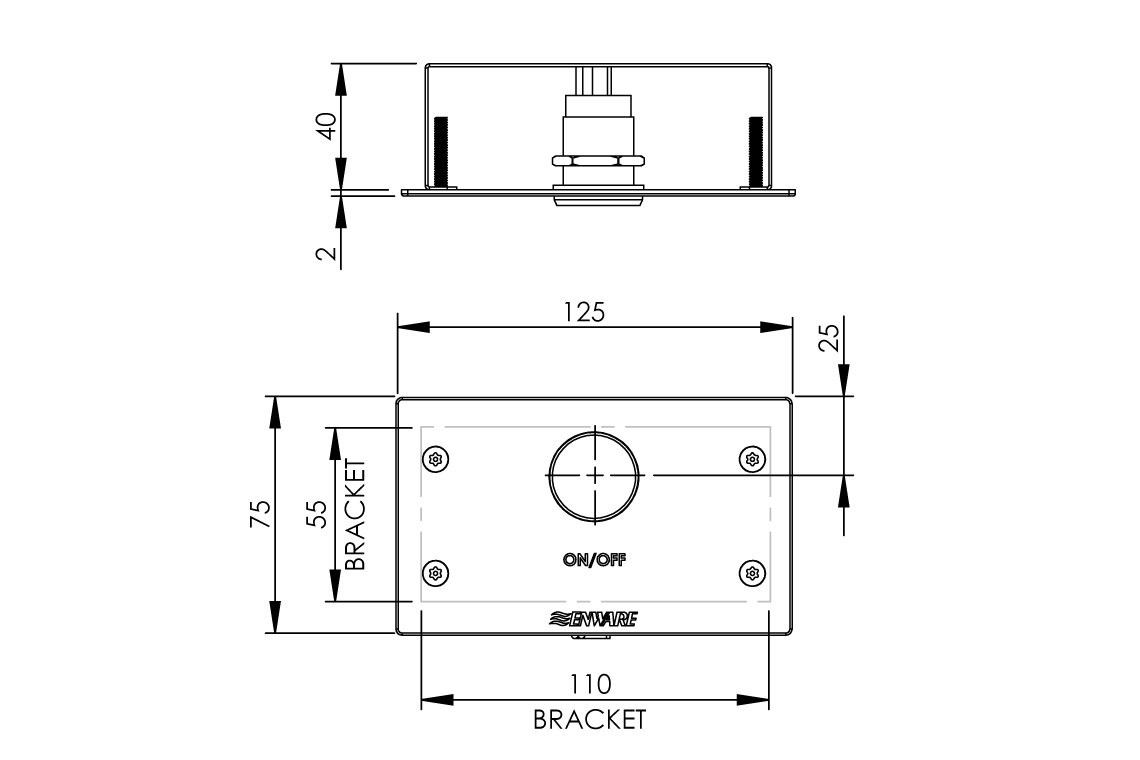

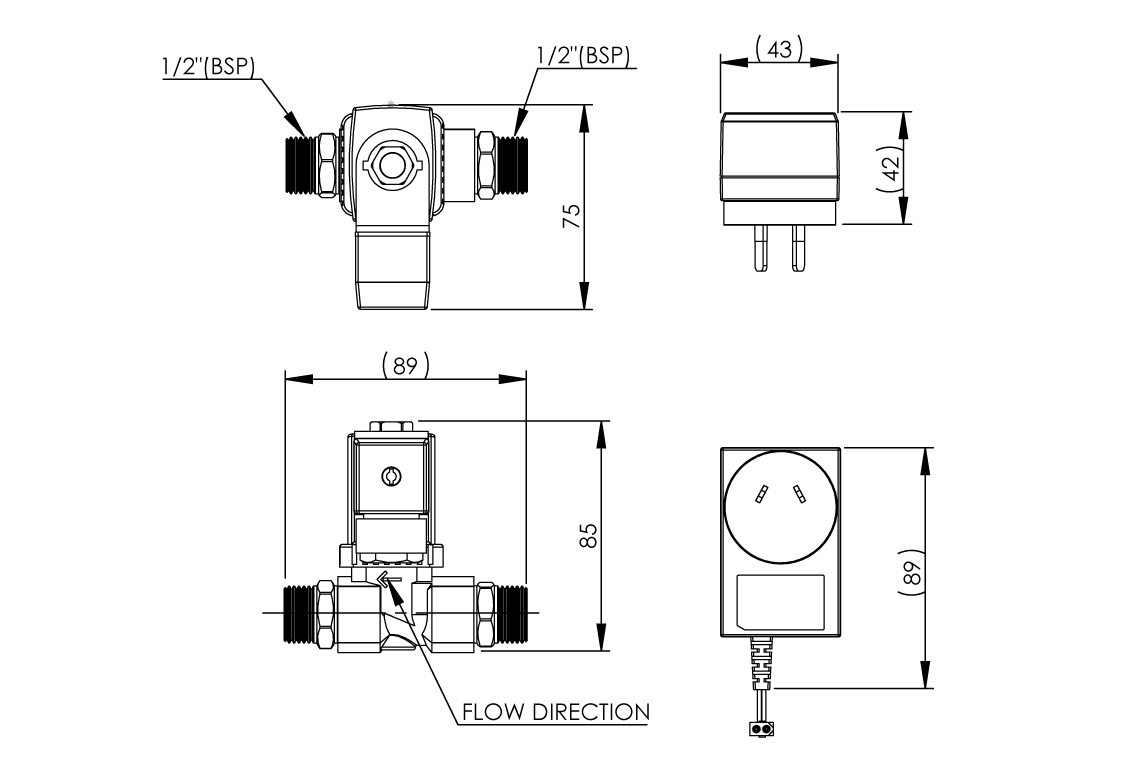

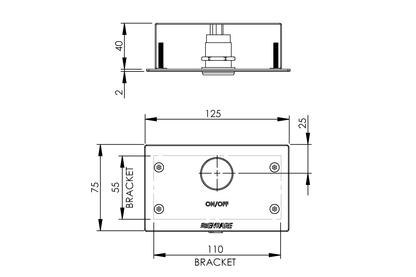

Dimensional Drawings
